5Z3847081 Volkswagen Fox 2005 Side window actuator - Free 3D Print Model

Search models, users, collections, and posts

Tomeszkomesz

Education>Engineering

IP Report

Print Profile(1)

All

P1S

H2C

P2S

X2D

H2D Pro

H2D

X1E

H2S

X1 Carbon

PA6-CF , 0.08mm layer, 4 walls, 30% infill

Designer

38 min

1 plate

Open in Bambu Studio

Boost

Released

Bill of Materials

Bambu Filaments

Select all

Black (72100) / Filament with spool / 0.5kg

PA6-CF

Description

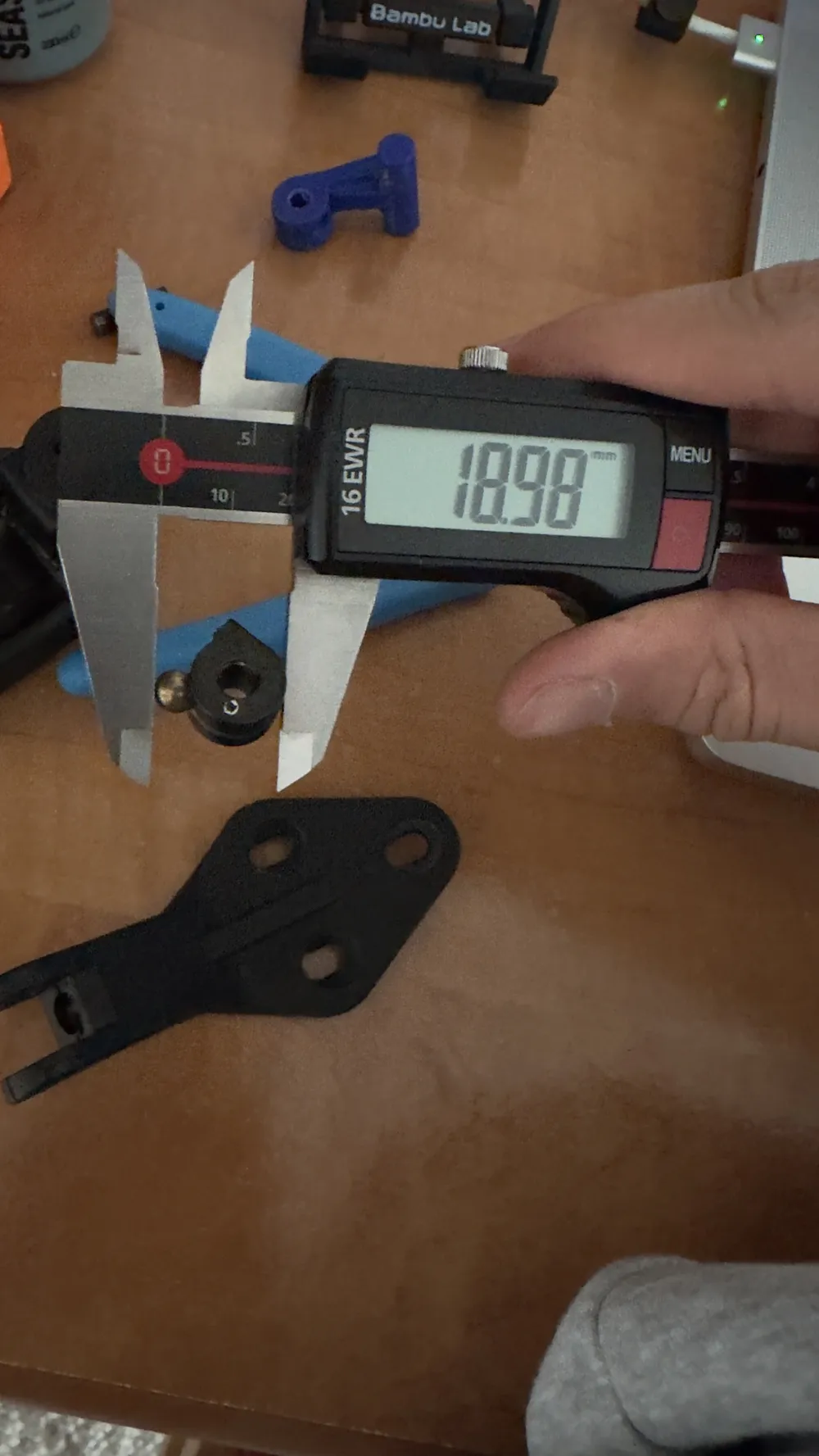

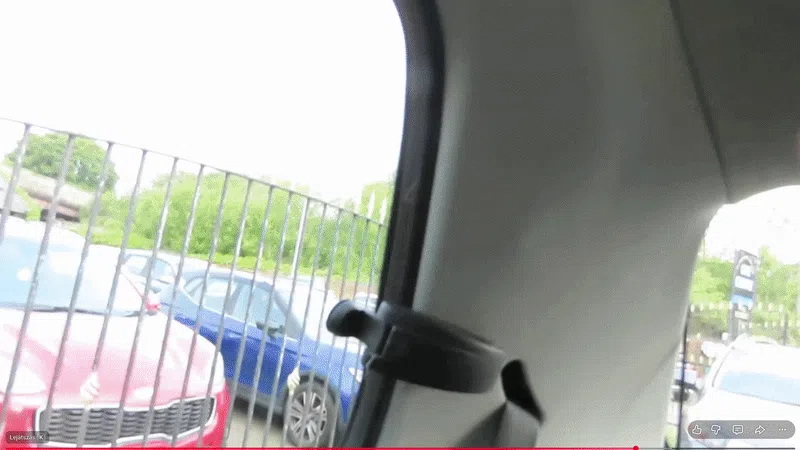

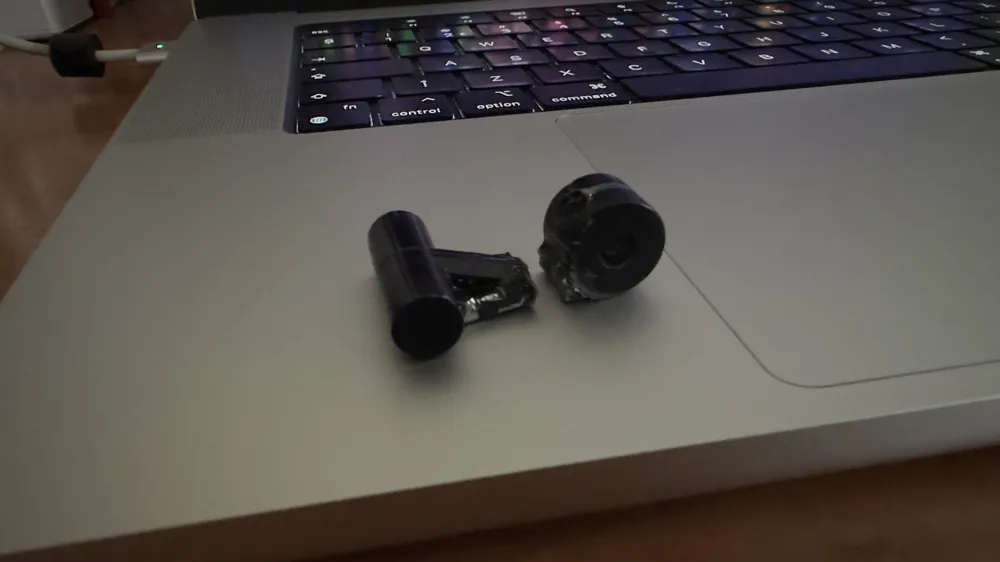

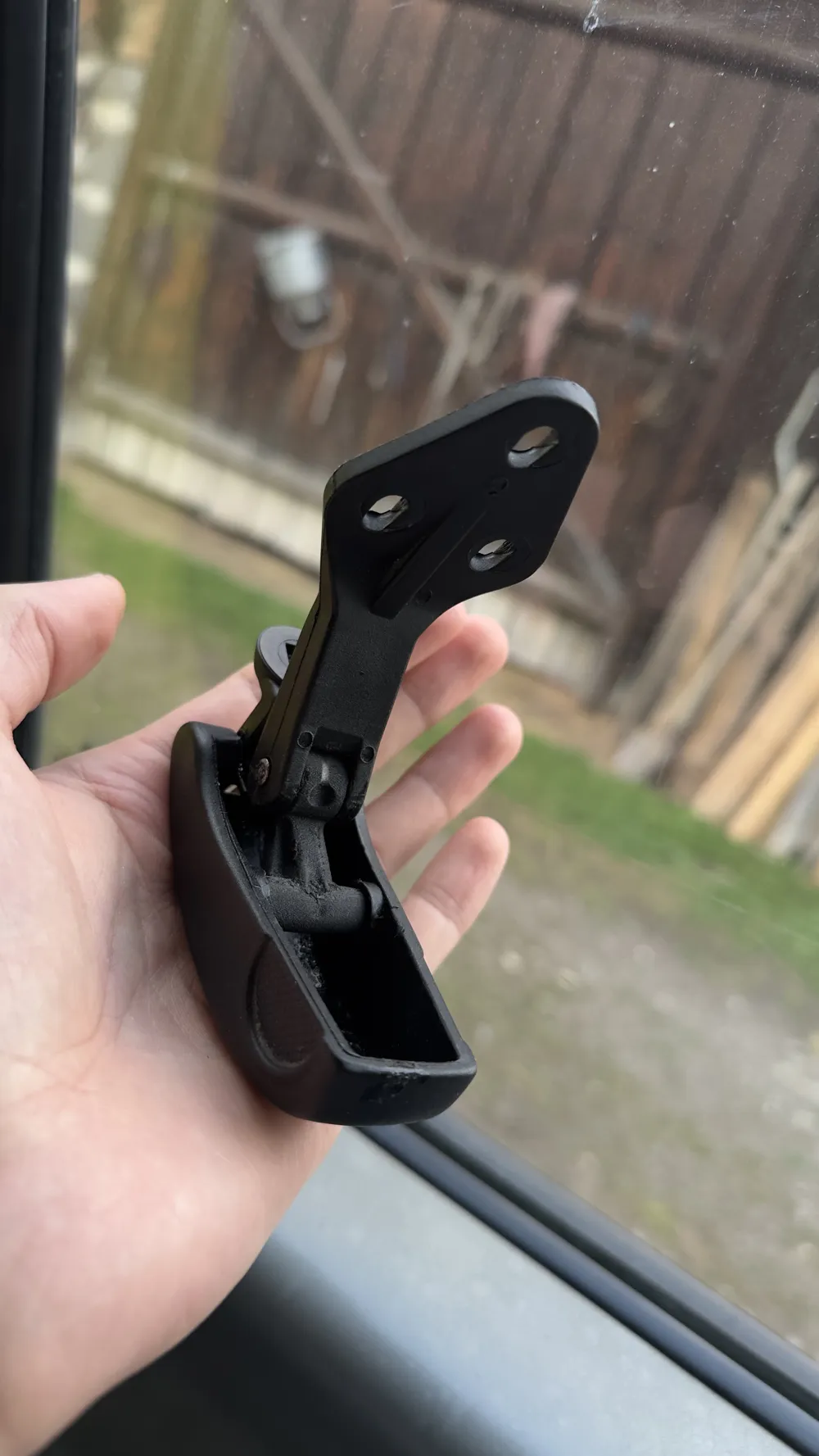

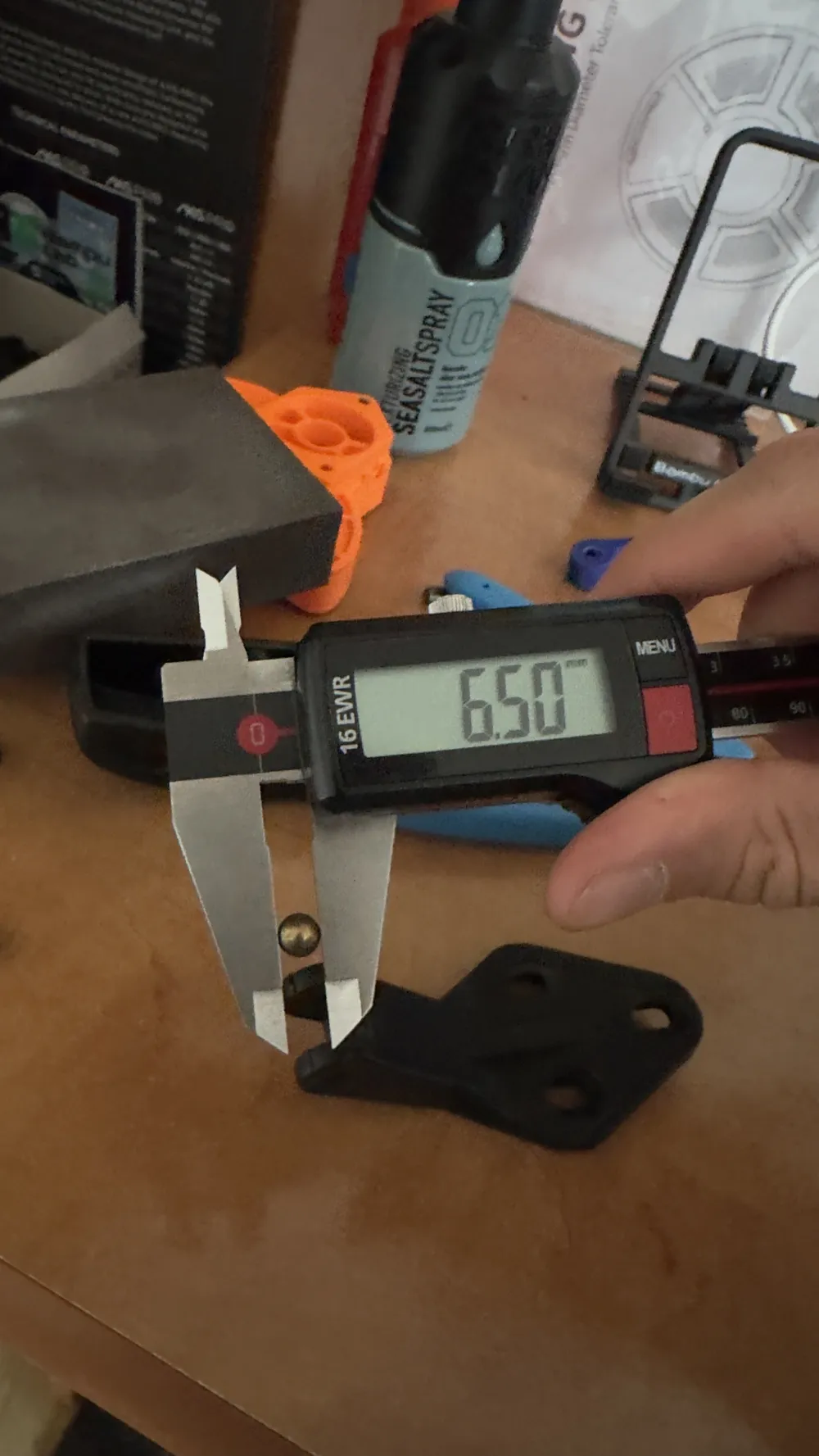

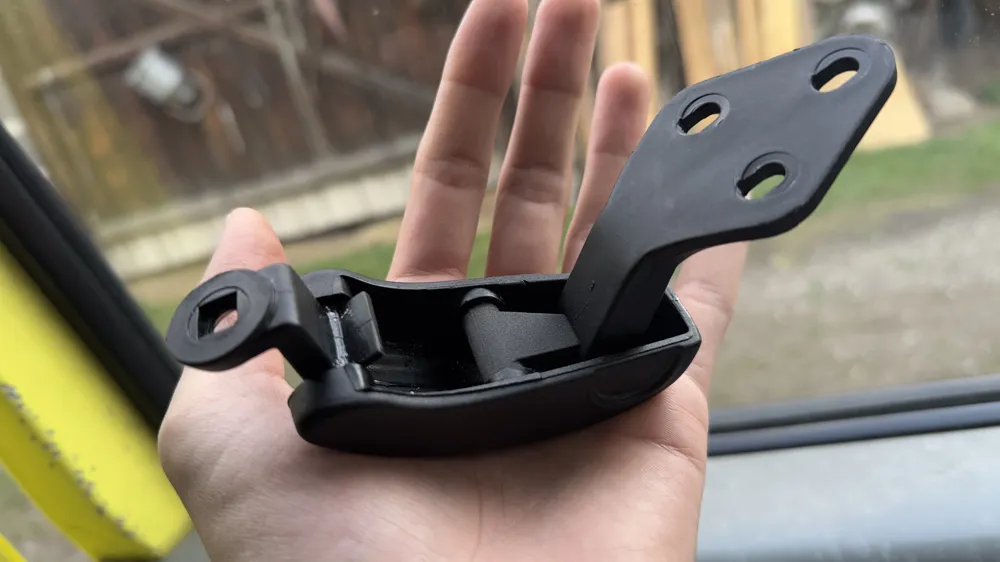

The original aluminum crank arm of the rear quarter window opening mechanism on the VW Fox tends to crack and break over time due to material fatigue. This part replicates the OEM geometry (Part No. 5Z3847081) and fully restores the window's open/latch functionality. Printed in PA6-CF (carbon fiber reinforced nylon), this replacement is actually stronger and more durable than the original aluminum part. Direct fit for VW Fox rear tilting window mechanism Part No. 5Z3847081 replacement Drop-in fit – no additional hardware required Tested and installed on a 2005 VW Fox

Note: Dry your filament before printing – PA6-CF is highly hygroscopic - Enclosure recommended for PA6-CF !!!
