Gridfinity Modo Solvent Box
Print Profile(1)
Description

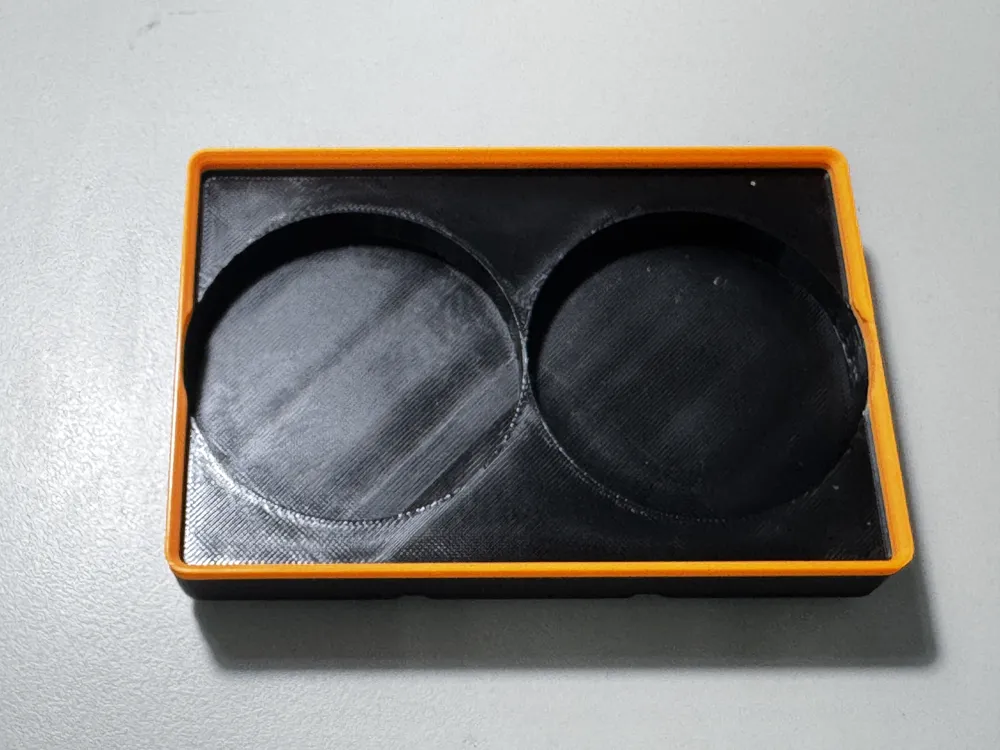

This is a paint/solvent storage box designed based on the open-source desktop organization standard Gridfinity.

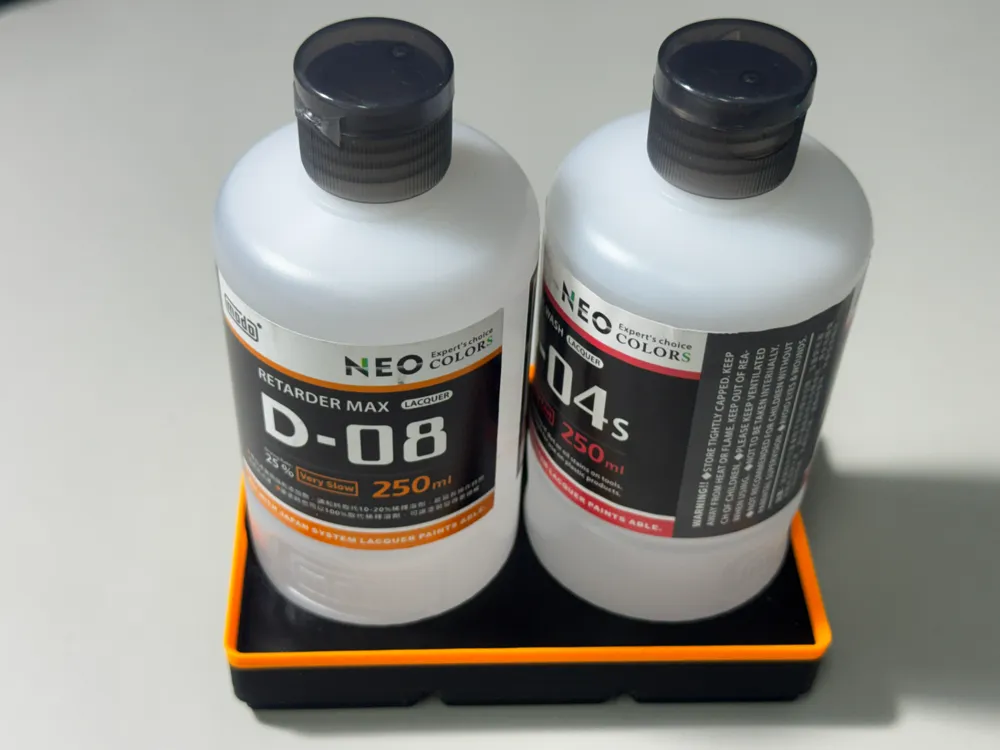

- Exclusive Design: Perfectly accommodates 2 bottles of modo New Generation Series S version (250ml) nitro model paint thinner or paint.
- Dimensions: Standard Gridfinity 2x3 specification, with a standard snap-in slot at the bottom to perfectly fit into your Gridfinity base.
- Practical Details: The edges of the circular holes feature a thoughtful finger-groove design, so even when the storage box is full, solvent bottles can be easily retrieved with one hand without getting stuck.
⚙️ Recommended Print Parameters / Print Settings
This model has been optimized for Bambu Lab series printers, and it is recommended to download the .3mf file for one-click printing:
- Filament Material: PLA (It is recommended to choose a color that matches your workshop style)
- Layer Height: 0.2 mm
- Wall Loops: 2 - 3 loops (2 loops balance speed and strength)
- Infill Density: 15% Gyroid or Grid
- Supports: Not required. The bottom snap-in slots have been optimized and can be printed directly without supports.
- Brim: Not required. Can be enabled if warping is a concern.
🧩 Assembly and Usage Instructions / Assembly Instructions
- Direct Placement: After printing is complete, it can be placed directly onto an existing Gridfinity base.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
