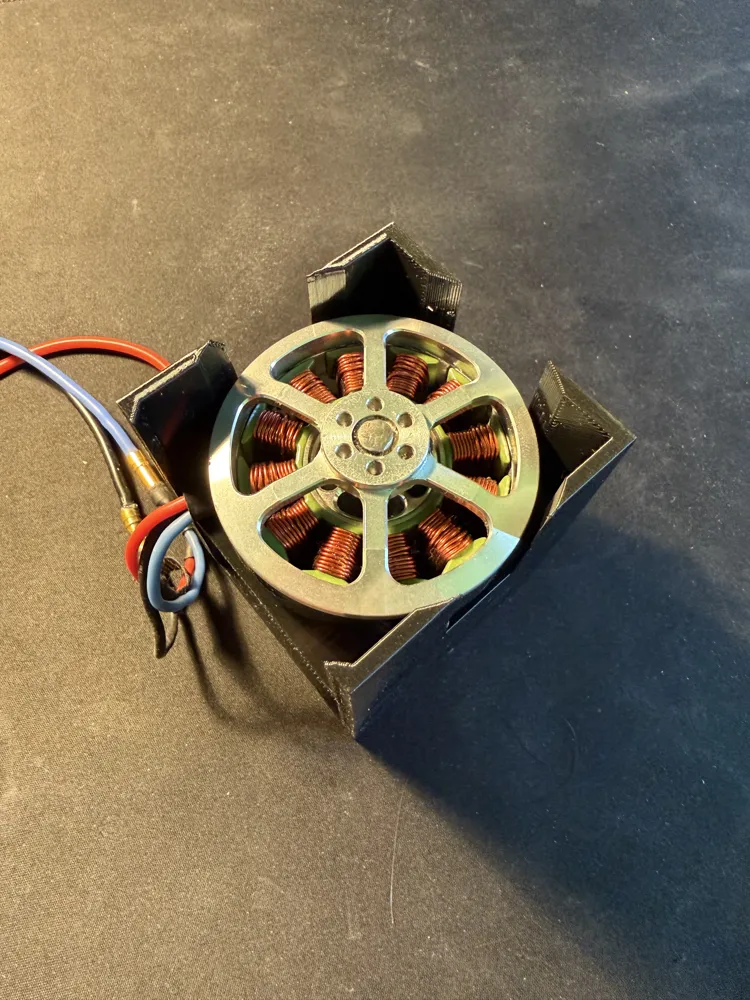

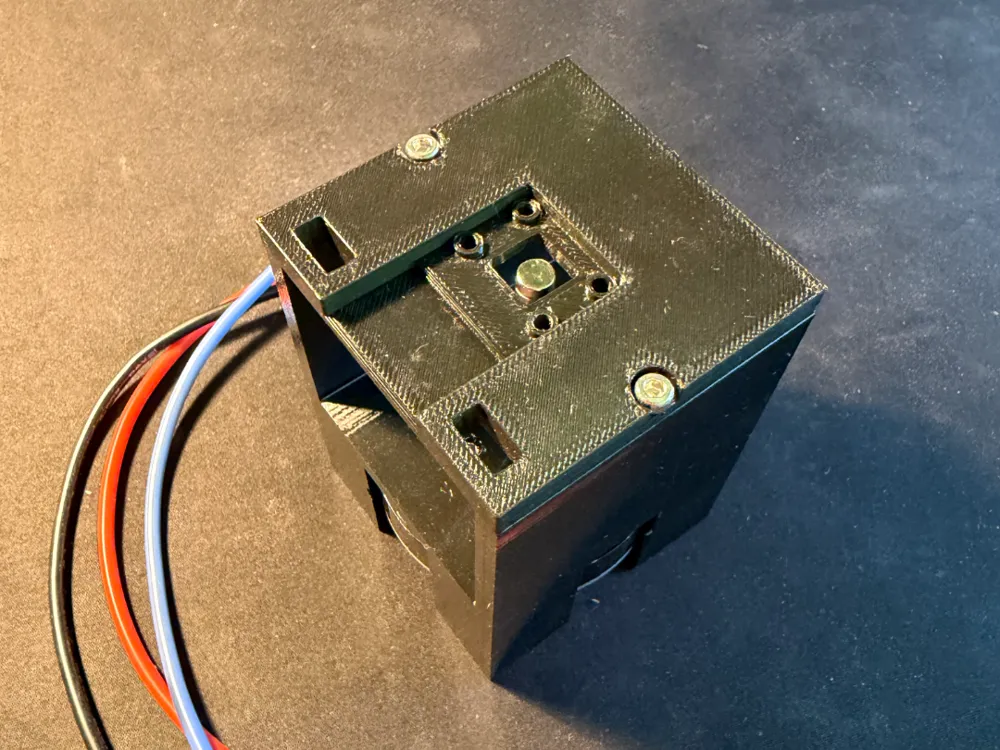

A simple mount for testing a 5008-class motor – in my case, a 400KV motor in a closed-loop system. It features a mount for the AS5047P magnetic encoder.

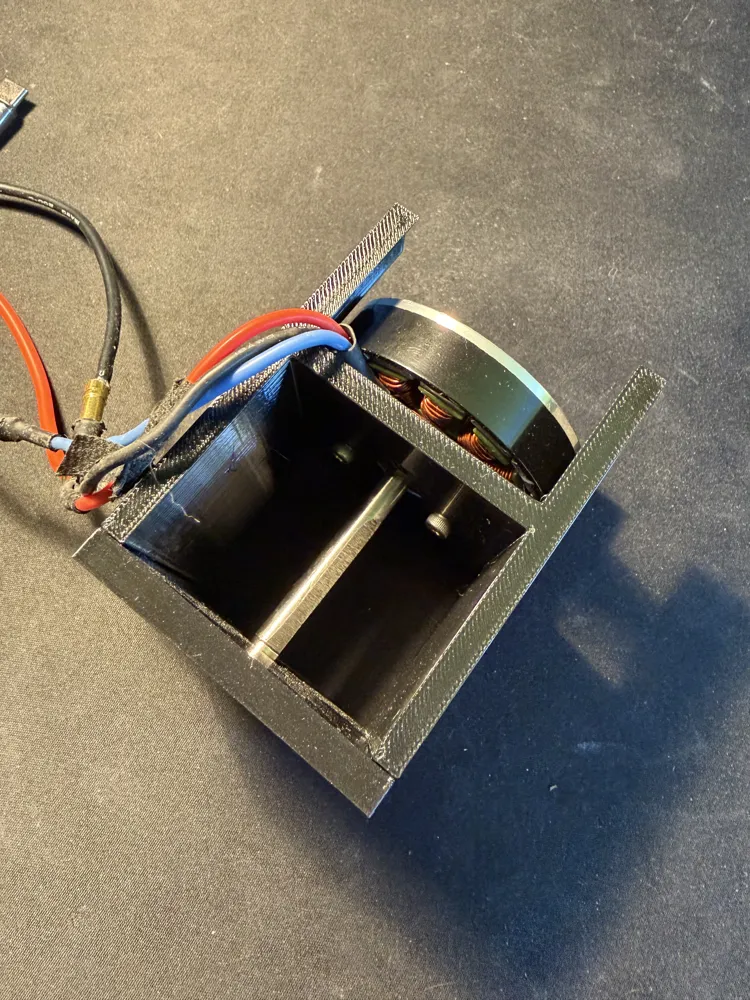

The 3D model has been designed for 3x6mm spline and a shaft length (total): ~60mm.
This helps with testing new designs related to robotic actuators.
