TP4056 Lithium Battery Charging Module Case
IP Report
Print Profile(2)
0.16mm layer, 3 walls, 30% infill
Designer
28 min
1 plate
0.16mm layer height, 3 walls, 30% infill
Designer
31 min
1 plate
Open in Bambu Studio
Boost
19
63
0
0
29
16
Released
Description
Content has been automatically translated.
[Note] Please print the fix_1 version. The previous version won't fit if printed directly because the filament preset's shrinkage factor was changed to 98% at some point.

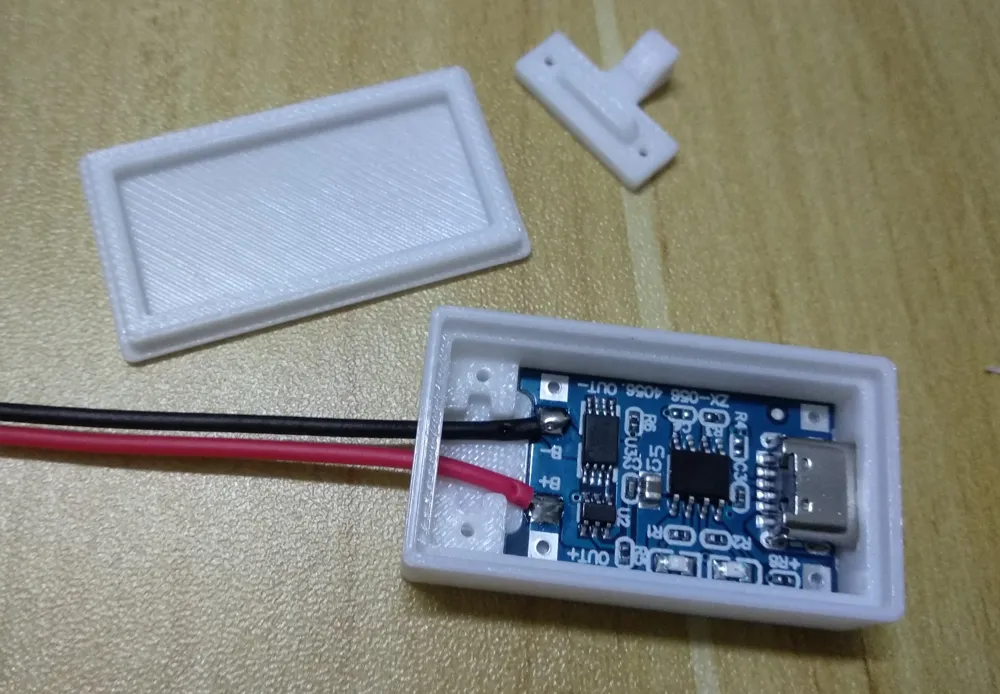

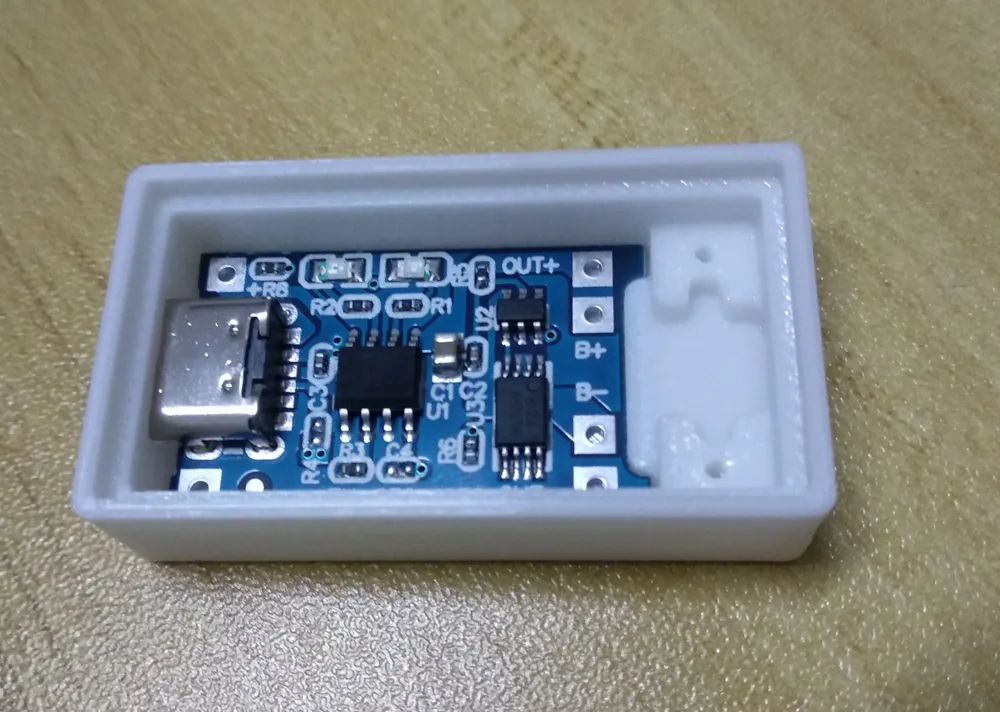

It consists of a housing, a cover, and a small press block.

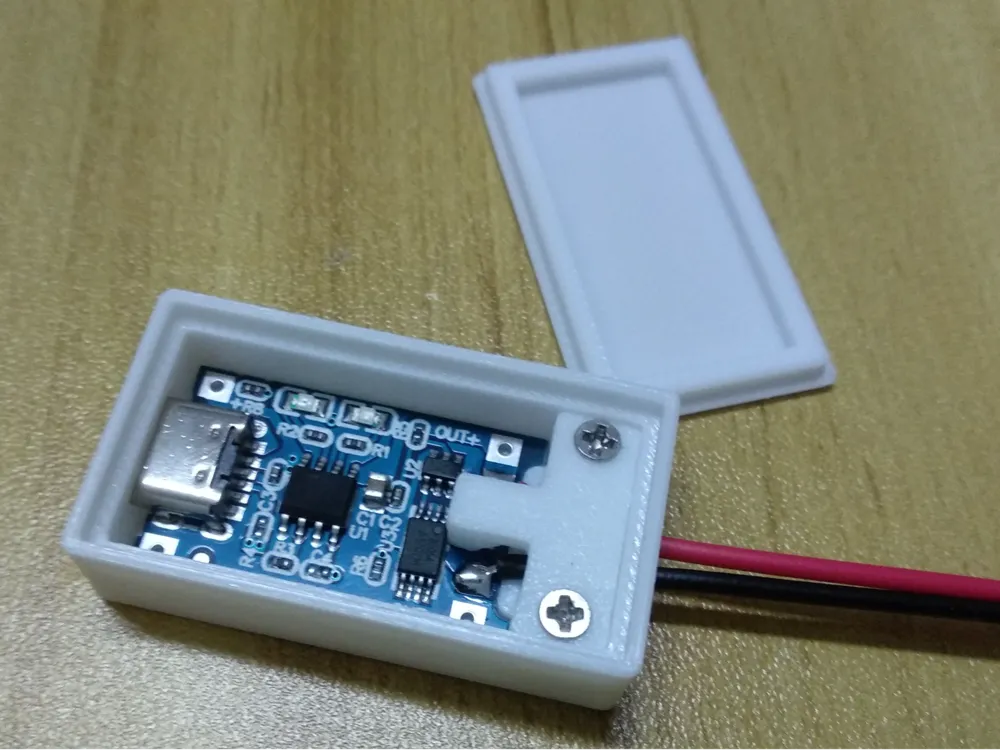

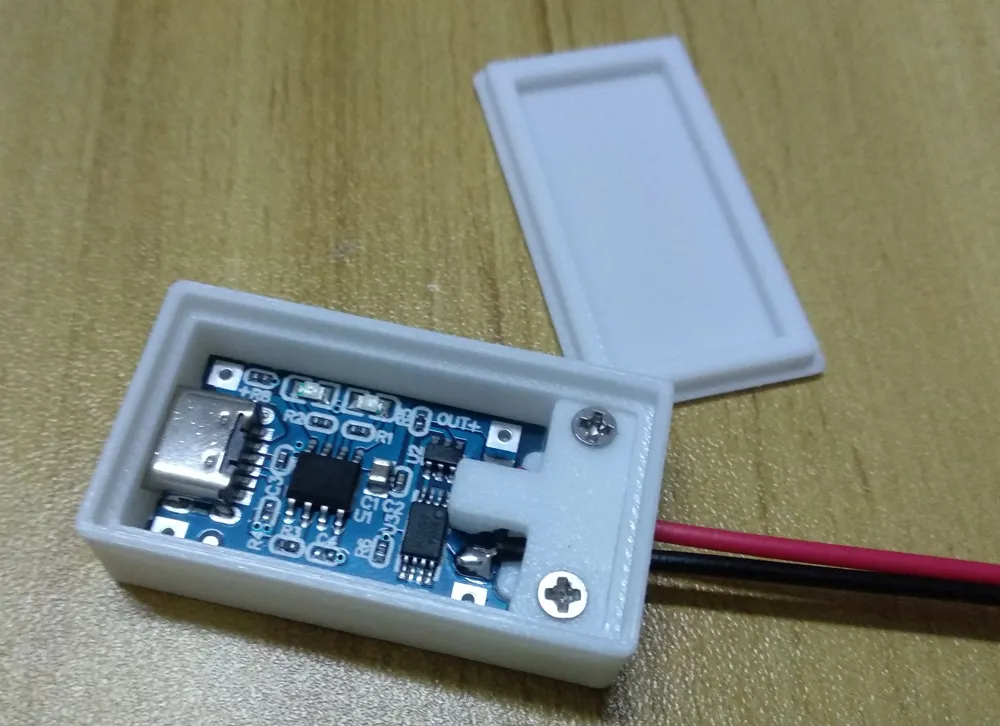

It's actually a pretty tight fit, so the press block might not be needed. Its main purpose is to secure the wire and prevent it from being pulled off.
The screw is M2*6.
