Description

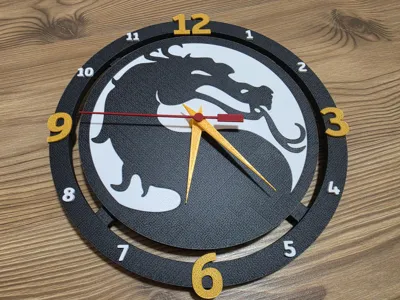

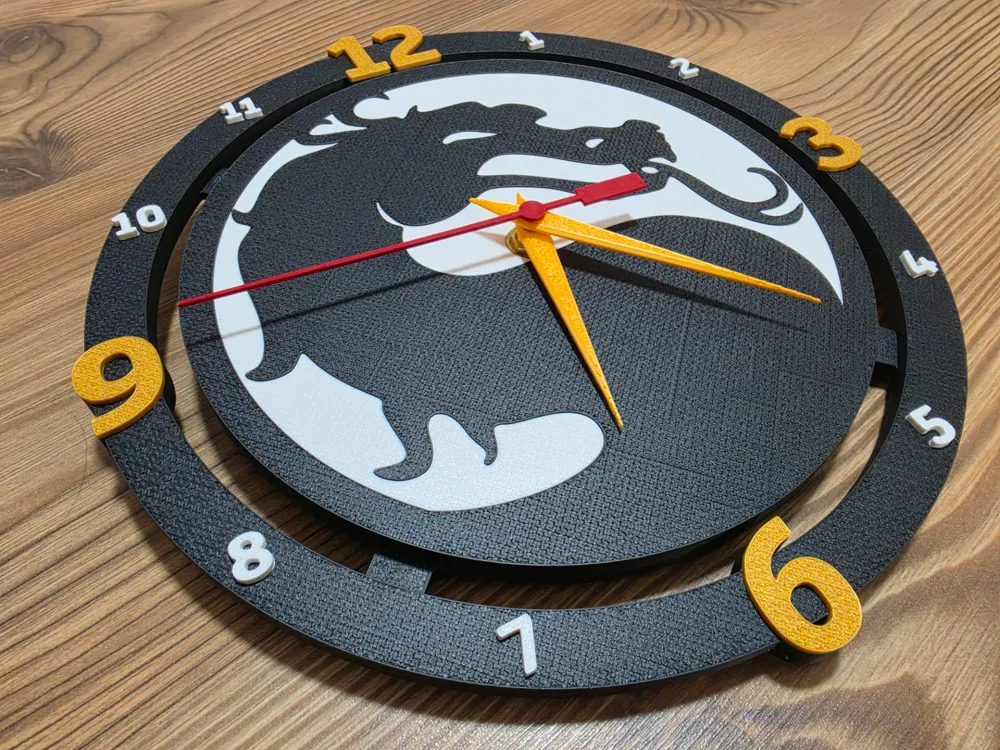

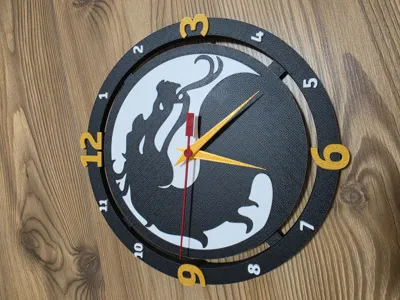

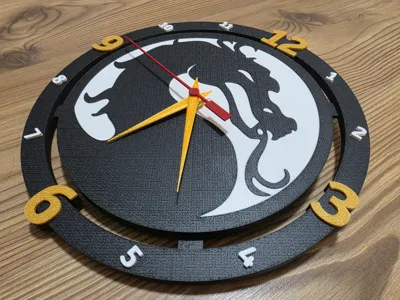

Iconic Mortal Kombat logo turned into a functional and stylish wall clock! This design uses layered elements to create a stunning 3D effect that will stand out on any wall.
Perfect project for multi-color printing (AMS).
🛠️ Print Settings & Recommendations
- Printer: Optimized for any 3D printer (220x220 mm bed and larger).
- Filament Type: PLA.
- Layer Height: 0.2 mm (recommended for clean texturing).
- Infill: 15% (Gyroid or Grid).
- Walls/Perimeters: 2-3.
- Top/Bottom Layers: 7.
🎨 Color Guide & Filament Changes
You can print this using Bambu Lab AMS.
- Base Ring & Clock Face Background: Black (Texture PEI plate recommended for a premium surface look).
- Dragon Logo Background: White.
- Accents (12, 3, 6, 9 numbers): Gold, Yellow, or Glitter Filament.
- Hands: Gold/Yellow (Hour & Minute) + Red (Second hand).
⚙️ Hardware Required
To make this a fully functional clock, you will need a standard quartz clock movement mechanism:
- Shaft Diameter: Standard ~8mm.
- Shaft Length: 12-15mm (depending on your final backing thickness).
- Battery: 1x AA.
