multiGP tiny whoop gate system
Print Profile(1)
Description

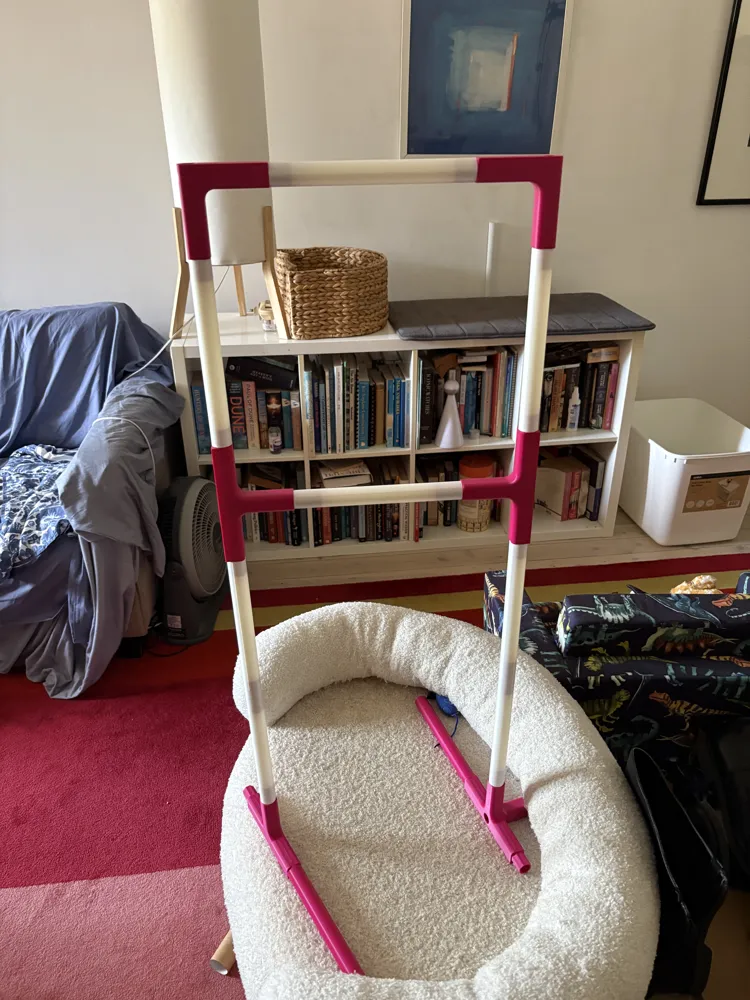

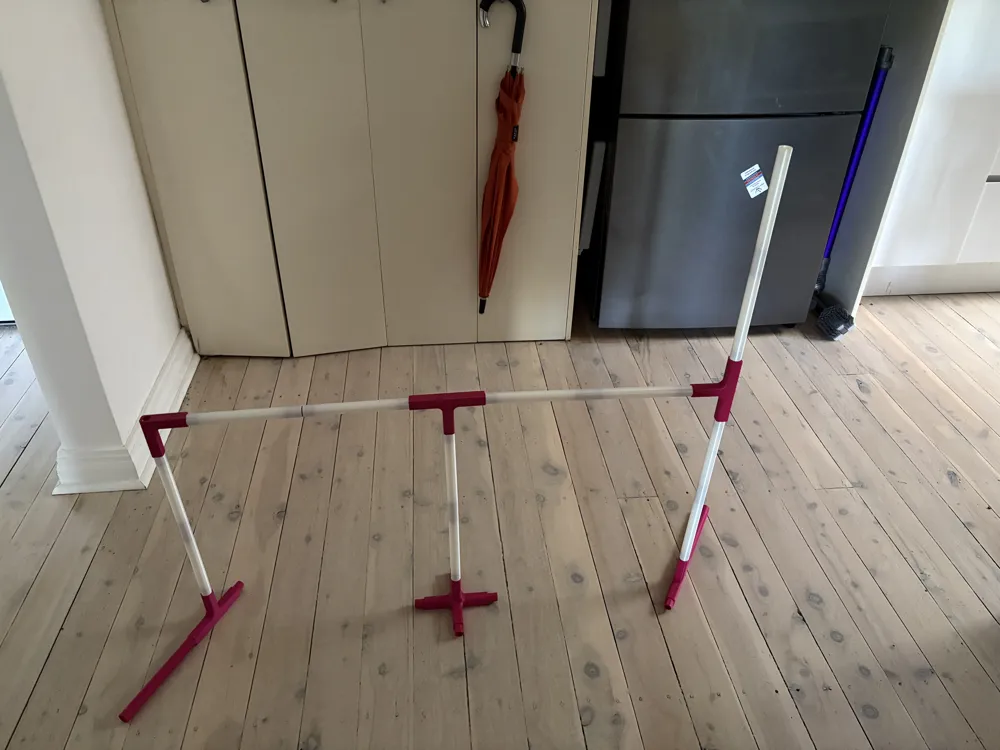

Tiny Whoop gate system that meets the MultiGP whoop spec of 483mm x 483mm
recommend printing the tubes in white then you can lace leds through the system.

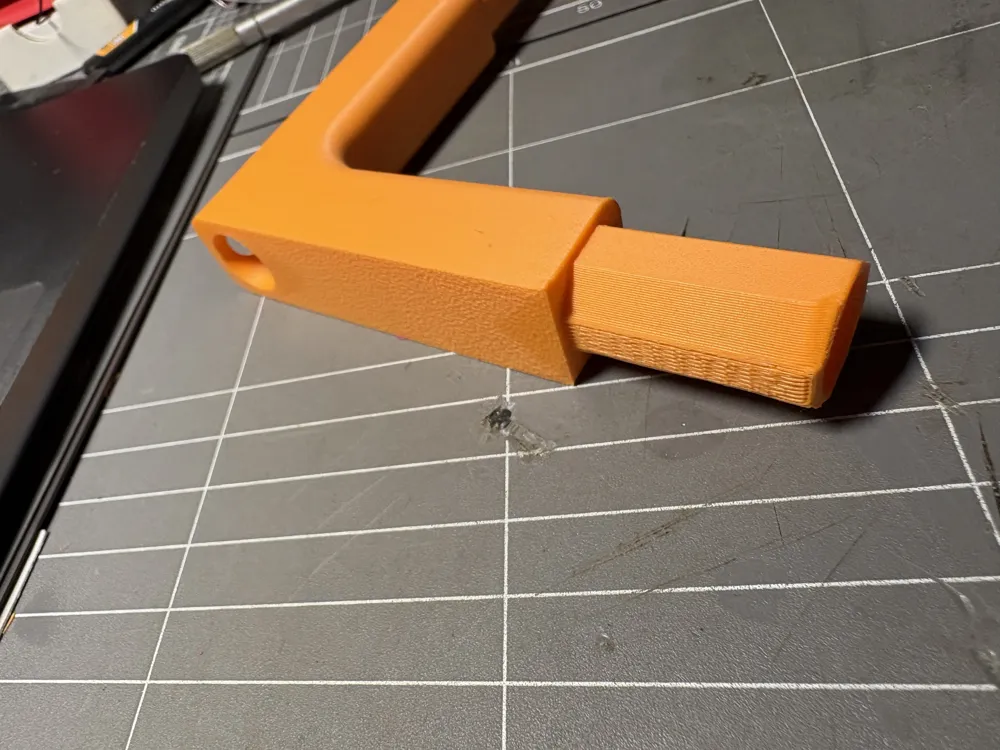

You may have to clean up the corners of the supported connectors to get a fit thats not to tight

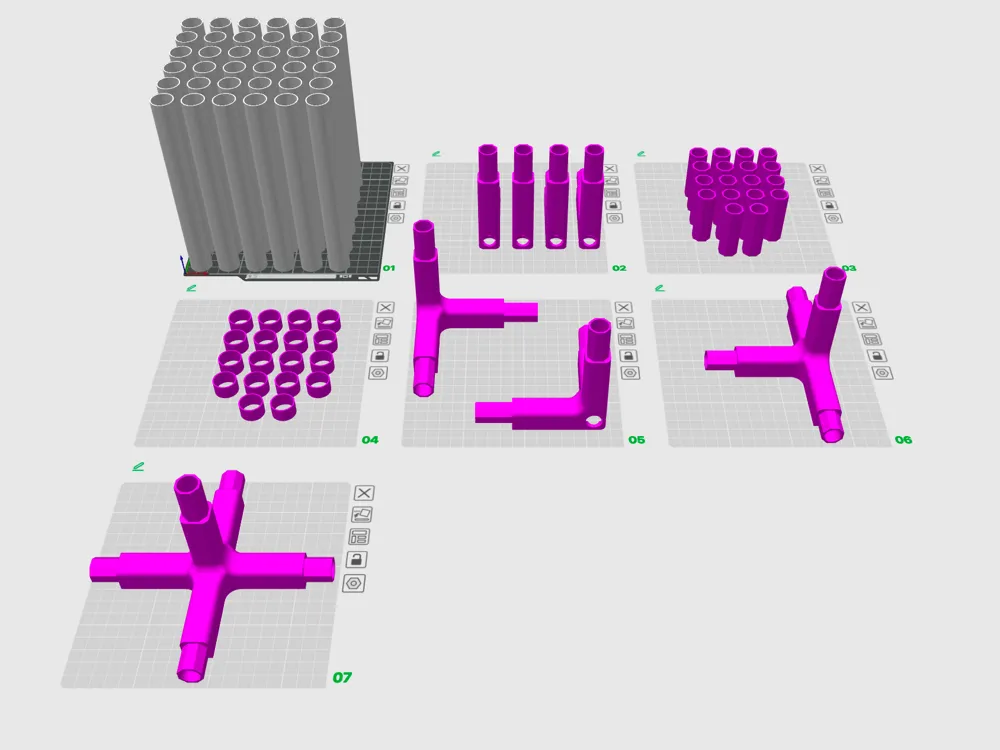

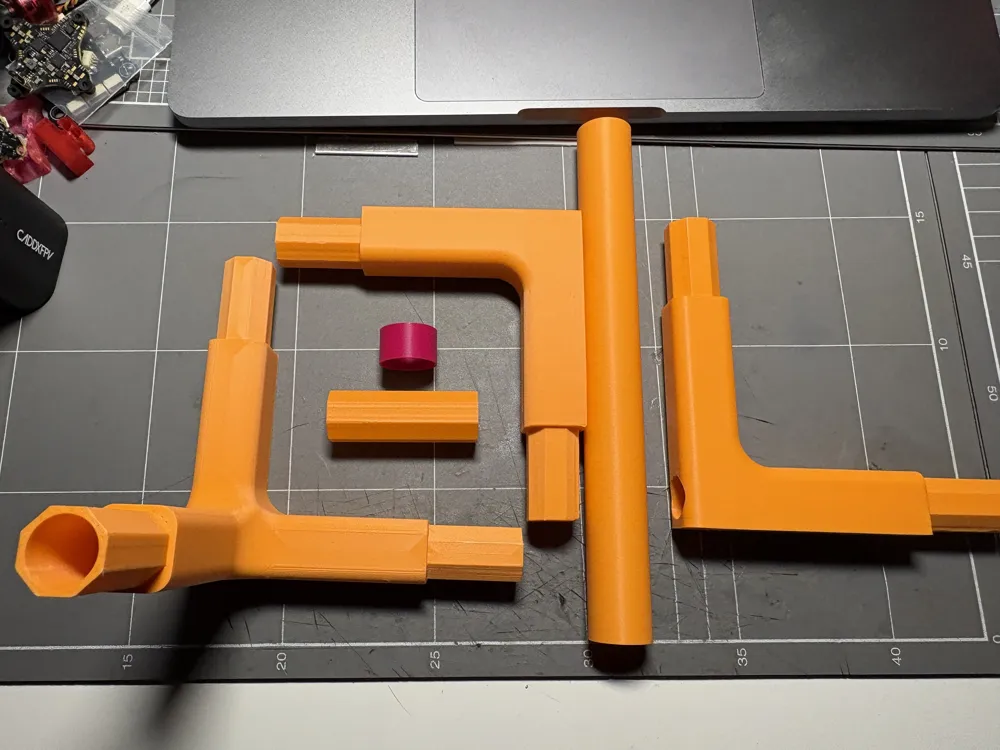

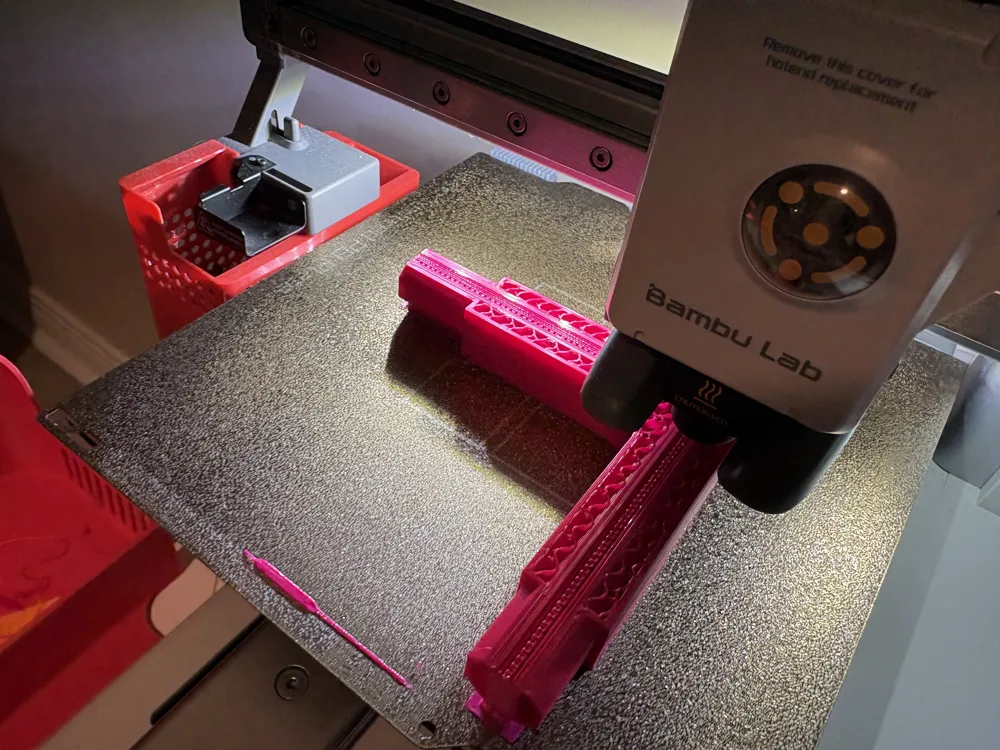

the tube system is connected via the connector with the 12mm spacers in the middle. This was needed to fit the system on my A1 mini, if using a larger printer make the tubes 6mm longer each and don't use the spacers.. Could also be resized to suit the IGOW spec as well with out much fuss. The tube plate makes enough for 18 connected tubes and runs around 480g of PLA so the whole system can be printed for around 1 roll of PLA , CHEEEP
will upload more photos once i have the whole system printed.
