Glock 17 Prop Mechanical Disassembly and Assembly Model Toy G17 Articulated Safe Model

Hollowed-out G17 Disassembly & Assembly Model Glock 17 Full-Scale Articulated Model Toy |

Design Features

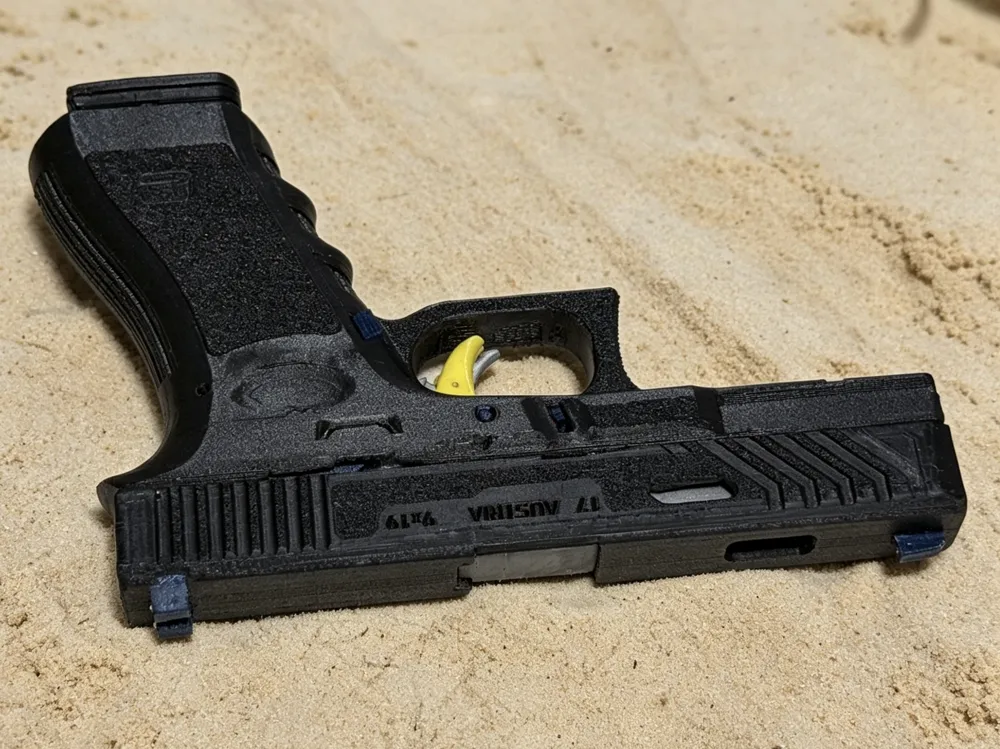

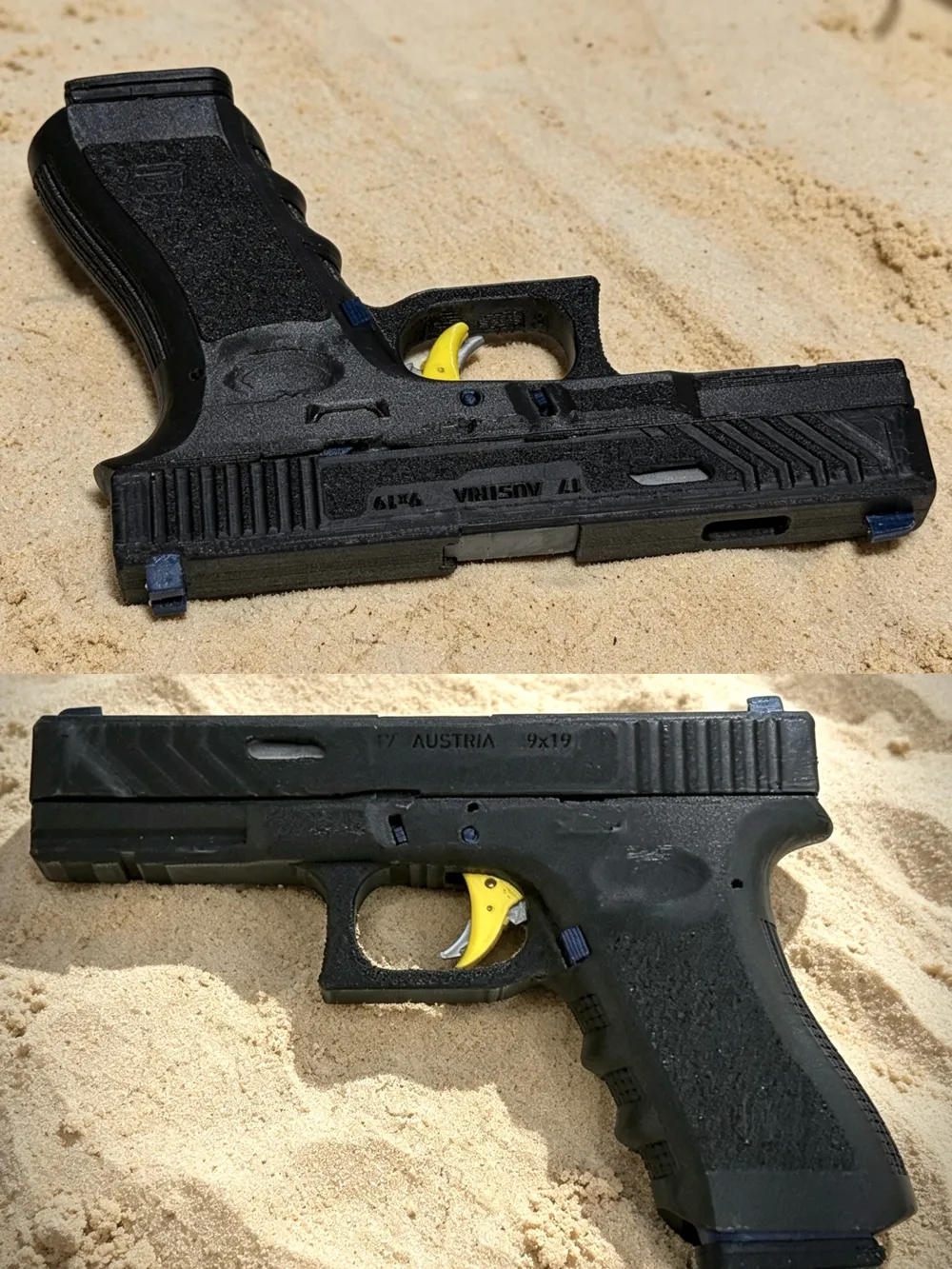

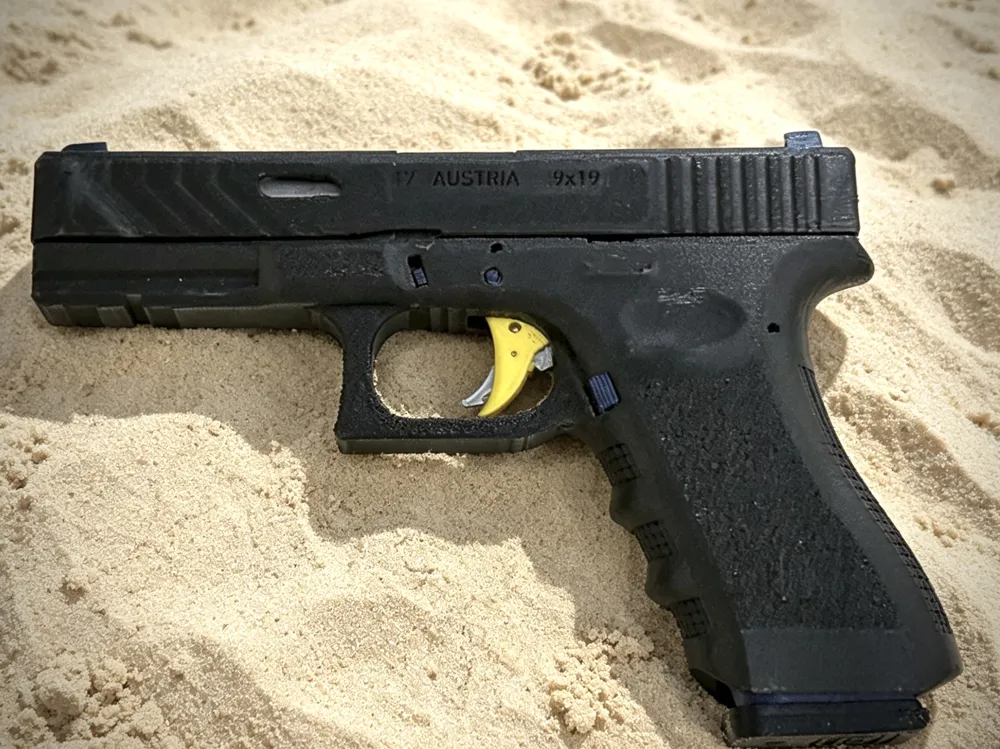

This is a 1:1 full-internal-structure replica toy of the G17. It has no functional capability. Please abide by local laws and regulations. Bright colors such as red or yellow are recommended for 3D printing.

With 100% infill, the model is sturdy, durable and solid in hand, weighing approximately 300 grams. This variant adopts enhanced PETG-CF material (optimized PETG) with reinforced structural design. The slide is recommended to be printed with PETG-CF or standard PETG; the grip and frame can be printed with PLA.

Engravings on the slide and barrel can be edited in the configuration file.

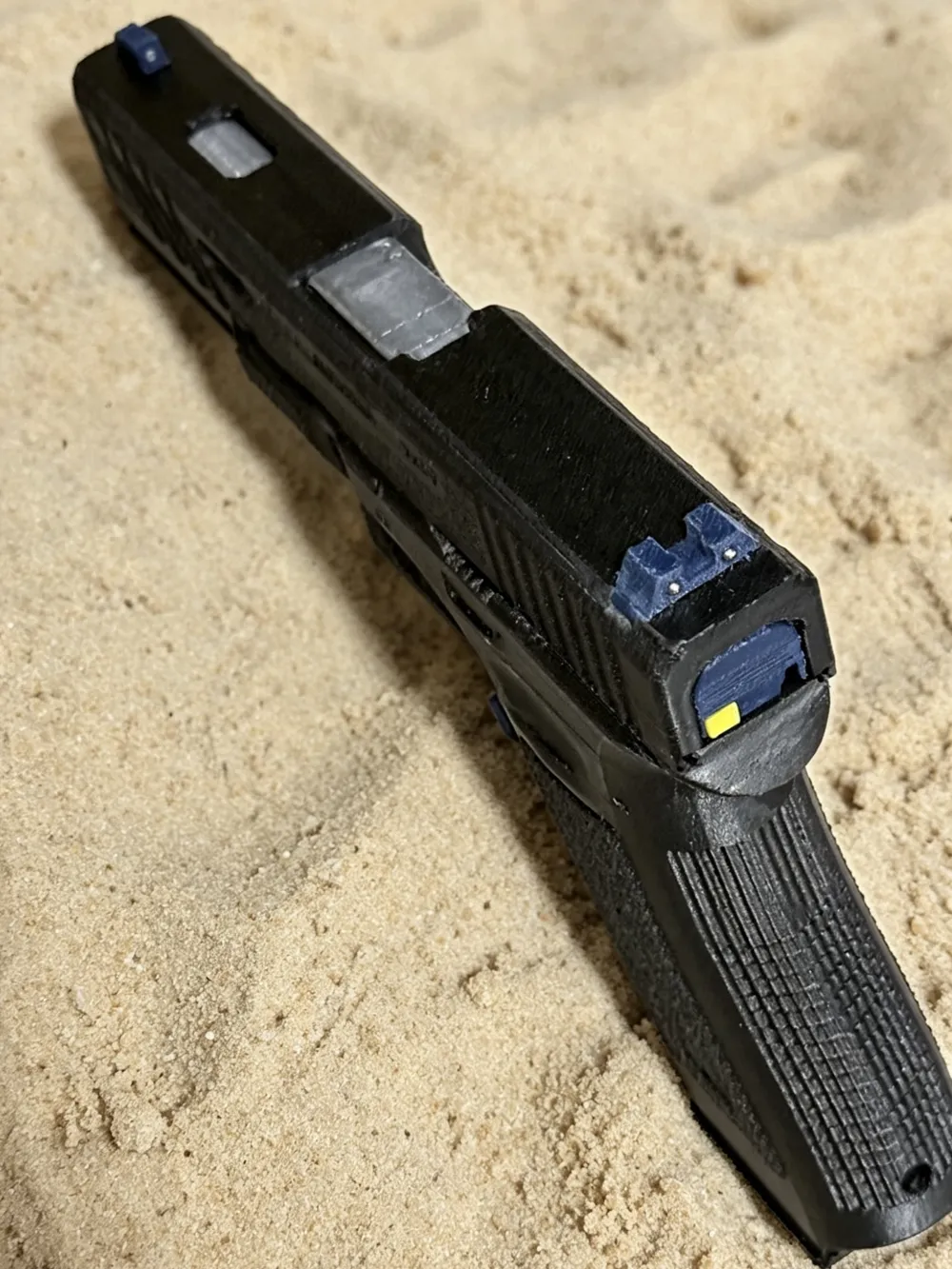

Front and rear sights are pre-drilled with 2mm holes for decoration using 2mm metal pins, fiber optic rods or 1.75mm 3D printing filament. Interchangeable sights are also provided, including a 1.8mm hole version and a tactical version.

Part layout is optimized to balance support removal difficulty and printing strength.

Tolerances of all mating surfaces are fine-tuned. Nonetheless, it is advised to polish and lubricate all assembly surfaces before installation, and ream all assembly holes with matching drill bits in advance.

This build requires decent hands-on skills and patience. Prior experience assembling large-scale models is preferred.

An A1 mini version is also available.

Assembly Guides

Assembly tutorials are available on Bilibili and YouTube. Search keyword: G17 3D print

Required Springs

1. Compression spring: 0.3×2×10mm or 0.25×2.5×7mm
2. Compression spring: 0.5×3×5mm or 0.3×3×4mm
3. Compression spring: 0.6×8×80mm or 0.7×8.5×85mm
4. Compression spring: 0.3×2×20mm
5. Compression spring: 0.4×4×20mm
6. Compression spring: 0.5×6×40mm or 0.5×6.5×40mm
7. Tension spring: 0.5×5×25mm

8. Magazine spring: Square spring 0.8×8×21×150mm. The 3D-printable spring included in the files can be used as an alternative.




   Glock 17 Hollow Mechanical Structure Disassembly and Assembly Teaching Model Toy Full-Scale Safe Articulated Model

Design Features:

1. G17 structural model toy, this is a 1:1 full-internal-structure G17 model, with no functional capability. Please abide by local laws, and bright colors such as red or yellow are recommended for printing.
2. 100% infill, sturdy and durable, substantial in hand, weighing approximately 300g. This version uses enhanced PETG-CF (optimized PETG) with reinforced structural design. The slide is recommended to be printed with PETG-CF or PETG; the grip and frame can be printed with PLA.
3. Engravings on the slide and barrel can be modified in the configuration file.
4. Front and rear sights have added 2mm holes for decoration using 2mm metal pins/fiber optics, or 1.75mm 3D printing filament. Interchangeable sights are also provided, including a 1.8mm hole version and a tactical version.
5. Part layout is optimized to balance support removal difficulty and printing strength.
6. Tolerances of all mating surfaces have been optimized, but it is recommended to polish and lubricate all assembly surfaces before installation, and ream all assembly holes with matching drill bits in advance.
7. Requires strong hands-on skills and patience; prior experience with assembling large models is preferred.
8. An A1 mini version is also released.

Regarding assembly, videos can be found on Bilibili and YouTube by searching for the keyword 'G17 3D print'.

Required springs:

1 0.3×2×10mm or 0.25*2.5*7mm
2 0.5×3×5mm or 0.3*3*4mm
3 0.6×8×80mm or 0.7*8.5*85mm
4 0.3*2*20mm
5 0.4*4*20mm
6 0.5*6*40mm or 0.5*6.5*40mm
7 Tension spring 0.5*5*25

8 Magazine spring: 0.8*8*21*150mm Square spring. The 3D-printable spring included in the configuration can also be used.
