Laptop Wall Mount (Dell Pro Max)
Print Profile(0)
Description
Interior Dimensions for generic laptop users:
4.25 in wide
1.1 in thickness
Heights:
0.38 in to the bottom of the tack pad
4.11 in to the bottom of keys
7.35 in to the top of the capture rail.

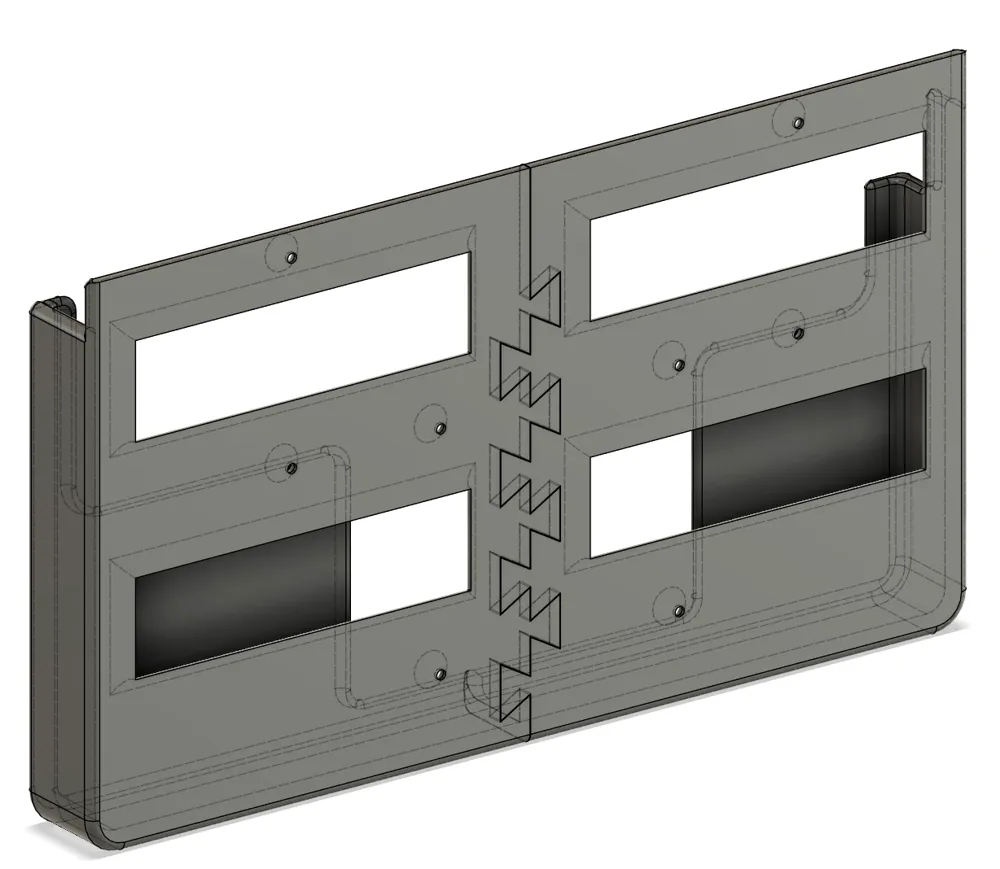

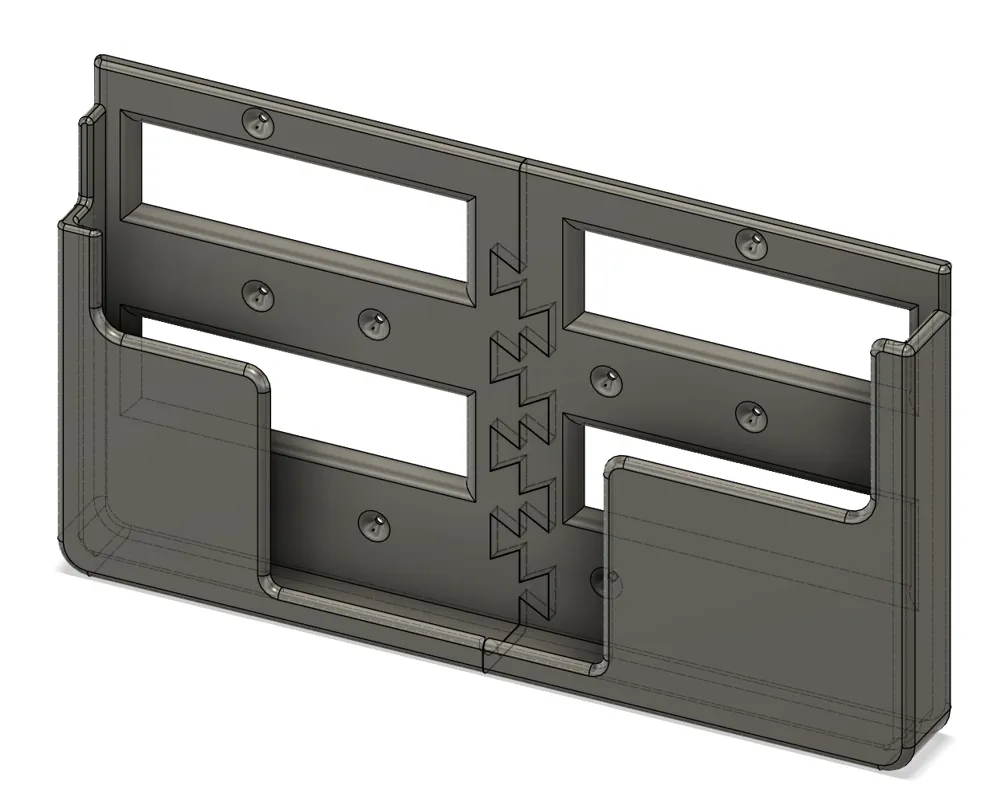

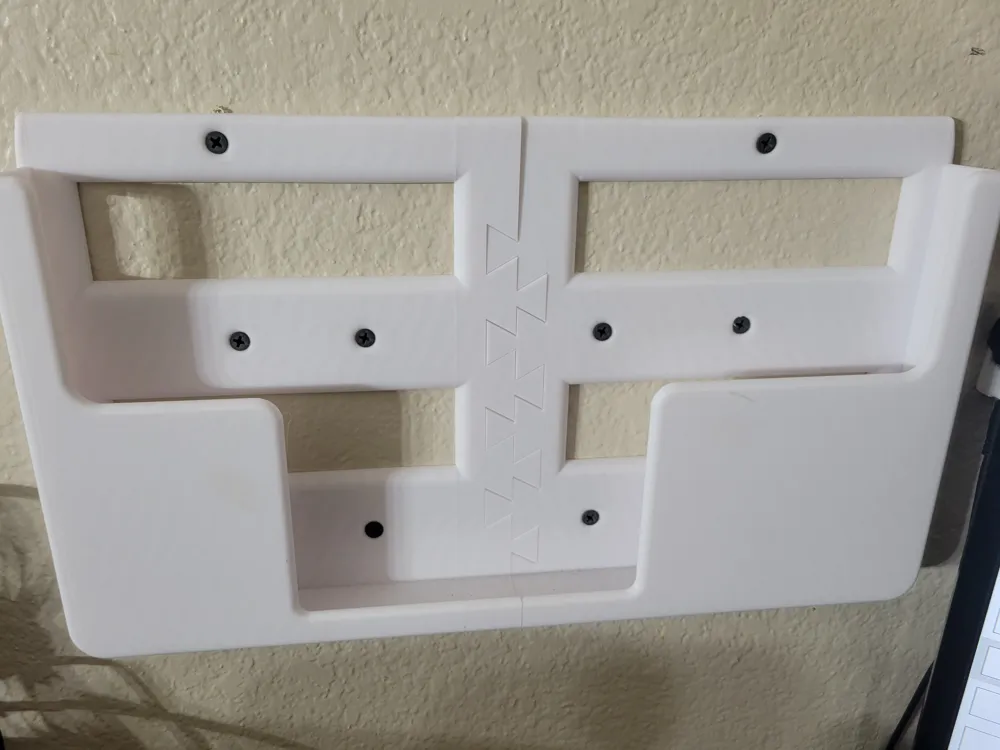

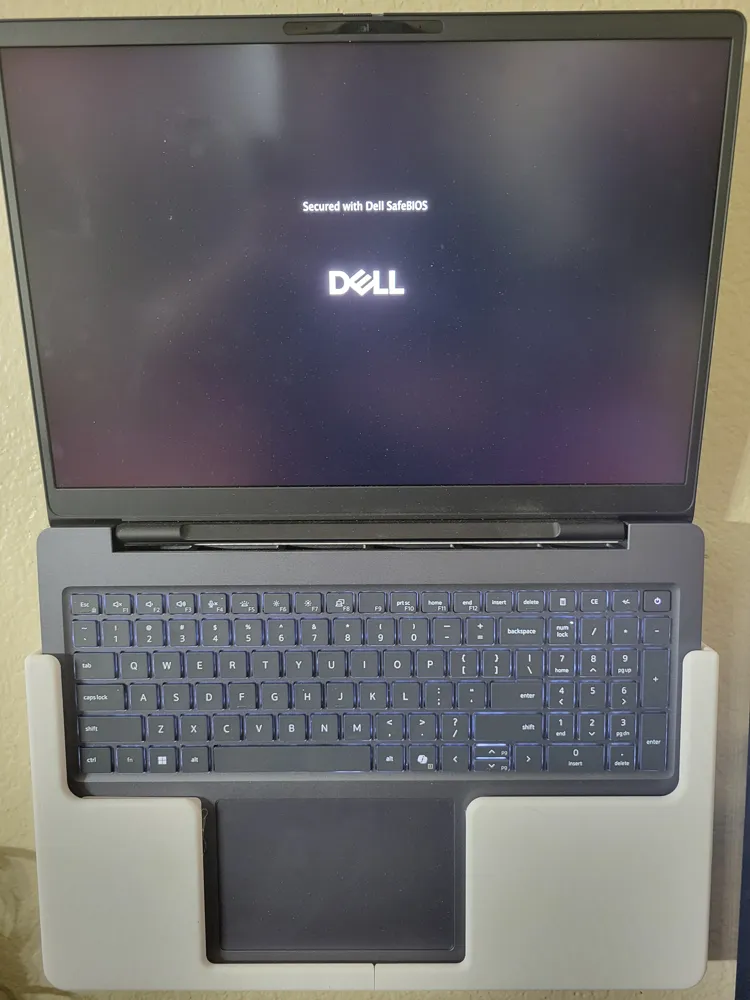

This laptop mount was made specifically For the Dell Pro Max 16 Plus to be mounted on the wall.
-Full access to the track pad and keyboard.
Ports that are exposed below
-Left side: Ethernet, and 2 USB C (SD card blocked)
-Right side: 2 USB A (USB C and Mic input blocked)

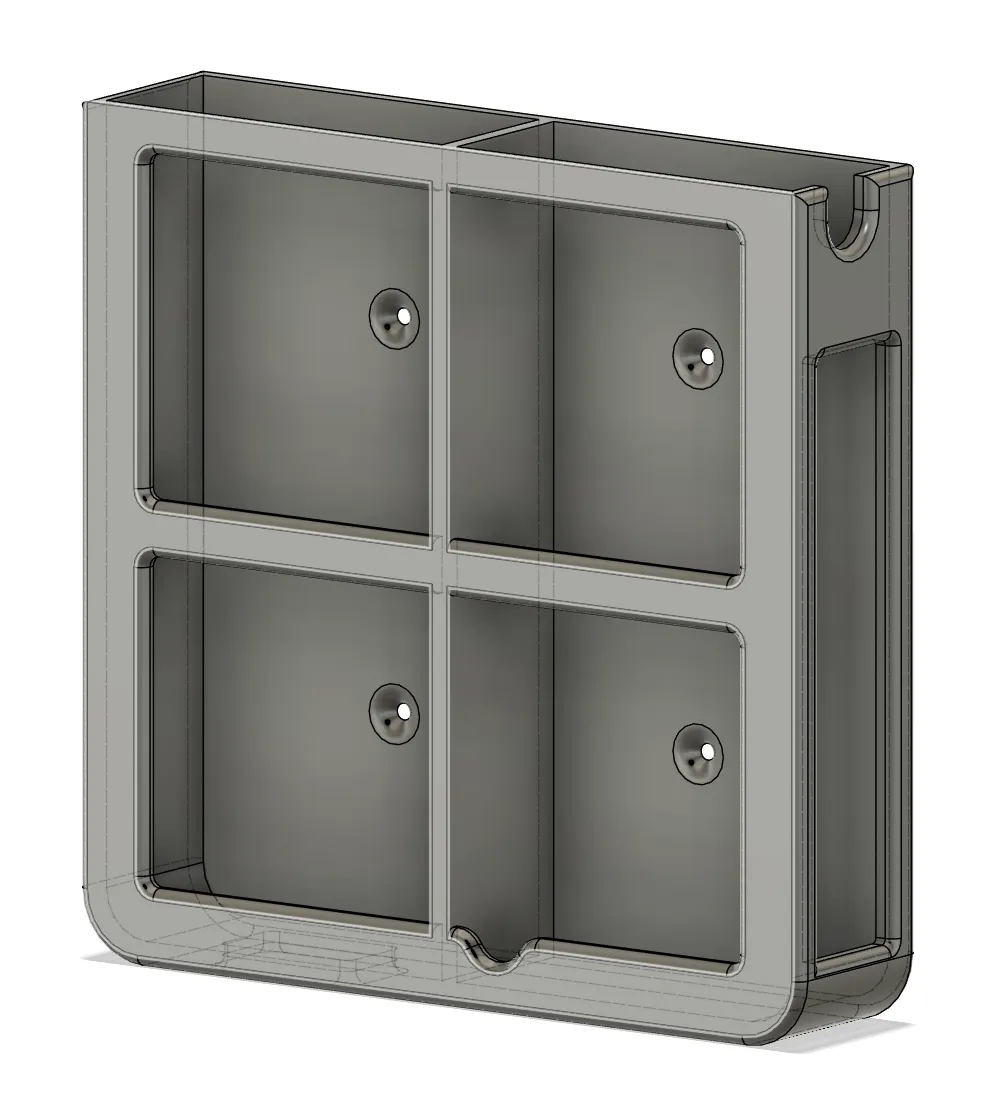

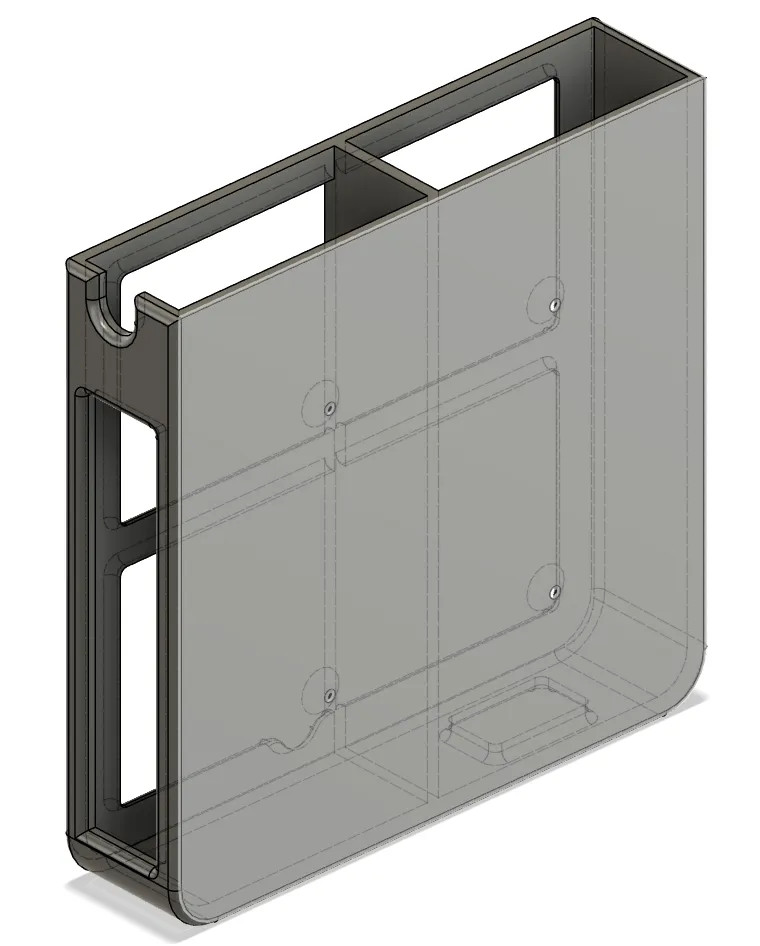

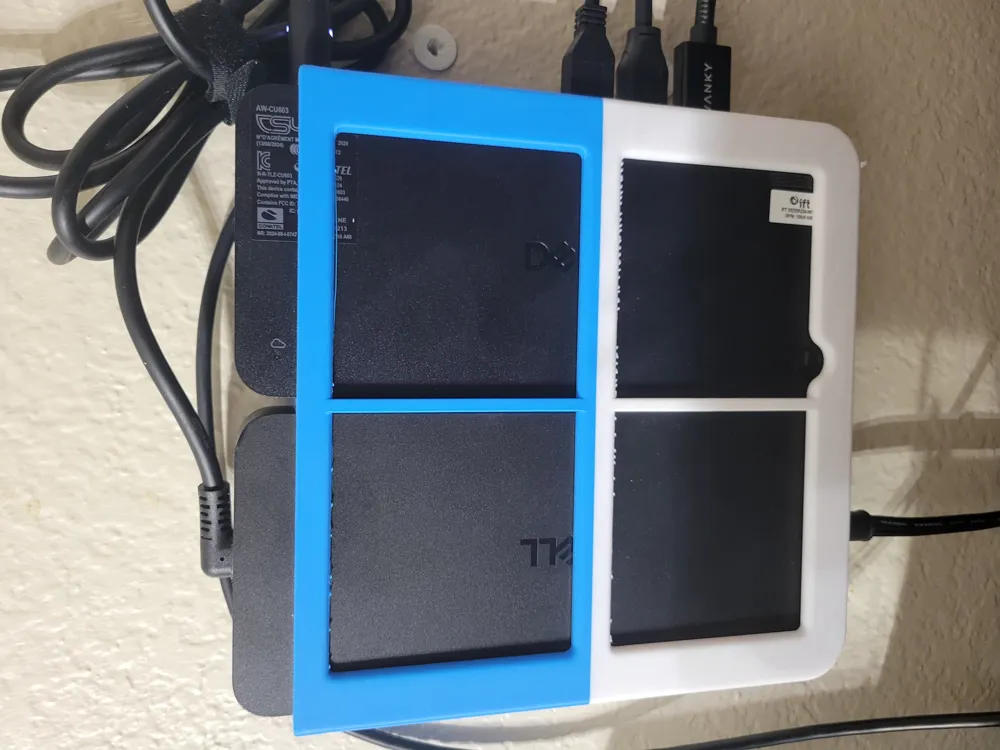

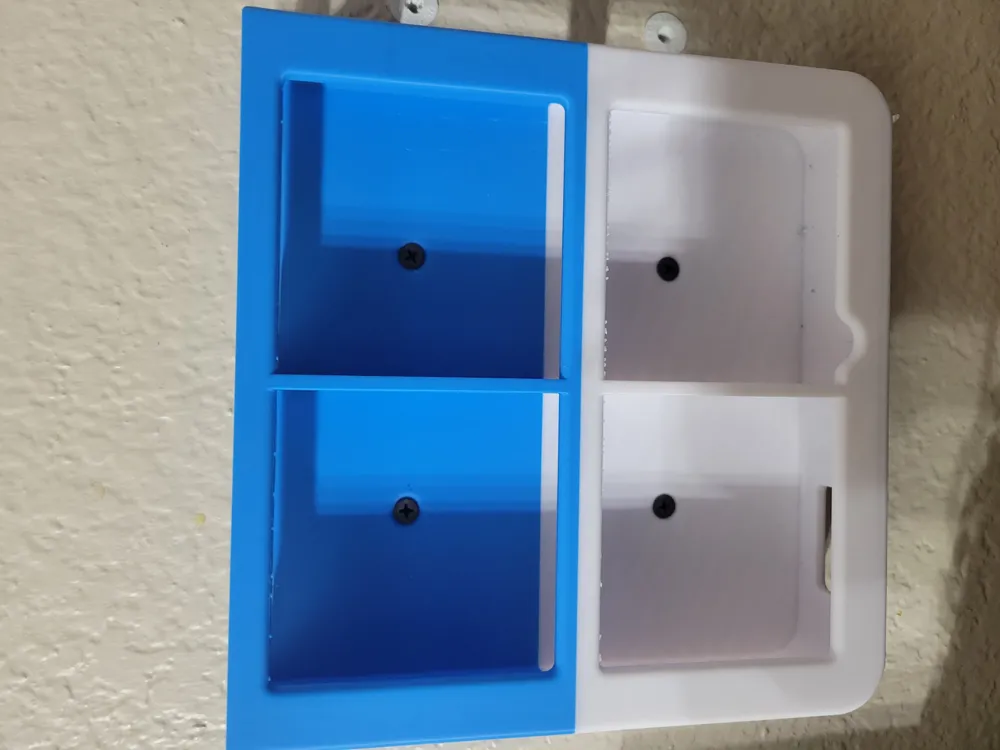

This file also has the Dell Pro Thunderbolt 5 Smart Dock for wall mounting
-all the port on the main connection face are accessible
-the back side USB A and USB C are blocked by the power block in the adjacent port.
-the power enter the power block from the bottom.
