Tool Tray Bicycle Repair Stand (Universal)

Tool Tray & Box for Bicycle Repair Stands (Universal)

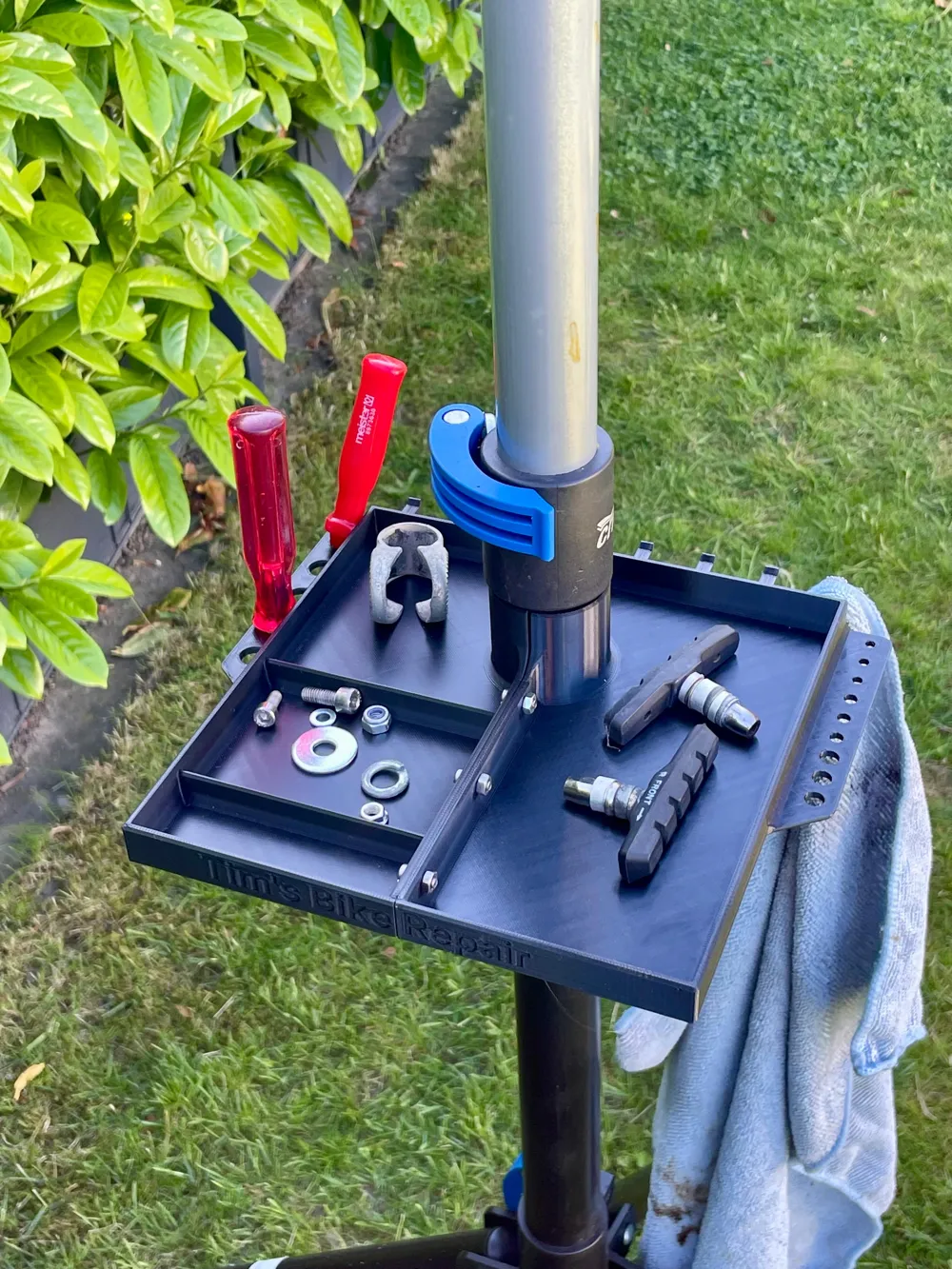

No more screws in the grass and tools on the ground! This robust, two-part tool box is mounted directly on the central tube of your bicycle repair stand and ensures maximum tidiness during repairs.

Perfectly optimized for common repair stands with a tube diameter of approx. 39.5 mm.

The features in detail:

• Perfect Organization: A total of 4 separate compartments offer ample space to neatly separate and keep screws, nuts, valves, or small parts close at hand.

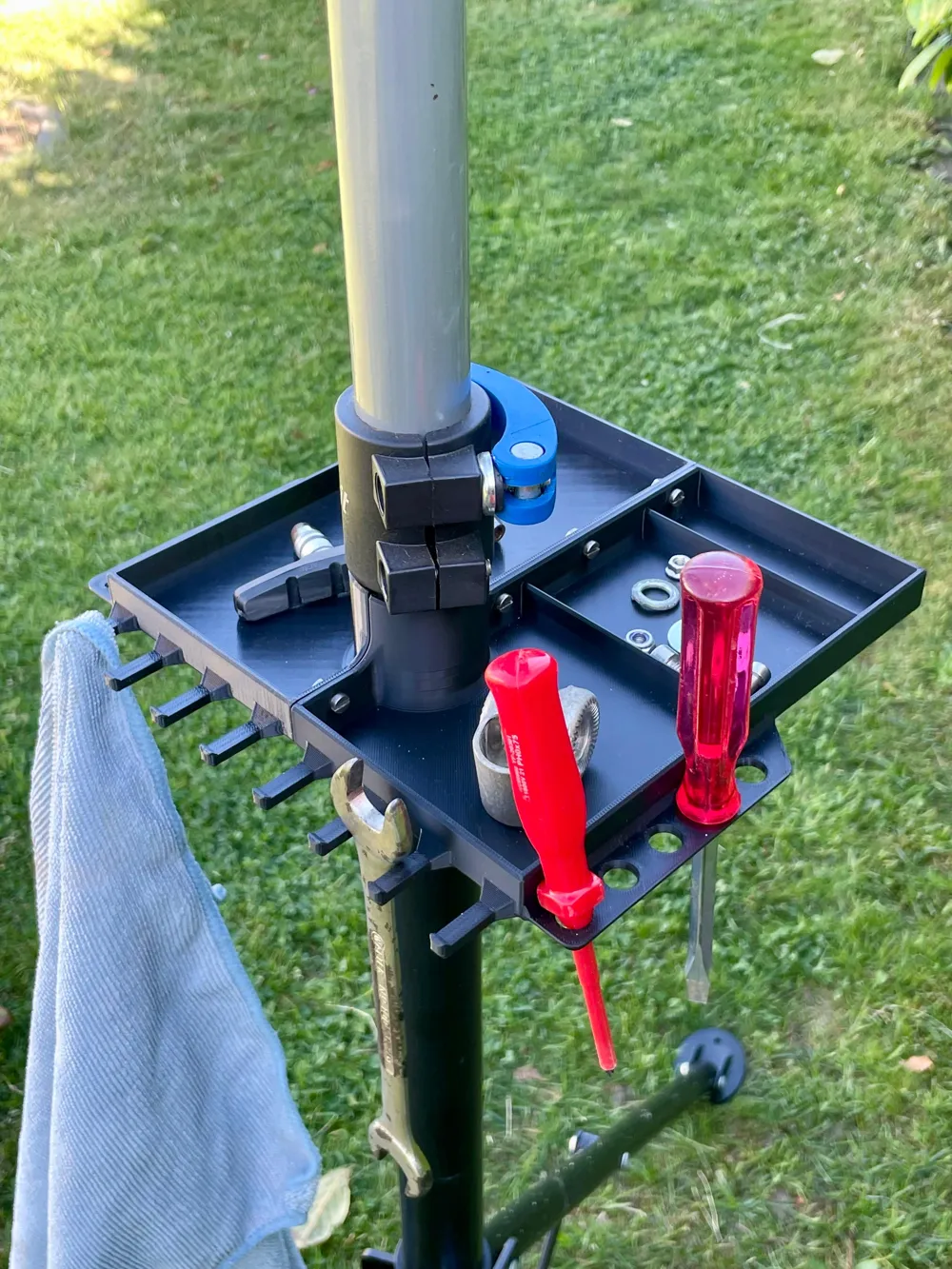

• Integrated Tool Holders: Numerous holes on the outer sides securely hold screwdrivers, Allen keys, or pliers.
• Practical Hook Strip: You can hang special tools, T-handles, or your cleaning rag on the front hooks.

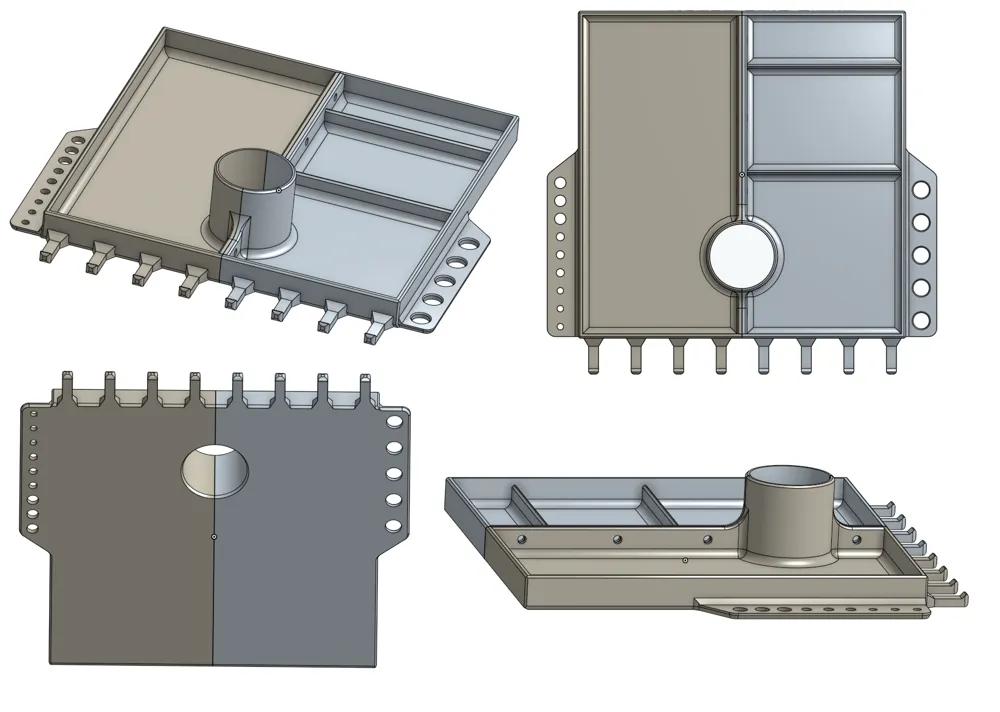

• Easy Assembly: The smart design consists of two halves. You don't have to disassemble the stand! Simply place the halves around the tube and assemble them with 4x M4 screws and matching nuts .

Diameter Adjustment (If it doesn't fit):

The standard inner diameter of the holder is 39.5 mm. Since some manufacturers have minimal deviations, I have taken precautions:

• On the second print plate, you will find optional thickenings/inlays with a 1.5 mm diameter per piece.
• This allows you to perfectly compensate for the gap if your stand tube is slightly thinner, so that the box clamps rock-solid!

Printing Recommendations

The model was designed to fit perfectly on standard print beds despite its practical size.

• Material: PETG or PLA Tough are ideal, as the box should also withstand a bump and UV light in the workshop or garden.
• Infill: 15% to 25% (Gyroid) is completely sufficient.
• Walls: 4 wall lines to ensure maximum stability for the screw connection of the two halves.
• Support not necessary.

I would be thrilled if it helps you too. Feel free to leave a review if the box makes repairing easier for you.

Good luck with your next bike maintenance! Your Josie
