Description

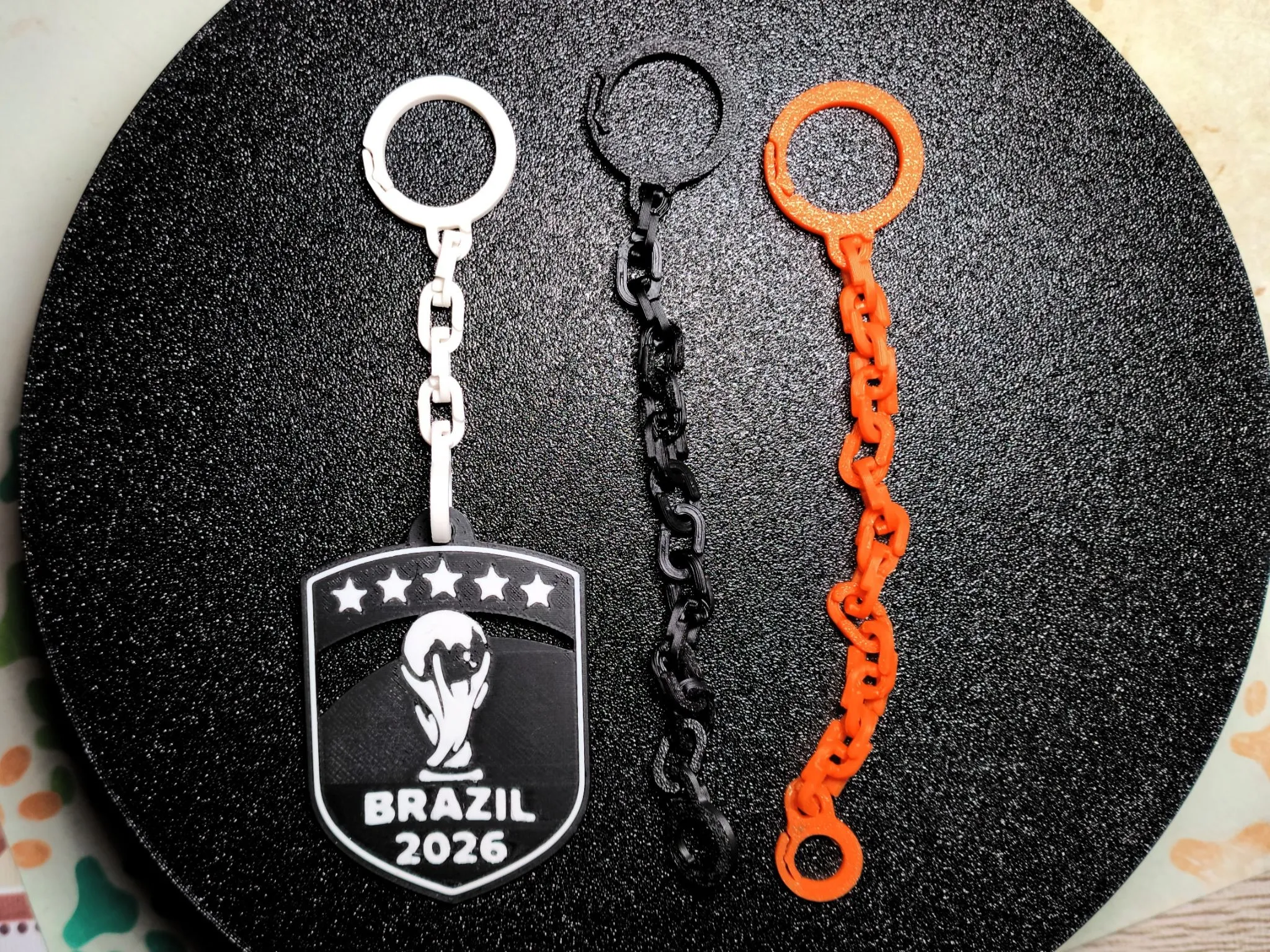

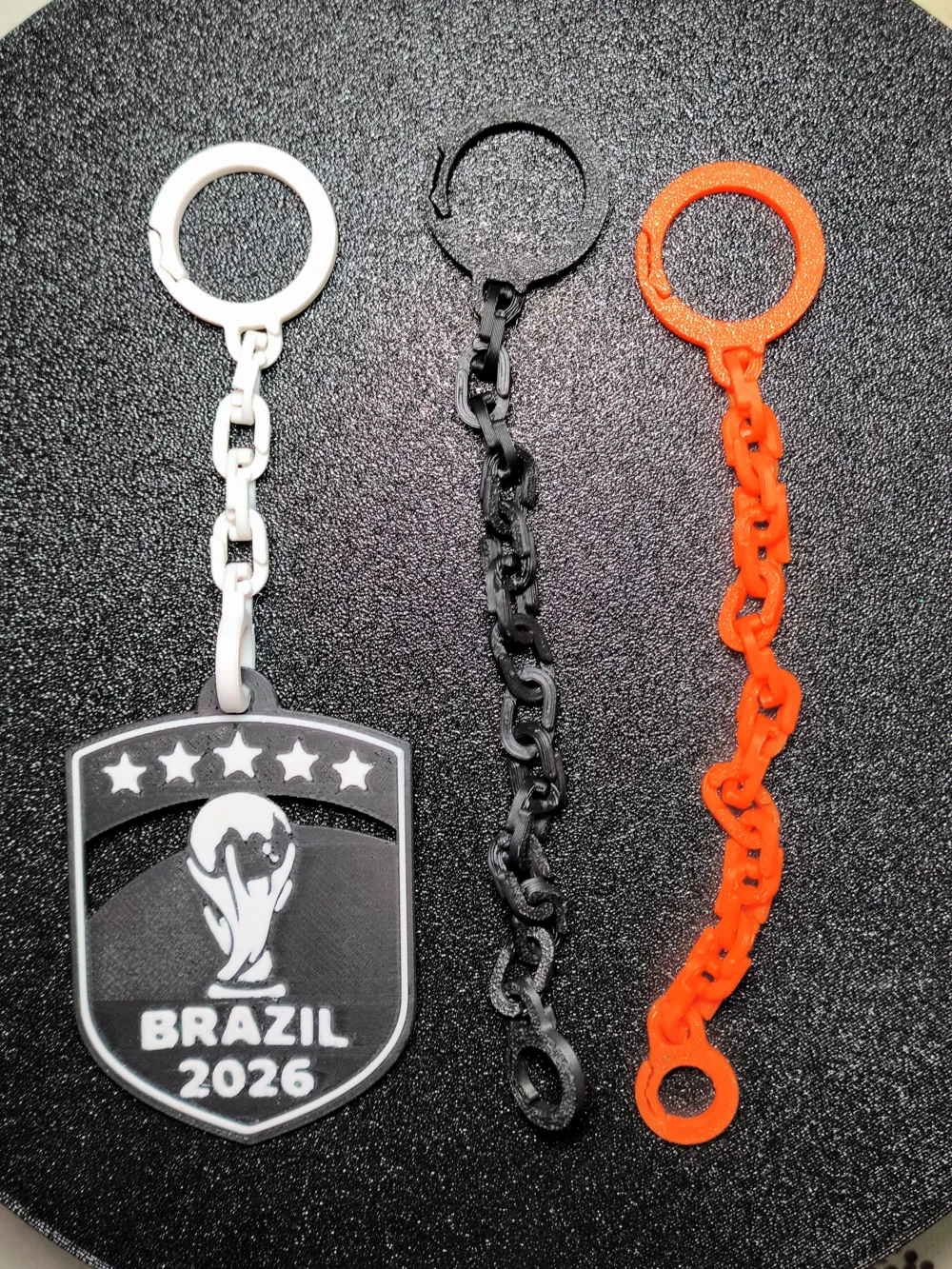

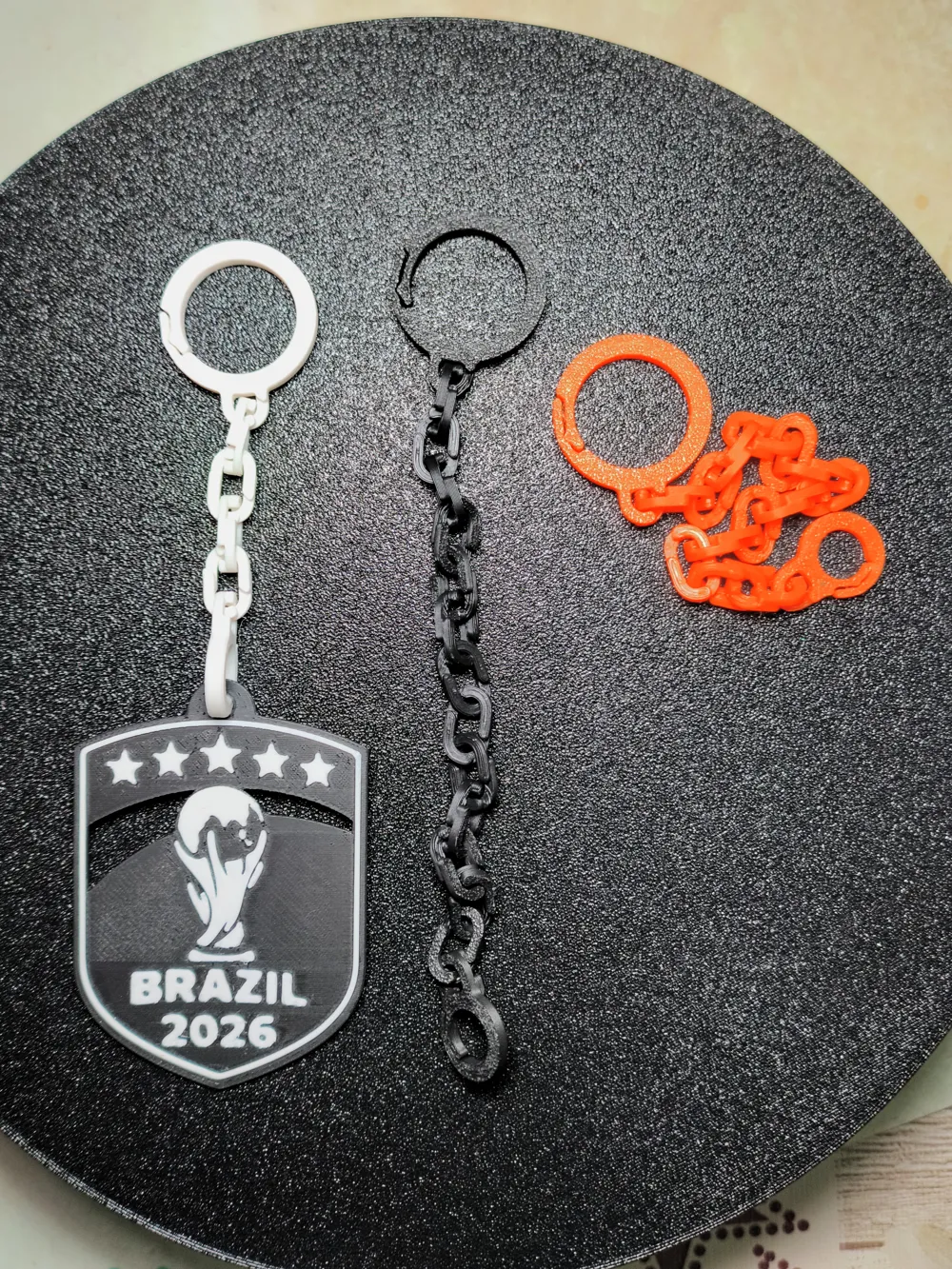

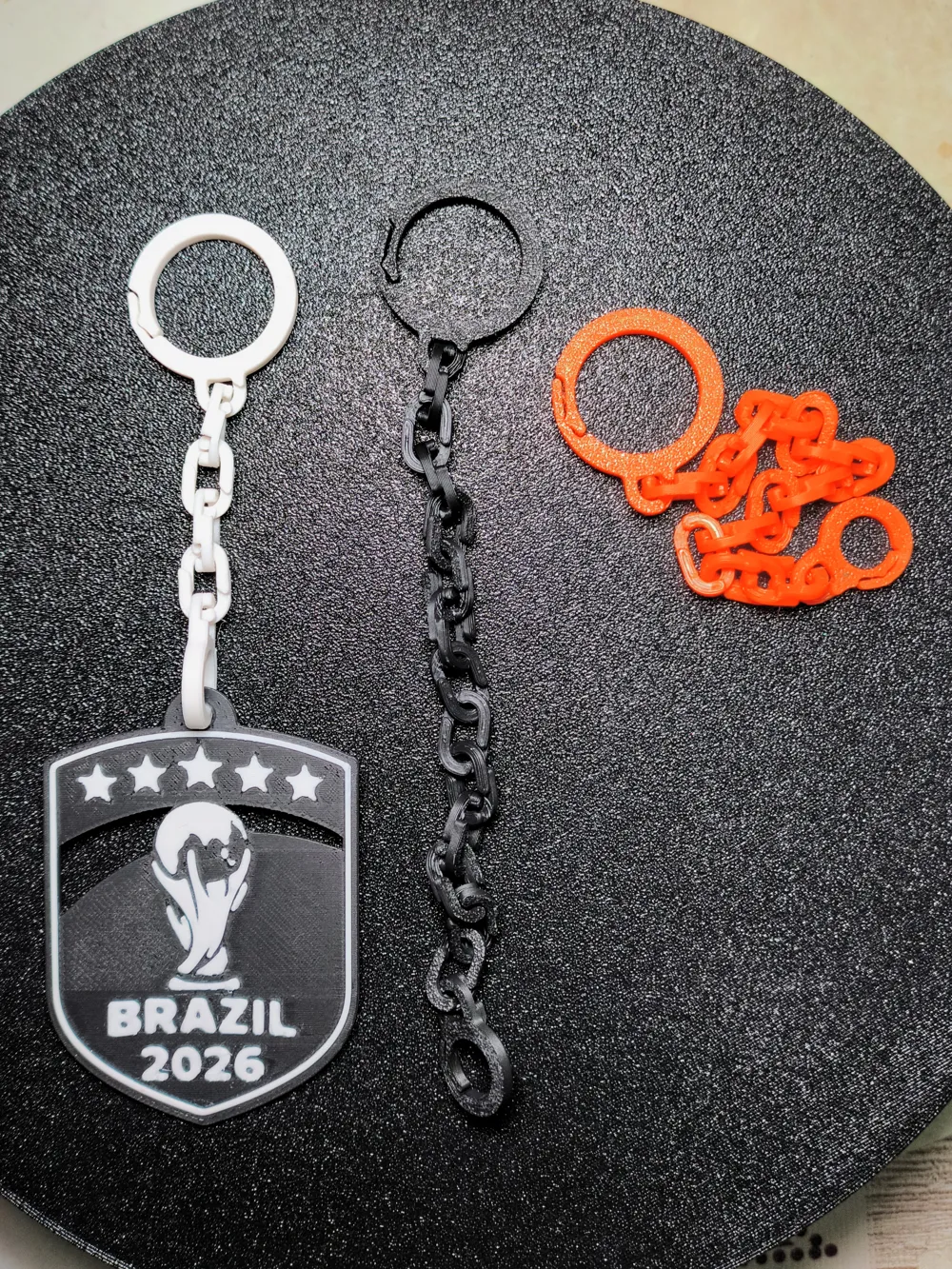

Keychain Ring with Chain / Chain with Ring
Have you just printed a spectacular keychain and are missing the chain ring? Now you have a quick and functional solution to attach your new keychain with your keys, on your backpack or wherever you want to carry it.
Boost Me (for free)
If the model is useful to you, I would appreciate it if you leave me a like, a comment, and if you can, a boost to reach more people. Thank you.
Model Features:
✍ Design.- A design similar to conventional rings with a relatively long chain for comfortable handling of the keychain.
📏 Size.- The ring is 22mm in diameter with a chain of around 30mm. Required keychain hole diameter 3.5mm.
🦾 Resistance.- Although it may seem fragile, it is not. it has undergone various changes and improvements to become a fully functional and resistant model.
❗Important.- If PETG is used, check that it is not humid because it can crystallize and break when assembled.
Model Improvements:
- New Variant V1.4.1.- The model has more links, increasing its size to 100mm.
- V1.5.- The link width was increased by 20%. It is less fragile when assembled and used. Tolerance was changed to 0.3mm. The model was adjusted. Vertex improvement. Easier assembly. Still working to make it printable in PETG.
- V1.6.4.- Height increased to 3.4mm. Internal link diameter increased. Greater link mobility. Easier assembly. 10% less link width. Greater resistance.
Printing Characteristics:
✅ Recommended Filament: PLA.
✅ Minimum keychain hole diameter: 3mm.
✅ AMS: NO
✅ Tolerance: 0.2mm
✅ Walls 3
✅ Infill 15% Gyroid.
✅ Supports: NO.
ASSEMBLY
Each link is completely individual; they may stick together during printing. To detach them, take each link and rotate it slightly until it separates. Do not apply force.
RING ASSEMBLY
To prevent the plastic from deforming, it is necessary to place the charm diagonally.
100mm Keychain Ring with Chain
The chain is three times longer than the main model, and it is designed for keychain charms for backpacks, bags, or pockets that protrude.
