Acoustic Diffuser Panel 1D 1434Hz
Print Profile(1)
Description

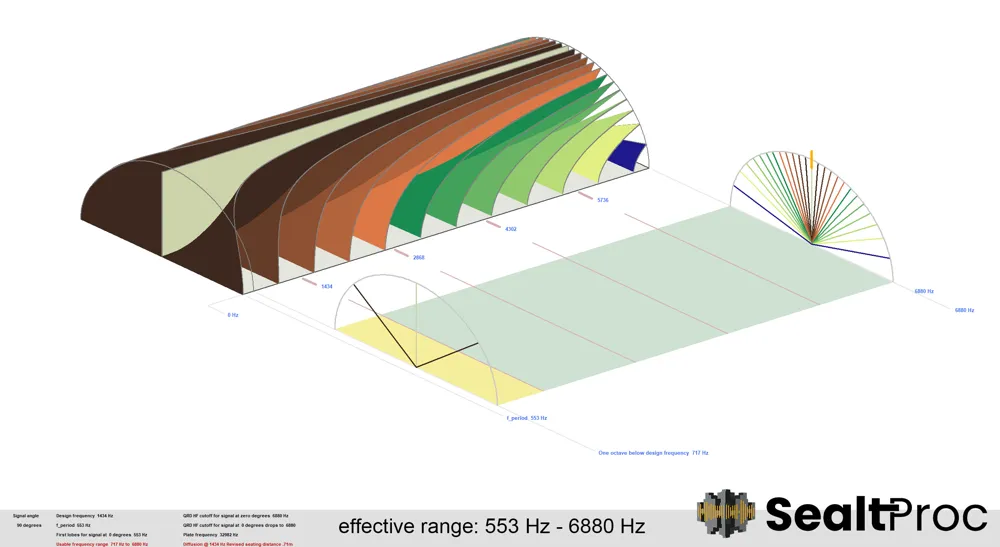

This diffuser was created through mathematical calculation to scatter frequencies in the effective range between 553 Hz and 6880 Hz, with a main focus at 1434 Hz.
It requires a lot of material (and time), but reducing this diminishes the acoustic properties, as a certain density is needed to scatter the mentioned frequencies. Ironing is optional, but it enhances the appearance. I recommend using PLA Matte filament for the most beautiful, acoustically appealing result, but PETG is also fine.

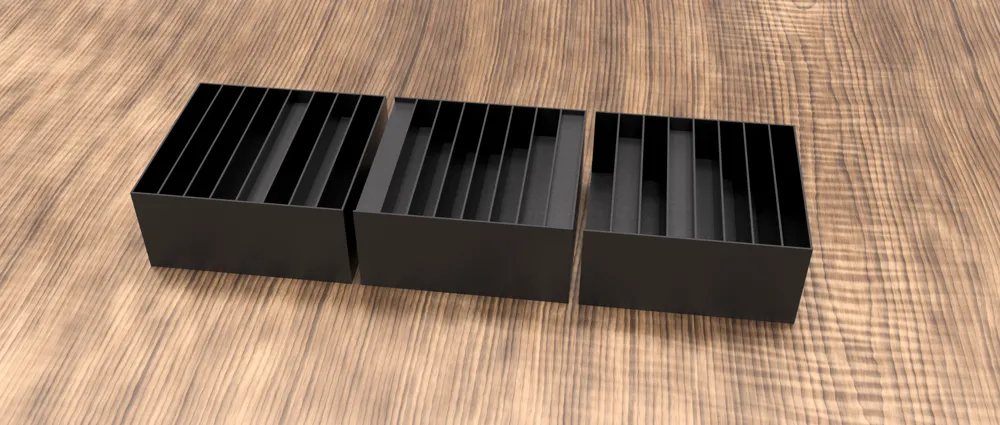

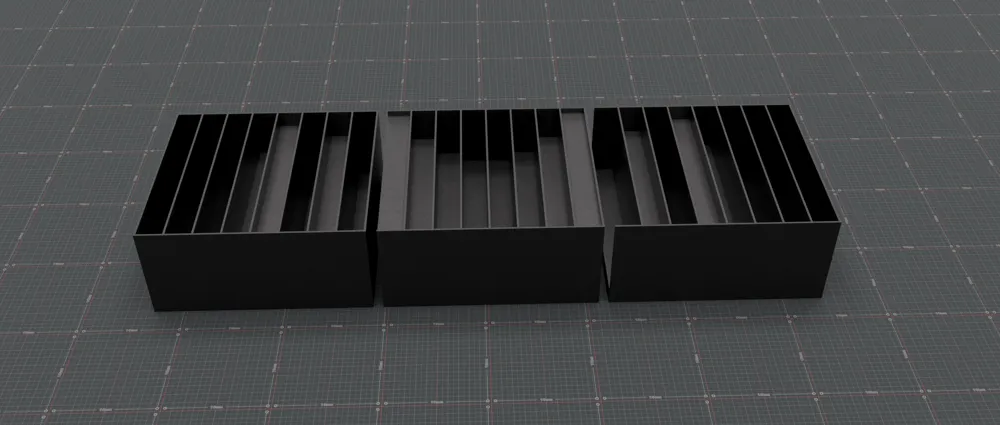

Consisting of three parts in total, the largest of which has dimensions of 218mm x 204mm x 100mm.
