3-way Corner Brackets|20mm, 40mm, 60mm|Heavy Duty
Print Profile(1)
Description
Boost Me (for free)
Hello MakerWorld community đ
If you find this model useful, I would really appreciate a boost. This design was developed with print reliability, clean geometry, and real-world applicability in mind, and it has been tested to work well on common printer setups. Boosts support further development and new free models. Thank you for your support and happy printing! đđ¨ď¸

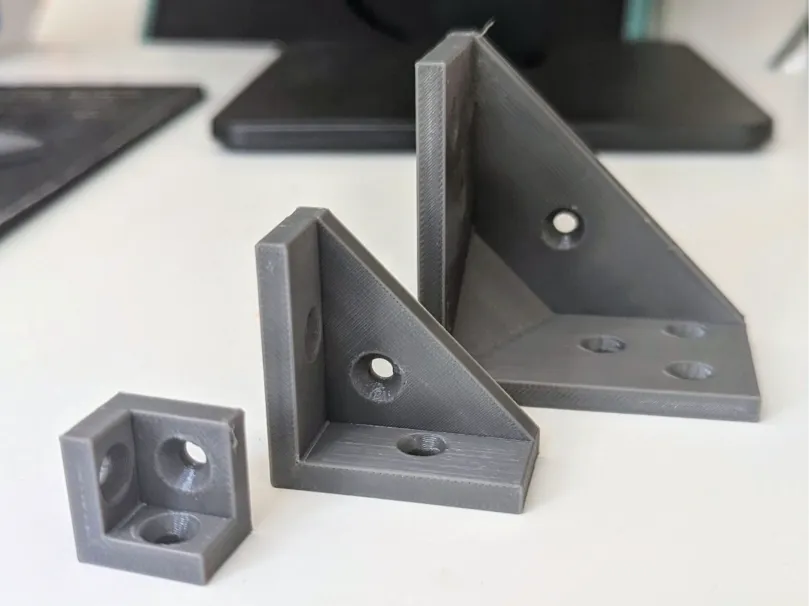

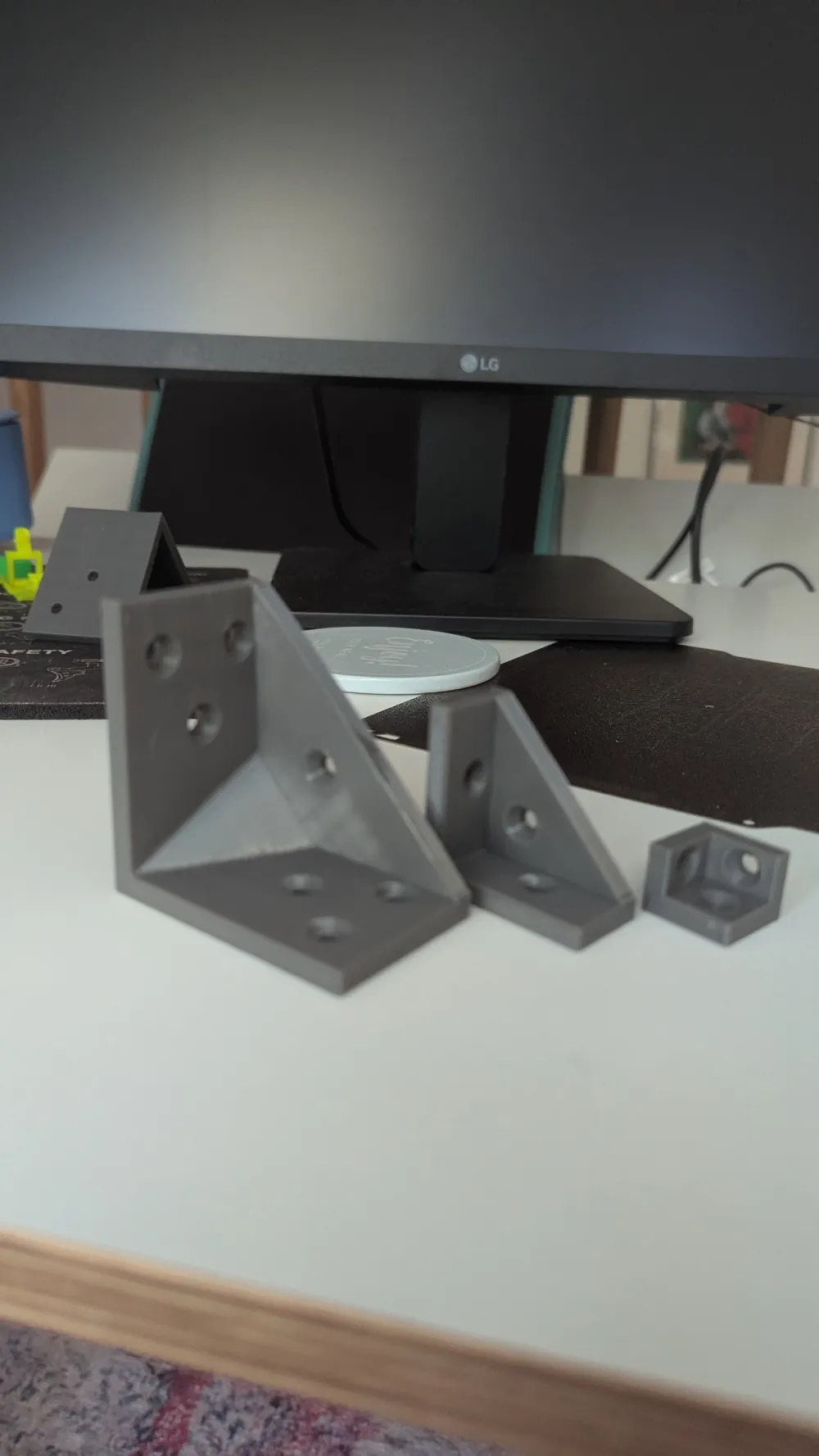

The essential hardware set for every maker! These professional 90-degree corner brackets are designed for maximum stability and a clean, flush look. Whether you are reinforcing furniture, building enclosures, or organizing your workshop, this set has the right size for you.
Whatâs Included:

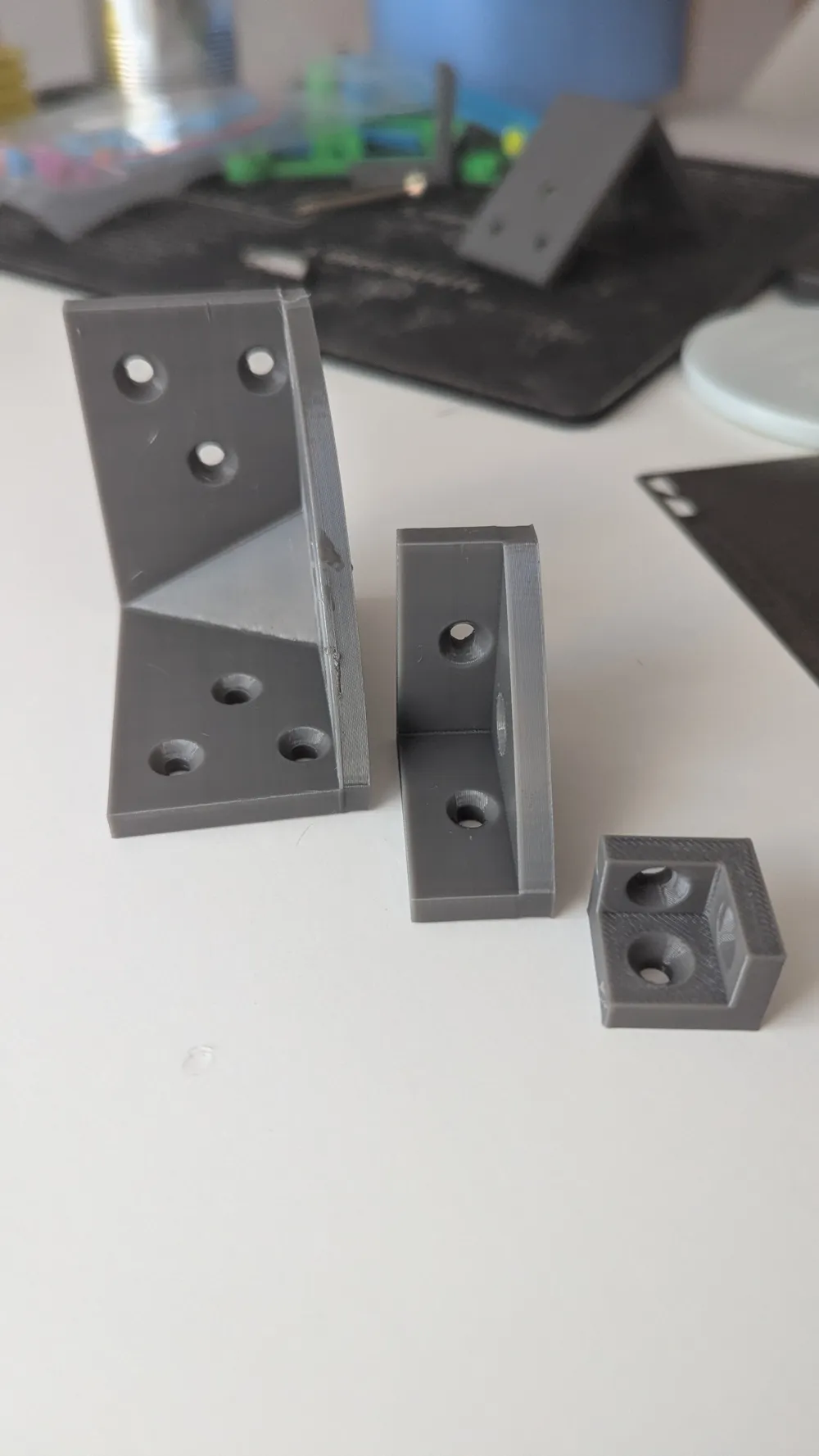

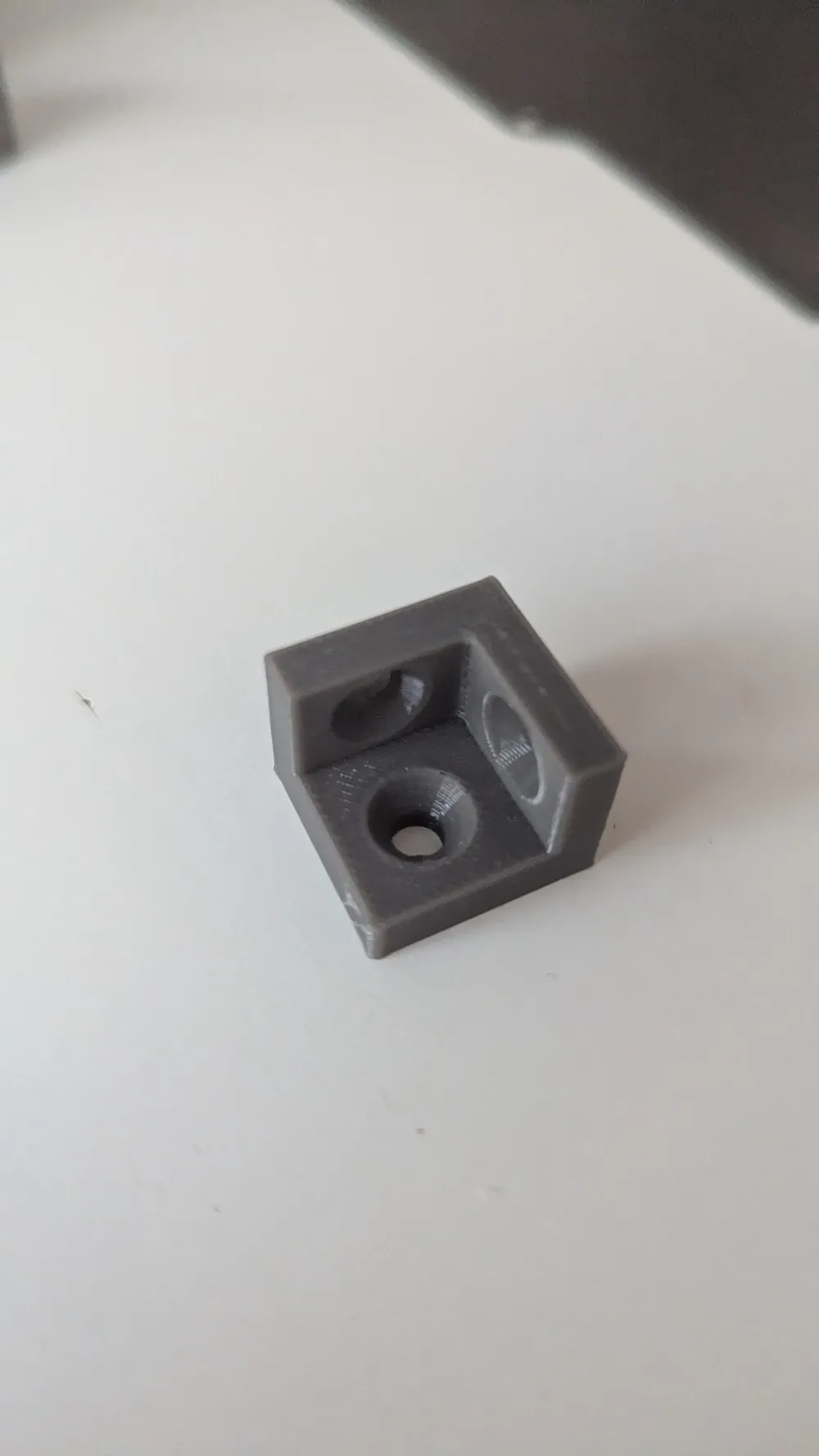

- 20mm Small: Perfect for small boxes, electronics enclosures, or delicate framing.

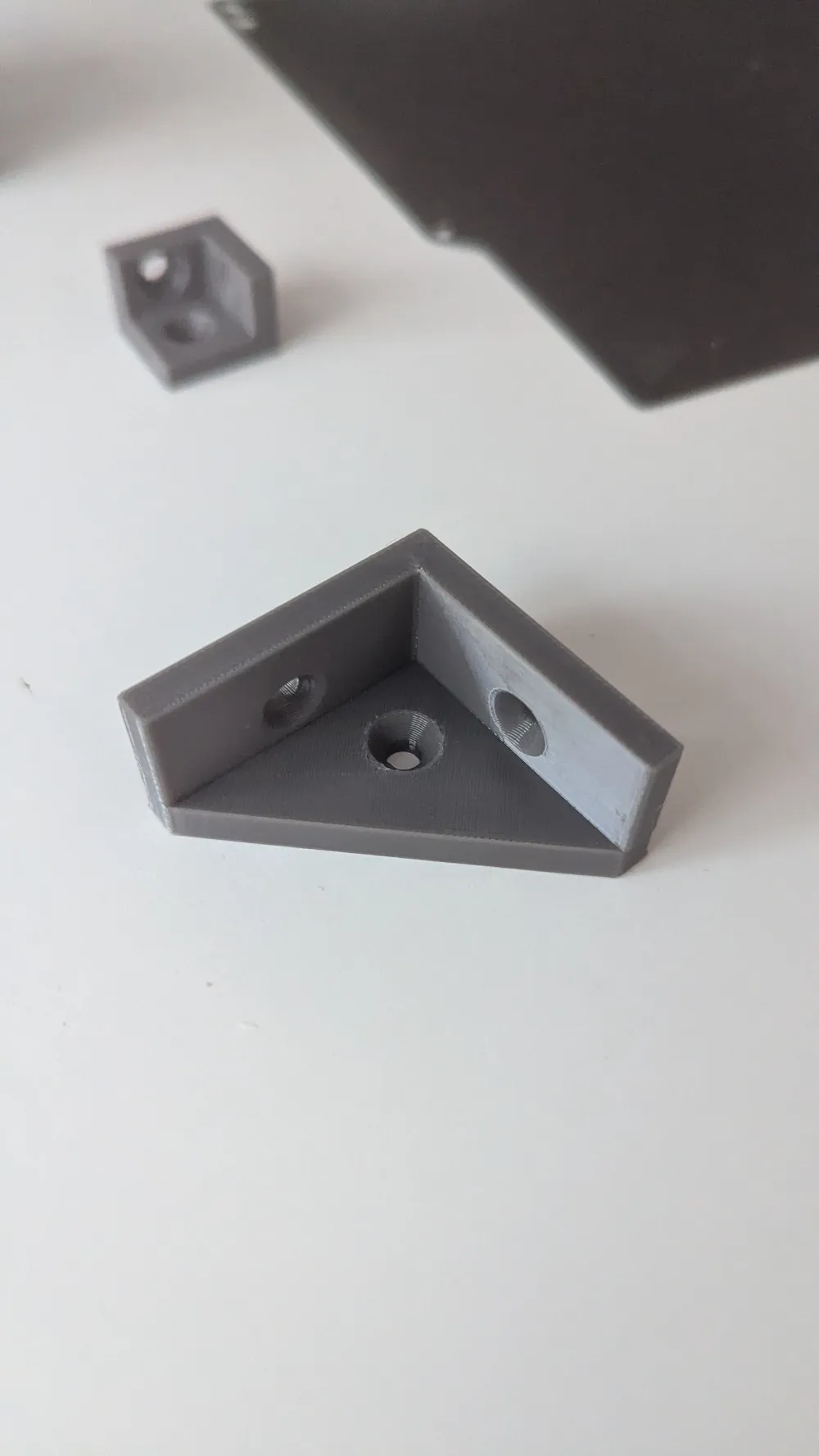

- 40mm Medium: The all-rounder for shelf reinforcement and general DIY repairs.

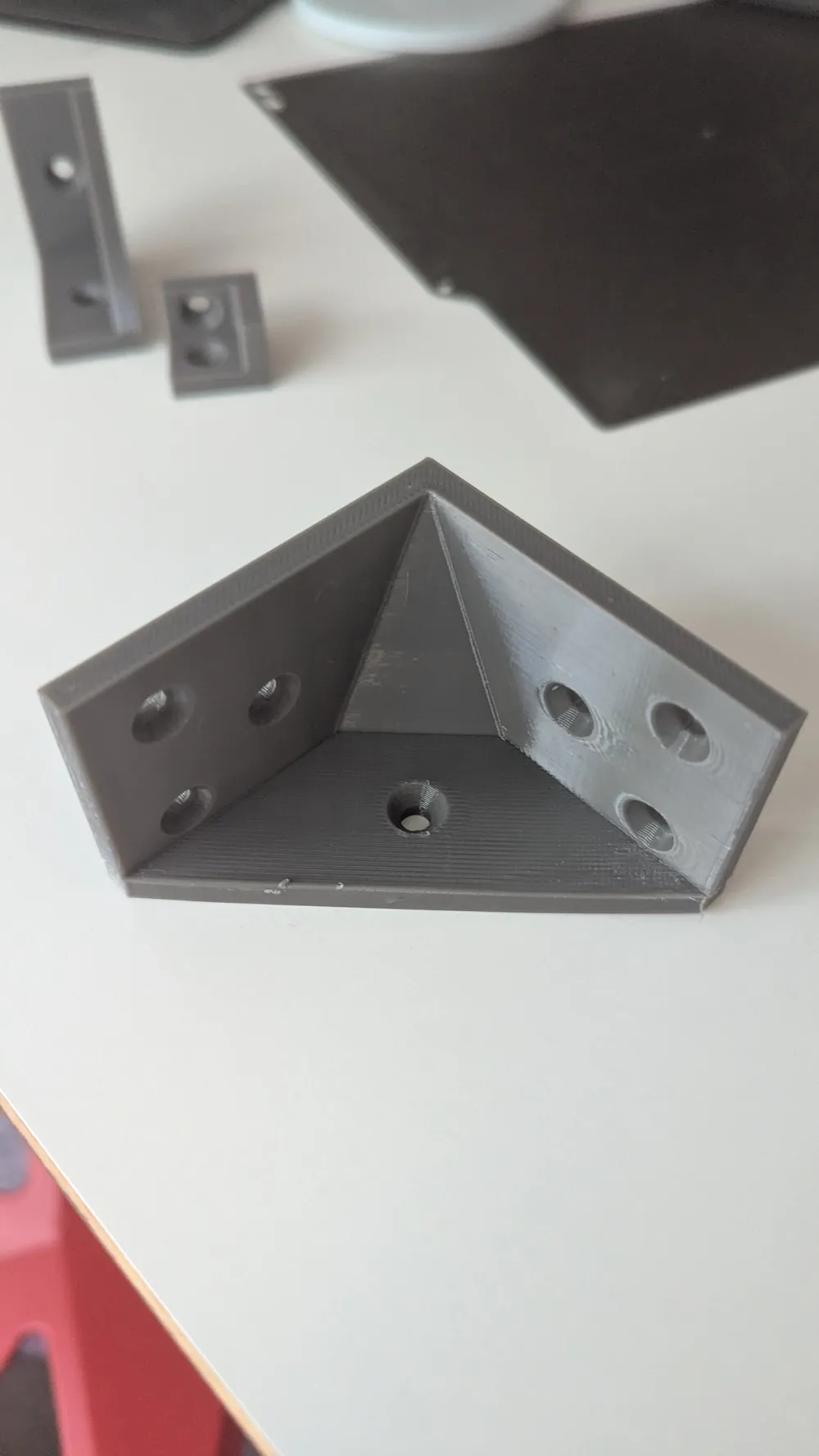

- 60mm Large: Heavy-duty version for larger structures and load-bearing tasks.
Design Details:

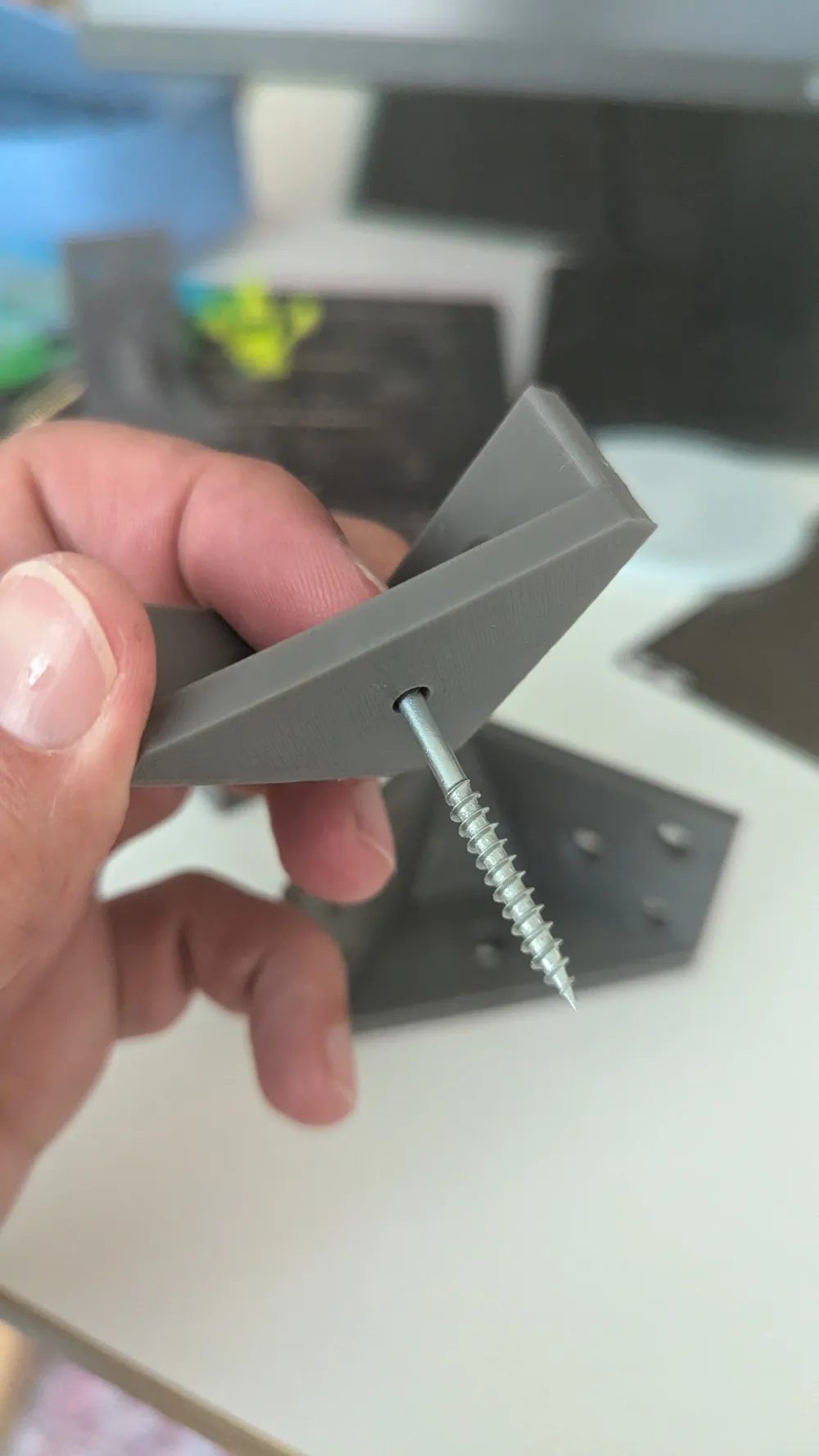

- Universal Bolt Holes: Sized at 4.5mm to perfectly fit M4 / wood screws with enough clearance.

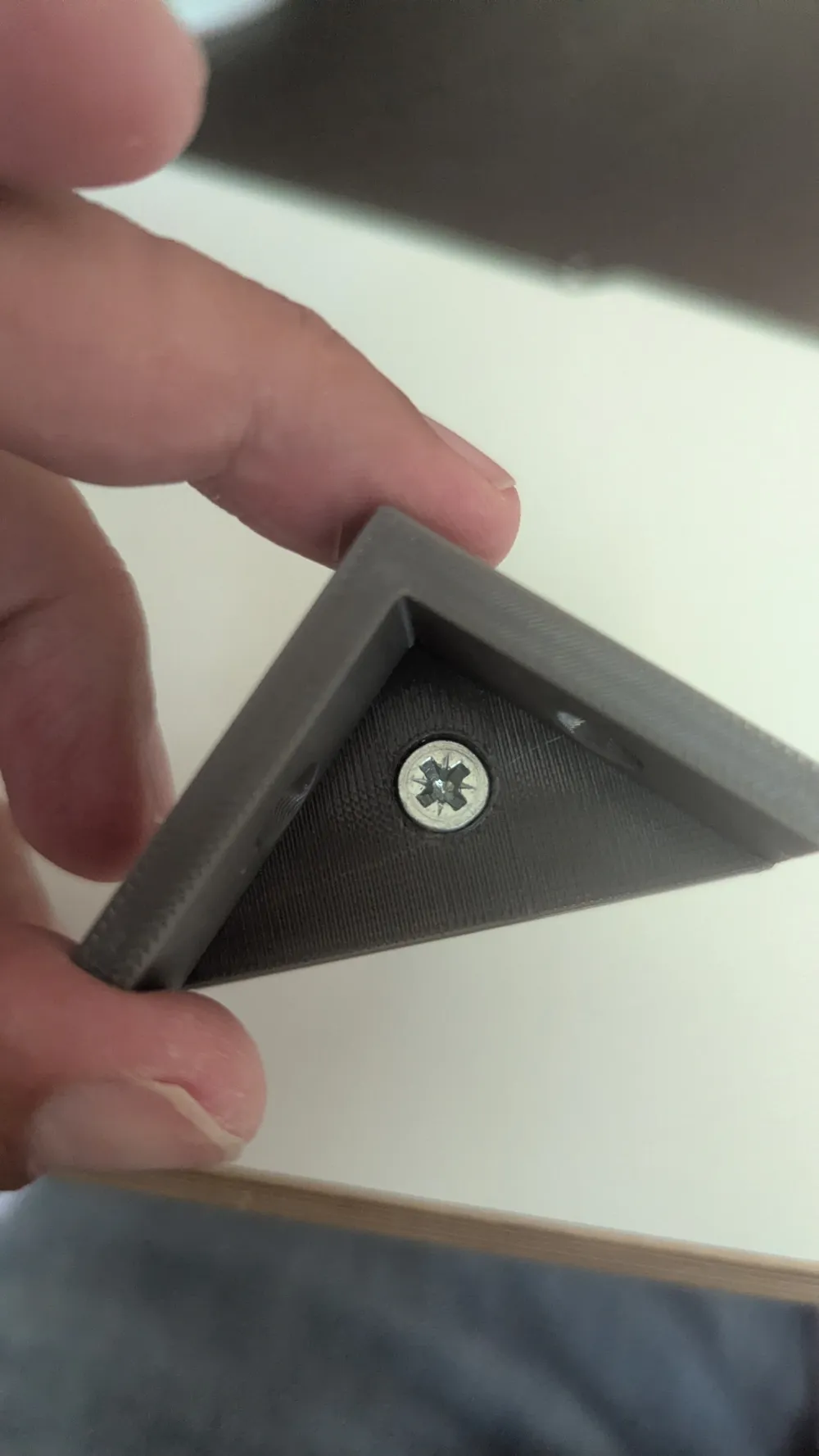

- Countersunk Finish: Pre-designed 90° recesses (8.5mm wide) ensure your screw heads sit flush with the surface for a professional look.
- Reinforced Structure: 4mm wall thickness provides excellent rigidity under tension.
Print Recommendations:
- Material: Use PETG, ASA, or PC for structural parts. PLA is great for prototypes but can "creep" under long-term heavy loads.
- Infill: 50% or higher (Grid or Gyroid recommended).
- Walls: At least 4-6 wall loops to ensure the screw holes are solid plastic.
