Description
KHFix4U / MultiMate Case

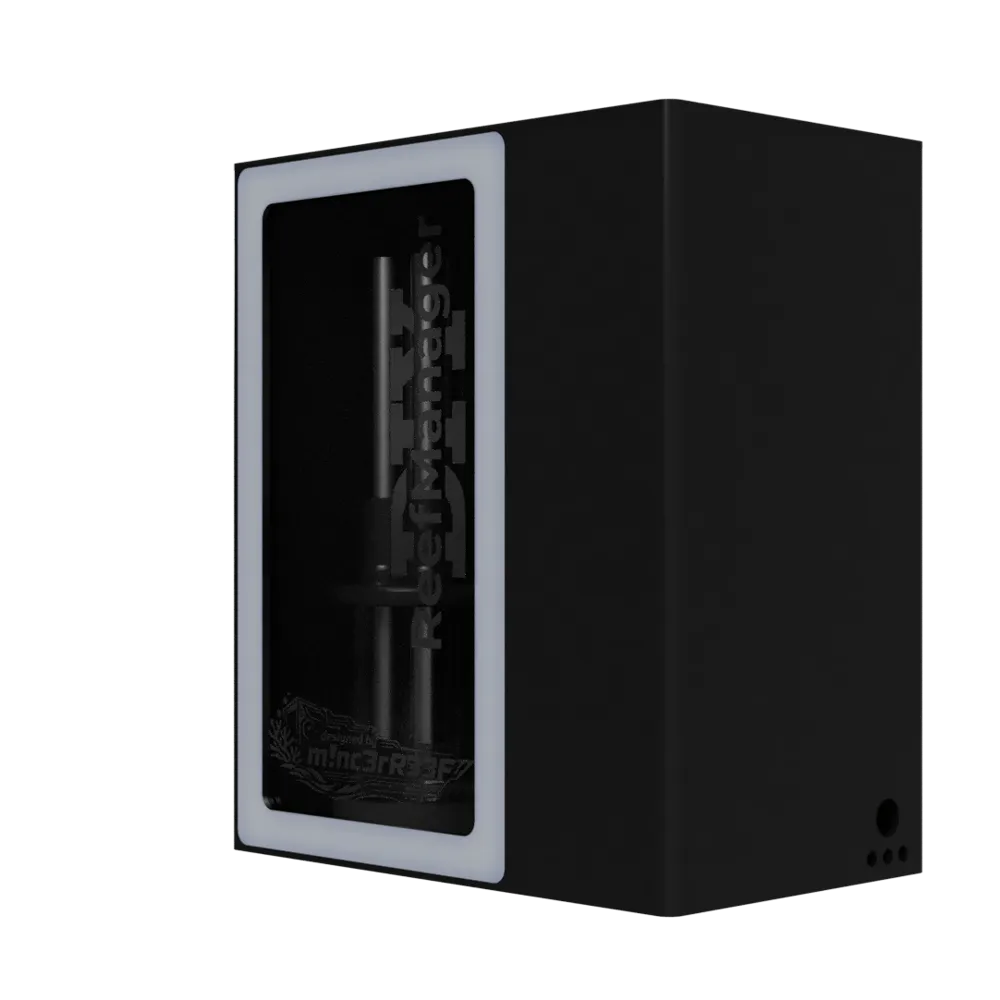

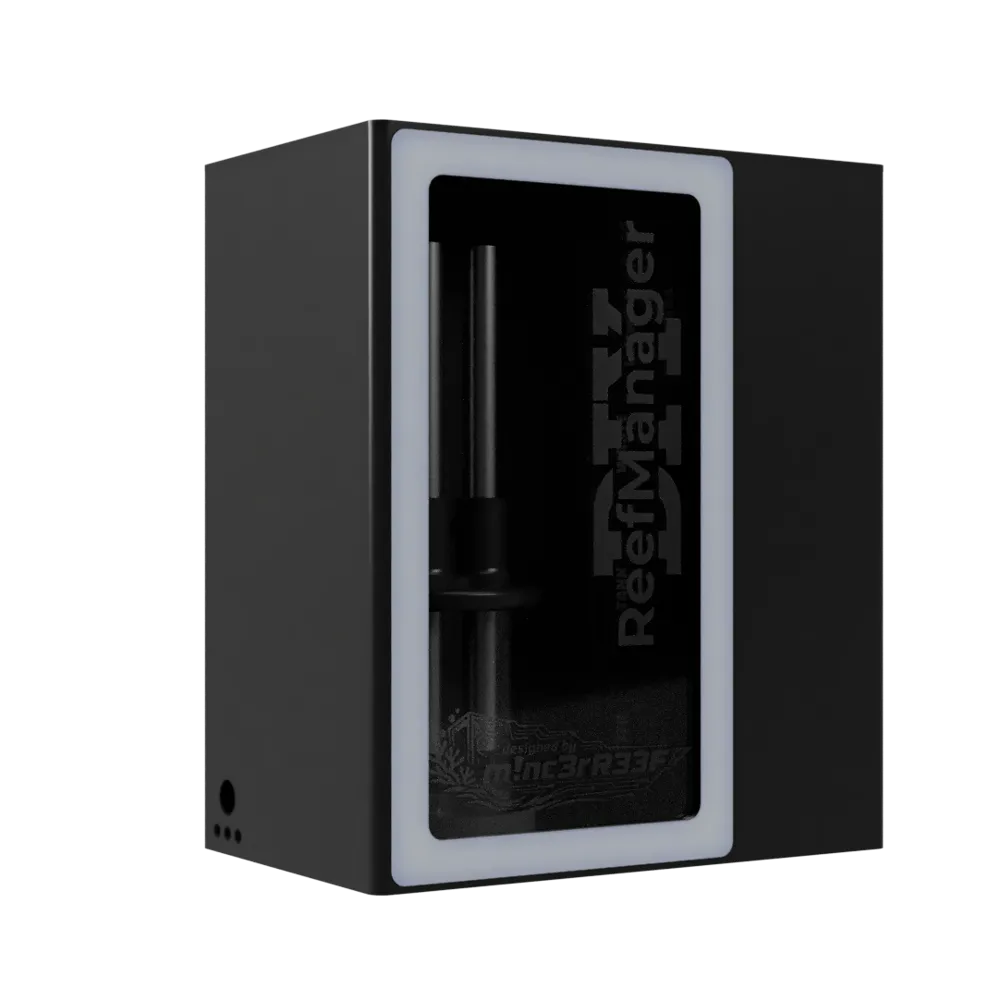

A compact and modern 3D-printable case for the KHFix4U / MultiMate from ReefManager
The KHFix4U is an automatic KH measuring system based on pH titration, enabling regular monitoring of carbonate hardness in saltwater aquariums This case was designed to neatly, securely, and aesthetically house all the electronics and measurement technology

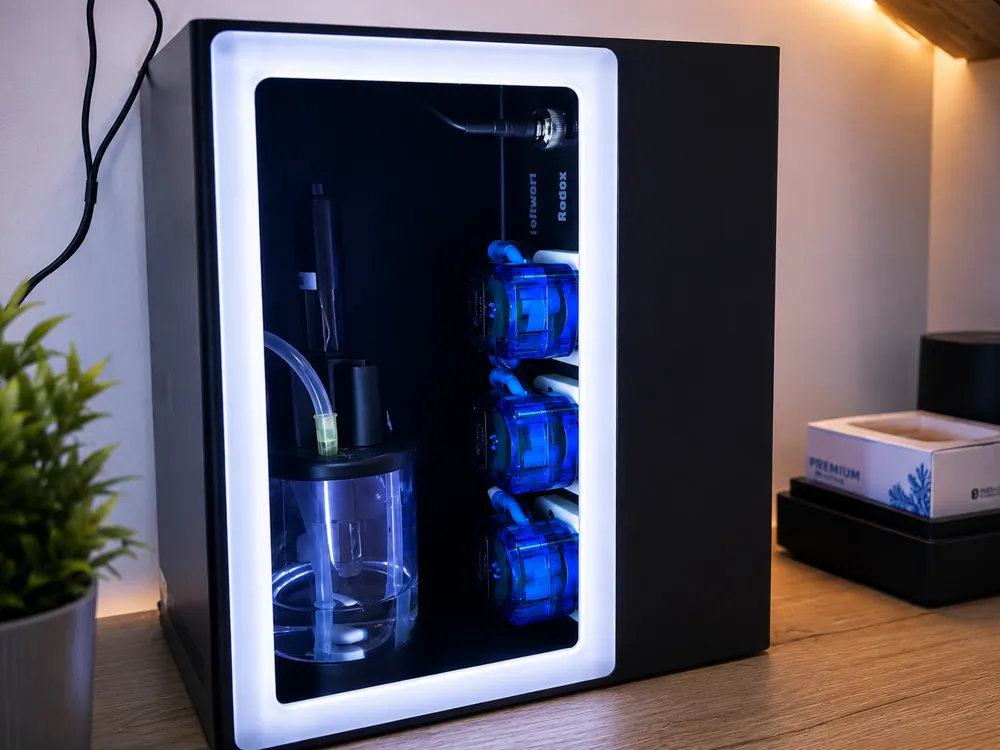

The large viewing window allows a constant view of the installed technology and ensures a modern appearance
Features
- Compact and modern design
- Magnetically attached front cover
- Large viewing window (→ acrylic sheet cut 202x104mm)
- Easy assembly using heat-set inserts
- Maintenance-friendly design
- Well-designed cable management

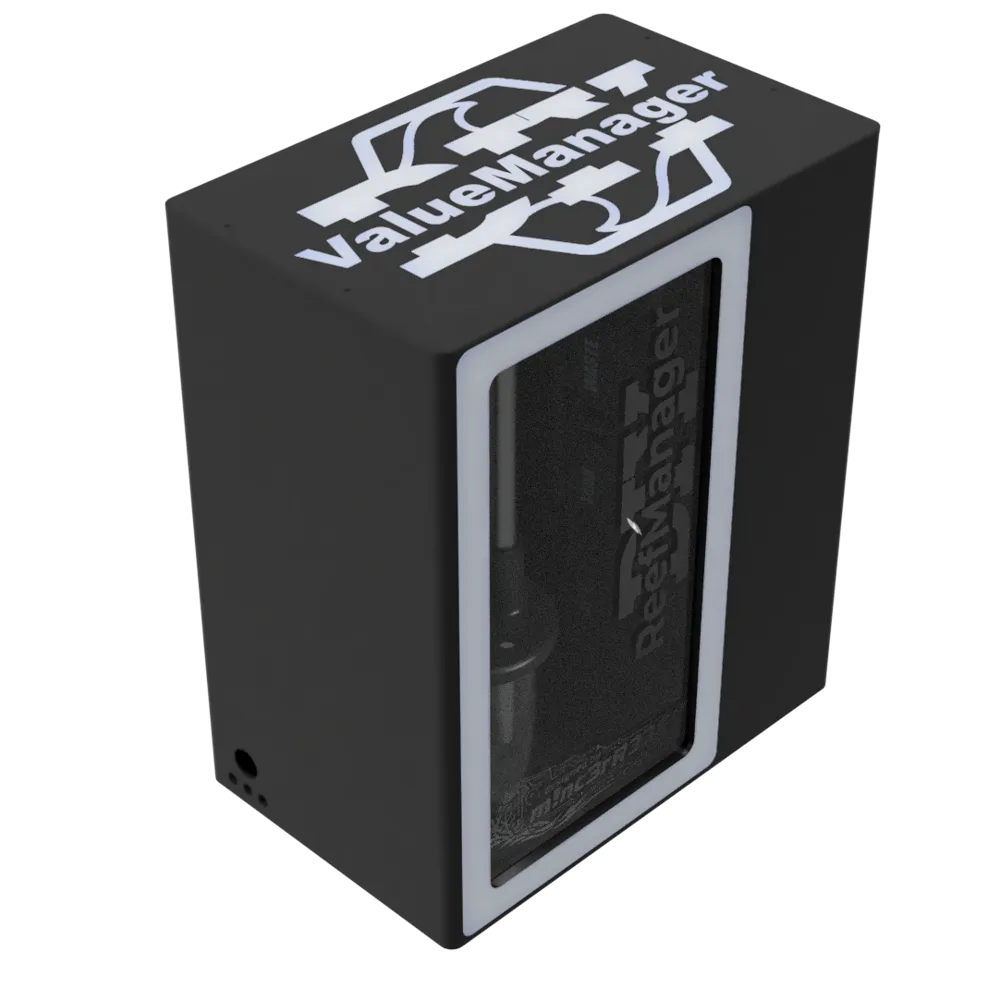

Note on the ValueManager Logo
The ValueManager logo present on the case has no connection to ReefManager or the KHFix4U project
"ValueManager" is a personal concept idea for a future modular water analysis and monitoring system The vision behind it is to expand a device with additional measurement functions such as
- Redox (ORP)
- Conductivity
The logo serves solely decorative purposes and does not represent an official ReefManager product
Required Hardware
Fastening Material
- 16× M2 heat-set inserts
- 16× M2x6 screws
- 10× Neodymium magnets 6 × 2 mm
Electronics
The required electronic components correspond to the list which can be found on ReefManager.eu
Software, Firmware and Parts List
All information regarding assembly, the required hardware, the shopping list, firmware files, presets, and further documentation are provided via the official ReefManager platform
There you will find among other things
- Shopping list of required components
Presets (.bin) for the MultiMate software
⭐ Have fun printing, assembling, and expanding your KHFix4U project! 🪸🐠🔬
Disclaimer & Terms of Use
This project is provided exclusively for private, non-commercial use
Not permitted
- Commercial use of the provided files
- Sale of printed parts or assemblies
- Sale of complete devices based on these files
- Offering 3D printing services for third parties using these files
- Sharing, publishing, or distributing the files on other platforms without explicit permission
- Modification of the files followed by commercial distribution
Permitted
- Private download of the files
- Private reprinting for personal use
- Adjustments and modifications for personal use
- Publication of images and makes of your own build
By downloading and using the files, you agree to use the files exclusively for private purposes
If you are interested in commercial use or a special license, please contact the project creator in advance
© All rights reserved Printing, reproduction, or distribution to third parties, as well as any form of commercial use, is strictly prohibited
