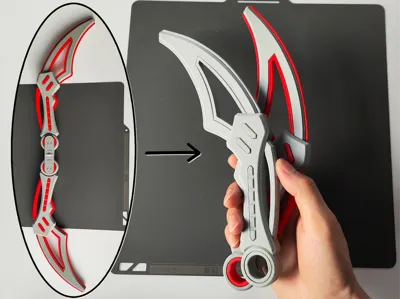

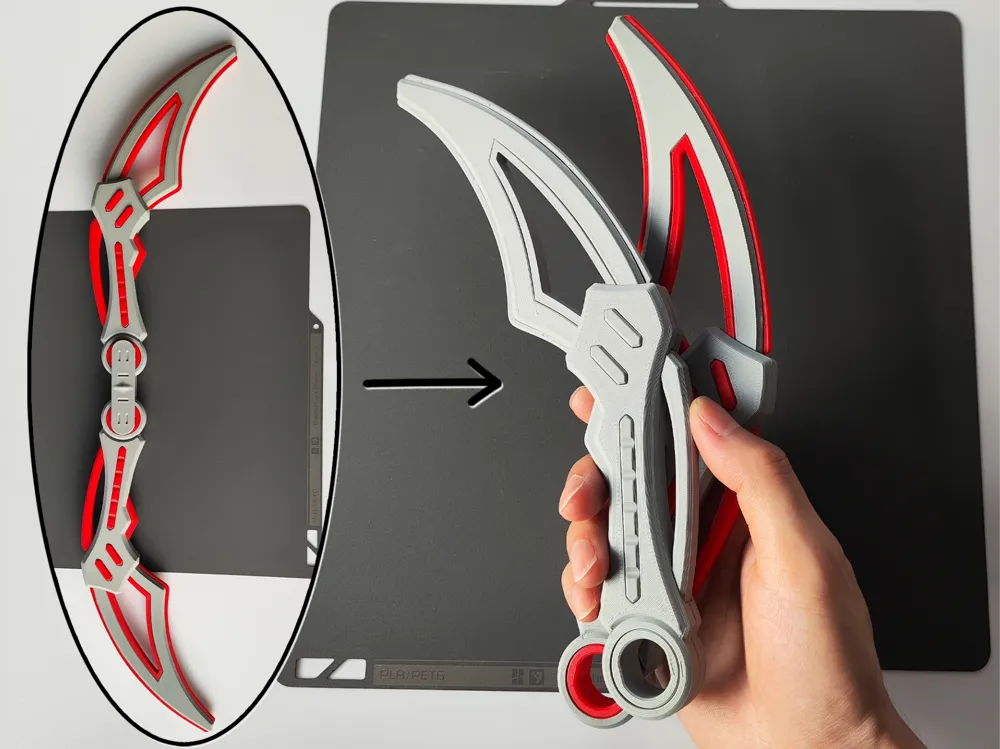

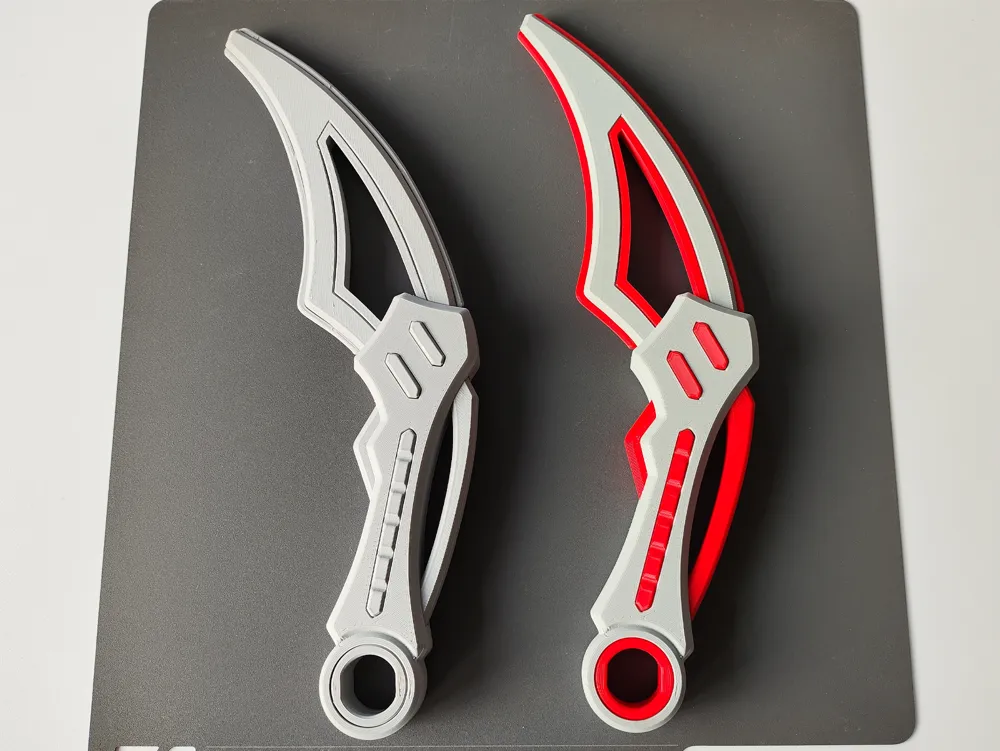

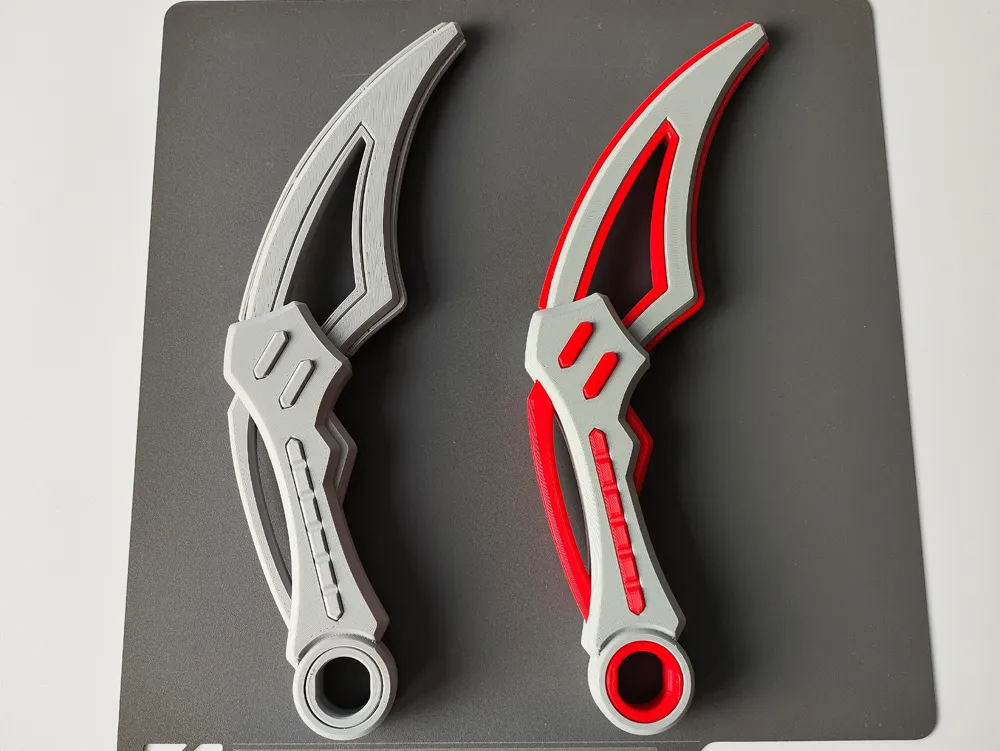

Dual Mode: Dagger-Short Blade/Bow, Pre-plated Two-color/Single-color (no supports, no hardware needed)

This weapon is a derivative work from the previous weapon, so it will be slightly similar and slightly easier to install. The bow mode is included as an appearance part only and cannot be fired (Length, width, height approx: 240.6*83*15.6mm, Bow length, width, height approx: 493*83*20.4mm)

Important Notes:

1. Due to the relatively sharp parts of the blade, it is not recommended for younger children to play with it (or sand it down yourself)

2. The dual weapon connector (needs to be printed separately) will be easier to disassemble after installation because the buckle protrusion is small (to allow for easier separation of weapons), so the connection strength will not be too high. Do not swing or throw it, as the connector may not hold firmly

3. The bow mode is included as an appearance part only and cannot be fired

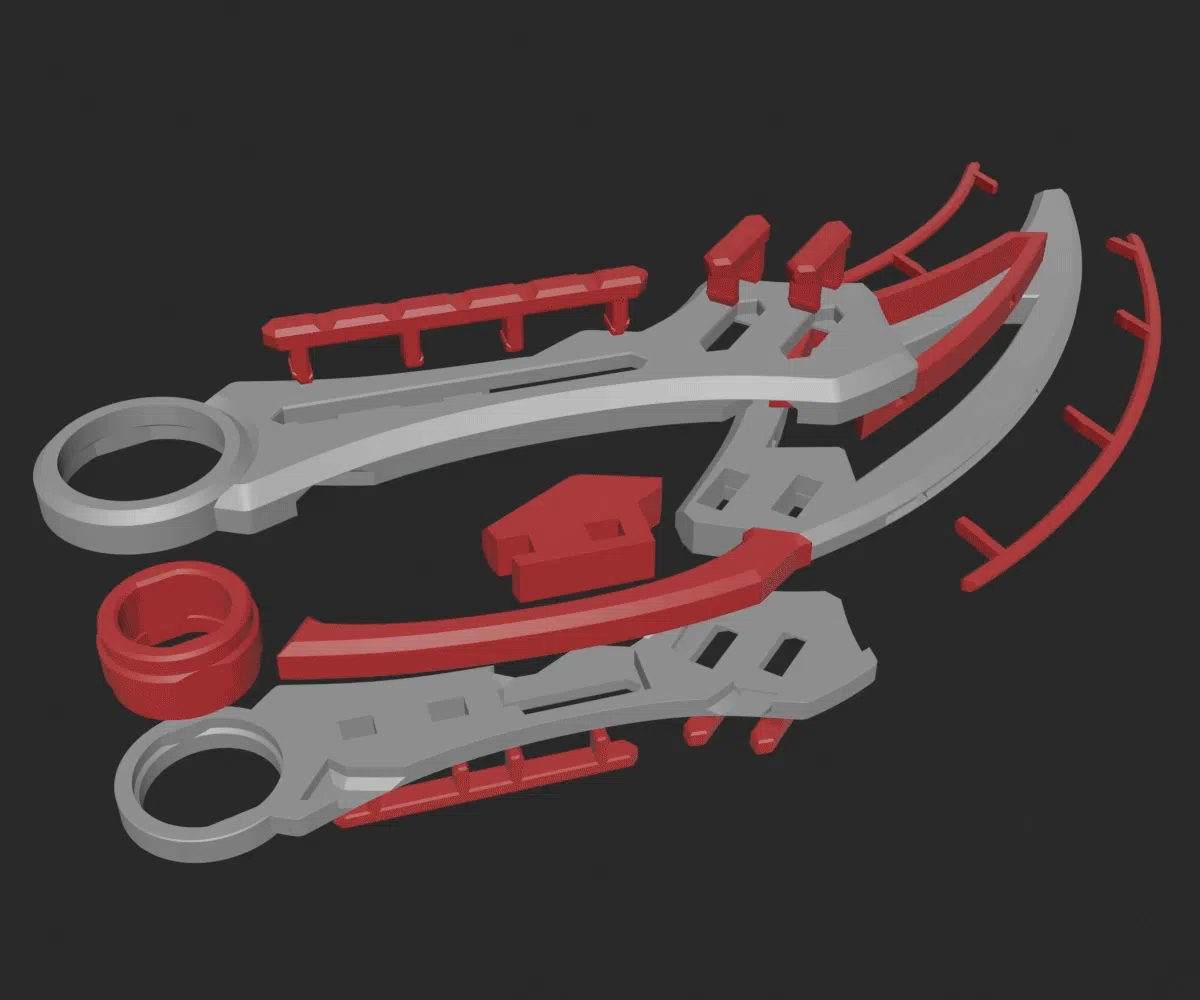

The GIF below is the assembly diagram:

1. First, install the blade inner decoration, otherwise the blade edge will not snap into place

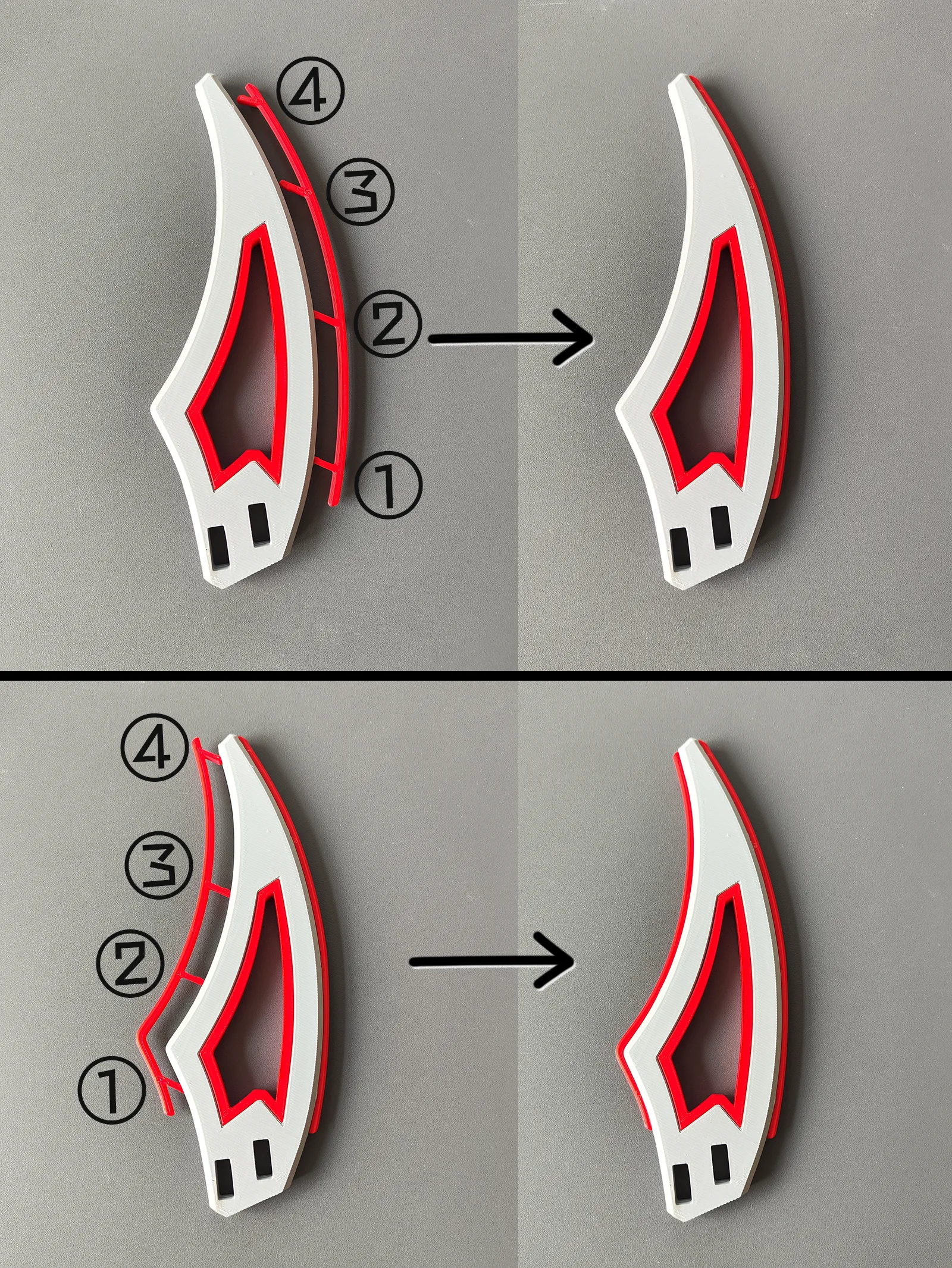

2. To install the blade edge, please follow the numerical order in the left image to slightly push the clips into the blade slot until it looks like the right image, then gradually push each clip in one by one (do not push all clips in at once to avoid breaking the clips or blade edge)

3. Install the rear red ring (note the direction), place the 2 parts in the middle of the grip, then cover with the grip, and finally snap on the clips

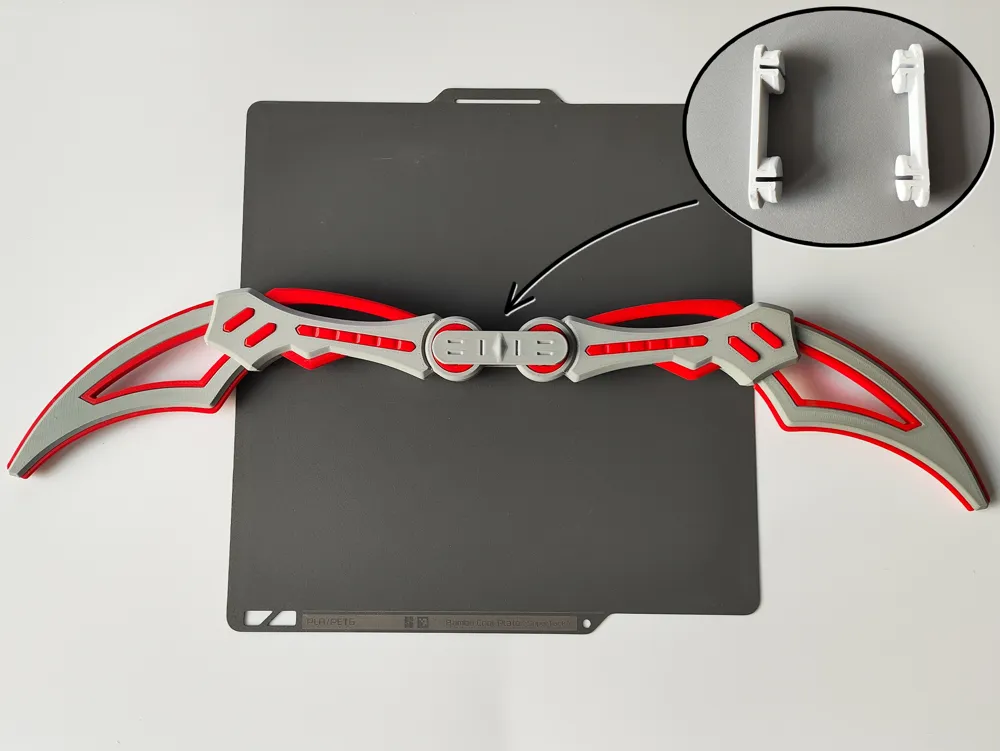

4. Bow mode: Print the dual weapon connector and snap it onto the rear red ring (note the direction of the buckle and red ring). It will be easier to disassemble after installation

Note: 1. Both PLA and PETG can be printed. It's best to understand the characteristics of these two materials before printing to avoid printing failures!! For example, PLA can become brittle if left for a long time or at low temperatures, while PETG has good toughness. Please choose the filament that suits you!!

        2. If it's for younger children, and the parts are small and easy to disassemble, it's better to glue them firmly with 502 or other adhesives to prevent them from being swallowed!!

        3. If there are no special requirements, please do not use your own advanced process settings for printing~ to avoid printing failures!!

If your printd part has local spaghetti, or the filament doesn't stick to the build plate, please recall if you touched that area (hands secrete sweat and oil, touching it has a very high chance of causing spaghetti)  or if the build plate is dirty. The solution is to search online for how to clean a 3D print plate!! If other problems occur, please describe it in the comments section and add pictures, so it's easier for us to solve it~  Otherwise, I can't imagine the situation = =!!
