Herdio AMP-BTX01 4 Channel Amp Box

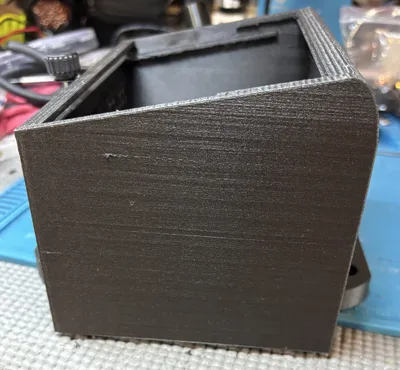

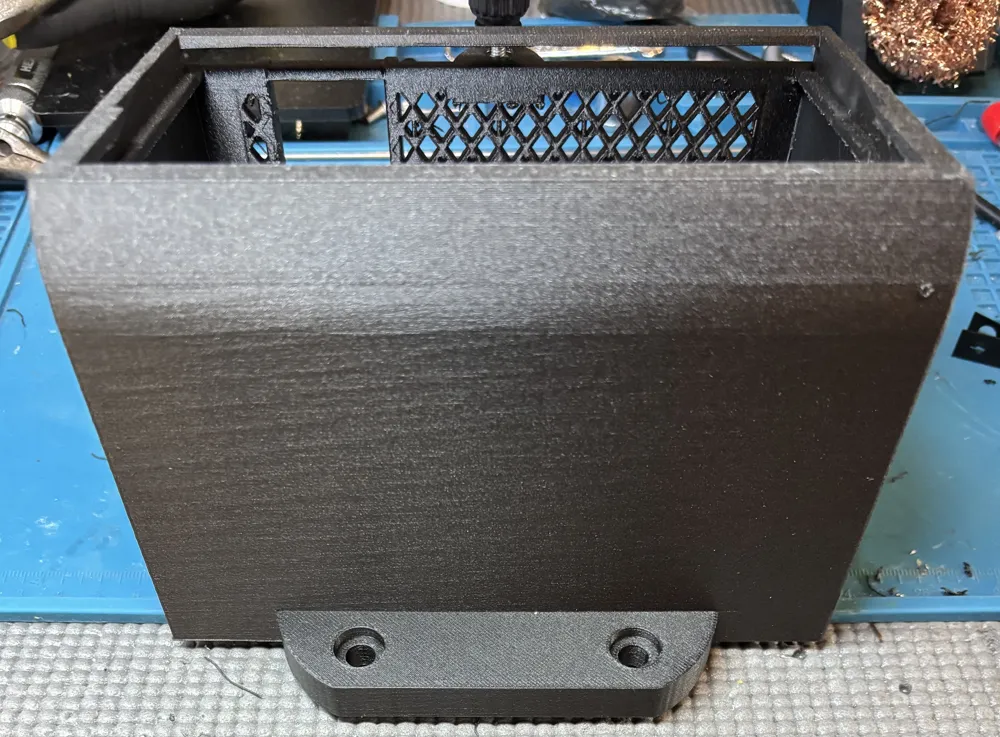

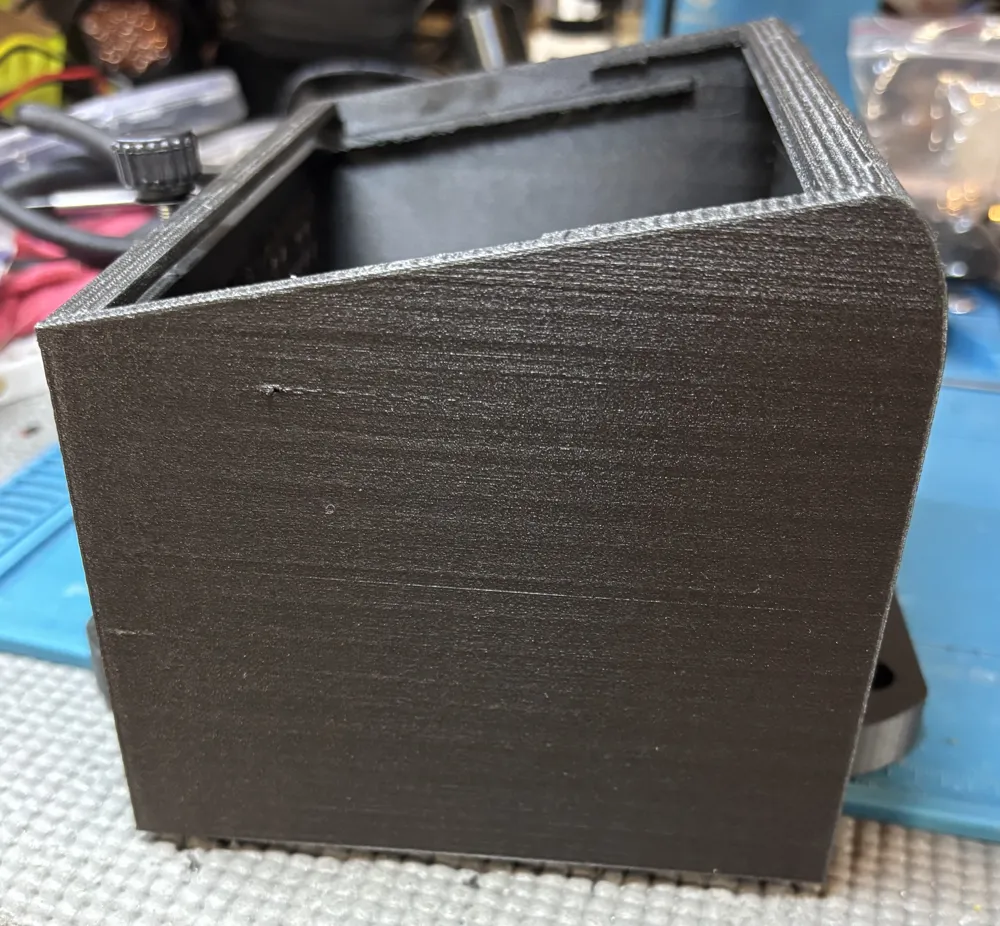

This is intended to be an outdoor box for a Herdio AMP-BTX01 4-channel amplifier. It's designed specifically for a 4" x 4" post mount but can be mounted anywhere. There is a slight overhang for the purpose of preventing rain from affecting the gear. There is also a meshed bottom to allow slight cooling and evaporation of any moisture.

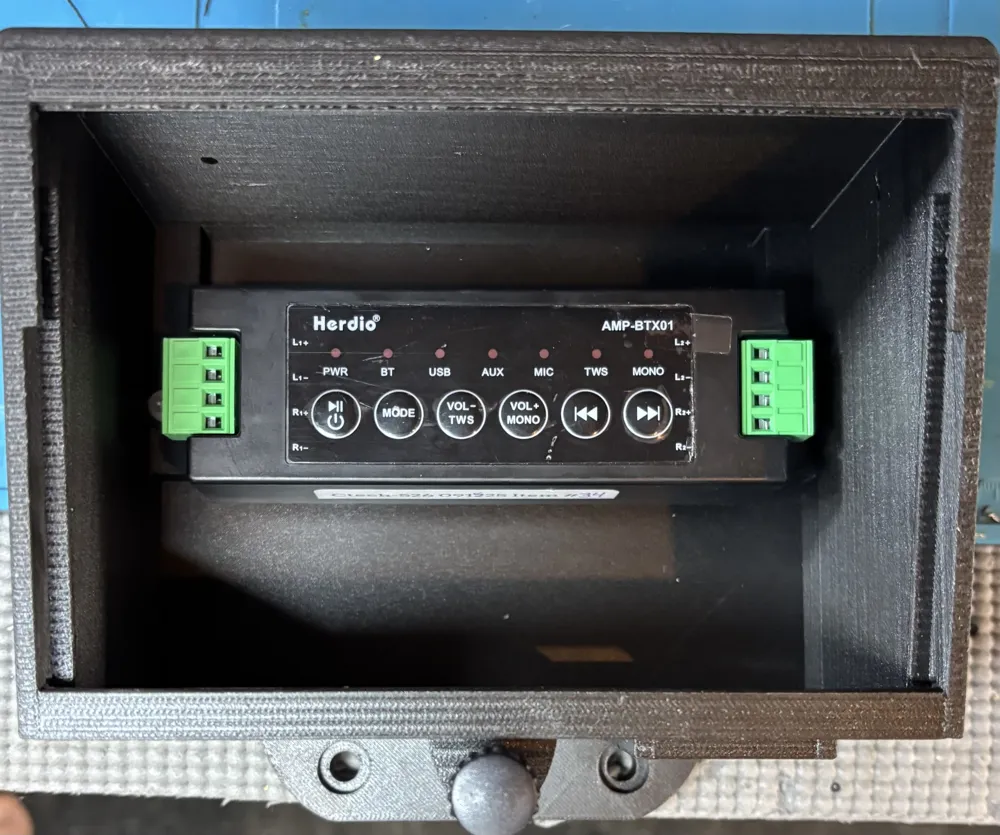

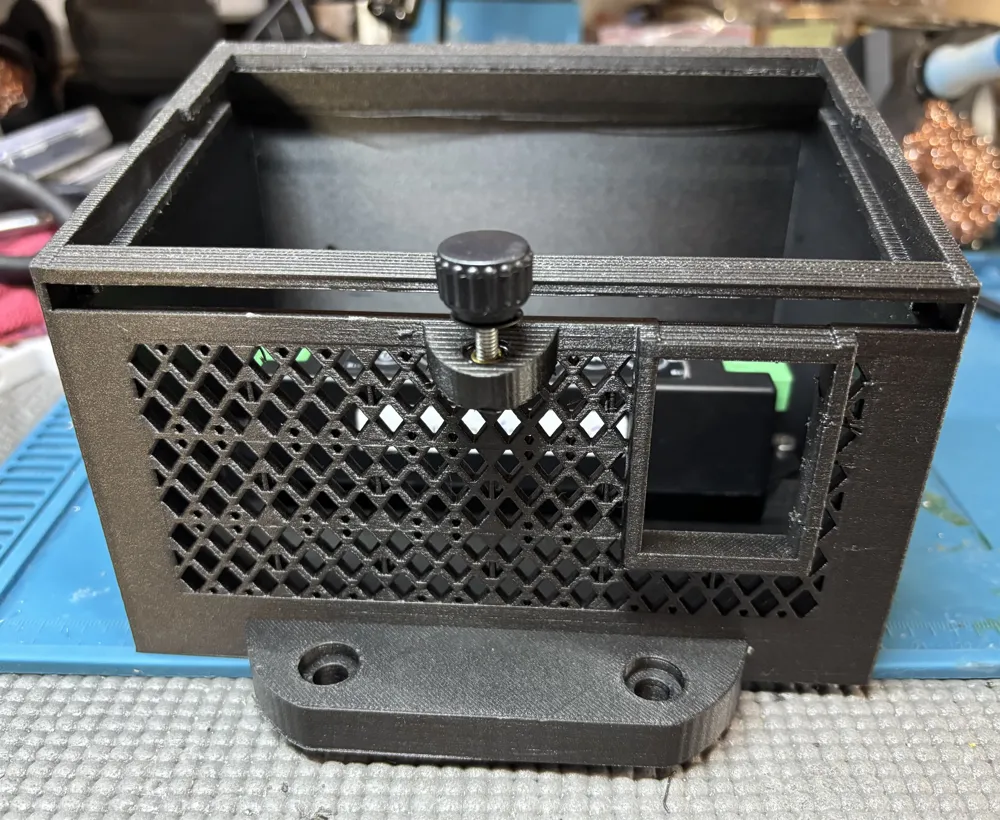

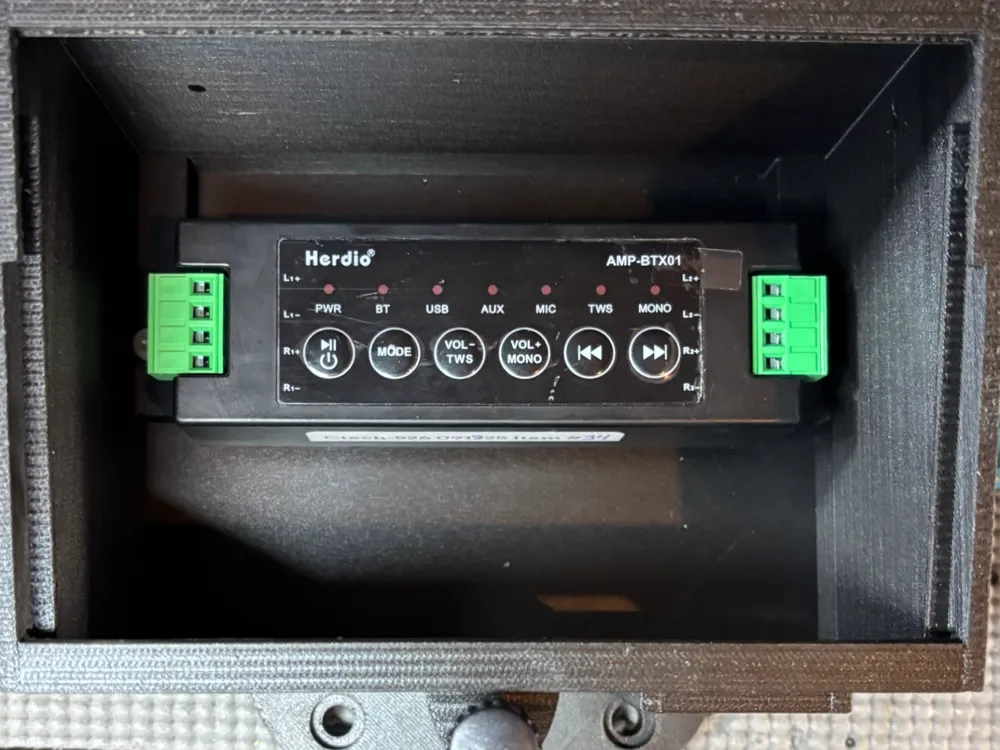

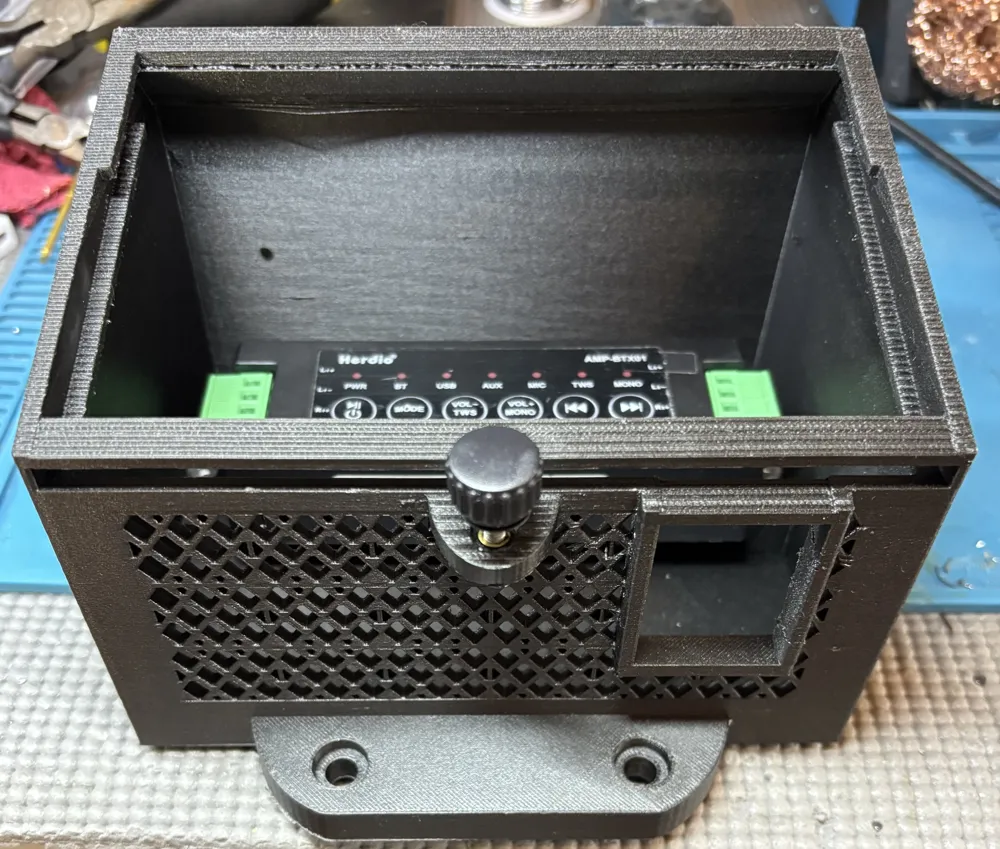

There are left/right mounts for the amp ears. Each hole is 5.7mm to accommodate 4mm heat inserts. Additionally, there is a removable cover that slides in from the bottom. The box has another 5.7 hold for a 4mm heat insert so you can use a thumb screw to hold in place.

There is a hole at the bottom to accommodate the speaker and power cables. The power brick will sit at the bottom of the box.

I printed in PETG-CF due to the rigidity and need to sustain the weather.
