Minecraft customizable modular mosaic pixel assembly blocks with adjustable parameters creative expansion kit

This design is a standardized mosaic pixel assembly block system, suitable for physical pixel art creation and creative assembly. Its rigorous structural design combines practicality and expandability, meeting various creative scenarios such as flat composition and three-dimensional model construction 🎨.

Printing notice: The default snap-fit tolerance is 0.03mm, perfectly verified by printing with official PLA Basic material on P1S. For other models and materials, please verify the snap-fit tolerance yourself; it can be freely adjusted in the customization options.

Additionally: Pixel blocks with self-locking snaps and stackable block models are ready, and their fit tolerance is being optimized. If you like them, you can follow for updates.

Core Design Features

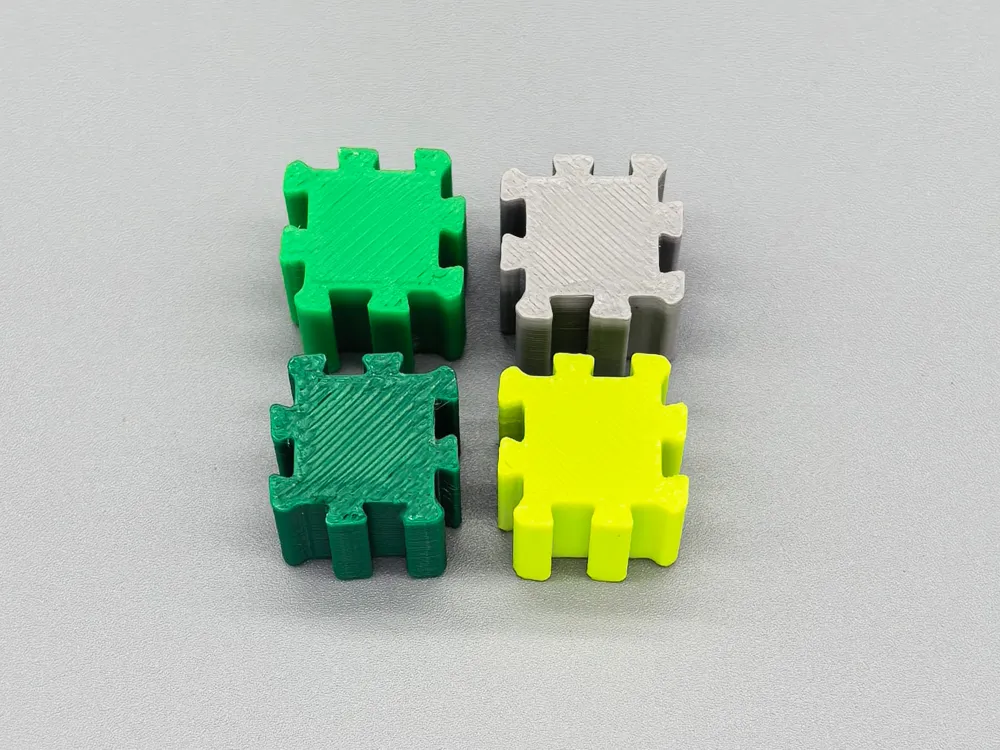

1. Trapezoidal snap-fit structure, stable and reliable assembly🧩The block units use a symmetrical trapezoidal interlocking snap-fit design, ensuring tight connection and a sturdy overall structure after assembly. Large area assemblies are not easily loosened or disassembled, meeting various display needs such as desktop placement and wall display.
2. Supports infinite expansion and assembly📏Using a unified standardized structural design, it allows for free horizontal and vertical splicing and extension. Users can freely adjust the overall picture size, with no limitations on creative scale.
3. Breaks through the color limitations of all-in-one printing🌈Adopting a separate assembly production method, it eliminates the need for multi-color all-in-one printing technology. This allows for batch printing of different colored block units by color separation, combining them according to pixel drawings, easily creating colorful physical works, and greatly reducing production difficulty.

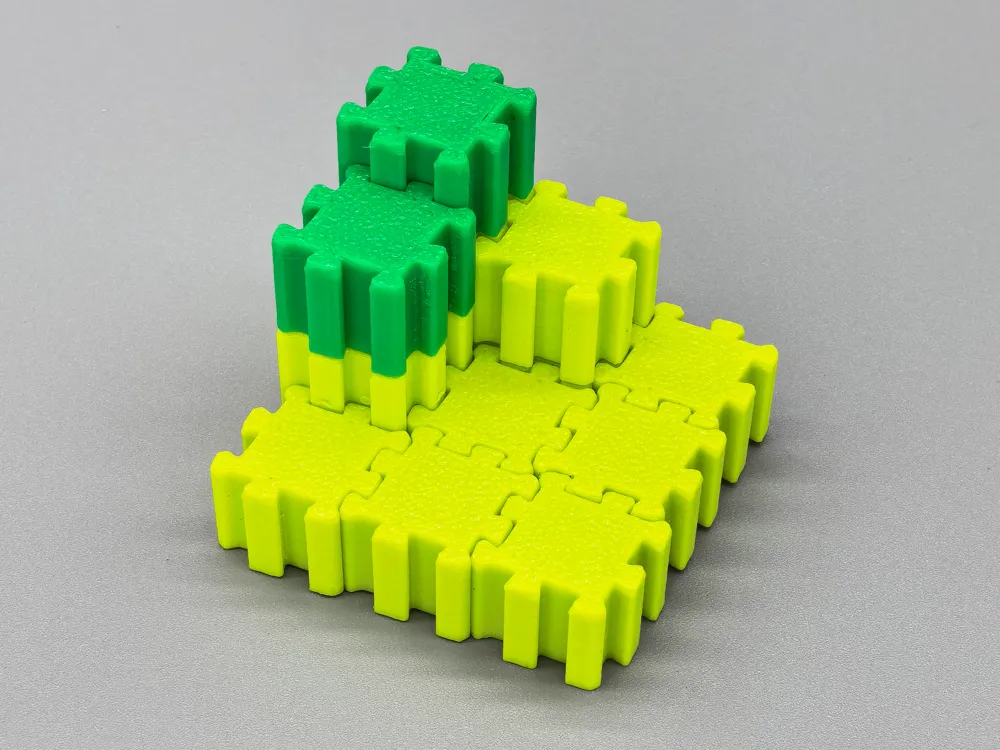

4. Multiple thicknesses to choose from📐Two common print profile specifications, ready to use directly after printing: 1. Block side length 12mm, height 5mm; 2. Block side length 12mm, height 10mm. Different thickness versions can be used individually or combined in multiple layers, allowing for both simple flat pixel art and layered three-dimensional pixel models.
5. Open parameterized customizable files⚙️Equipped with editable customizable source files, users can independently adjust pixel block side length, overall unit height, snap-fit tolerance and other core parameters, flexibly adapting to different printing conditions and assembly needs.

Usage Process

• Convert the target image into a pixel draft using an online pixel art generator website;

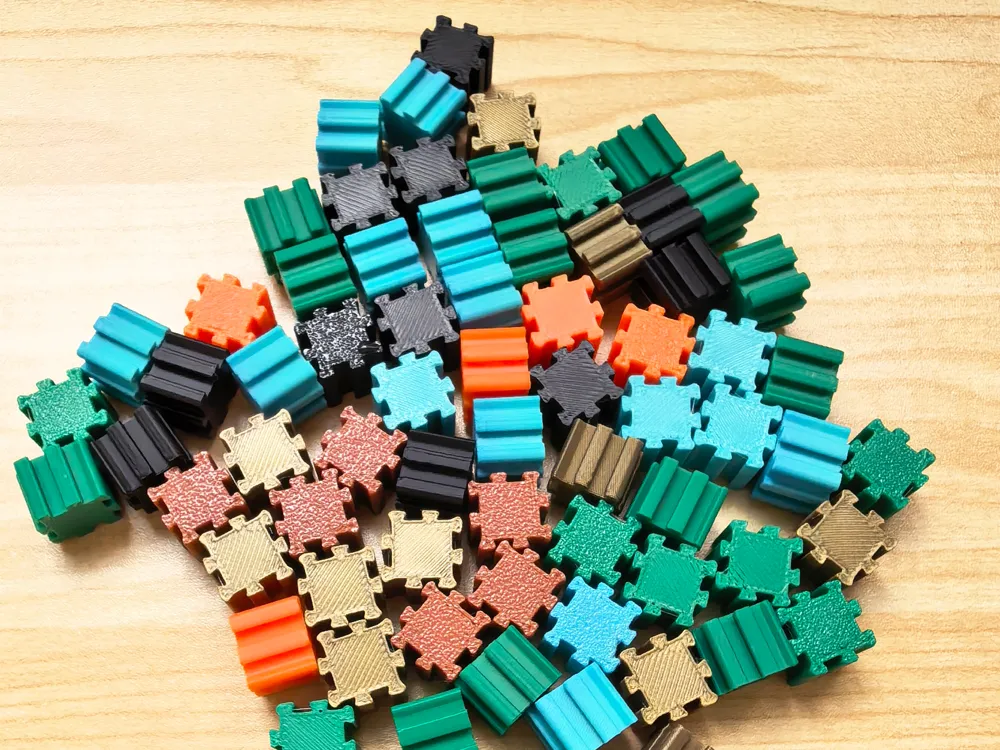

• Batch print block units of corresponding colors and suitable thicknesses according to the color and shape requirements of the pixel draft;
• Refer to the pixel draft to assemble the units by color and position. Flat works are directly combined and formed, while three-dimensional works can be layered and assembled;
• The block units support repeated disassembly and reassembly, facilitating modifications and secondary creations.

Printing and Adaptation Instructions

• The units are designed without supports, allowing for stable printing with regular PLA materials🖨️;
• Compatible with mainstream desktop 3D printers, requiring no special processes or parameter settings;
• Standardized units are compatible with different print batches, allowing for long-term continuous expansion of creations.

Printing Optimization Suggestions💡

Change the wall infill generator to Arachne mode, which can more finely fill the tiny gaps at the bottom and top of the model, effectively improving the overall flatness of the block's molding, and further optimizing the finished product's appearance and texture.

The default snap-fit tolerance is 0.03mm, perfectly verified by printing with official PLA Basic material on P1S. For other models and materials, please verify the snap-fit tolerance yourself; it can be freely adjusted in the customization options.

Pixel Assembly Reference Patterns🖼️

Provides a variety of high-quality pixel styles for assembly reference, easy to get started and operate:

• Cute animal, simple cartoon character pixel patterns

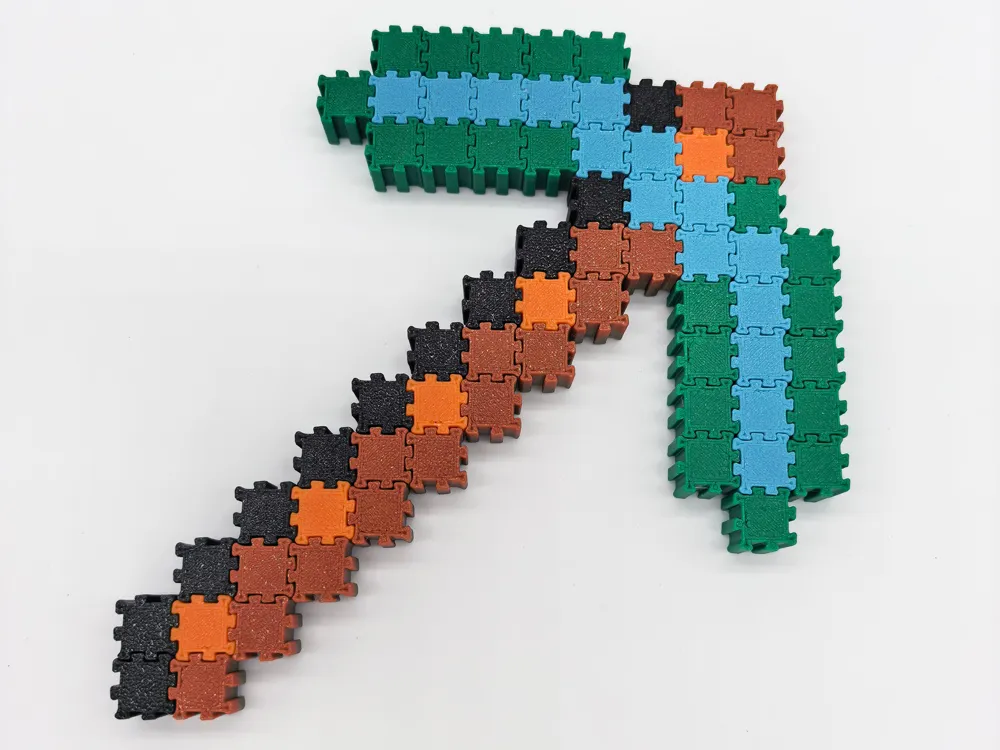

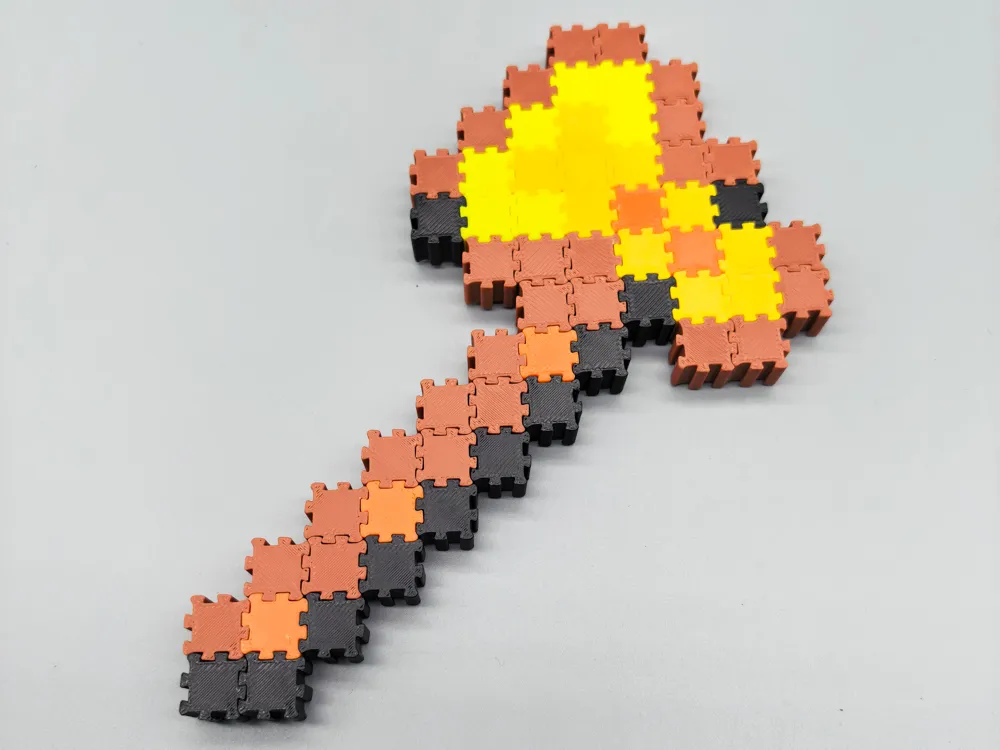

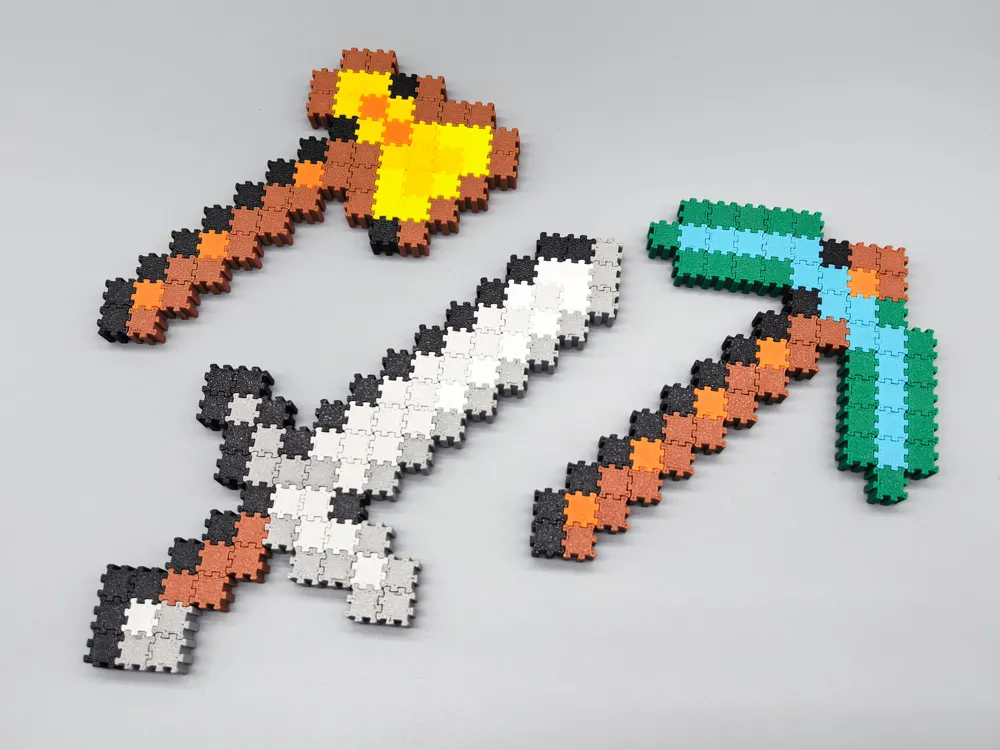

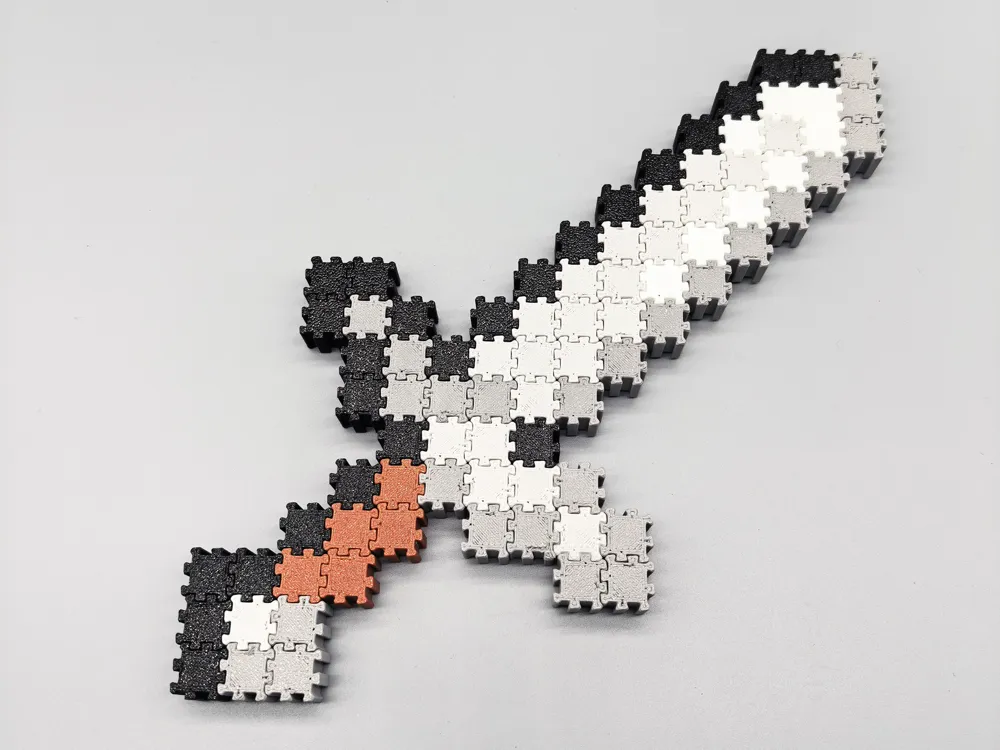

• Classic game props, character pixel designs
• Fresh landscape, starry sky floral flat pixel art
• Personalized text, creative logo pixel combinations
• Multi-layered stacked 3D ornaments, pixel relief designs. You can either follow templates for assembly or independently conceive original patterns, giving full play to your creative inspiration.
