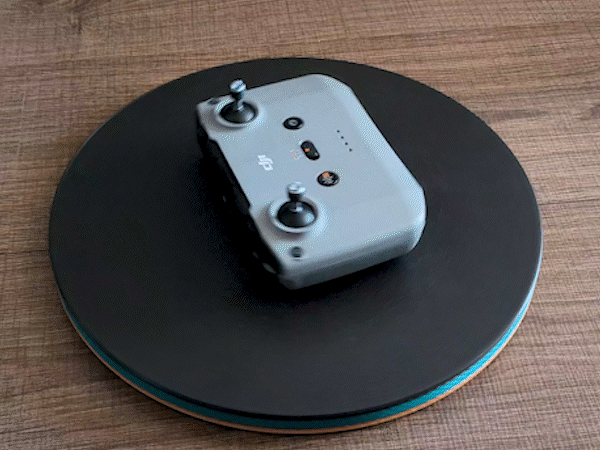

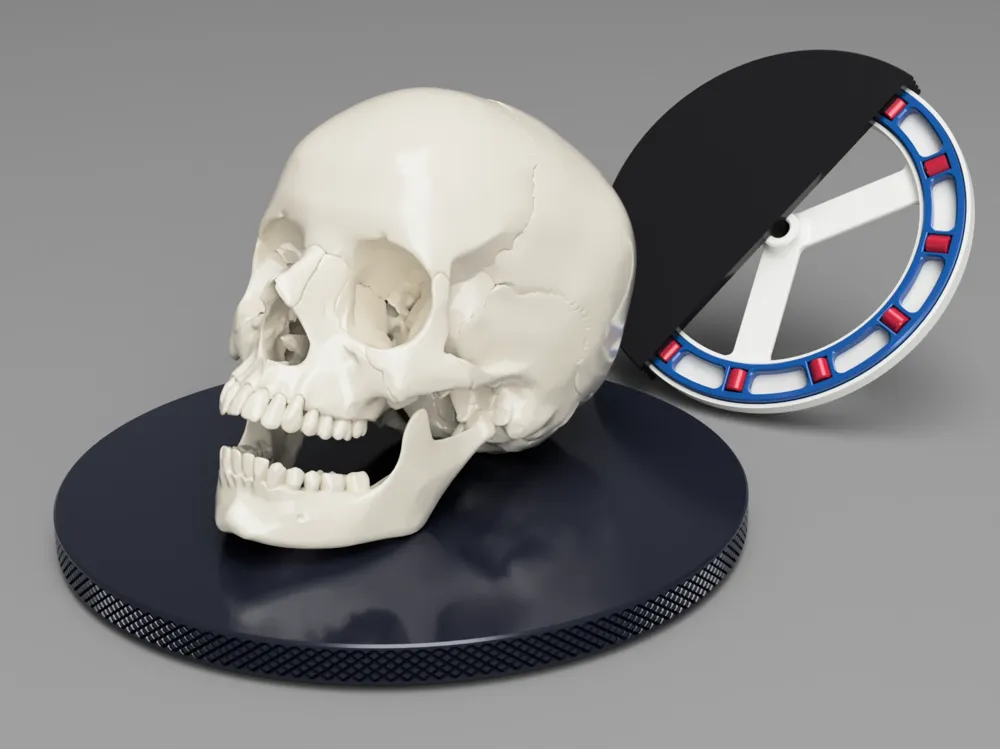

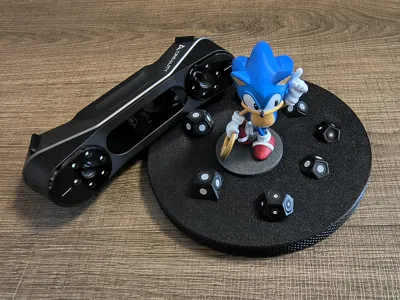

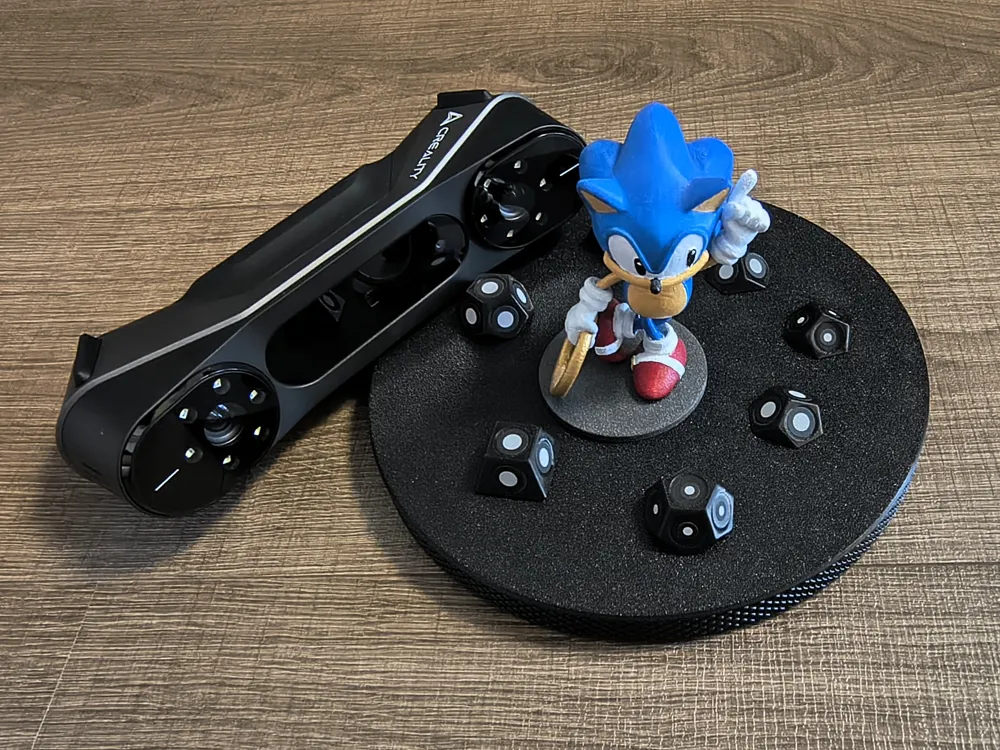

Rotary turntable for scanning is a practical, modular tool for precise capturing of objects using a 3D scanner or photogrammetry. The design is made to be easily printable, reliable, and allows smooth rotation without play.
đ§ Construction and Parts

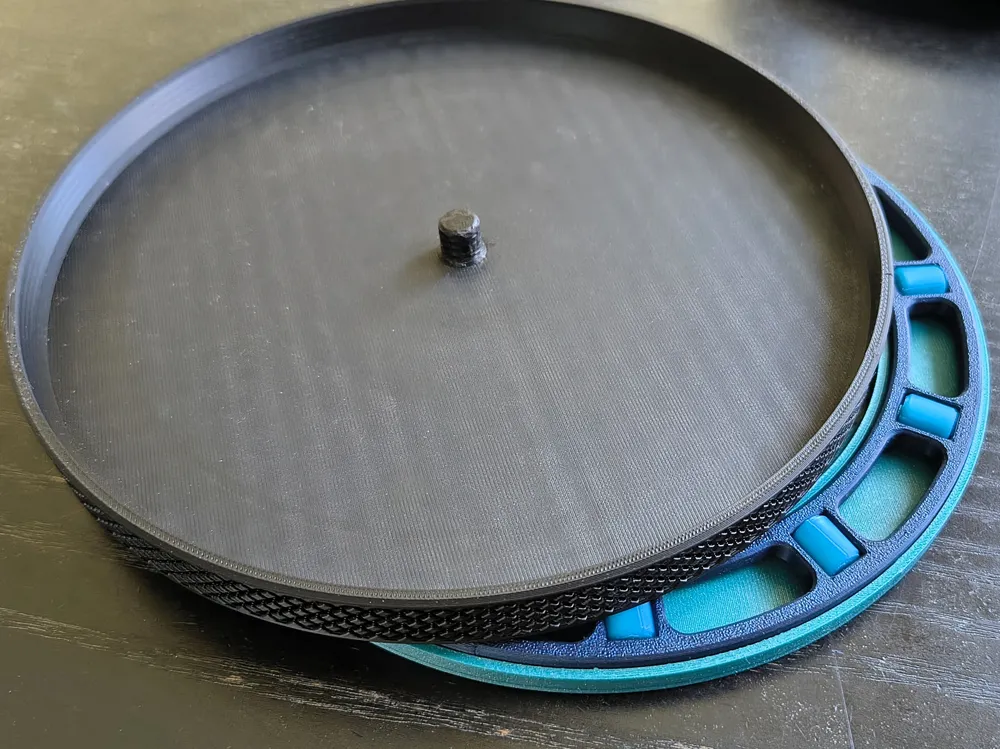

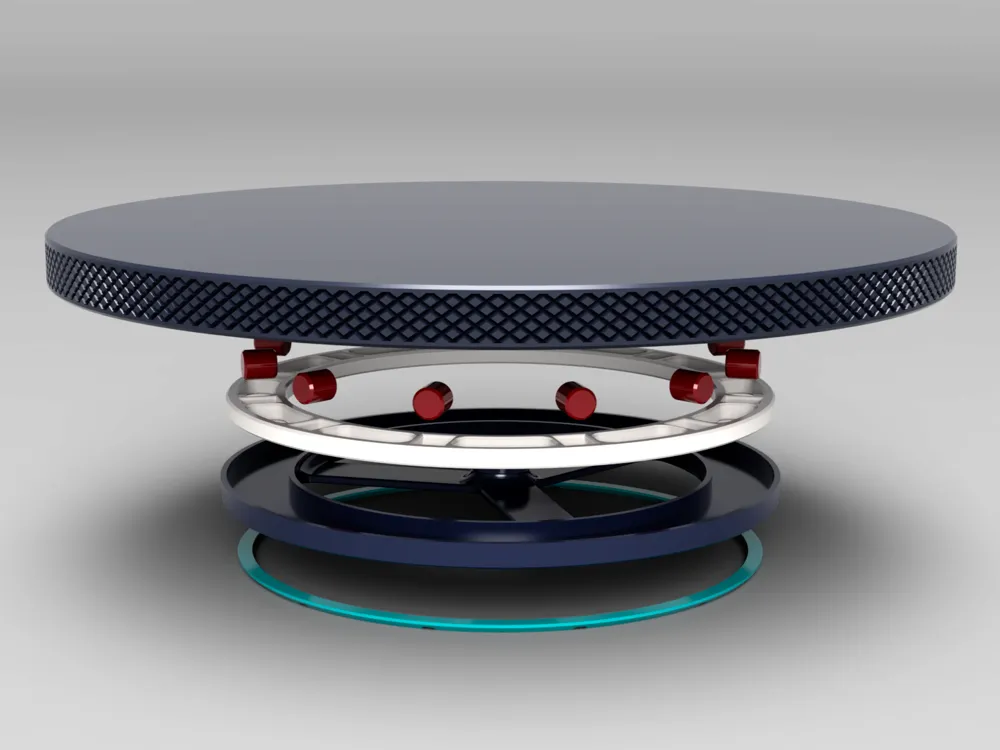

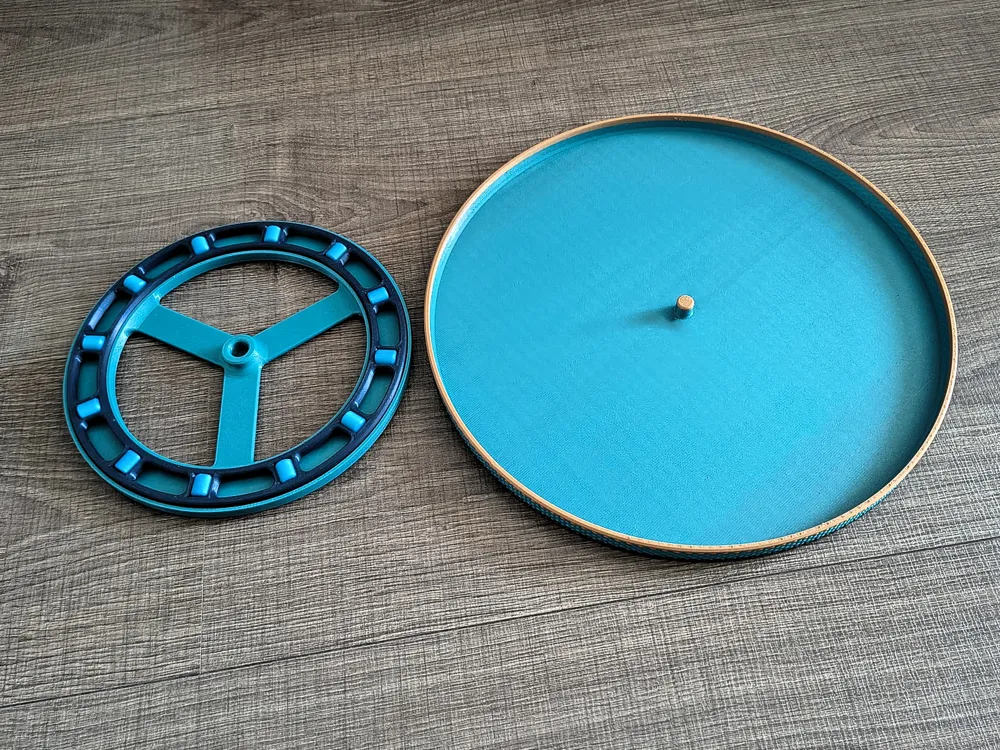

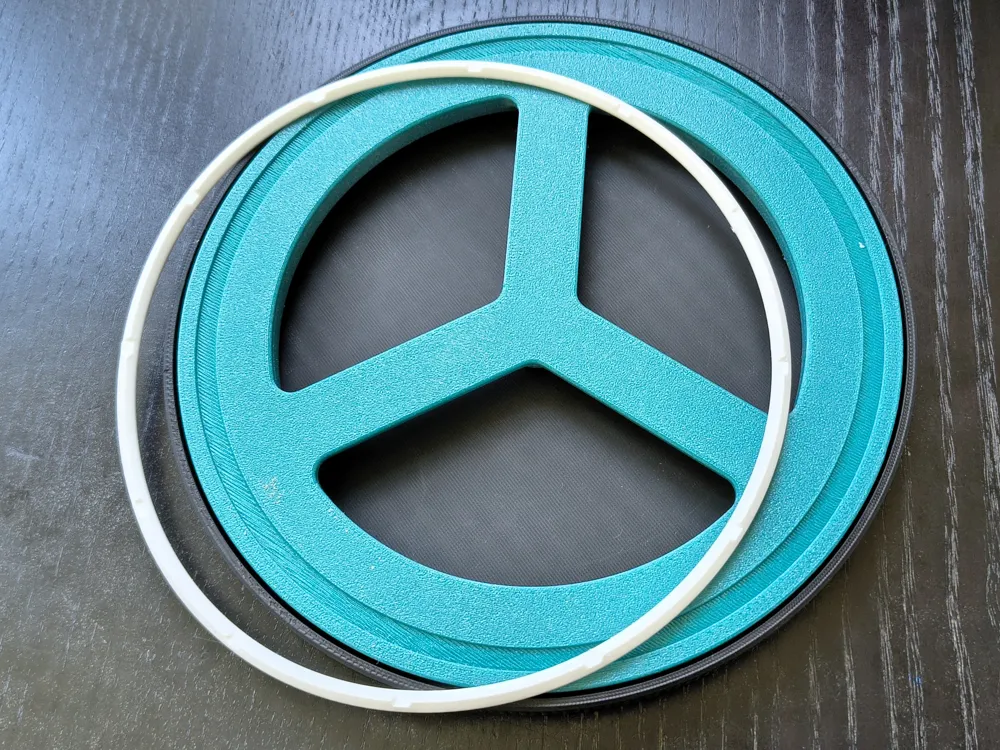

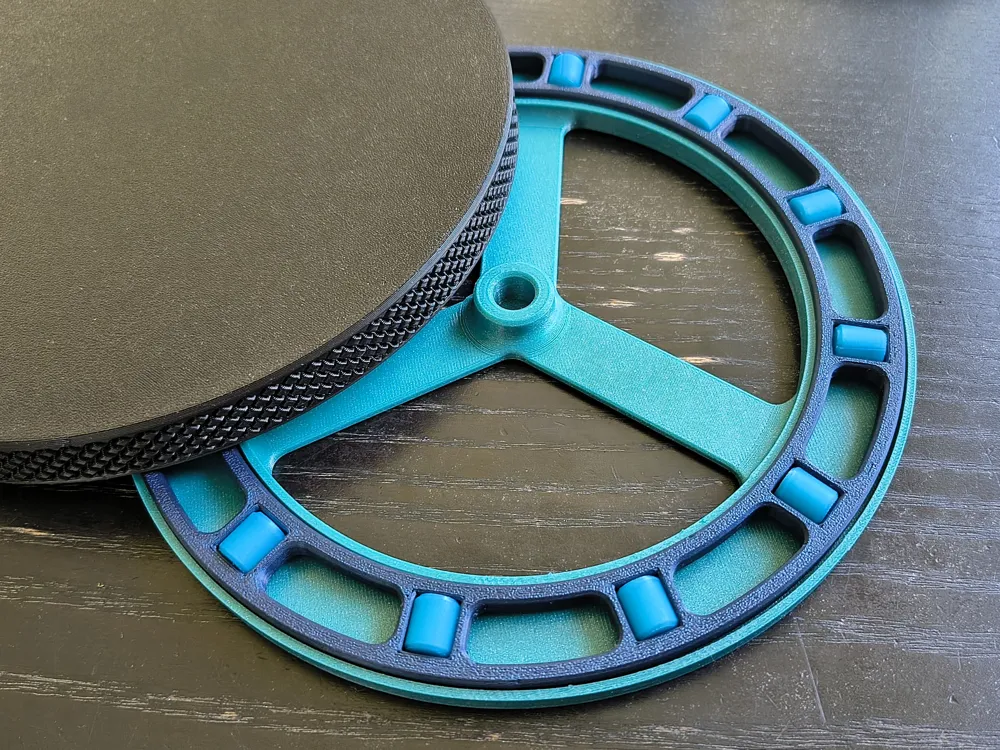

The model consists of four main parts:
- Turntable with knurling â comfortable manual rotation during scanning

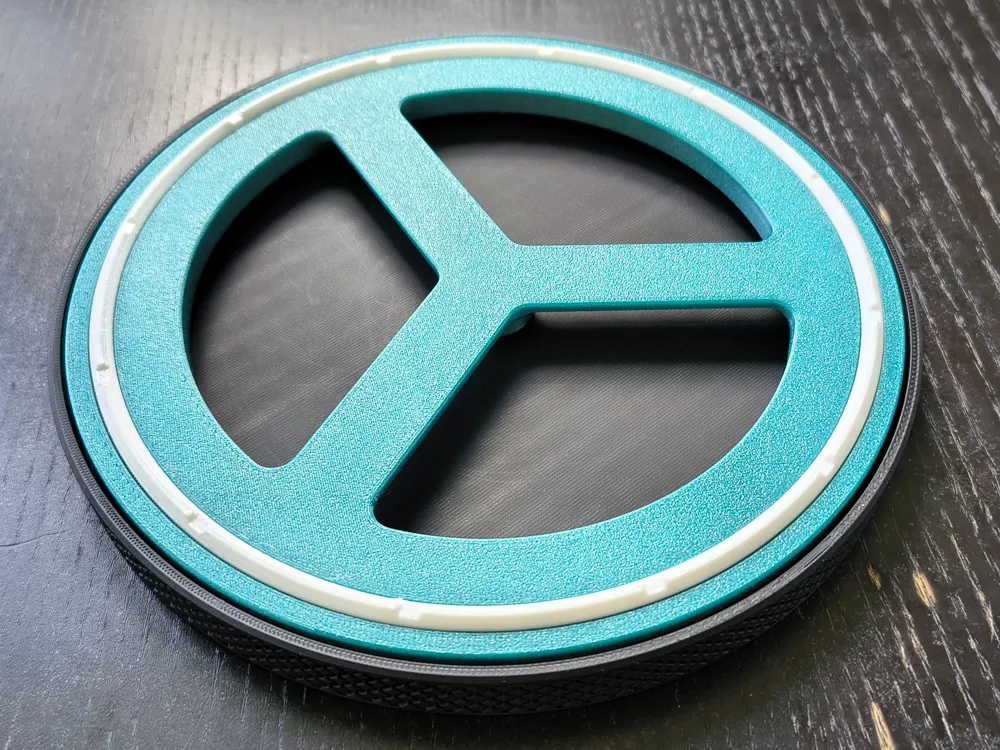

- Base â stable support for the entire mechanism

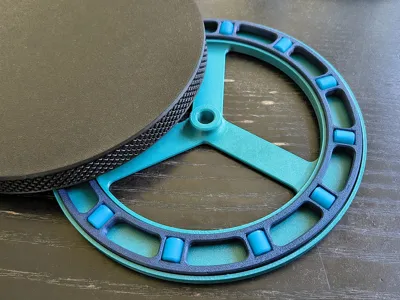

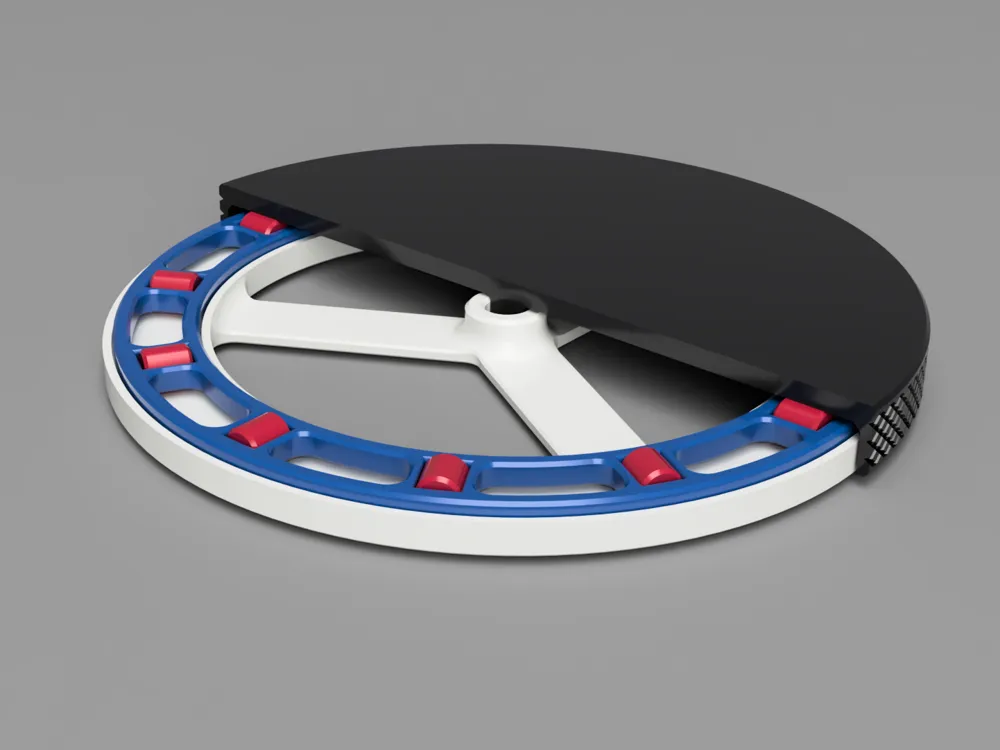

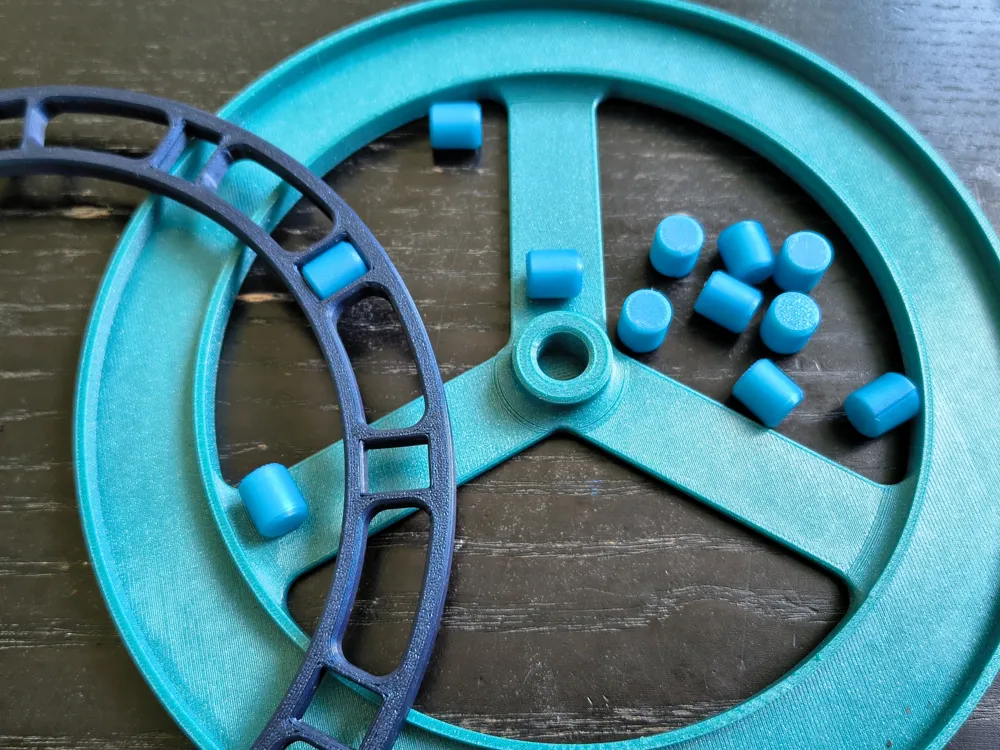

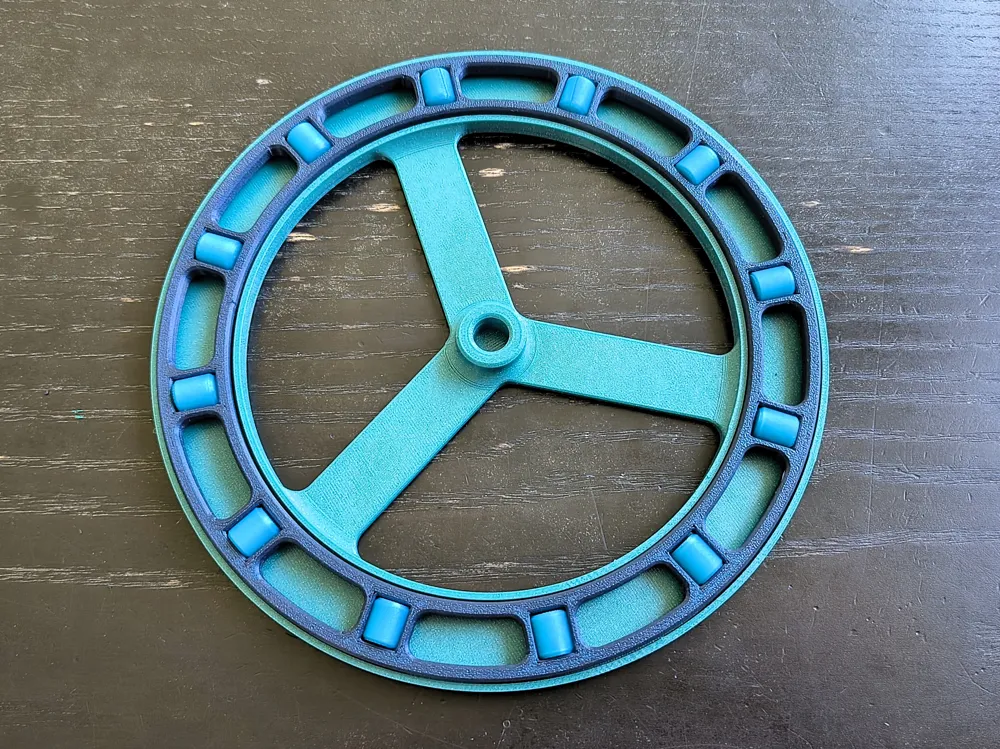

- 12-roller bearing â freely inserted, ensures smooth operation
- Anti-slip TPU strip â prevents slipping on the table

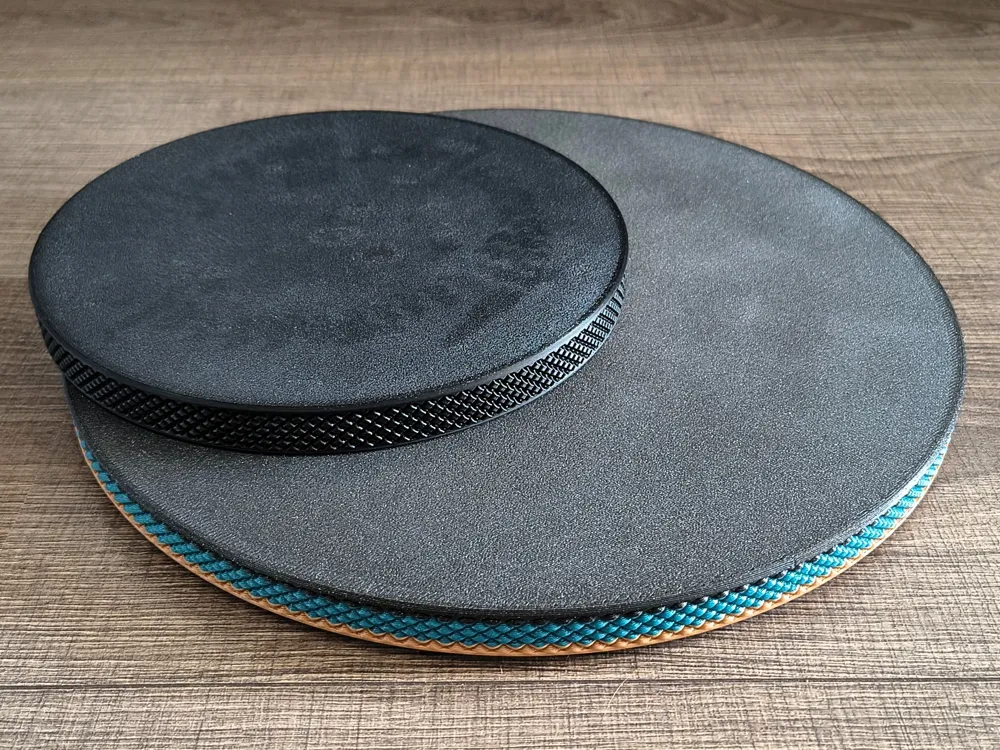

The parts fit together loosely, no screws or glue are needed. Two sizes are available:

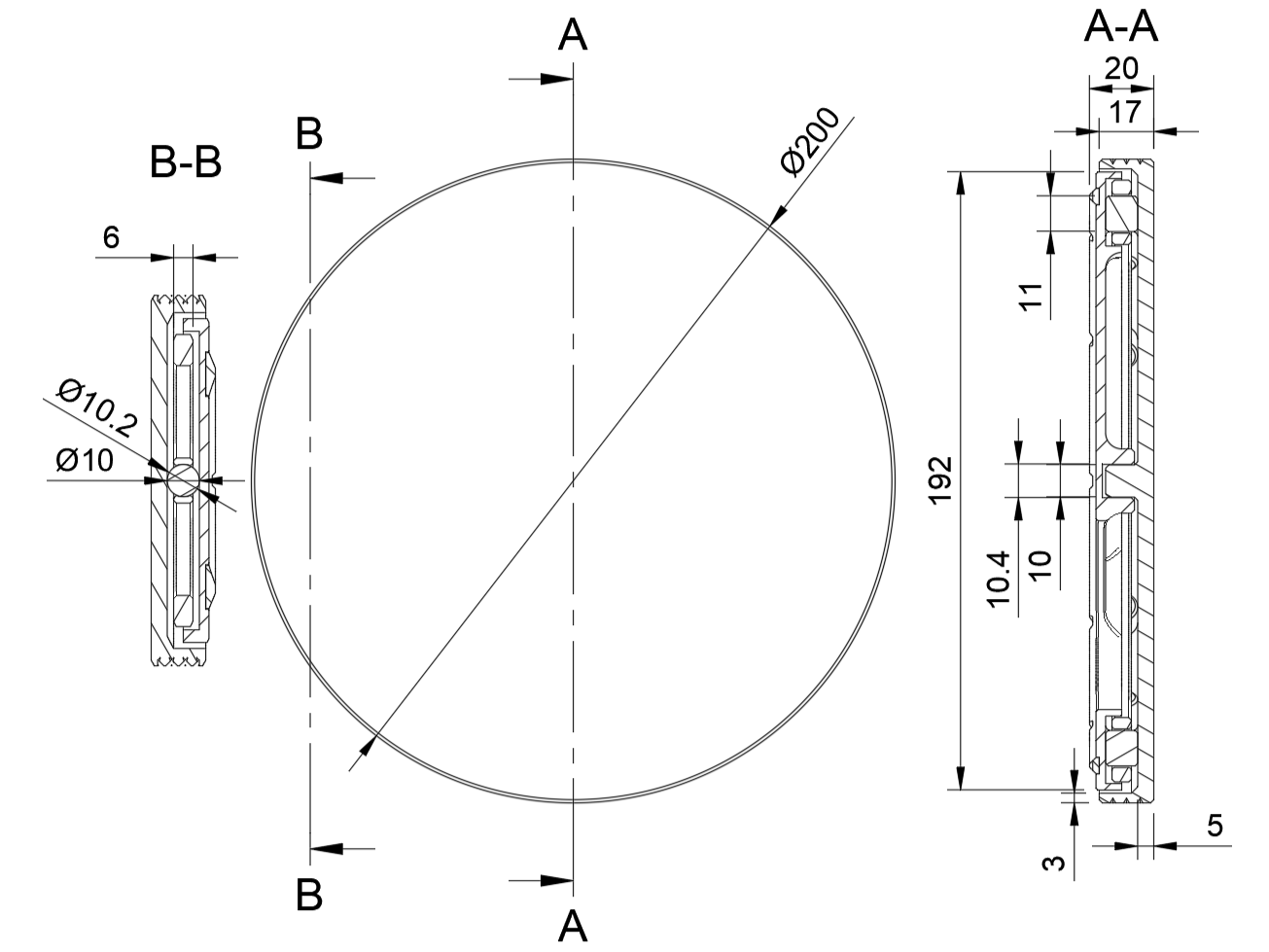

- 200 mm basic diameter

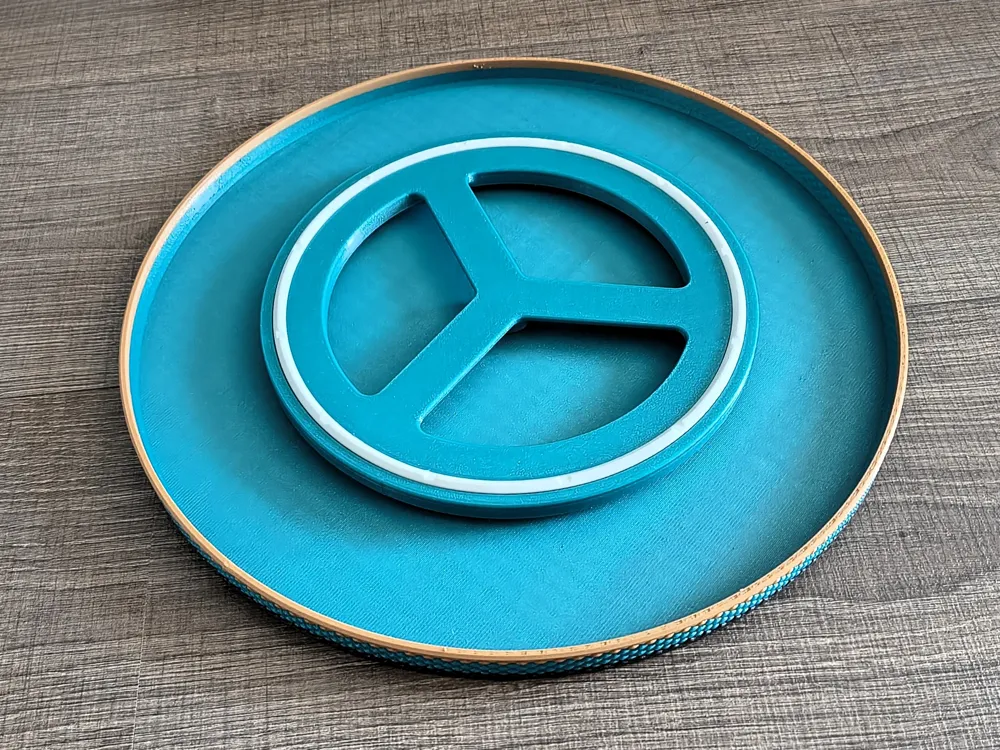

300 mm extended version
đ Features and Ergonomics

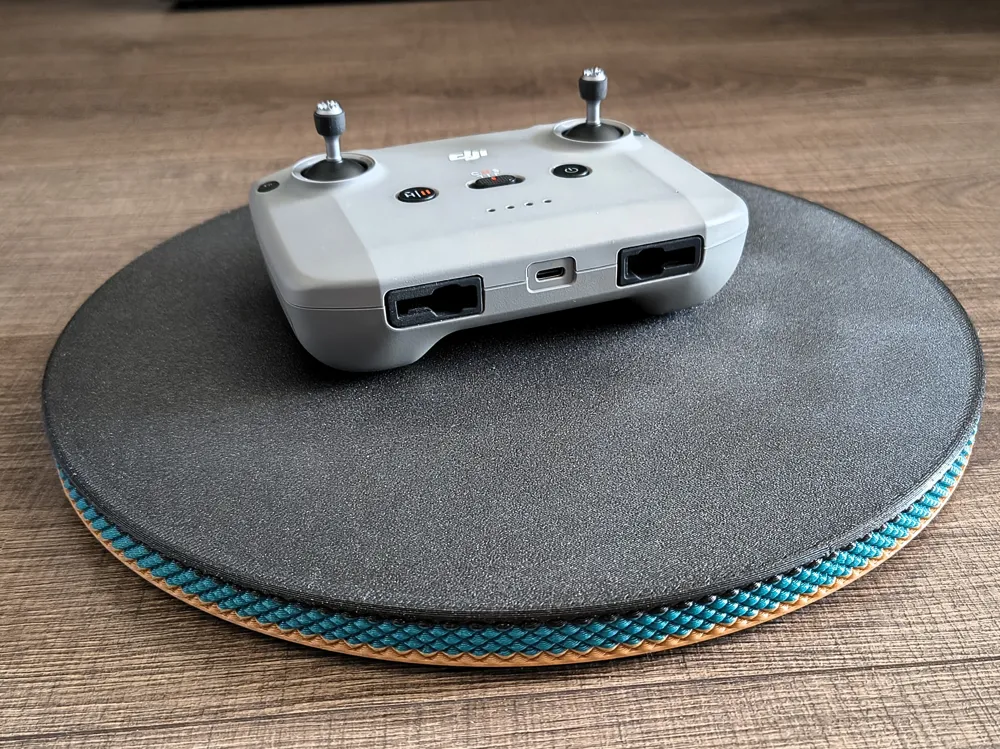

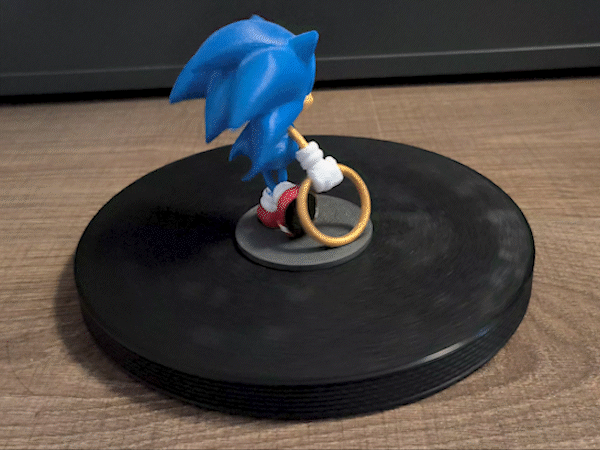

The turntable has fine knurling around the edge, which ensures a firm grip and comfortable rotation even during longer scanning sessions. The 12-roller bearing provides smooth and stable operation.
đ¨ Printing Recommendations
- Materials: PLA or PETG, anti-slip strip made of TPU
- Print the rollers standing up for maximum precision
- If the rollers in the cage are too tight, reduce them by 0.1 mm
- Note: the models are not oriented for printing â set the correct orientation in your slicer
