Parametric Magnet Name Tag / Label (Fully Customizable)
Features:

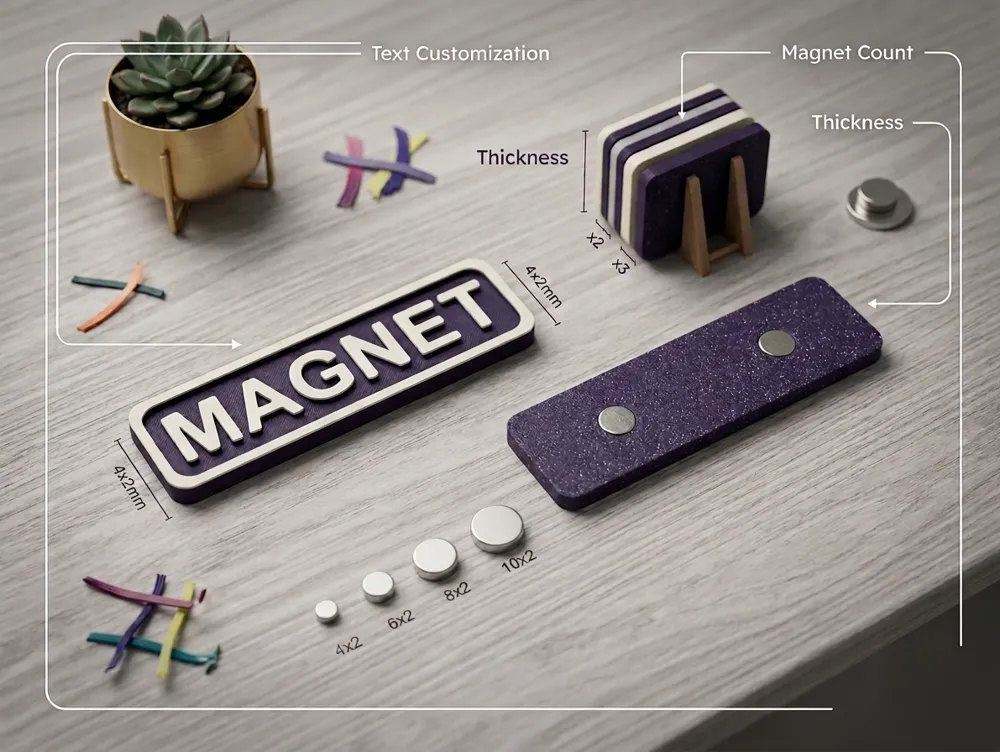

- 100% Customizable: Change the text, text size, and frame layout instantly through the MakerWorld Customizer.
- Smart Multi-Magnet Pockets: * Select 1, 2, or 4 magnets depending on the size of your badge.
- Tip: Choose the 4-magnet option for tall, multi-line badges to stop the tag from sagging, twisting, or pivoting on clothing.
- Fully supports 4mm, 6mm, 8mm, and 10mm diameters in both 2mm and 3mm thicknesses.
- Custom Fonts: Select from multiple pre-loaded standard font styles right in the panel. Bold variants are recommended to ensure solid infill and durable lettering.
- Dual Color: You can change the text color in Bambu Studio.
- Size Adjustment Sliders: Includes manual adjustment sliders to fine-tune extra width and height so text never clips into the outer border.
Note: Add a space before and after your text if you encounter any clipping issues with specific capital letters or unique character glyphs.

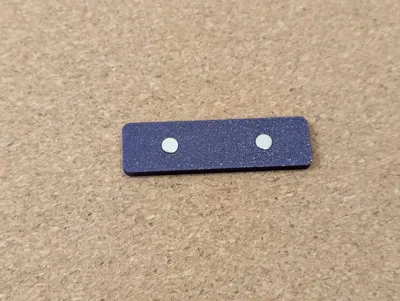

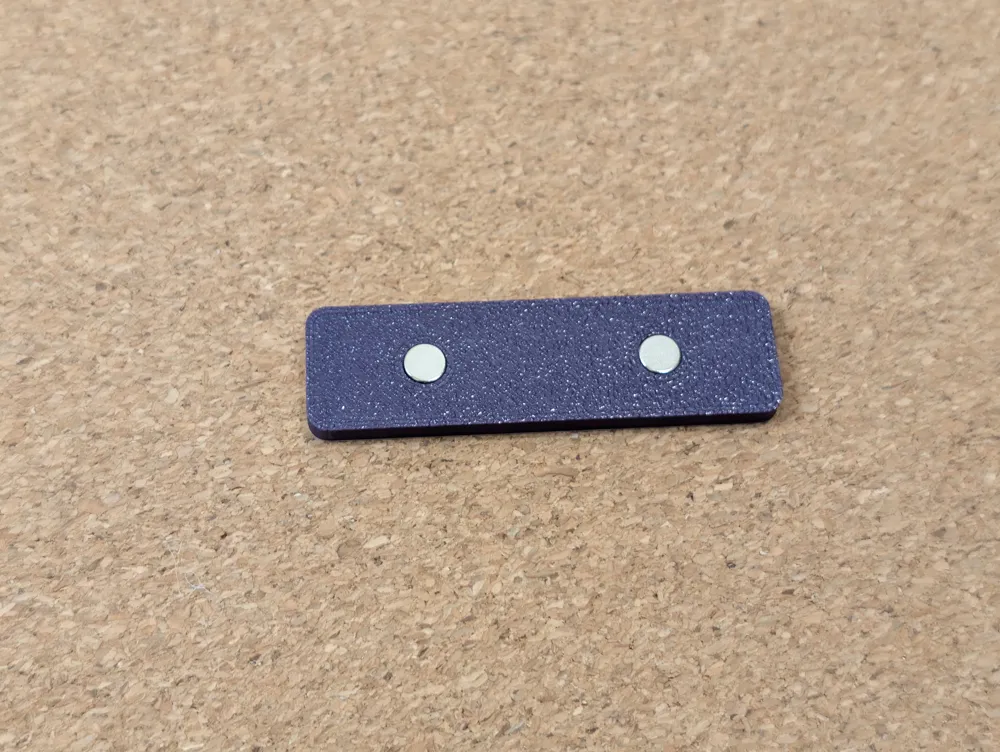

Assembly The magnet pockets are designed with a built-in 0.15mm tolerance for a solid fit. Depending on your printer's calibration, they should press-fit right in. I highly recommend using a tiny drop of superglue to lock the magnets permanently into the back pockets so they don't pull out over time.
