Minigun Real Life (Gelblaster) for Kids
Print Profile(4)
Bill of Materials
.jpg)
Description
Hello, my 3D printing friends, Build your own Minigun! (Kid's Collection)
It's that time again: I had time, desire, and some sleepless nights 😅, because this model just wouldn't leave my mind 🤯. For a long time, I've wanted to build a 1:1 scale Mini-Gun. After seven long months of development, numerous test prints, many hours on the PC, and almost a divorce because I barely had time for my wife anymore 😇 — the model is finally finished!
The model shoots harmless gel balls !!! Also suitable for children ( But please not without SUPERVISION !!! )
First, a small note at this point:
This model is not for beginners – it is aimed at technically advanced hobbyists or those who want to become one. It is a challenging but very rewarding crafting project.
All components I used are linked. I obtained most of them from Bambu Lab, Amazon, and the Gelblaster-Shop. Of course, you can also get the parts from other suppliers if you find them there.
I designed the model so that the Gearbox (firing unit) is a purchased part and was not developed by me. The reason for this is that in Germany there are legal regulations on how powerful such a weapon can be. To avoid legal problems, I deliberately only used gel blaster gearboxes that are permitted in Germany.
⚠️ Caution: Even though it is officially a children's toy, it can be dangerous for the eyes. Therefore, please always handle the model with care!
🔧 All links you receive from me are for reference only. If you find identical or suitable parts elsewhere, you can of course use those as well! 😊
As always with my models, I printed everything from PLA for reasons of time and cost. For a final model, however, I would recommend using a more stable filament like ABS, ASA, or PETG — that's entirely up to you 😉👍
The model has been extensively tested by me and has passed all tests and met my requirements!!
(I am a very critical person 😅)
❓ As always: If you have any questions, feel free to contact me! 😊
And now, have fun crafting! 🔨😁
So, after this long explanation 😉 I wish you a lot of fun with the model now!
As always: If you have any questions, feel free to message me.
I would also be very happy about a like, a subscription, or even a boost as an appreciation of my work. 🙌
Here are the links with the materials you need to order !
AMAZON
SPST 16mm momentary push button

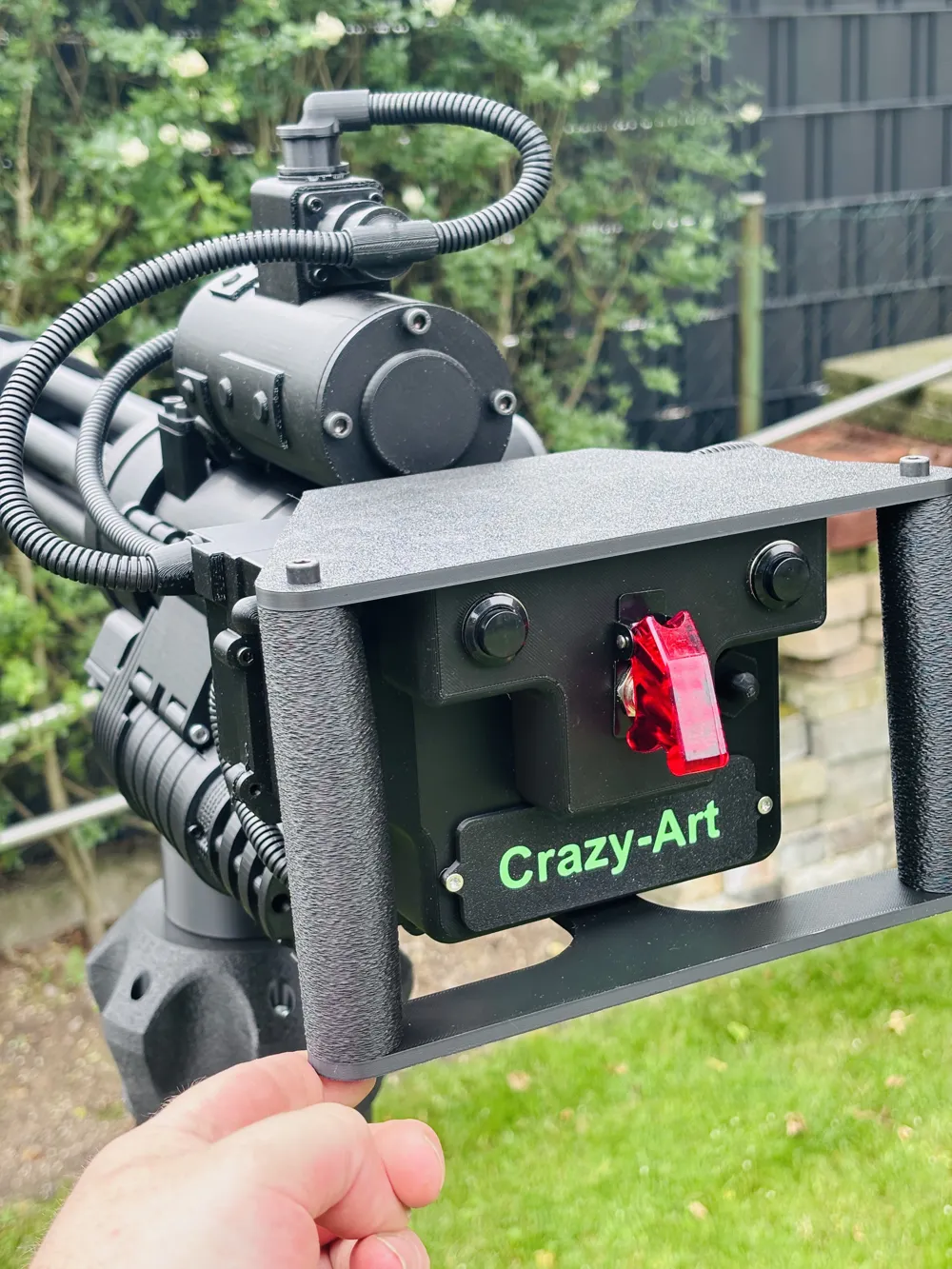

LED indicator rocker switch
775 DC motor 12V-36V 3500-9000 RPM
4 pieces 6006 2RS ball bearings 30x55x13mm
240-2GT-6 endless GT2 belt, 240 mm length, 120 teeth
GT2 timing pulley, 20 teeth 5mm bore, for 3D printer 6mm wide timing belt
M5x10 mm flat head screws
M5x10mm hex socket screws
M5X16 headless grub screws
M4 x 8 mm countersunk screws
Threaded inserts nuts, 5.9x7mm
XT60E-M male plug
Aluminum square tube 15x15x1.5 mm, length 1000 mm
PVC conduit rigid 20mm ( Only as an example you can also take cheap white from a hardware store and paint it black !!!)
Cable sleeve black - inner diameter 7.5 mm
O ring seals 20 mm x 14 mm x 3 mm
Round 5mm LED (violet 395-400nm (UV))
3S Lipo battery 2200mAh 11.1V
KGEM DN110 x 1000 wastewater pipe
M416 Gelblaster Shop
M4 Wasp STD 5s Gearbox with 12V Motor Upgrade
M4 Wasp STD 5s Gearbox with 12V Motor Upgrade – m416gelblaster
Bambu Lab Store
All other parts from Bambu Store can be found below in the material list !!!!!!
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
