Ampoule Tray Fully Parametric (TRT, Sustanon, etc)
Print Profile(1)
Description

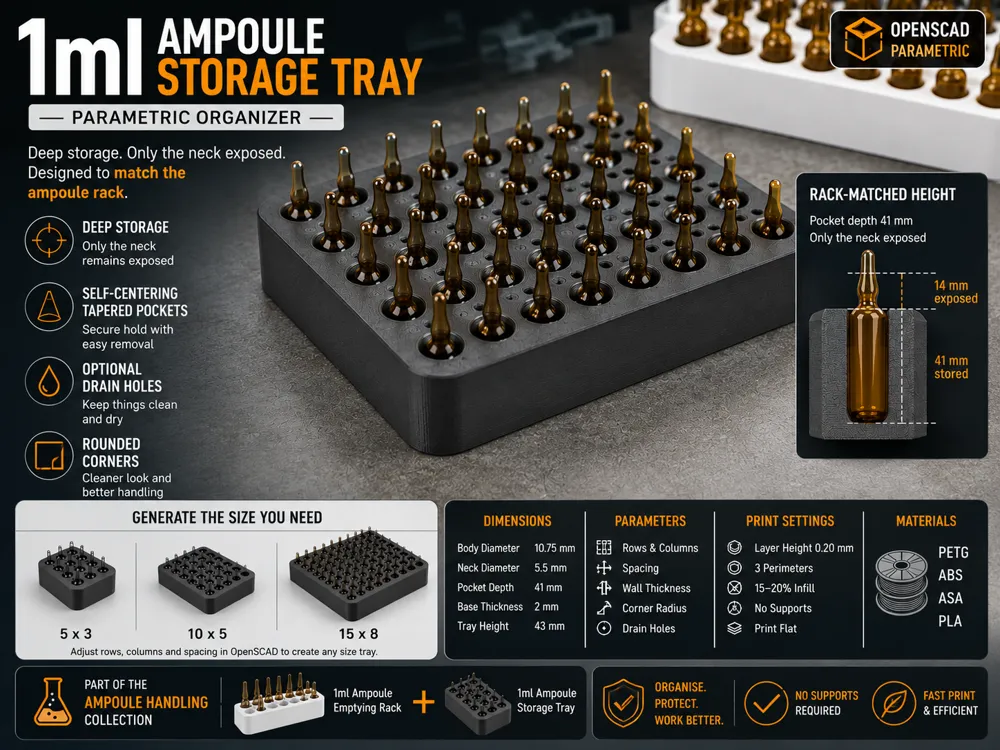

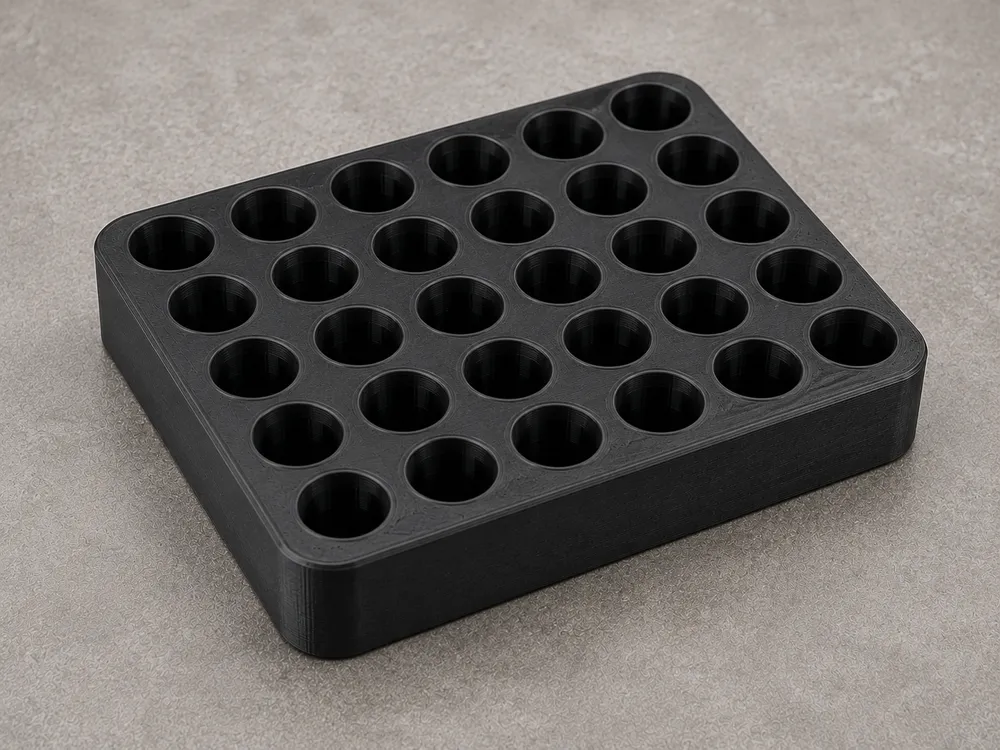

A compact storage tray designed for standard 1ml glass ampoules.
Unlike shallow trays, this design holds ampoules deep within tapered pockets so that only the neck remains exposed. This improves stability, protects the glass body, and keeps ampoules neatly organised.
The tray uses the same core dimensions as the matching ampoule rack, ensuring a consistent fit across the collection.
Features
- Designed for standard 1ml glass ampoules
- Deep storage pockets
- Only the neck remains exposed
- Self-centering tapered geometry
- Parametric rows and columns
- Adjustable spacing
- Optional drain holes
- Rounded outer corners
- No supports required
Parameters
| Parameter | Description |
|---|---|
| cols | Number of columns |
| rows | Number of rows |
| spacing | Centre-to-centre spacing |
| wall | Minimum wall thickness |
| outer | Outer perimeter thickness |
| radius | Corner radius |
| drain | Enable drain holes |
| drain_d | Drain hole diameter |
Dimensions
| Feature | Value |
| Ampoule body diameter | 10.75 mm |
| Ampoule neck diameter | 5.5 mm |
| Pocket depth | 41 mm |
| Base thickness | 2 mm |
| Overall tray height | 43 mm |
Print Settings
Recommended Materials
- PETG
- ABS
- ASA
- PLA
Recommended Profile
- 0.20 mm layer height
- 3 walls
- 15–20% infill
- No supports
Print flat on the build plate.
Design Notes
The pocket depth is matched to the companion ampoule rack to create a consistent storage and handling system. The ampoule body remains protected while the neck is left accessible for identification and removal.
Version 1.0
- Initial MakerWorld release
- Deep storage design
- Rack-matched dimensions
- Parametric layout
- Optional drain holes
