Lehui LP55 pull-down modification kit
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
8.1 h
2 plates
Open in Bambu Studio
Boost
0
0
0
0
0
0
Released
Description
Content has been automatically translated.

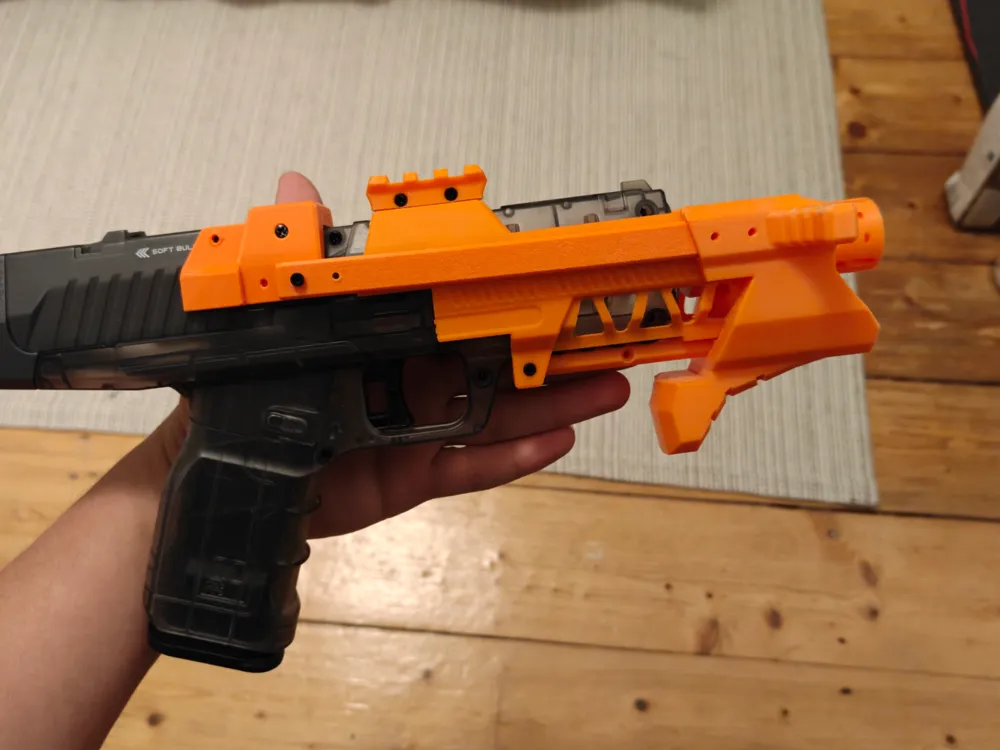

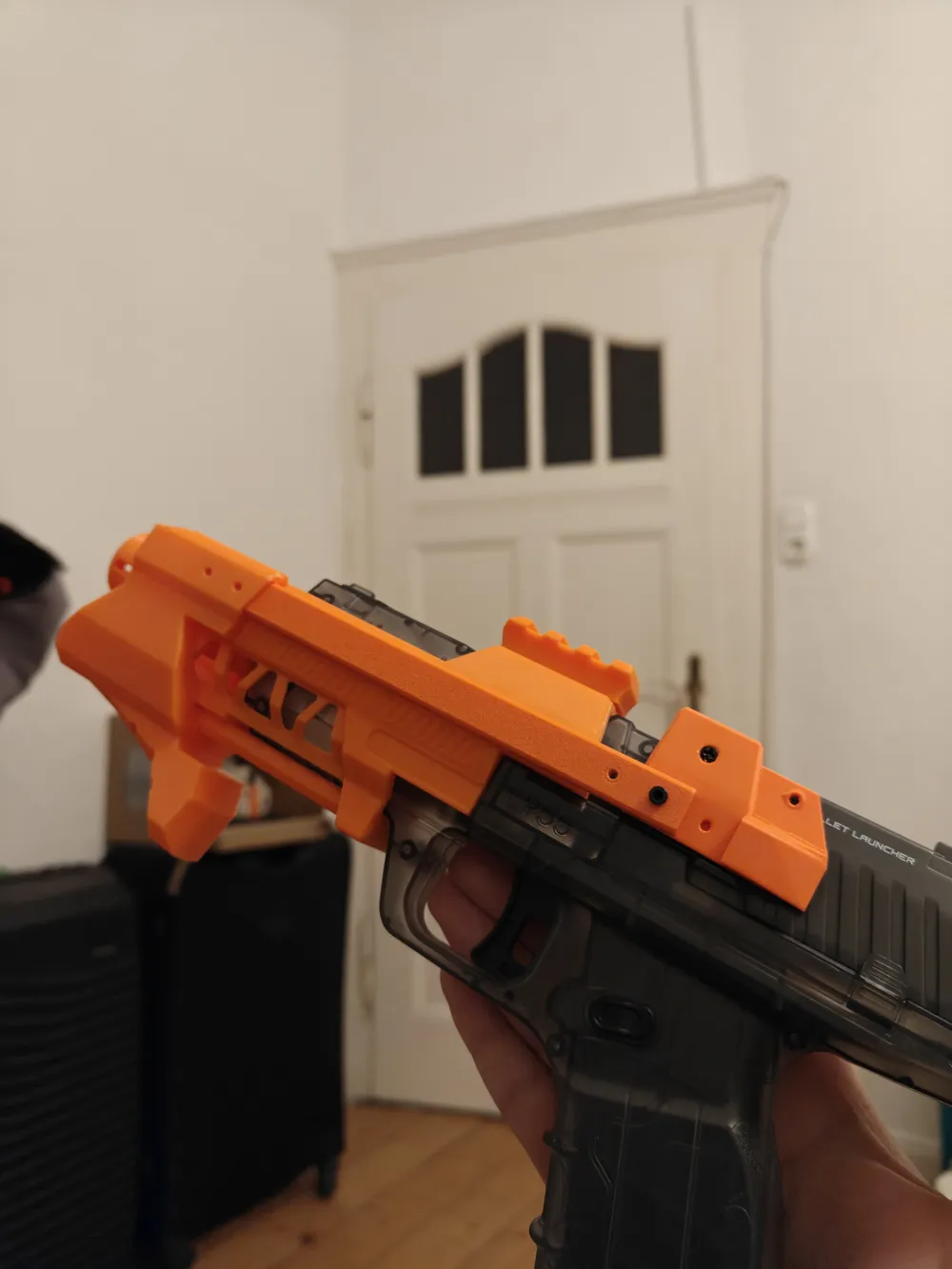

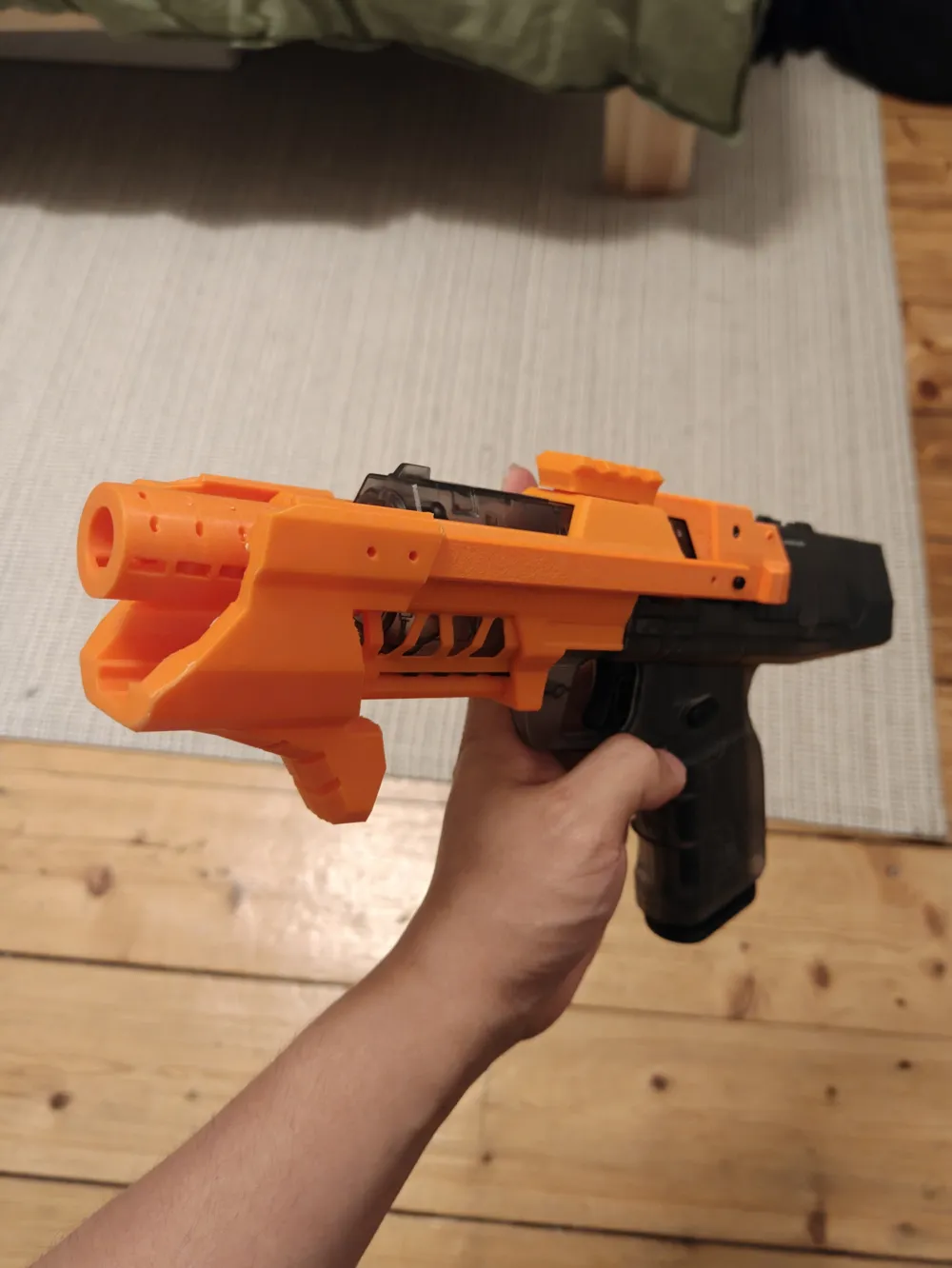

Lehui LP55 modification part, install as pictured, requires drilling and some M2.5 screws.
Plate 2 is the pull-down slide. There are two types of pull-down slides to choose from: with and without web grip support. The version with web grip support is divided into left-handed and right-handed, choose according to the hand used with the launcher.
Installing the Rails
Attach the two rails to the launcher, then drill holes on the launcher according to the reserved screw holes on the rails, and then tighten with screws.
Installing the pull-up slide modification part
Remove the screws on both sides of the original launcher's pull-up slide, install the pull-up slide modification part, and then tighten the original screws.
