Ares AS-03 straight pull bolt
IP Report
Print Profile(1)
0.12mm layer, 3 walls, 25% infill
Designer
45 min
1 plate
Open in Bambu Studio
Boost
2
3
0
0
1
1
Released
Description

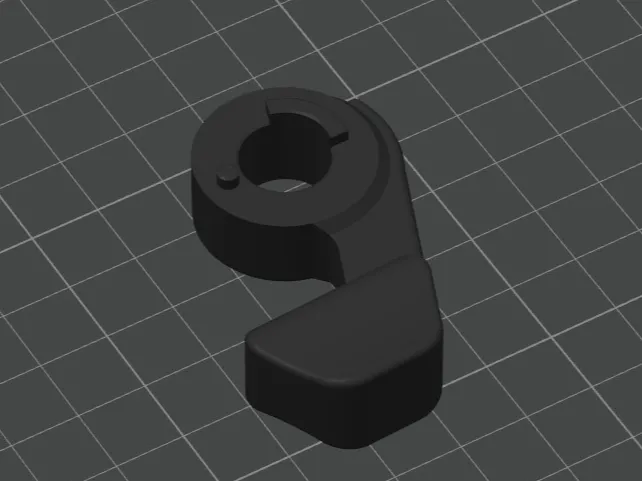

Created this bolt conversion to straight pull for my own HPA'd Ares AS-03, but thought I'd share in case anyone else needs it.
It re-uses the metal cap that goes on top of original ‘handle’, rather than replacing both.
FYI - print settings might not be optimized, as I don't remember what settings I used for my last print iteration tbh. But you will need to enable supports and then sand the handle.

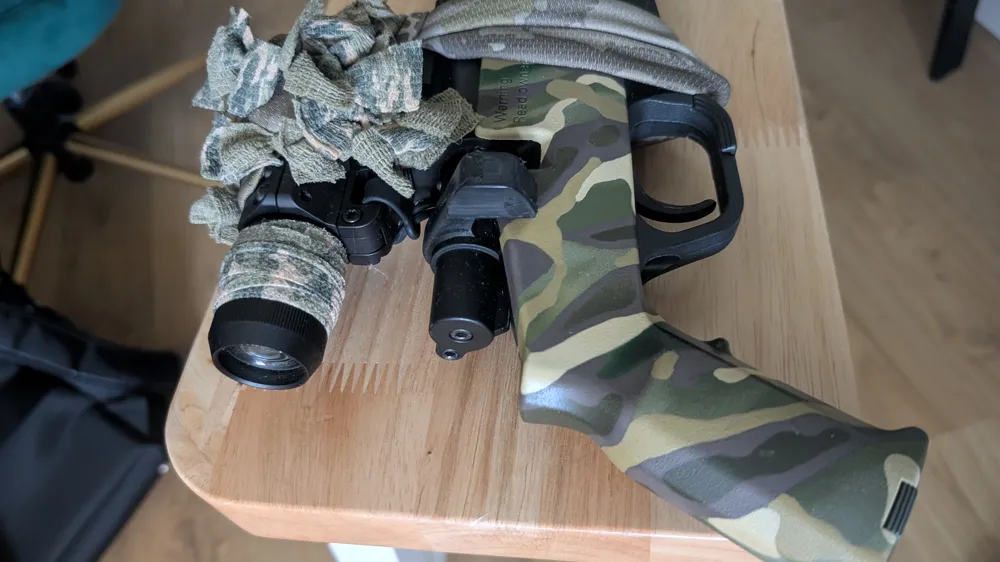

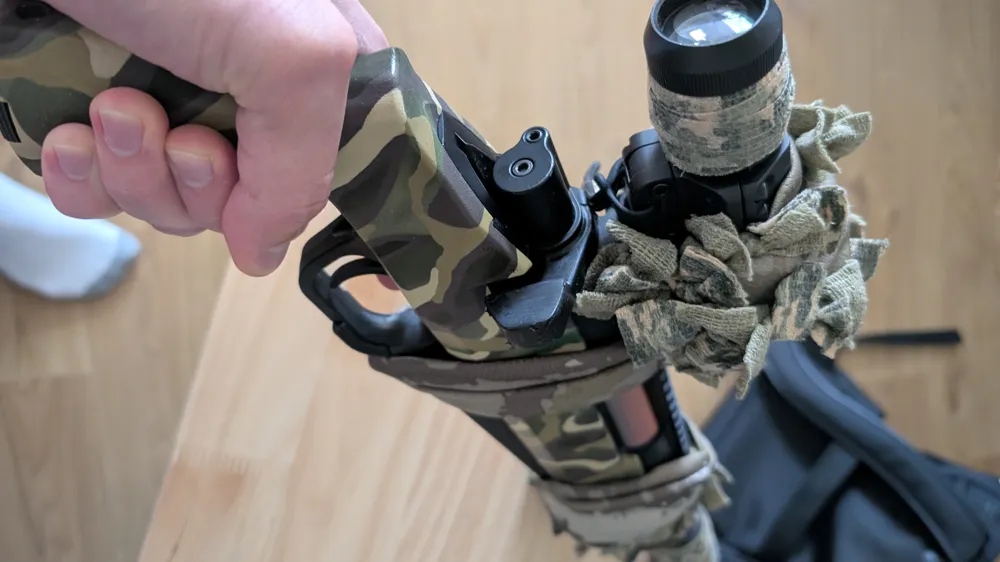

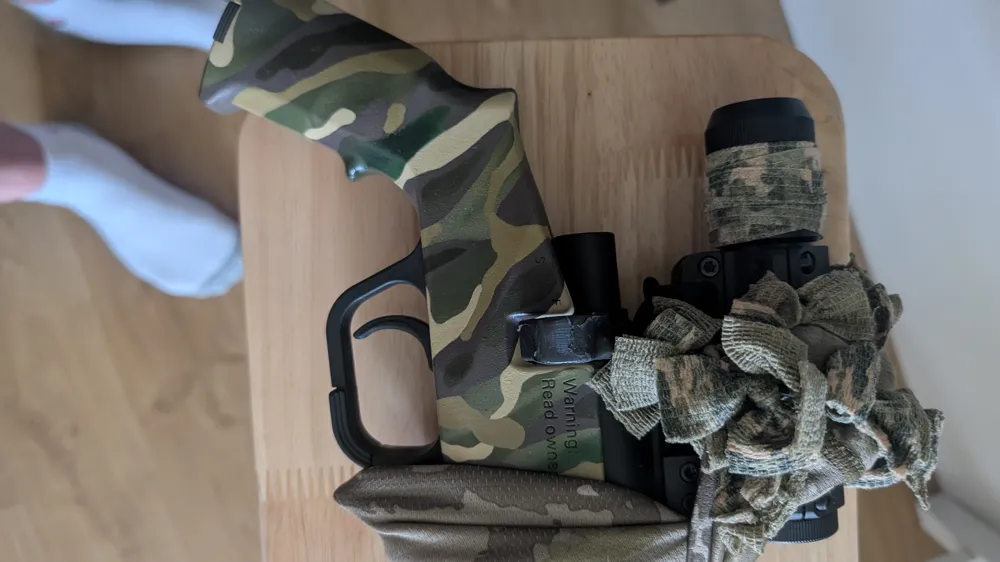

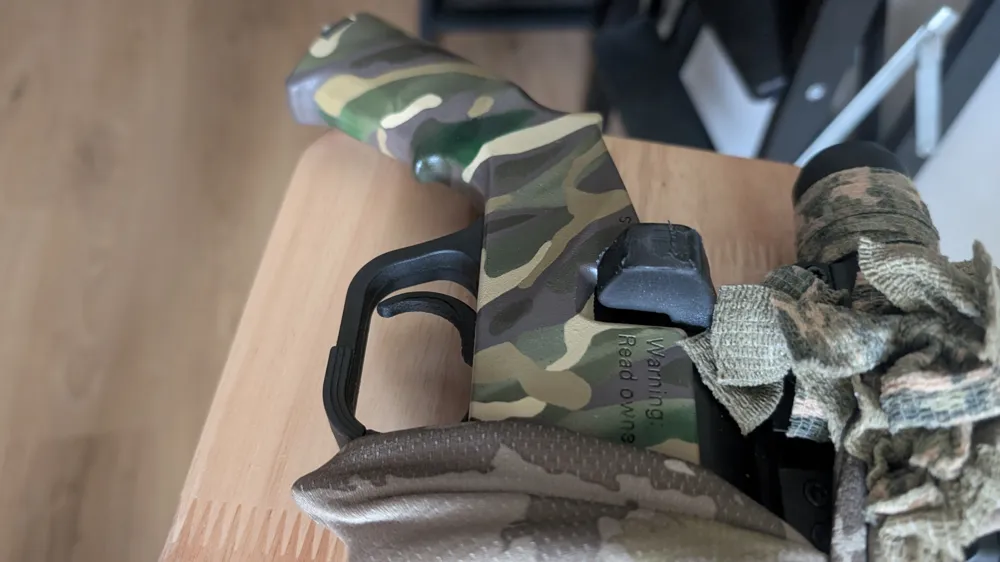

In pictures it looks a little rough, as I sprayed the print with a little too much plasti-dip and it started peeling over time.
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
