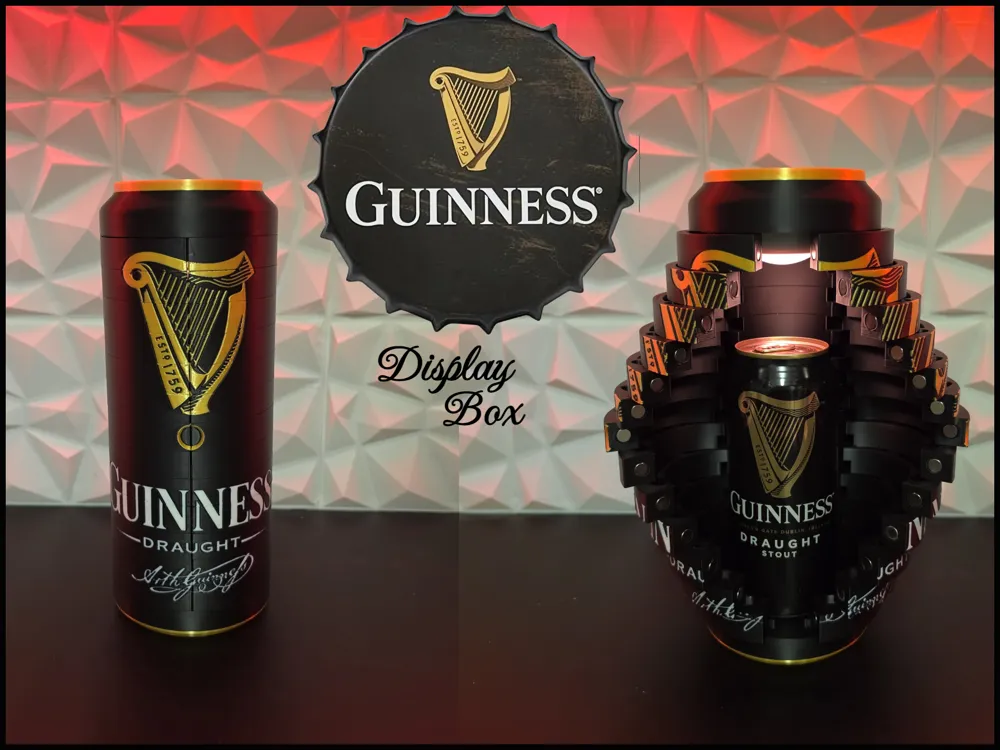

Guinness Display Box
This i my first beer themed box. And what better beer to start with then the OG stout!
You'll find instructions and everything you need to build the box further down the description.
Have fun!!
Want it to look just like my printed model? Use these filaments.
- Bambu Jade white PLA Basic
- Bambu Gold silk+ PLA
- Bambu Black PLA Basic
3D printed parts :
- Top pins x 2
- Base x 1
- Top for Kc007 LEDx 1
- Back pcs x 13
- Door parts x 26
- Alternative top for LedLamp Kit 001 (Separate Print profile)
Other parts required :

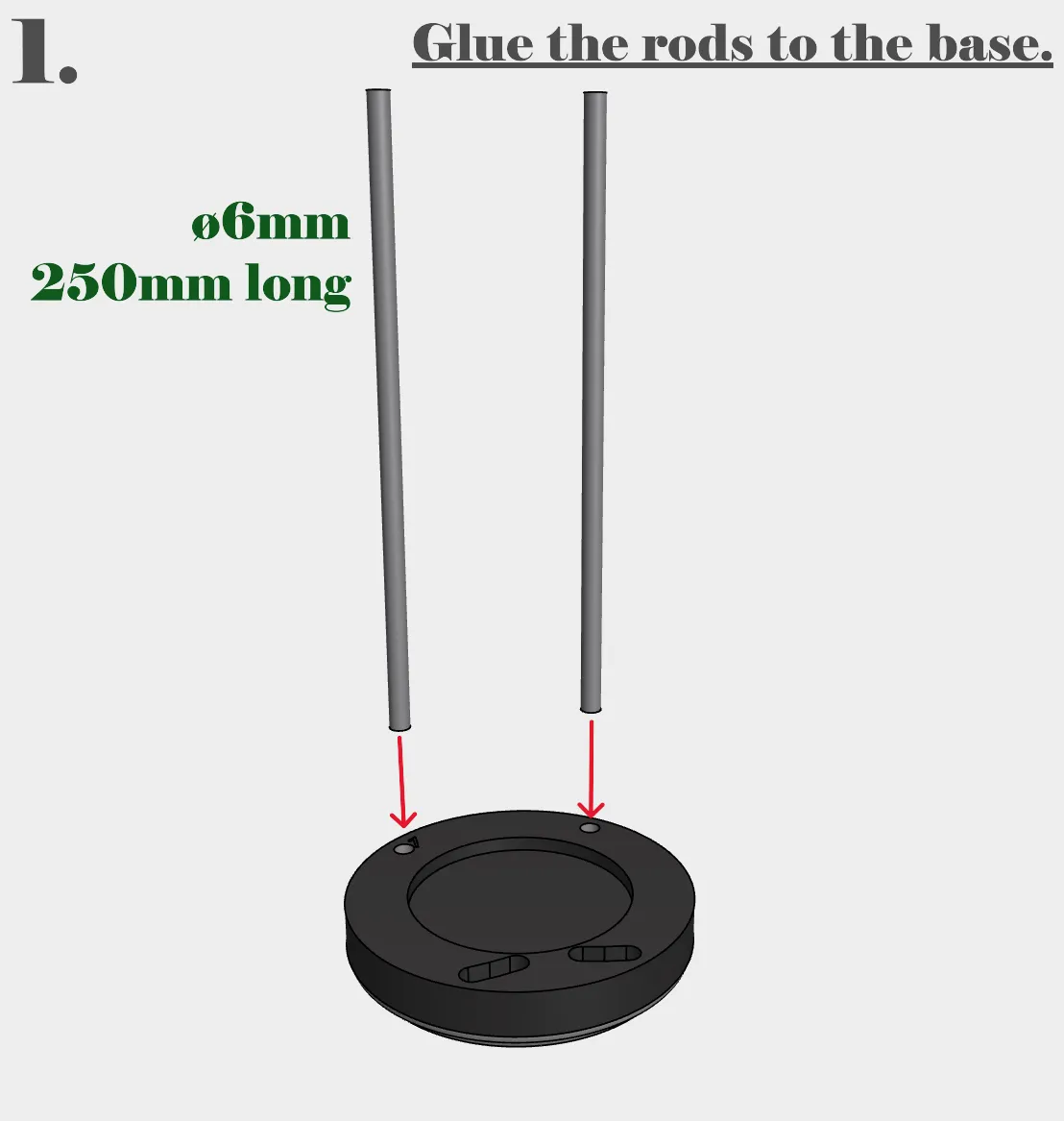

- 2 pcs Steel/alu rods ø6mm x 250mm long. !!Link bellow!!

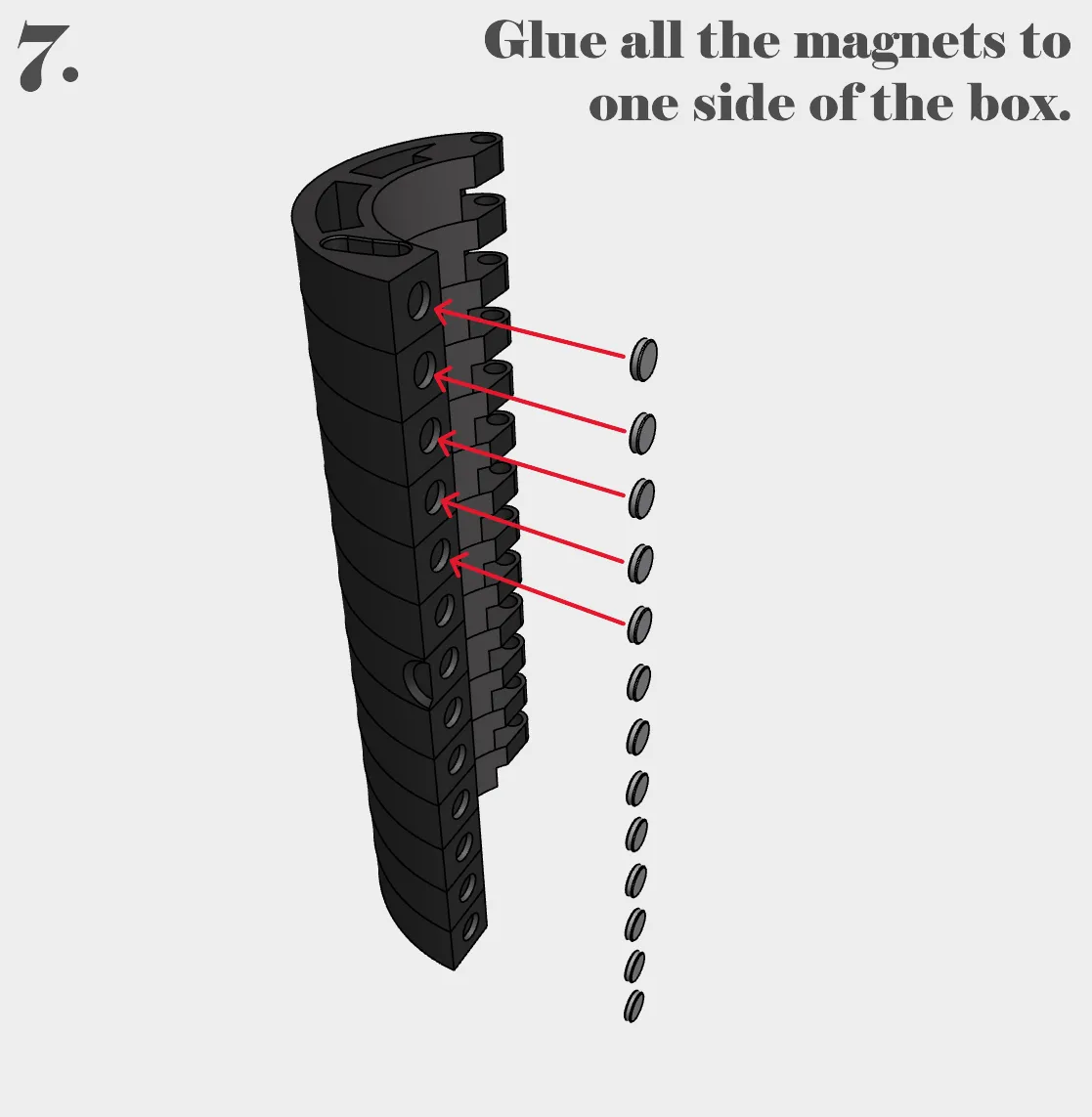

- 26 pcs Round Magnets 8x2mm
- Ca glue.

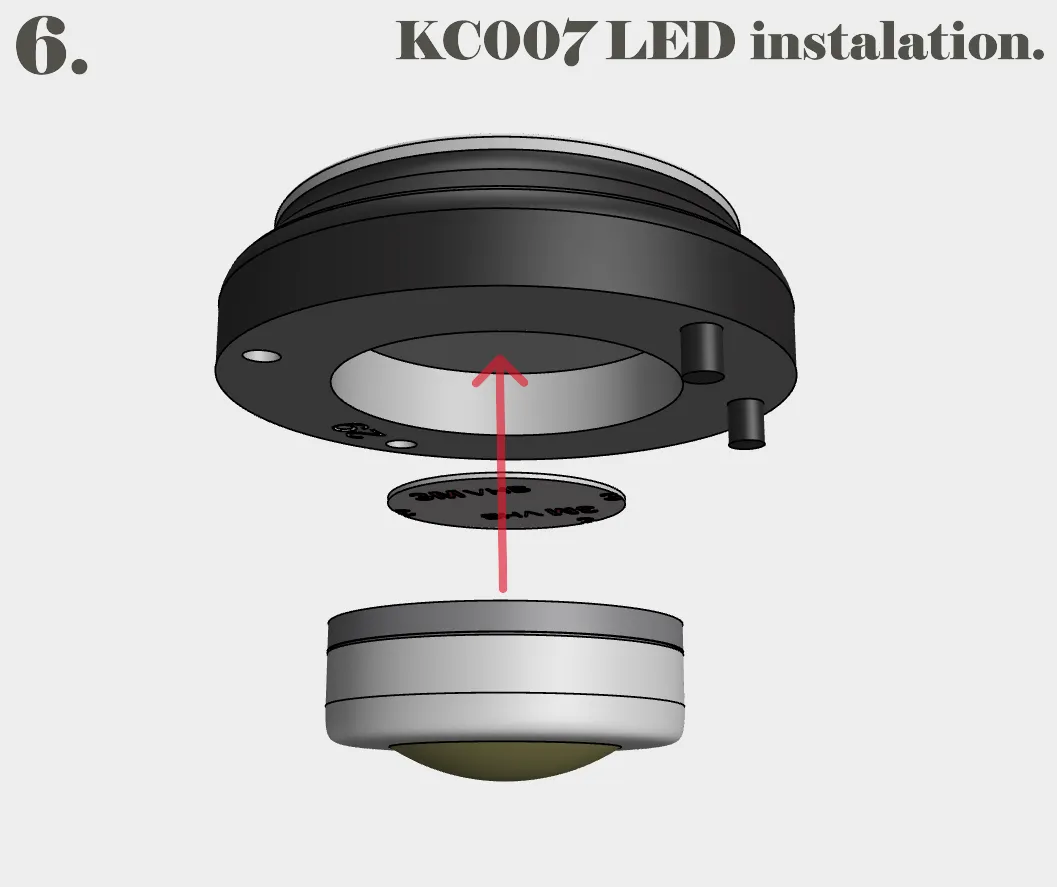

Optional : KC007
You can find the steel rods you need here → (affiliate link)
If Bambu i out of stock, buy LED here → (affiliate link)
8X2mm Magnets → (affiliate link)
⚠️ IMPORTANT QUALITY NOTE: This model was engineered specifically for steel or aluminium rods to ensure structural stability and smooth mechanical movement. Using 3D-printed plastic rods will cause the mechanism to flex, feel unstable, and likely snap over time, ruining the premium feel of the box. Use third-party plastic rod profiles at your own risk!

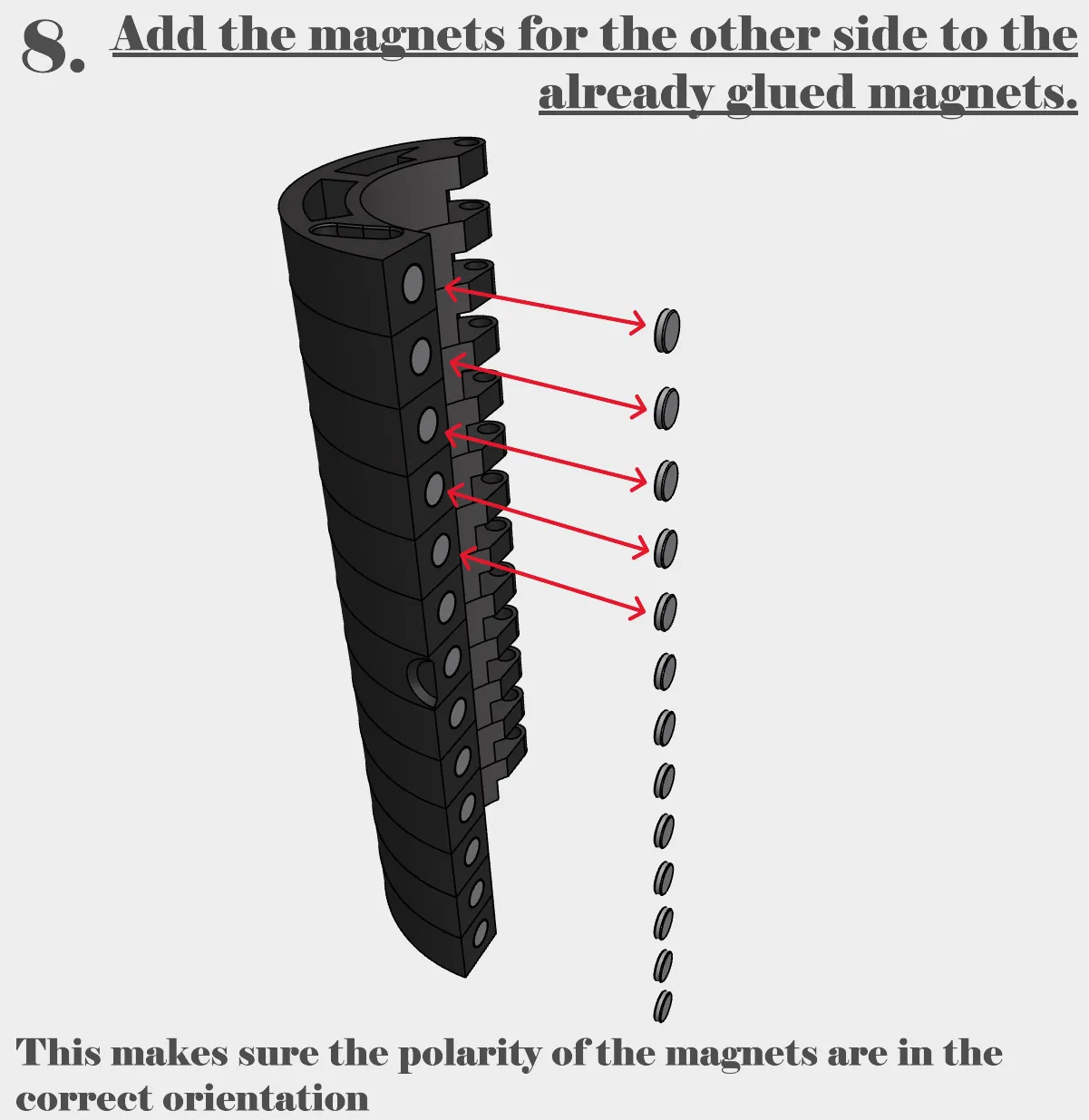

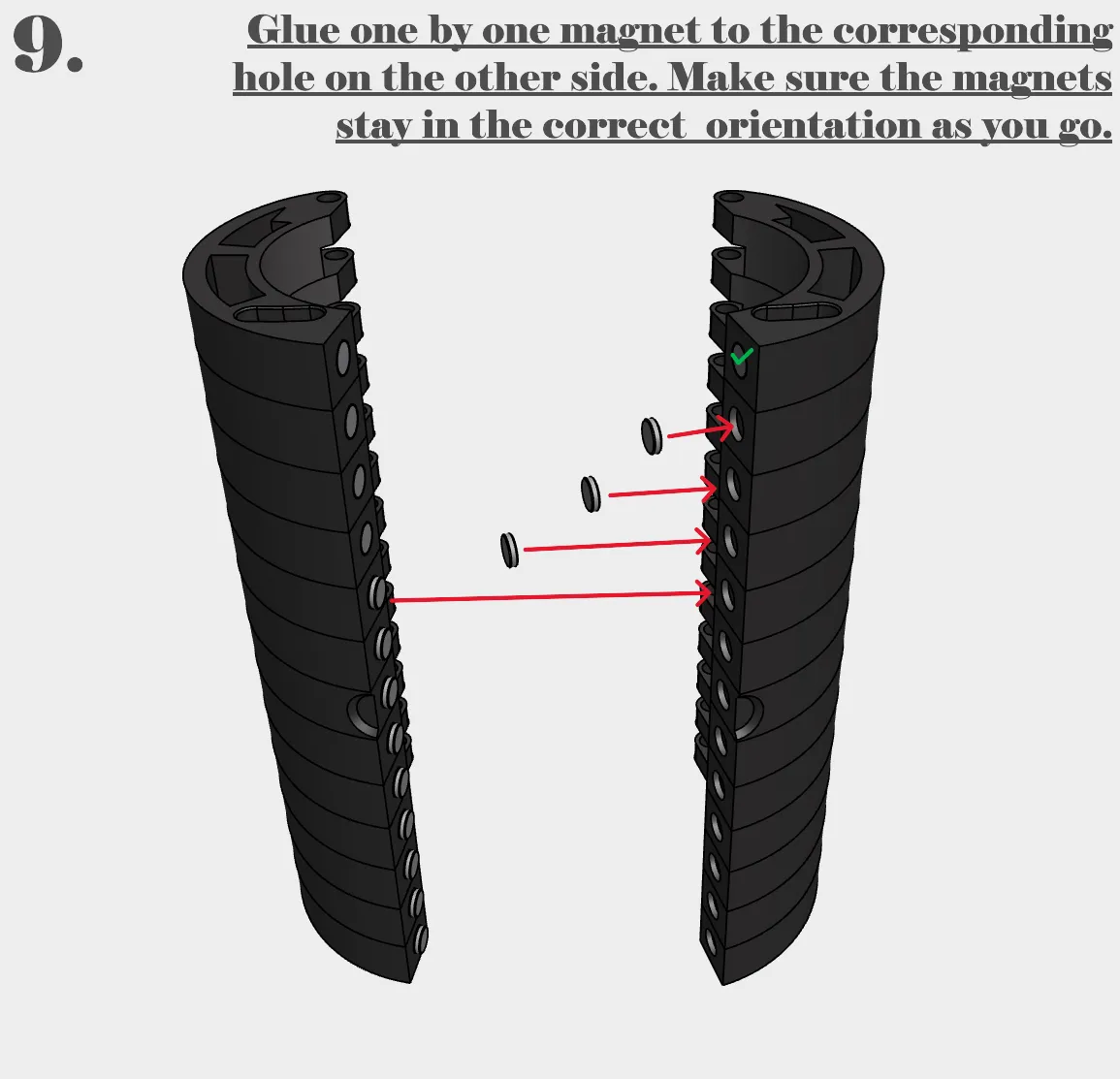

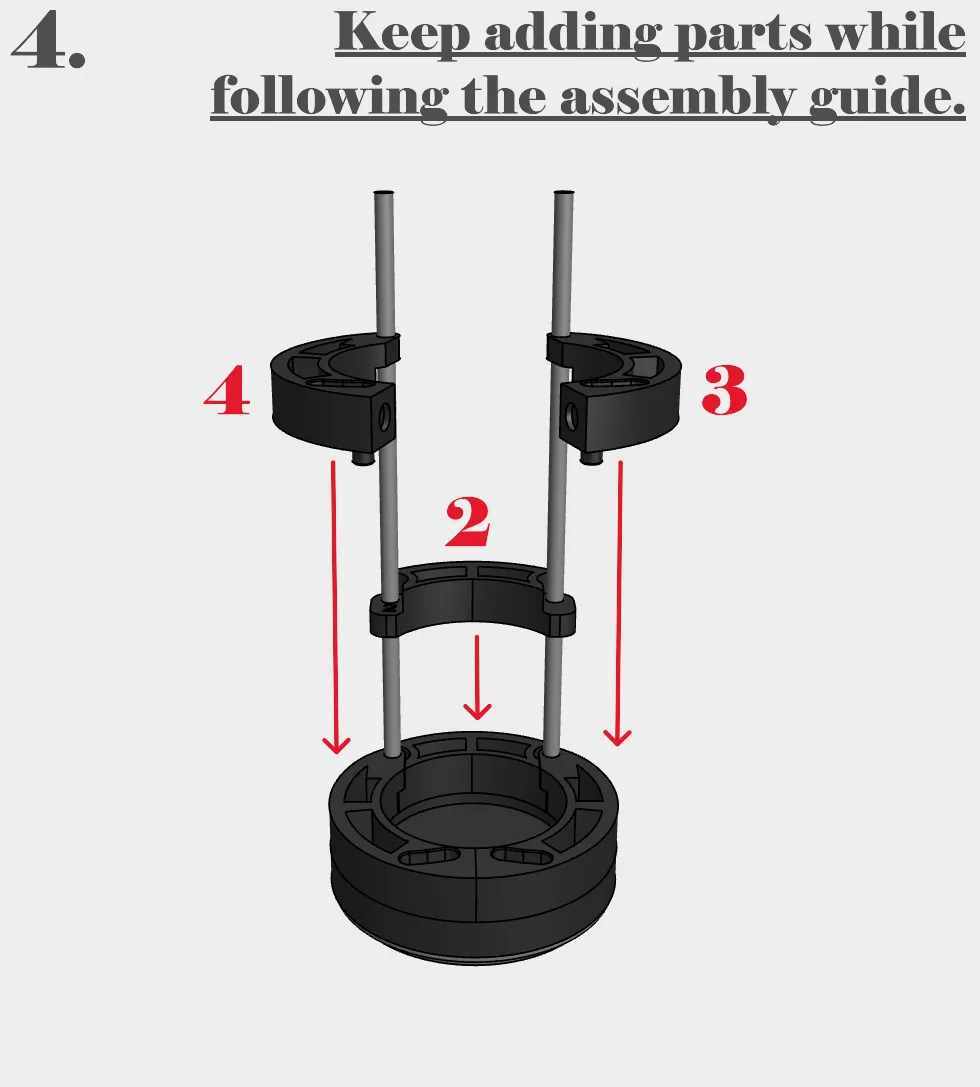

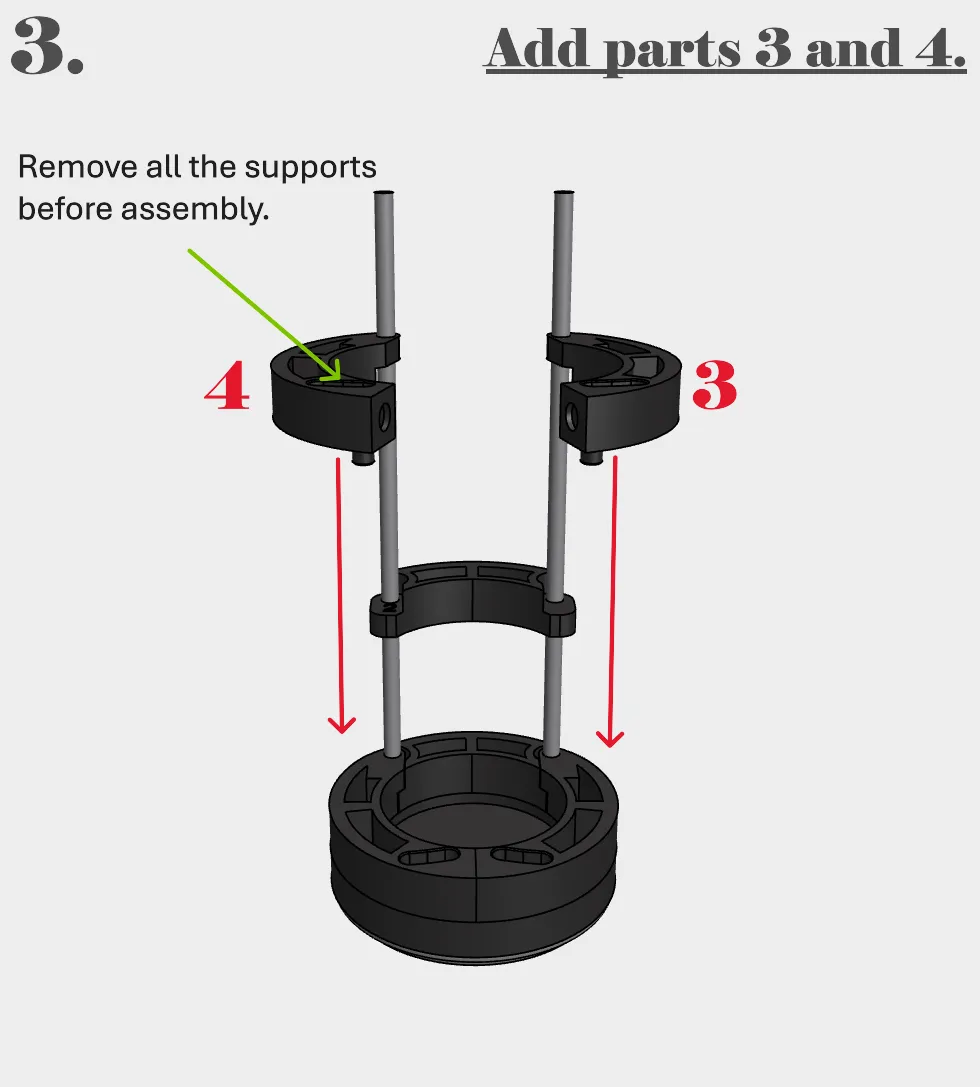

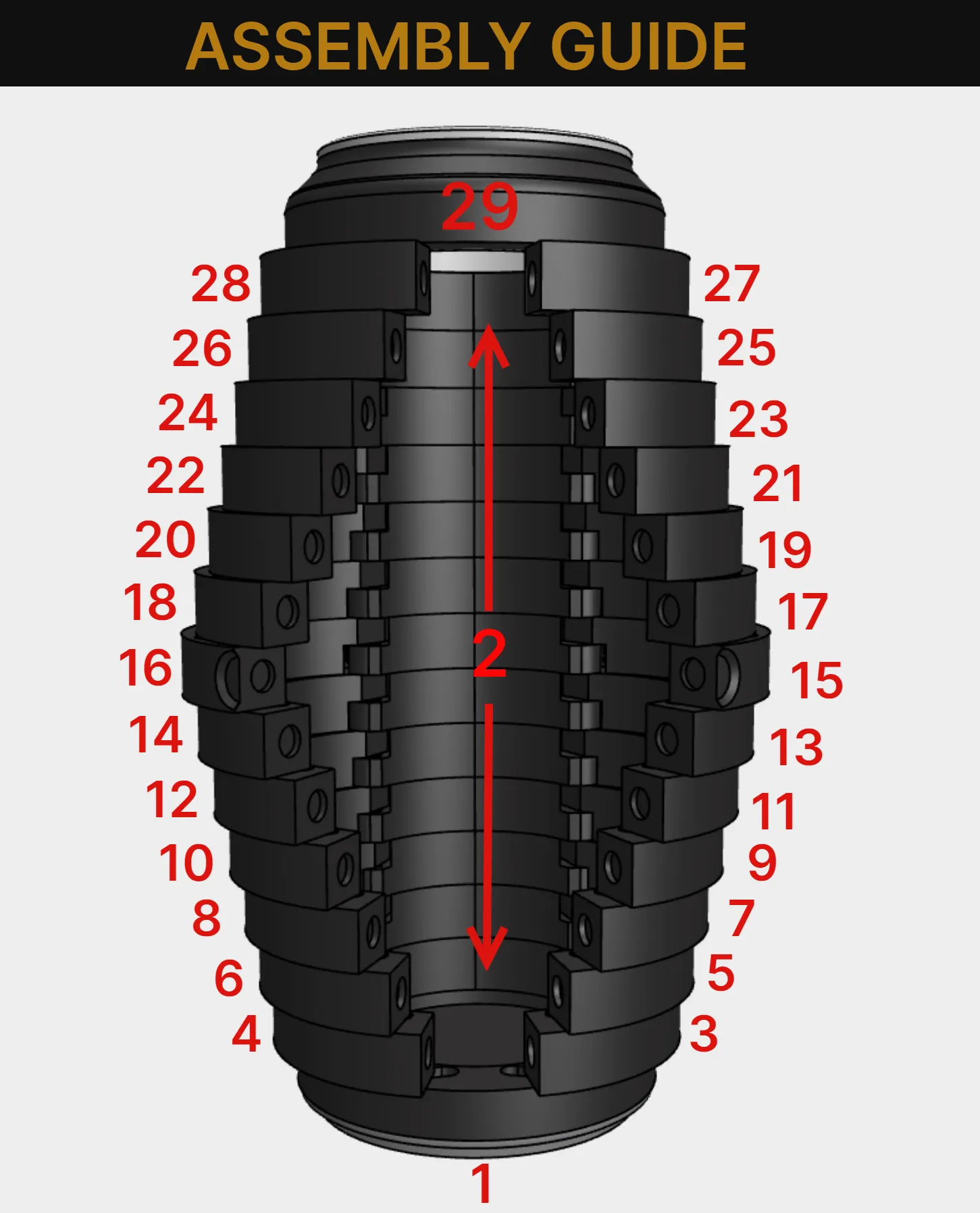

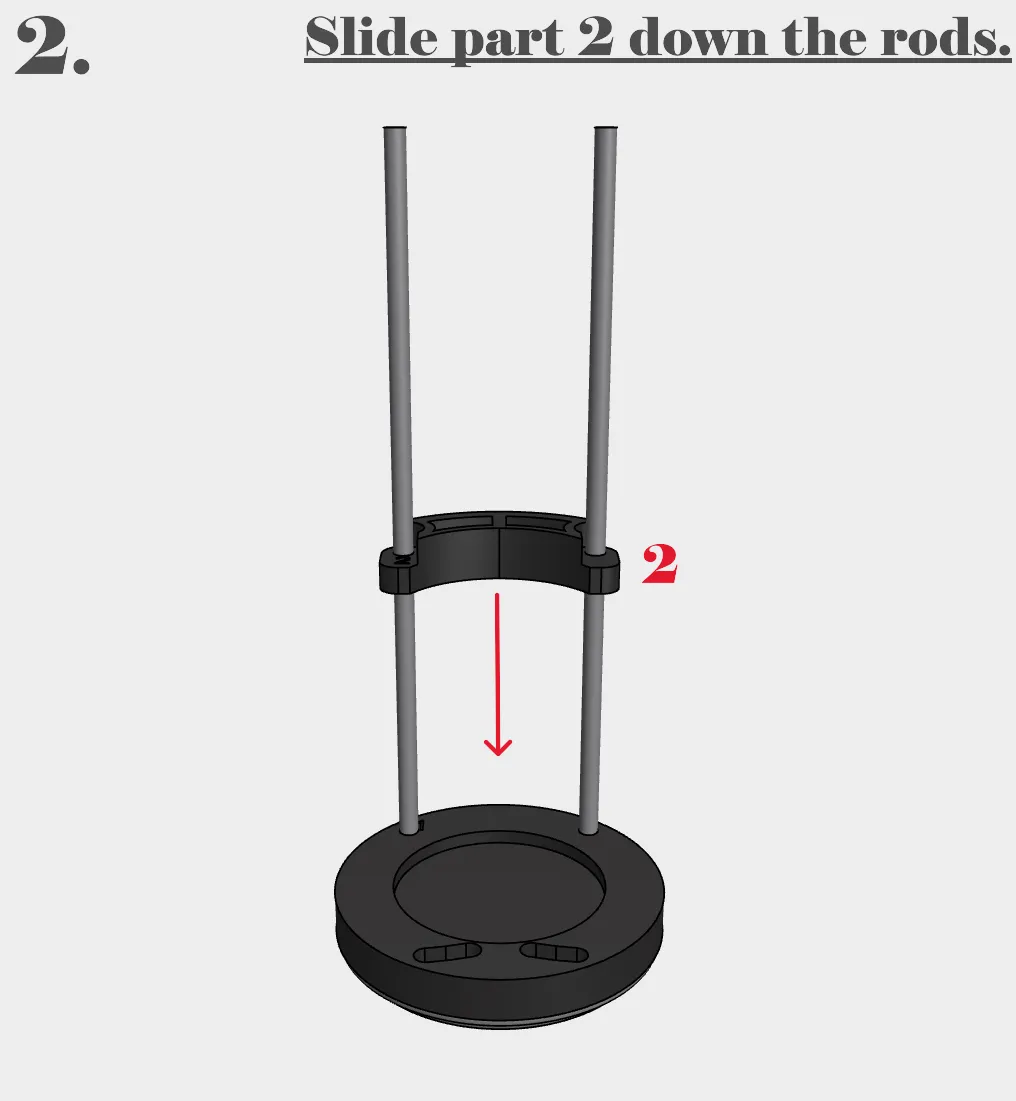

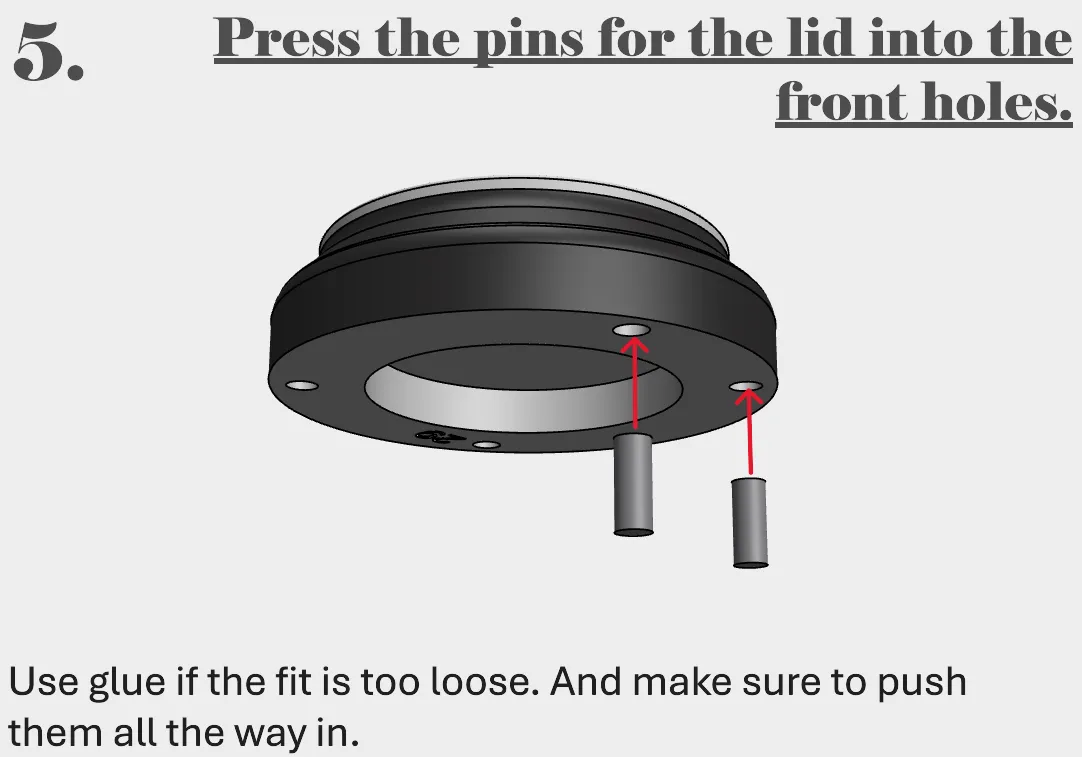

One's you have printed all the parts and acquired the accessories you need, just follow the assembly guide down below.

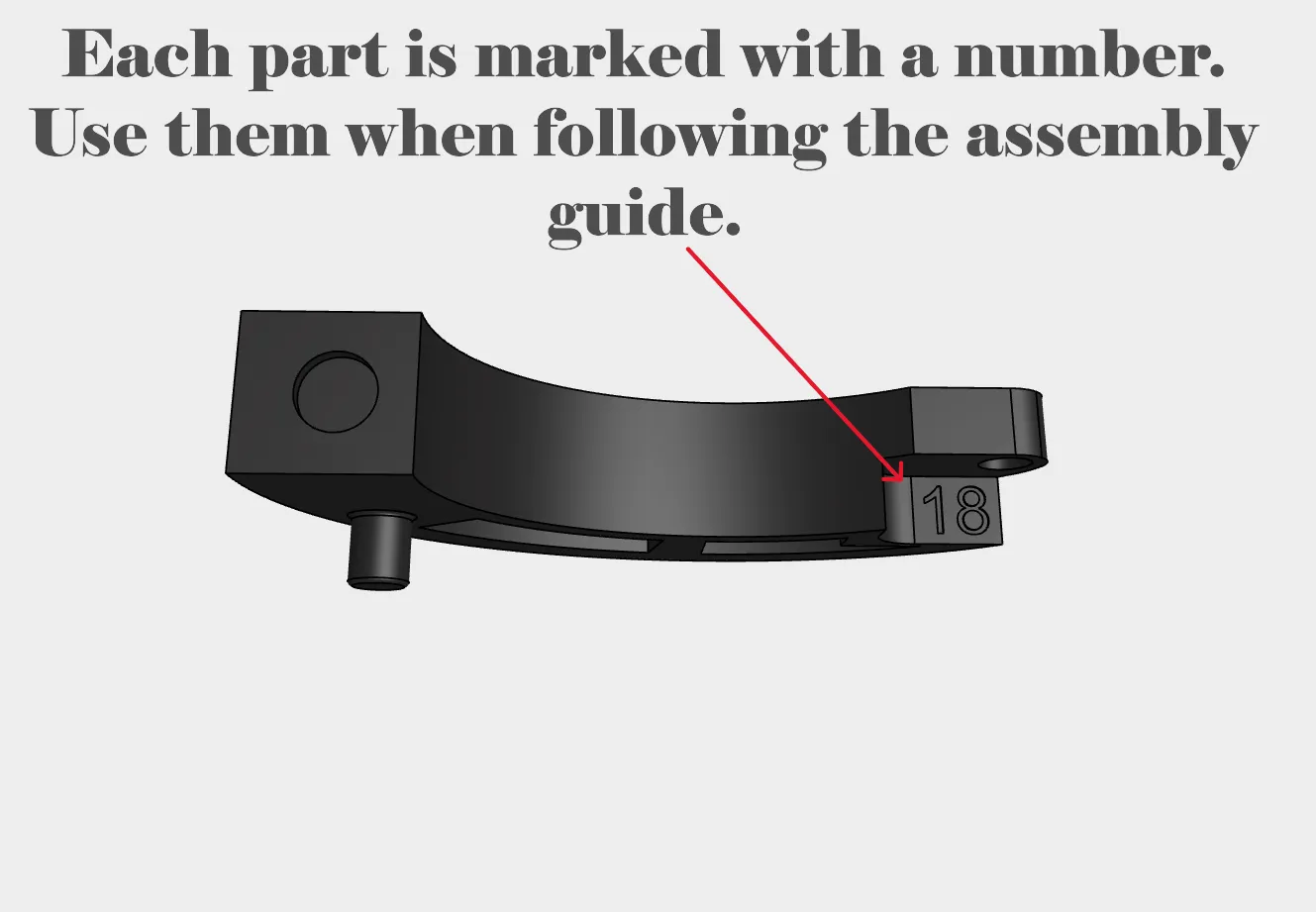

Each individual part is marked with a number, making it very easy to assemble.

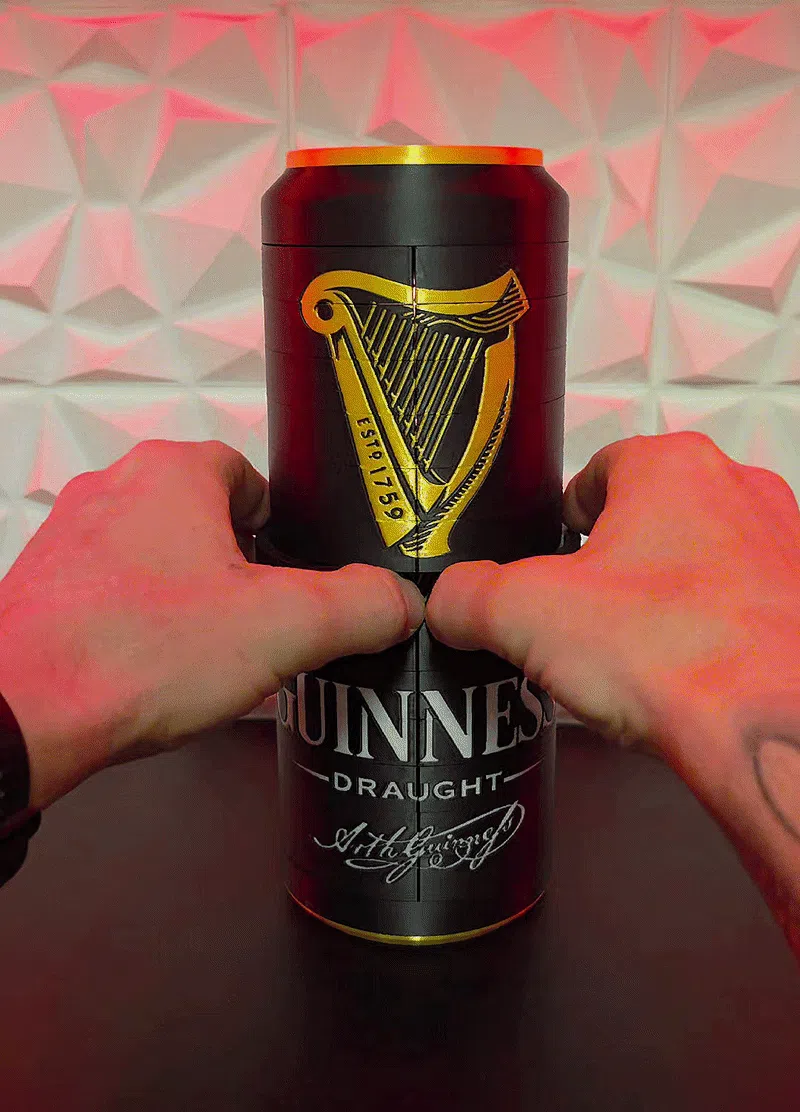

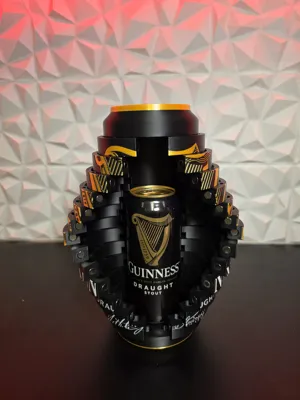

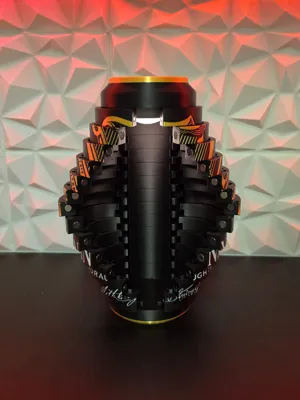

When your done, it should look something like this..
Follow me if you want to see more of my designs in the future!
