3D Printer Workbench (3030 Aluminum Profile)
Print Profile(5)
Description

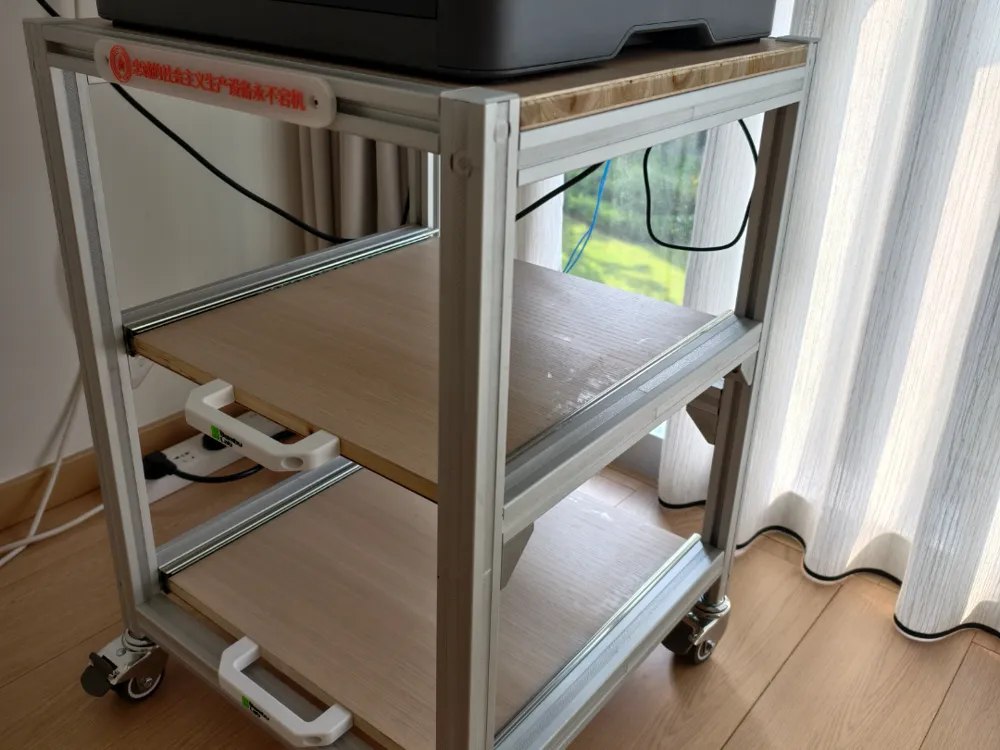

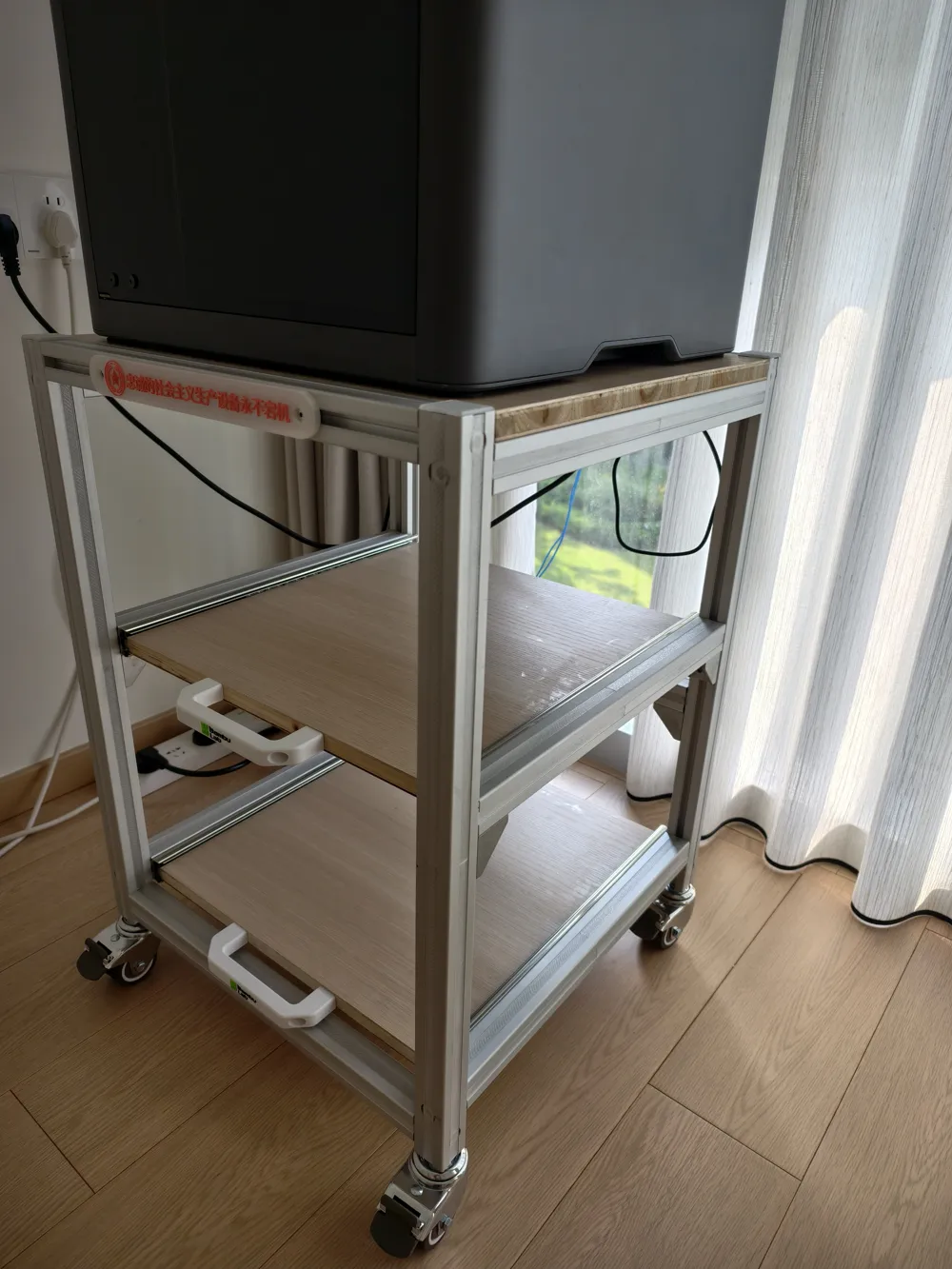

Personal 3D printer workbench, overall dimensions 450*450*580mm (excluding wheels)
Suitable for 256 size printers such as P1\P2S\X1\X2D
3030 aluminum profile list, I purchased the aluminum profiles from Jialichuang, you can buy cheaper ones on Taobao according to the specifications
| Jialichuang 3030 Aluminum Profile Model | Quantity | Purpose | Specification Description |
|---|---|---|---|
| TXCK-H6-3030-L580-RA-LC-Z8-A15-B540-LE-Z8-A32-B493 | 2 | Upright | 580mm long aluminum profile, 4 horizontal and vertical countersunk holes at the left end |
| TXCK-H6-3030-L580-RA-LC-Z8-A15-B540-LBE-Z8-A32-B493 | 2 | Upright | 580mm long aluminum profile, 4 horizontal and vertical back countersunk holes at the left end |
| TXCK-H6-3030-L390-DA | 8 | Top and bottom transverse frame | 390mm long aluminum profile tapped at both ends (tapping length 20mm) |
| TXCK-H6-3030-L390 | 3 | Middle layer frame | 390mm long aluminum profile |
Hardware and panel list
| Hardware | Quantity | Purpose |
|---|---|---|
| M8*30 Cap Head Screws | 16 | Main frame connection |
| 3030 Angle Brackets | ≥6 | Connecting middle layer |
| M6*16 Cap Head Screws | ≥24 | 3030 angle bracket, panel support connection |
| M6 Spring and Flat Washers | As needed | M6*16 connection |
| M6 T-nuts | ≥24 | |

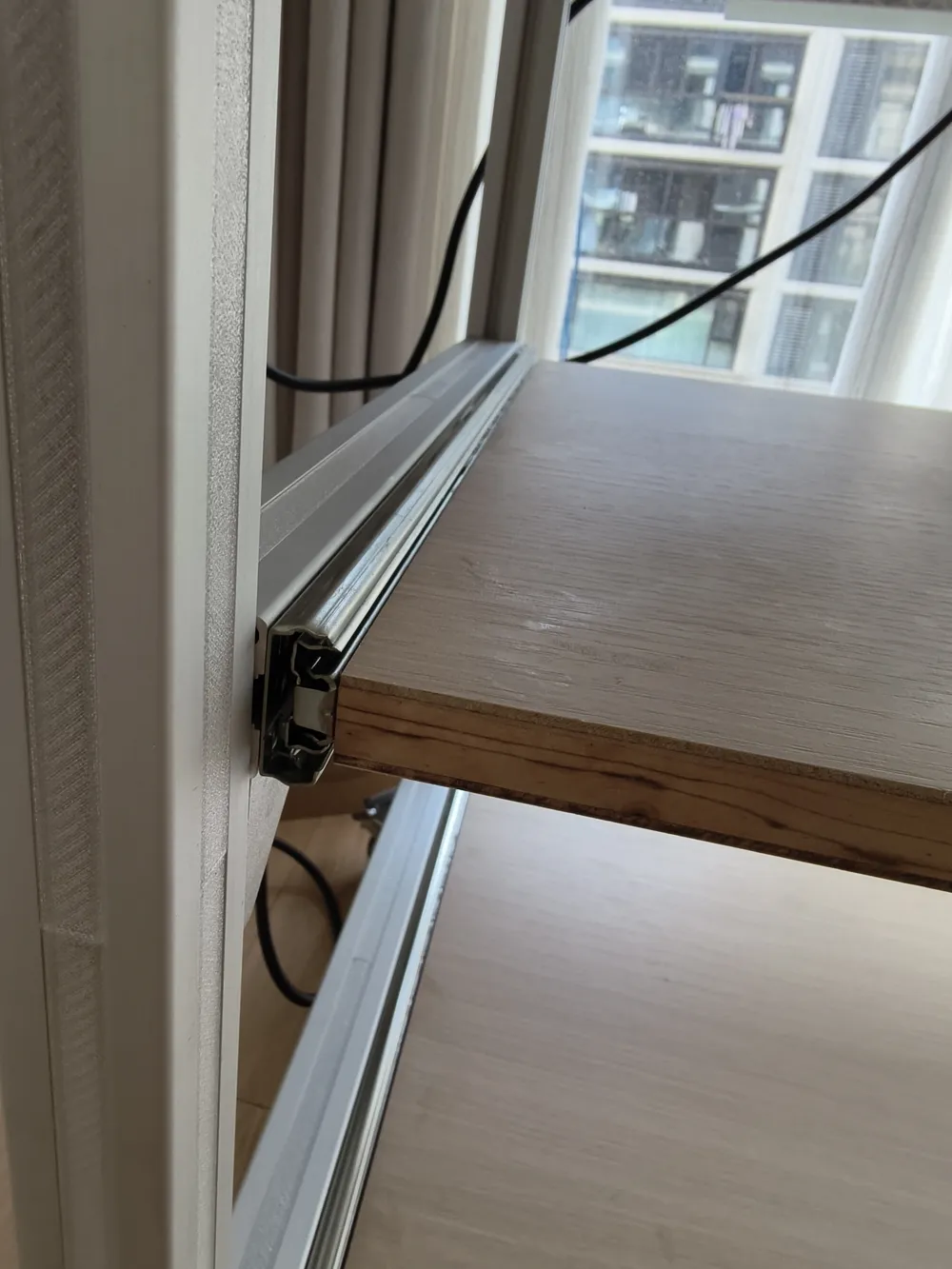

| 30mm wide 16-inch three-section slides | 2 pairs | For pull-out panels |
| M4*8 Large Flat Head Screws | ≥8 | For fixing slides |
| M4 T-nuts | ≥8 | |

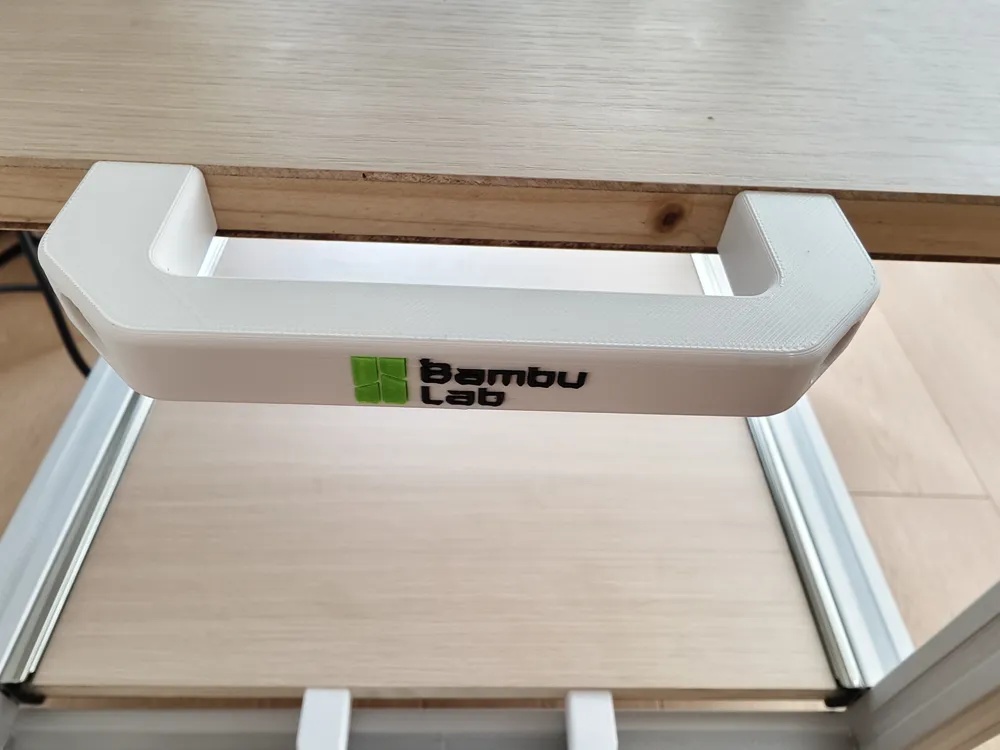

| L-shaped Panel Support (single-hole or double-hole are both fine) | 4~6 | For fixing the top panel |
| M4*16 Flat Head Self-Tapping Screws | As needed | For fixing the top panel and pull-out handles (You might not need to buy them, as some slides come with them, and using them sparingly should be enough) |
| S40 Fuma Casters | 4 | For a mobile workbench Choose one of the two types of casters If no mobility is needed, M8 adjustable feet can be chosen |
| TPE/TPR M8 Threaded Silent Casters (Threaded rod exposure no more than 20mm) | 4 | |
| 450*390*17mm | 1 | Top panel |

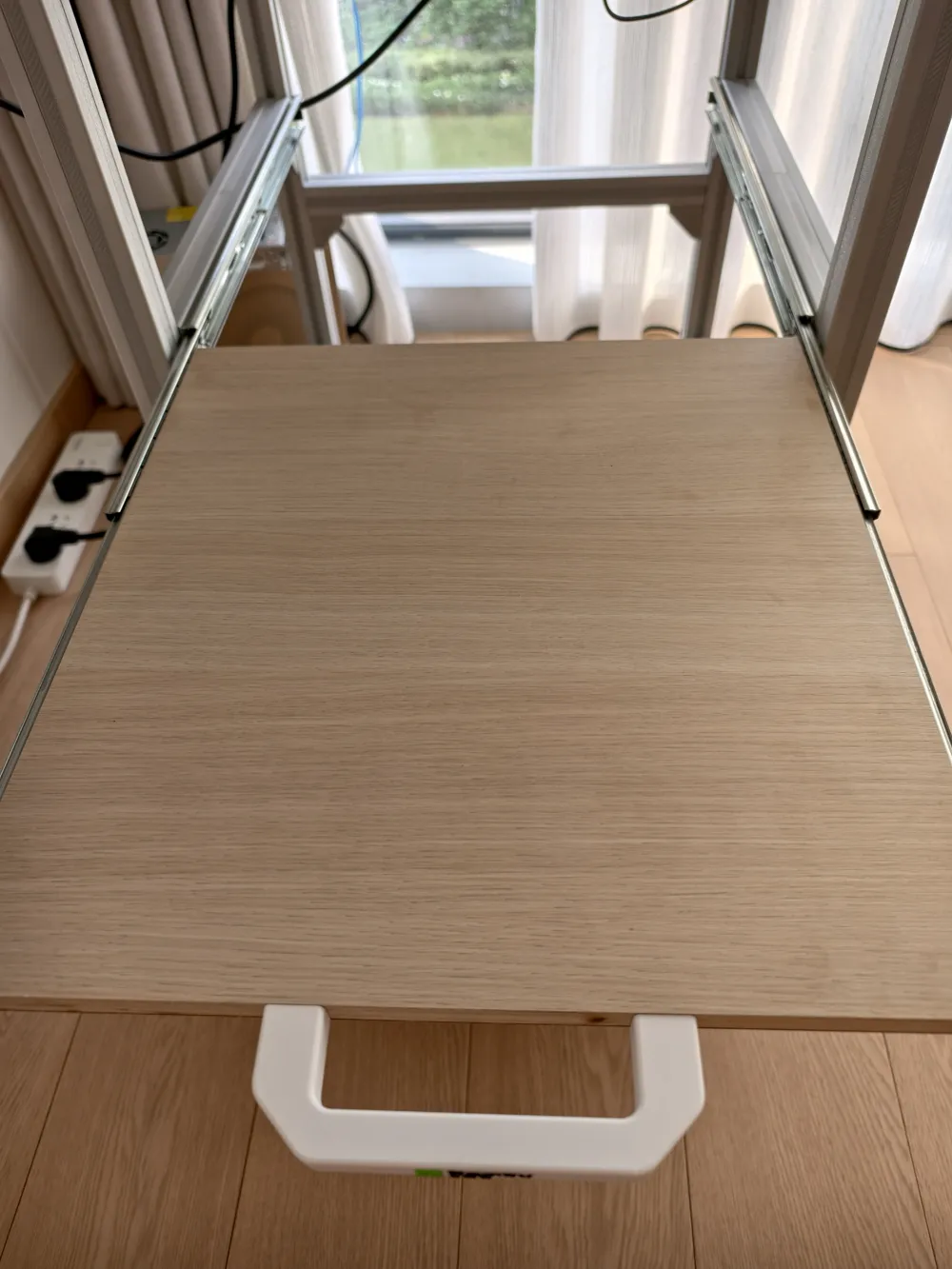

| 365*390mm (thickness no more than 30mm) | 2 | Pull-out panels |

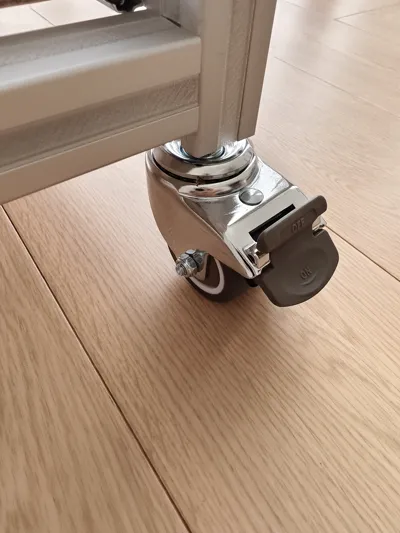

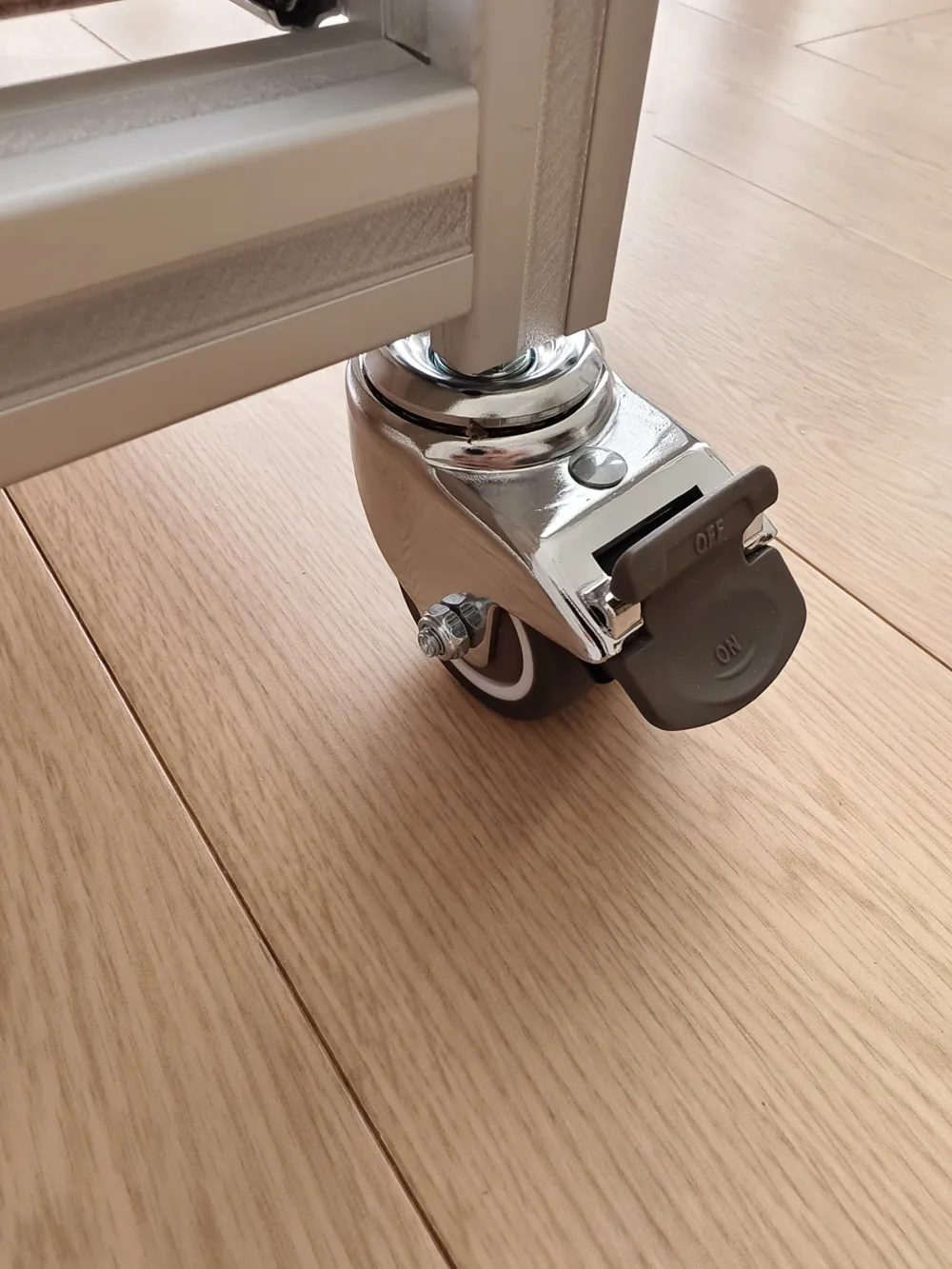

Since my home has wooden flooring, using S40 Fuma casters would leave shallow marks on the floor surface, so I switched to threaded silent casters. The choice of casters depends on your floor material
The total weight of the workbench is about 12kg, plus the 3D Printer weight, totals about 30kg (excluding filament)

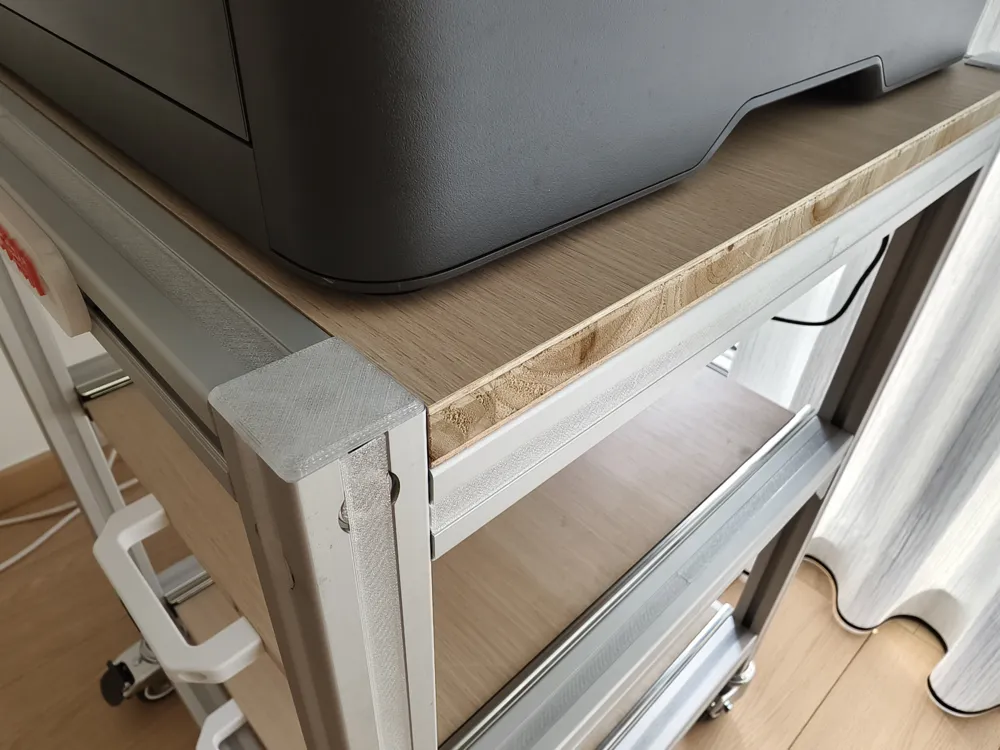

The end caps and plugs can be directly printed using the files in the print profile. For 390mm aluminum profiles, use two 195mm end caps; for 580mm profiles, use two 290mm end caps and two 255mm end caps internally
For the panels, you can choose various types of boards such as pine board, ecological board, or marine plywood
Total cost excluding panels is about 370 yuan!!!
Buying aluminum profiles from Taobao is cheaper
If you find this useful, please like or save it. If possible, use my print profile for the accessories too. I'd like to know how many people I've helped
