Flush Switch for Visible Fault Locator (VFL) Laser

Replacement flush mount switch for Visible Fault Locator (VFL) Laser - my first 3D design published!

I purchased the tool from Aliexpress (though it is available elsewhere); and found the switch moved very easily leading to the laser turning on inside my tool bag/tool box.

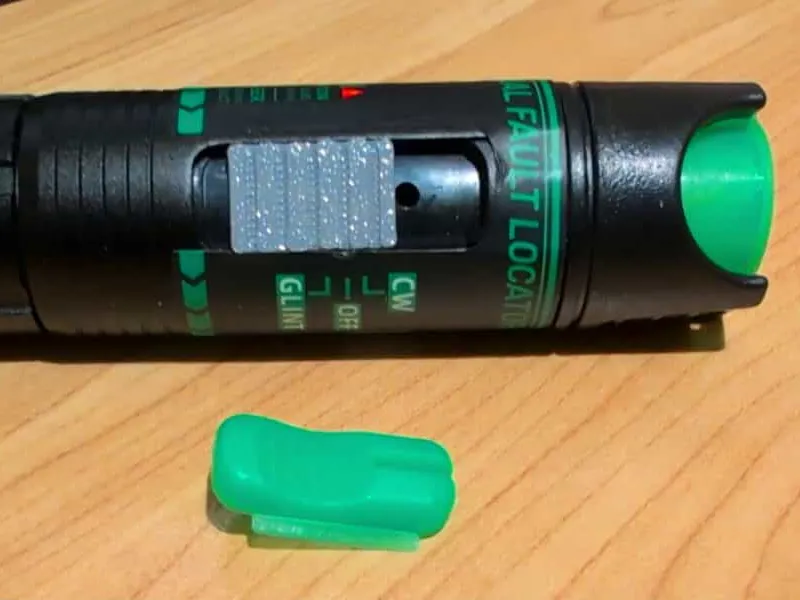

This is a replacement switch which sits flush with the casing and is much less likely to be accidentally switched on.

Printed in PETG as the tool may find itself in a hot environment (eg car); however prototyped in PLA which worked just fine too.

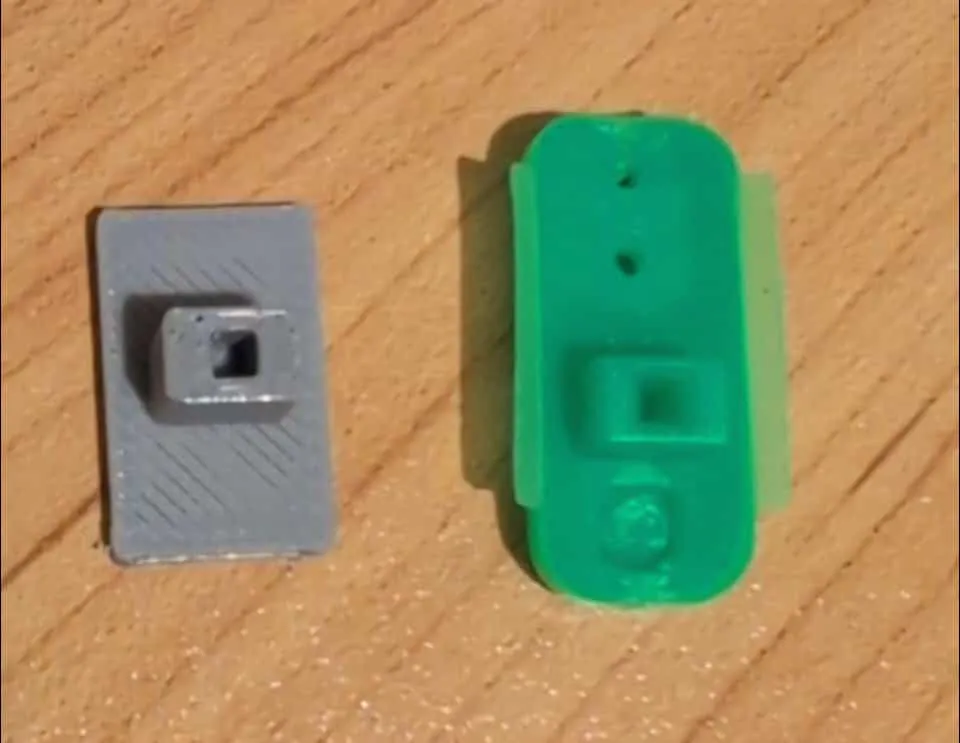

The factory included switch is easily removed by gently prying from the top and bottom.  This model fits by friction alone.  Three sizes are included in case there is some variation in the tool used; I found the 2.10 and 2.12mm switches fitted just fine, though 2.08 was too tight.
