1/10 cherokee hardbody high clearance fenderflares
Print Profile(0)
Description

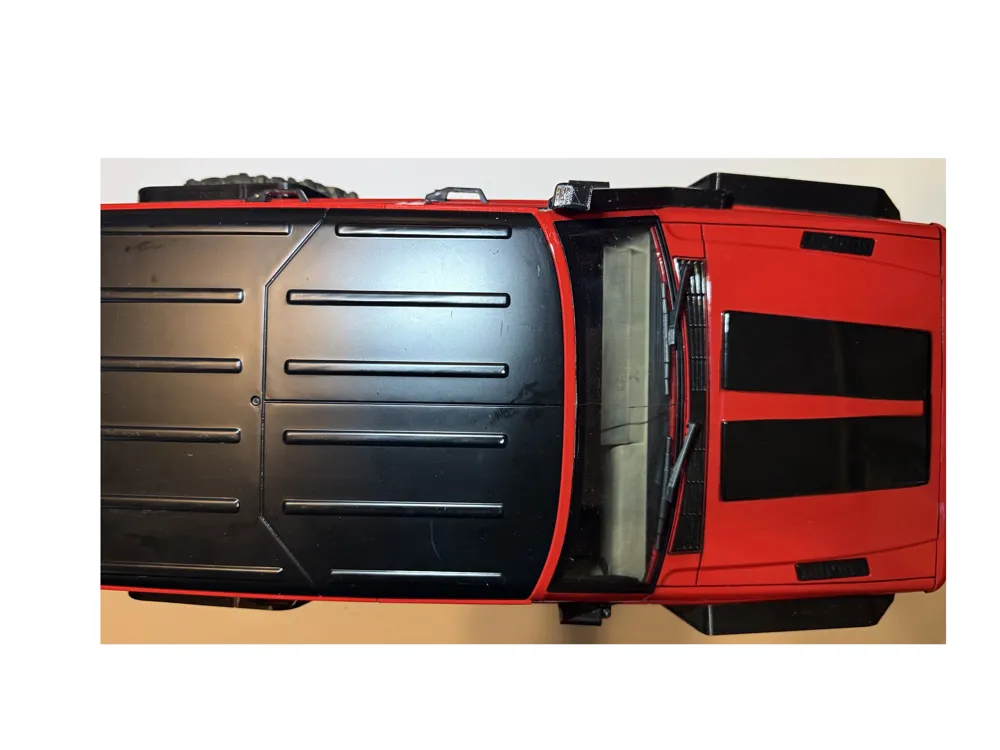

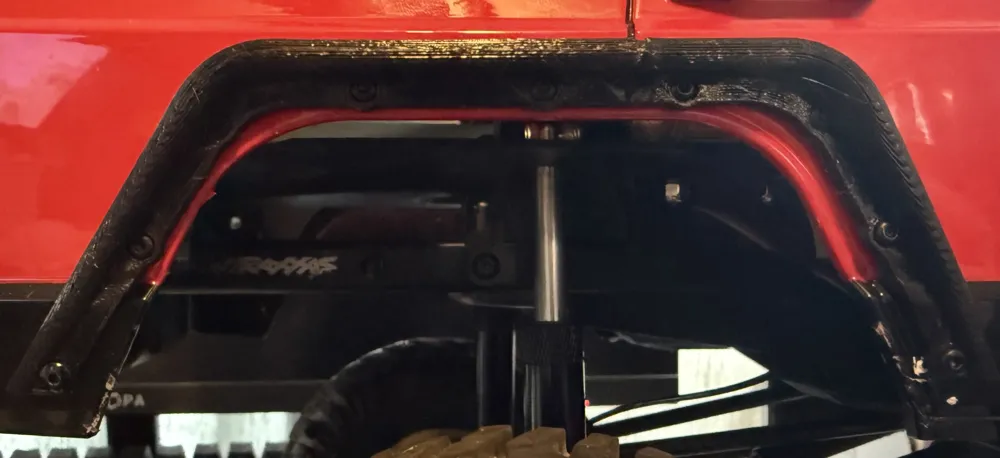

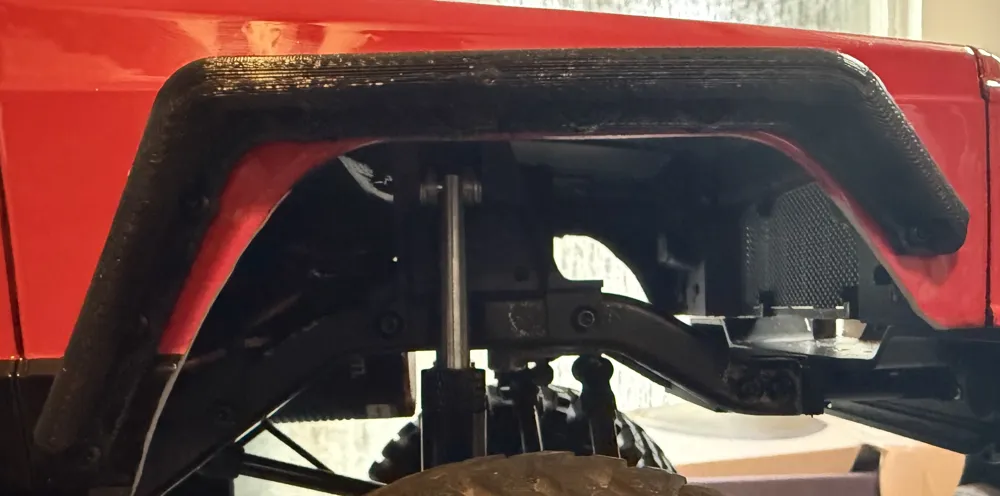

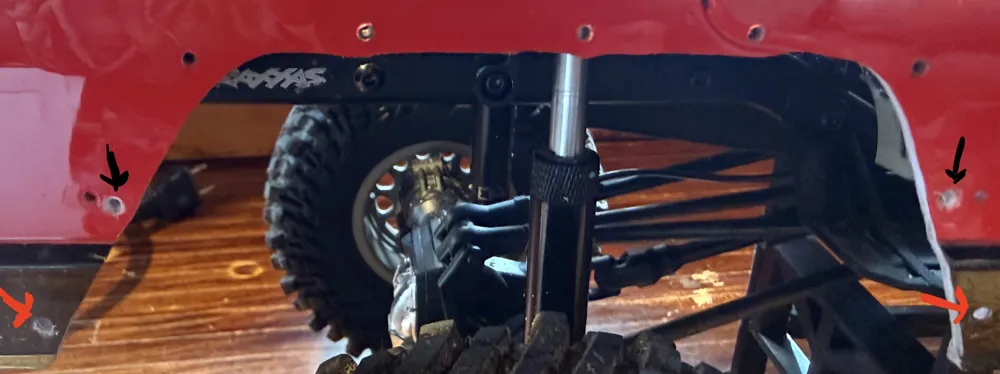

These are high clearance fender flares for the 1/10 cherokee xj hardbody that is available on amazon etc. They have a rolled lip on the outer edge for additional protection and strength. I designed them to reuse the majority of the original holes of the rubber flare hardware with the exception of requiring four holes drilled per side in the rear. (indicated in the last photo.) The rubber flares the body comes with mount at the tops of the flares, and the rubber flares hang low. These mount below the flare and allow for the removal of some of the body material for additional wheel clearance. There are images of the body before trimming to show how much additional clearance is achieved in the body alone, and the rubber flares hang lower than the body.

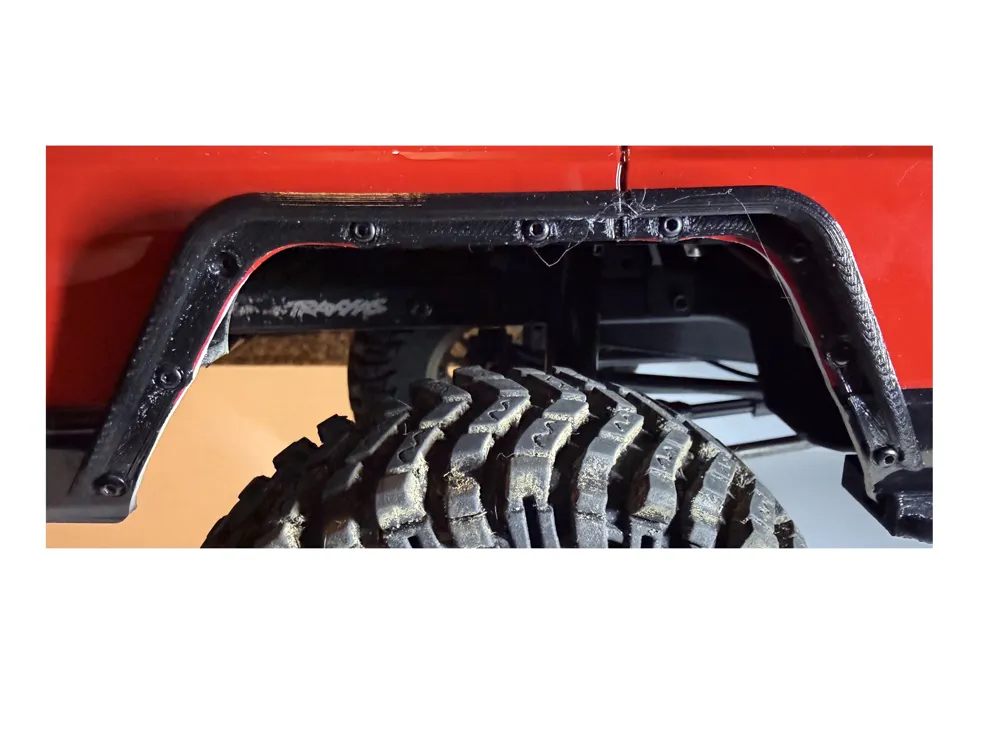

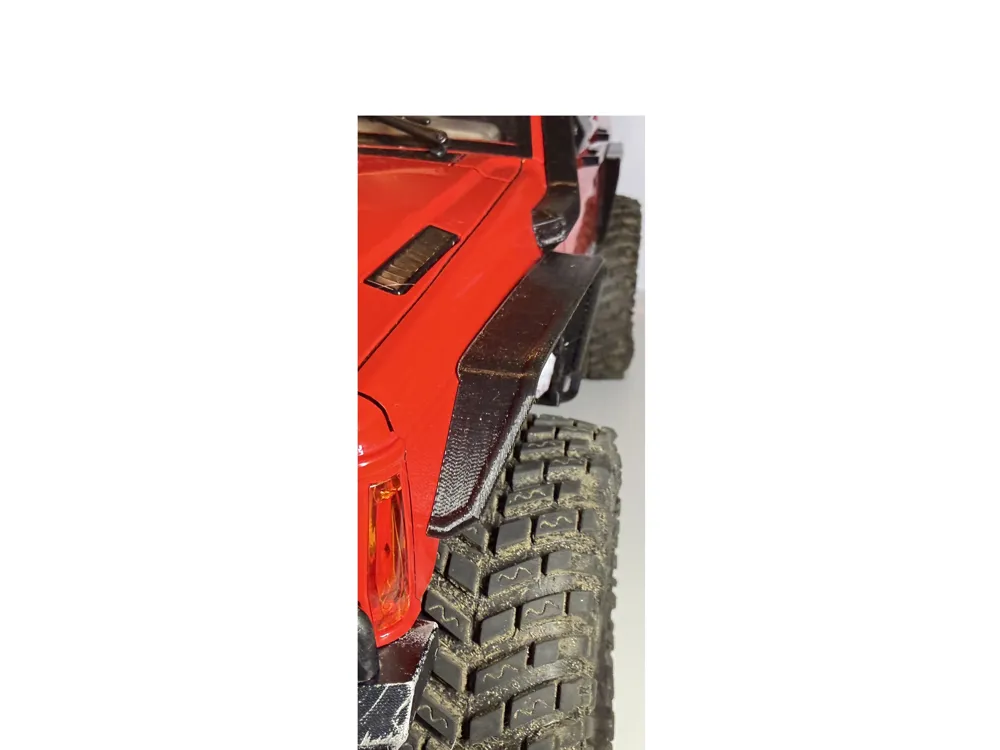

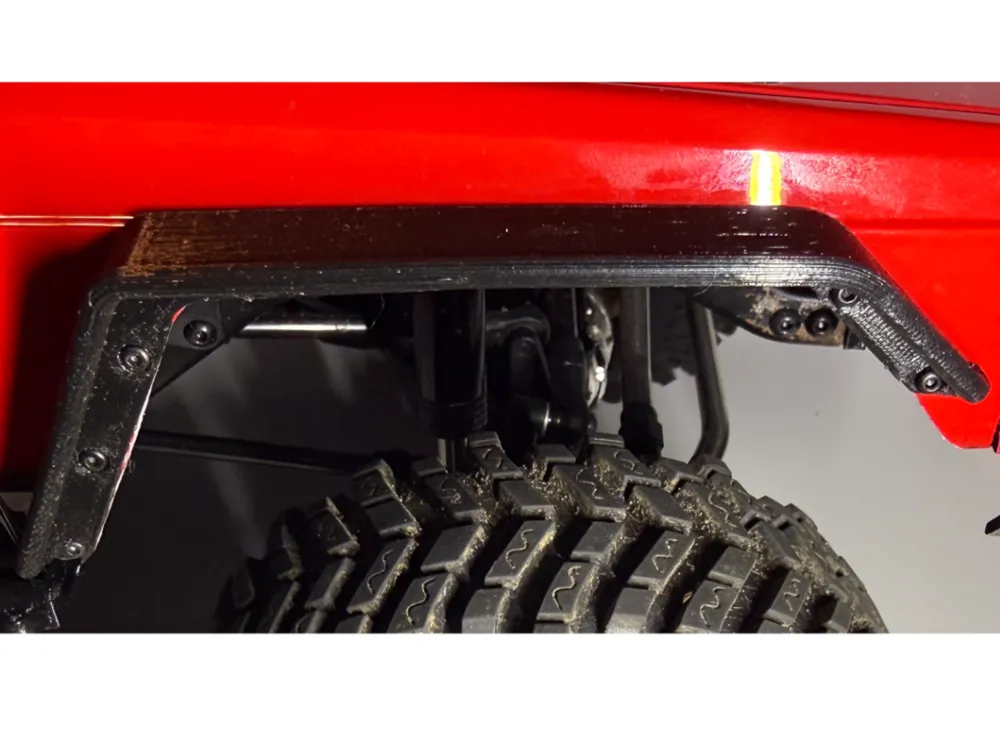

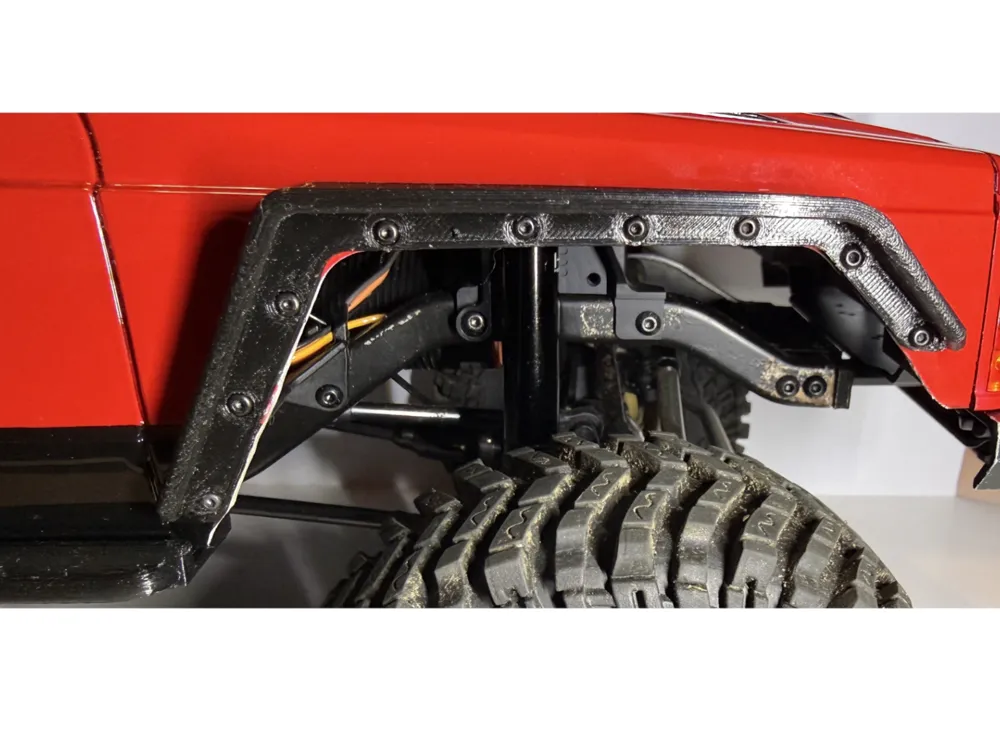

For example, in the photos, it is mounted on a trx4 with 95mm shocks and 5 inch tall tires. At full articulation, there is minimal contact of the tires and the body.
I printed in PETG and had the jeep driving leaned against rocks and there was no damage to the flares.
Please leave a review/comment and pictures would be great!
