CKRC Version: 24Yep YEPspec Chassis

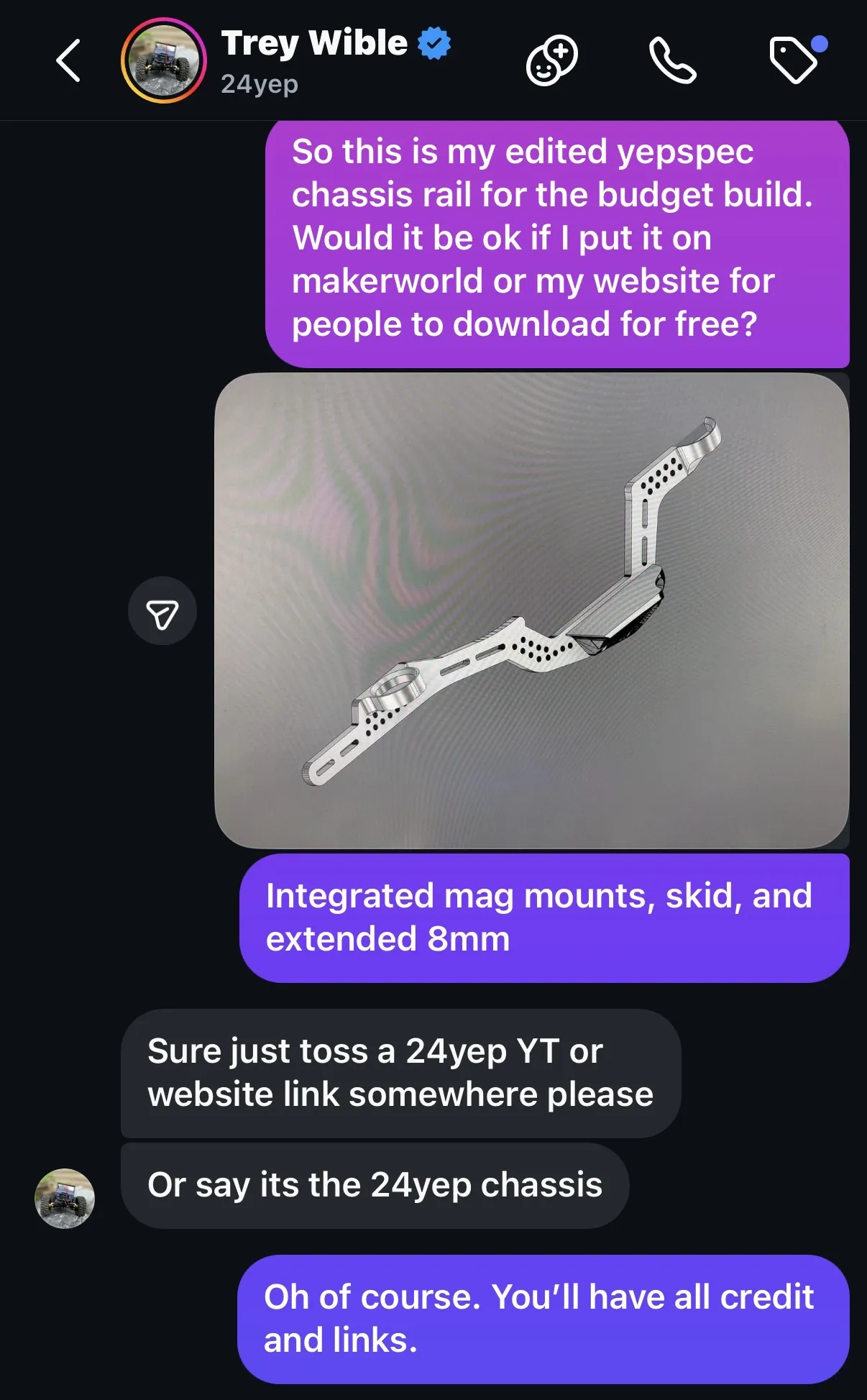

POSTED WITH PERMISSION FROM TREY

All credit goes to Trey and V.ENG for original design. Go check them out at the links below:

The free chassis kit files: https://24yep.com/products/yepspec-chassis-kit

https://www.youtube.com/@24Yepp

https://24yep.com/

https://www.instagram.com/24yep/

This is my version of 24Yep's YEPspec Chassis I used for his $150 budget build off. I take no credit in original design, just wanted to integrate more parts into one print to work within the “three 3d printed parts” rule and a few people asked me to post it.

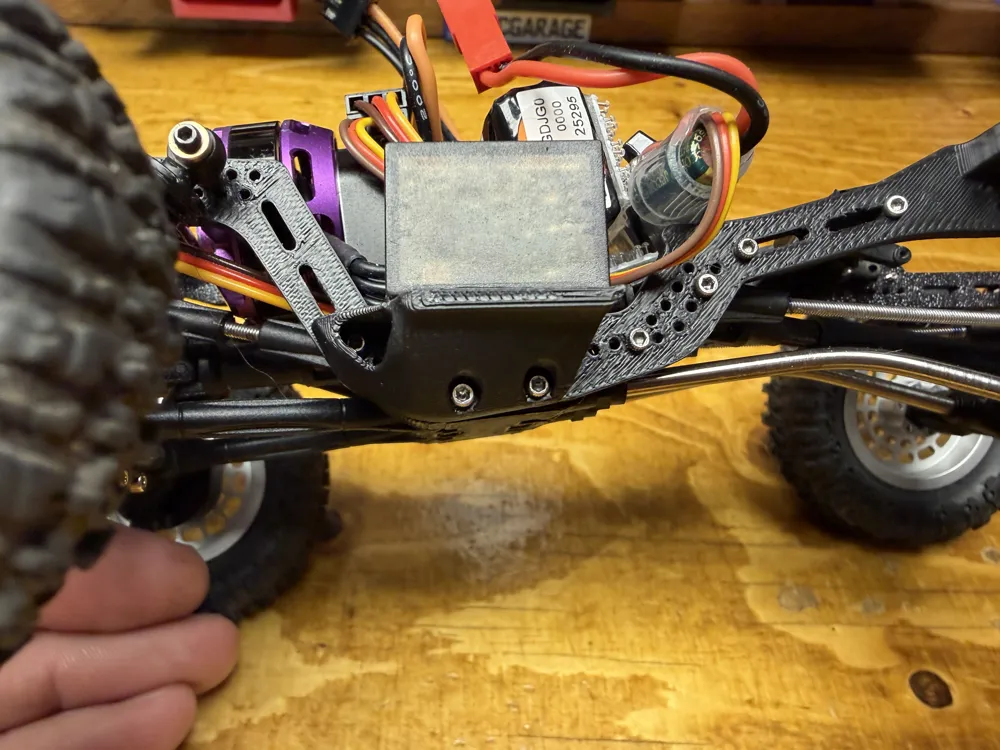

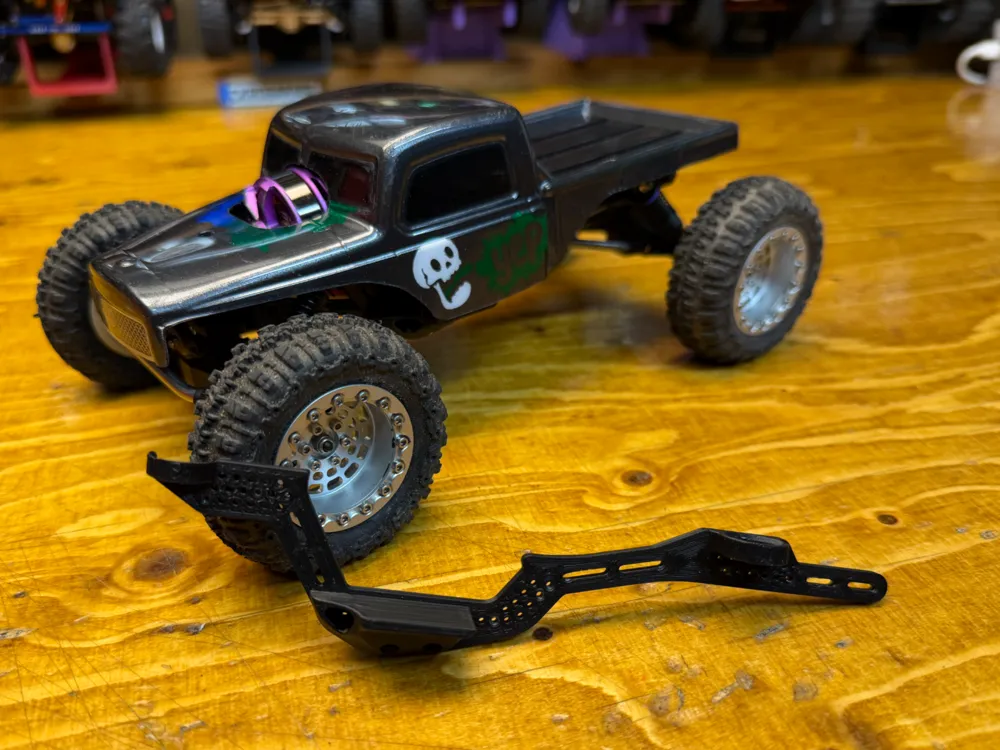

This integrates the rail with a shortened version of the slider to eliminate the need for supports and to get to the rear link holes easier. The rear is lengthened 8mm and magnet mounts integrated. The front slider had a pocket cut into it to get to the front upper link screws so you don't have to put them in from the inside. I also added a bridge in the middle of the long slots front, middle, and rear to help with strength.

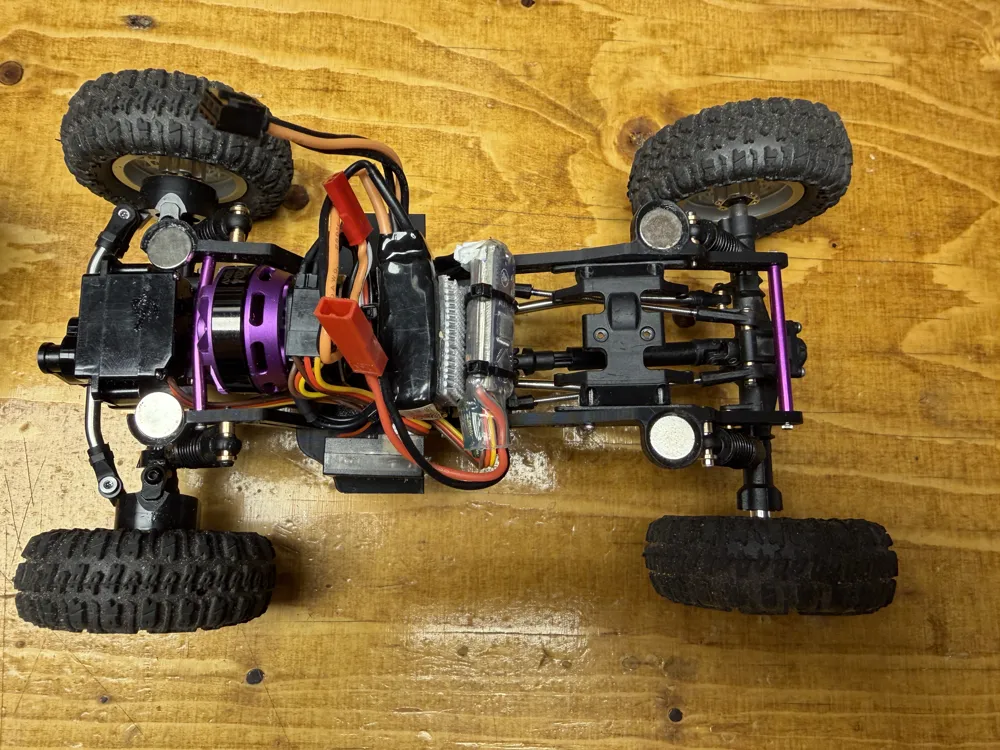

Just note, for the rear magnet mount rails, the top row of shock positions is pretty much useless since you cant fit the shock against the mag mount. I originally only made this for me and wasn't using them.

There is 3 versions:

1. +8mm, no mag mounts, all shock positions
2. +8mm, with mag mounts, front has all shock positions, rear loses the top row
3. +8mm, with mag mounts, and front is lowered about 3mm, front and rear lose top row shock positions, this was due to the body I was using

Magnets I used: https://amzn.to/4u3Z3I0

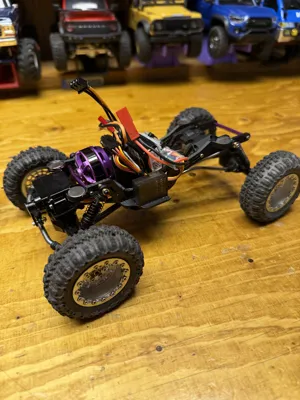

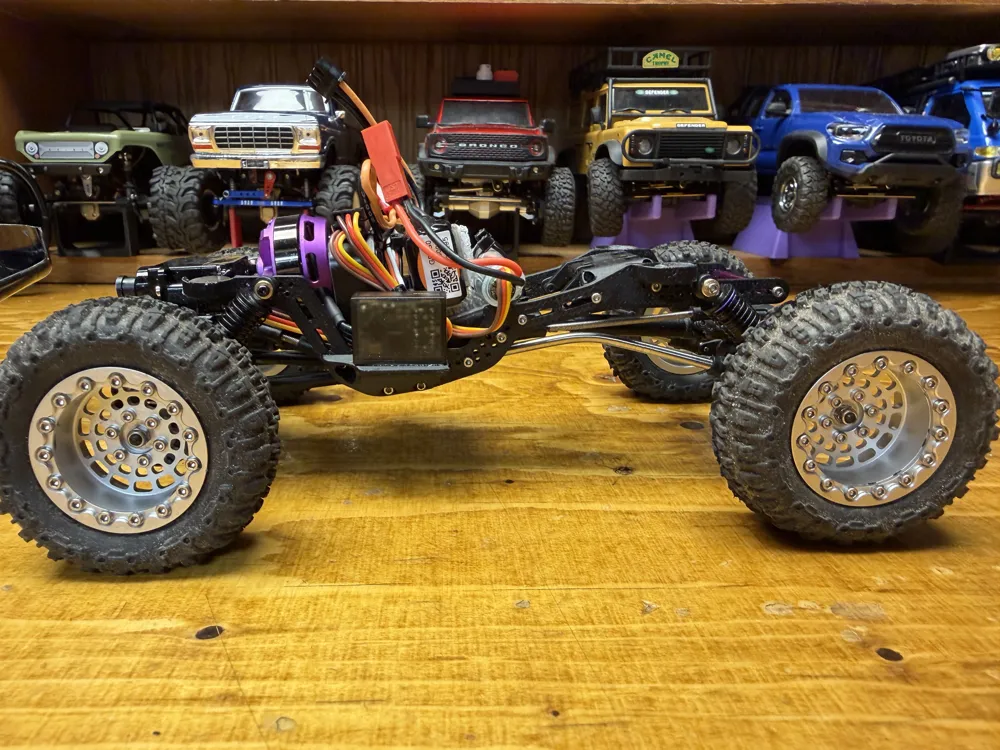

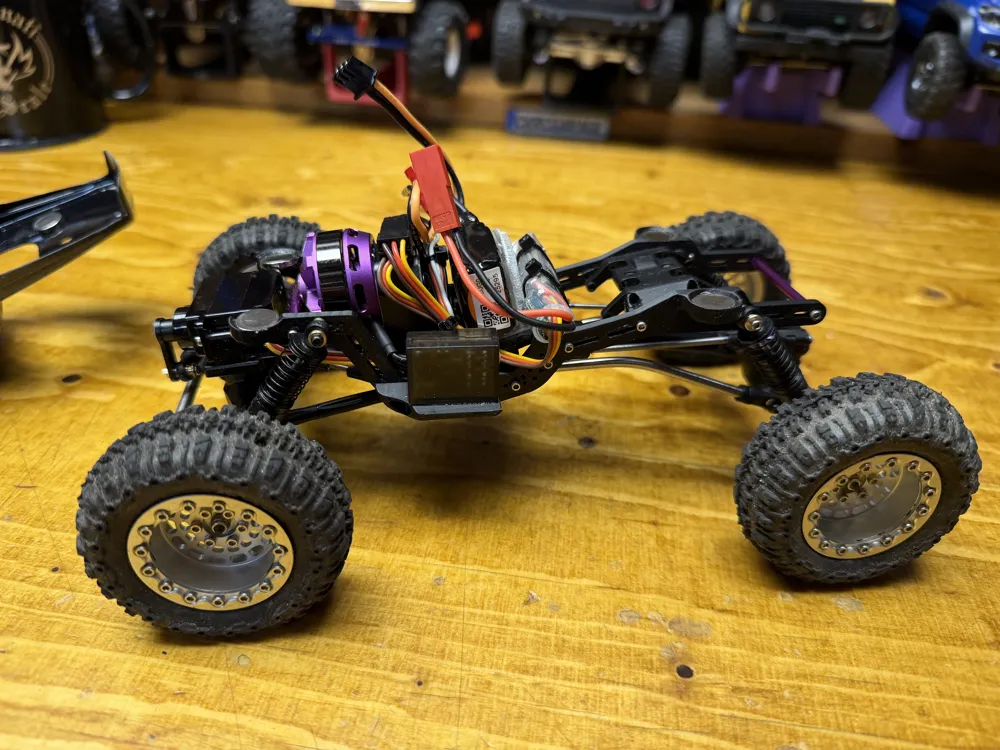

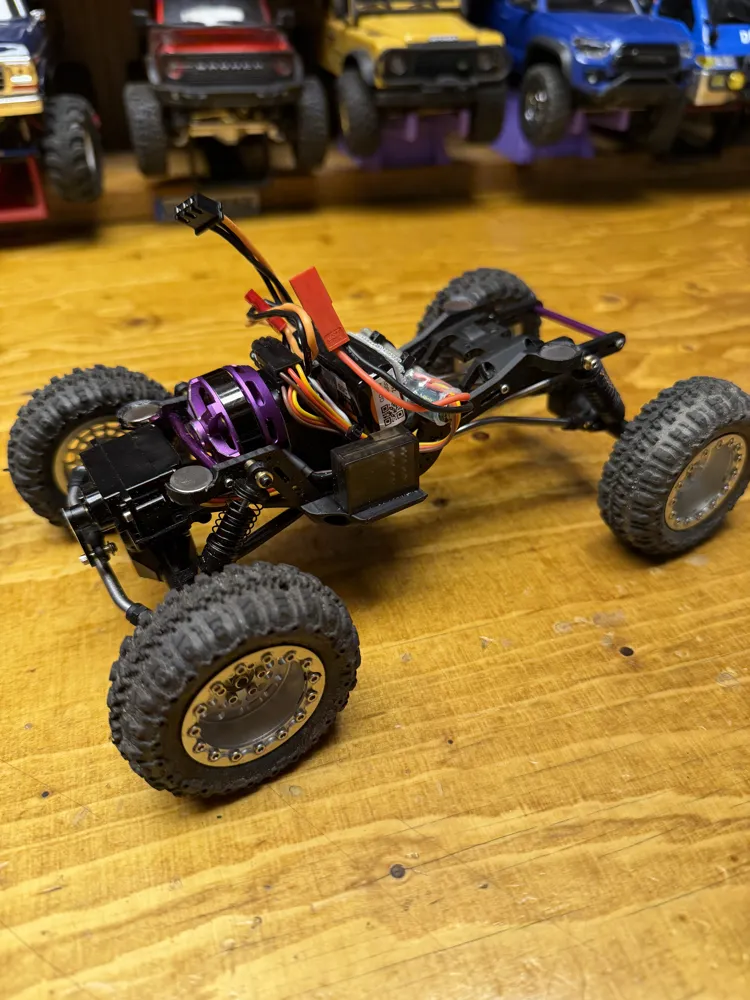

Check out my build here:

Instagram: https://www.instagram.com/ckrcgarage

YouTube: https://www.youtube.com/@CKRC-Garage
