Plant Support System - Modular & Parametric

🌿 Check out my Modular Plant Support System — a lightweight, expandable, and reusable gardening framework designed specifically for efficient FDM printing.

🆕 New Harvest Basket Extension Available!

A customizable harvest basket can now be attached directly to the Plant Support System.

👉 Download it here:

https://makerworld.com/fr/models/2905432-parametric-harvest-basket-extension#profileId-3248577

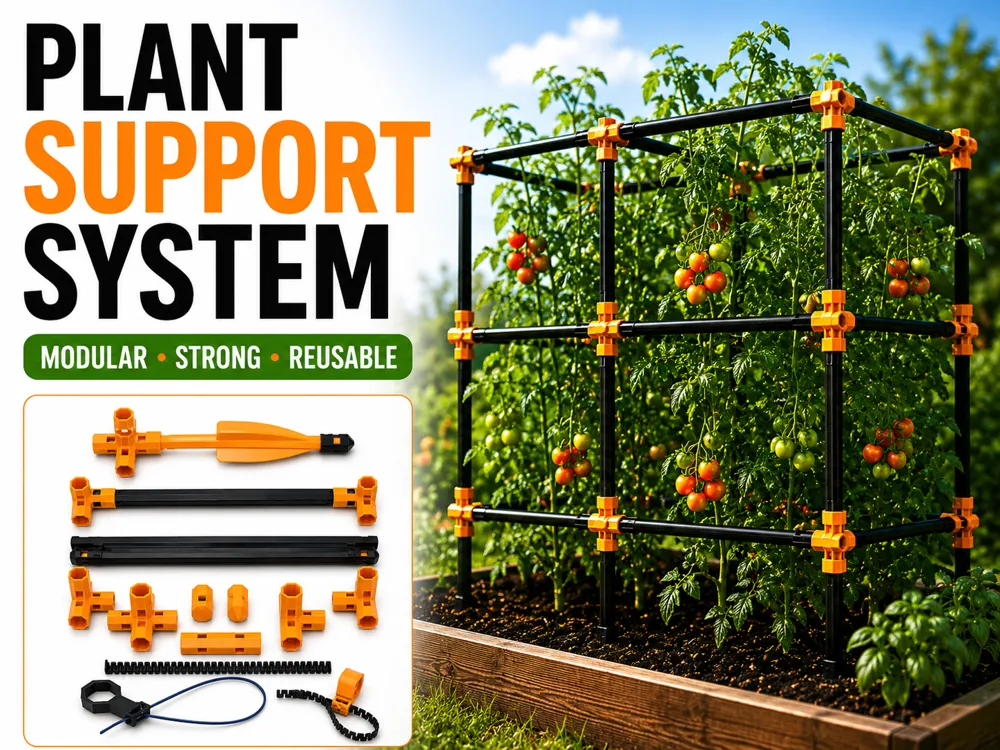

🌿 Modular Plant Support System

A lightweight, modular and reusable plant support system designed specifically for efficient FDM 3D printing.

Build custom support structures for:

• 🍅 Tomatoes
• 🥒 Cucumbers
• 🫘 Beans
• 🌱 Climbing plants
• 🏡 Greenhouses
• 🪴 Raised beds
• 🌿 Vertical growing systems
• And many other garden applications

🎯 Design Goals

This project was designed around:

• ⚡ Fast printing
• ♻️ Low material usage
• 🔧 Simple assembly
• 📦 Easy storage
• 🧩 Modular expansion
• 🌱 Reusability season after season

The goal was not to create the strongest possible garden structure.

Instead, the focus was on creating a system that is:

• Lightweight
• Fast to print
• Material efficient
• Easy to assemble
• Modular and expandable
• Strong enough for everyday garden use
• Easy to disassemble and store compactly

A future extension project may focus specifically on ultra-compact off-season storage solutions.

🧩 Modular System

The entire system is built around interchangeable connectors and octagonal rods.

You can easily create:

• Single plant supports
• Multi-plant structures
• Vertical extensions
• Horizontal extensions
• Greenhouse frameworks
• Custom garden layouts

Expand your structure whenever your plants need more support.

🌿 Special Plant Components

Beyond the standard connectors, the project includes several components specifically designed for plant support.

🌱 Plant Connector

The Plant Connector can be used in two different ways.

Option 1 — Flexible Filament Loop

A simple piece of filament can be inserted through the connector to create a flexible support loop.

Benefits:

• Gentle on stems
• Extremely low cost
• Easily adjustable
• Reusable

Simply choose the filament length that best fits your plant.

Option 2 — Printable Locking Strap

The connector can also be used with the included printable locking strap.

Benefits:

• Fully 3D printable solution
• Adjustable diameter
• Secure locking mechanism
• No additional materials required

This allows the support loop to be locked at the desired size while remaining easy to reposition later.

⚓ Ground Anchor Rods

The Ground Anchor Rods are designed to increase stability when the structure is installed directly into soil.

Integrated stabilizing fins help:

• Reduce movement in loose soil
• Increase rigidity of larger structures
• Better support mature and heavier plants

These anchors become especially useful for taller or expanded configurations.

🛠️ Designed Specifically for Efficient 3D Printing

The octagonal rod design was primarily chosen to:

• Improve connector fit
• Prevent unwanted rotation
• Enable flat printing orientations
• Reduce support requirements
• Improve print efficiency
• Simplify plant clip attachment

Most parts can be printed quickly with minimal waste and little or no support material.

⚠️ Important Printing Orientation

Some parts are intentionally positioned at a 45° angle inside the provided print profiles.

This orientation was chosen to improve strength in critical load directions while maintaining efficient support-free printing whenever possible.

For best mechanical resistance:

• Keep the original orientation provided in the project files
• Do not rely entirely on automatic placement in your slicer
• Use the supplied profiles whenever possible

The included orientations were carefully selected to avoid weak layer directions.

☀️ Material Considerations

The project was primarily tested in PETG.

For very hot climates or prolonged direct sunlight exposure, I recommend using a light-colored PETG whenever possible.

Why?

• Dark colors absorb more heat
• Higher temperatures can reduce rigidity over time
• Lighter colors generally remain cooler outdoors

I personally use black PETG and it performs well in my current environment, but lighter colors may provide better long-term performance in extreme summer conditions.

⚙️ Recommended Print Settings

The project was primarily tested using PETG.

My personal settings:

• 2 walls
• 15% Gyroid infill
• Brims enabled
• Supports enabled for long rods (helps reduce warping)

These settings already provide very good results for normal garden use.

For:

• Larger structures
• Heavier plants
• Hotter climates
• Long-term outdoor installations

consider increasing to:

• 3 walls
• or 4 walls

for additional rigidity and durability.

📐 Parametric Files Included

The project includes two customizable parametric files:

• Adjustable Rods
• Adjustable Ground Anchor Rods

Simply click Customize to generate perfectly sized parts for your setup.

This makes it easy to adapt the system to:

• Custom plant spacing
• Taller plants
• Raised beds
• Greenhouse layouts
• Unique garden configurations

📦 Included Packs

The project is organized into several packs:

Starter Packs

Perfect for getting started quickly.

Vertical Extensions

Expand structures upward as plants grow.

Horizontal Extensions

Connect multiple structures together.

Full Reference / All Parts Pack

Contains every available component, including additional parts not included in the starter kits.

♻️ Build It. Expand It. Store It. Reuse It.

This project was created to provide a practical, reusable alternative to seasonal plant supports.

Build exactly what you need today.

Expand it tomorrow.

Store it compactly during winter.

Reuse it season after season.


Updates :

🚀 08/06/2026 : Harvest Basket Extension Available !

https://makerworld.com/fr/models/2905432-parametric-harvest-basket-extension#profileId-3248577

🚀 08/06/2026 : New connector 6 Ways

🚀 05/06/2026 : New right-angle connector added

I added a new connector to the project: a right-angle connector designed to create 90° connections between rods. 📐

This part can be useful for building more rigid structures, side extensions, or custom shapes — for example when making plant trellises 🌱 or other modular support frames.

The new connector is available in the following print profile:

🧩 Reference Pack - All Parts Kit
