Smart Roller Blind Automation DIY Kit (NEMA 17)
Print Profile(1)
Description

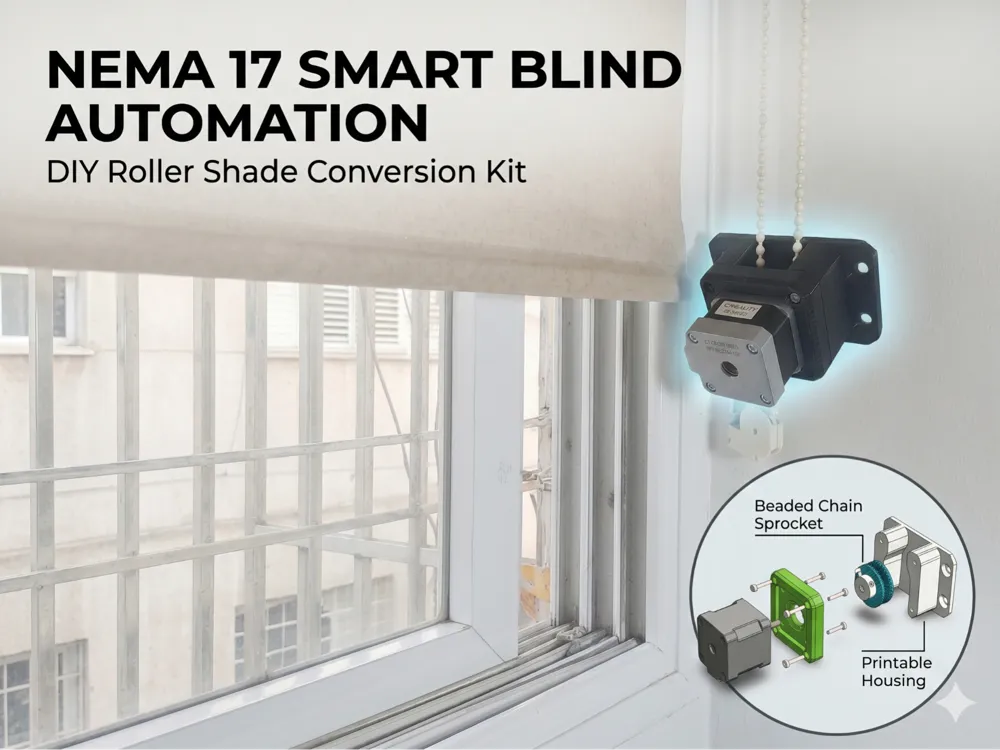

Smart Roller Blind Automation (NEMA 17)
Convert manual roller blinds into smart/automated ones. Designed to grip standard beaded chains securely without slipping.
🛠️ Bill of Materials (BOM)
- 1x NEMA 17 Motor
- 9x M3x16 Screws
- Wall mounting screws
- Optional: ESP32/Arduino + Driver (TMC2209/A4988)
🤖 Code Tip: Ask any AI (ChatGPT/Claude) for an "Arduino or ESPHome script for NEMA 17 with A4988", and it will generate it for you instantly.
🖨️ Print Settings
- Filament: PETG, ABS, or ASA (Avoid PLA due to chain tension).
- Walls / Infill: 4 Walls | 35% Infill (Gyroid).
- Supports: Minimal (Only for the main housing overhang).
🔧 Assembly

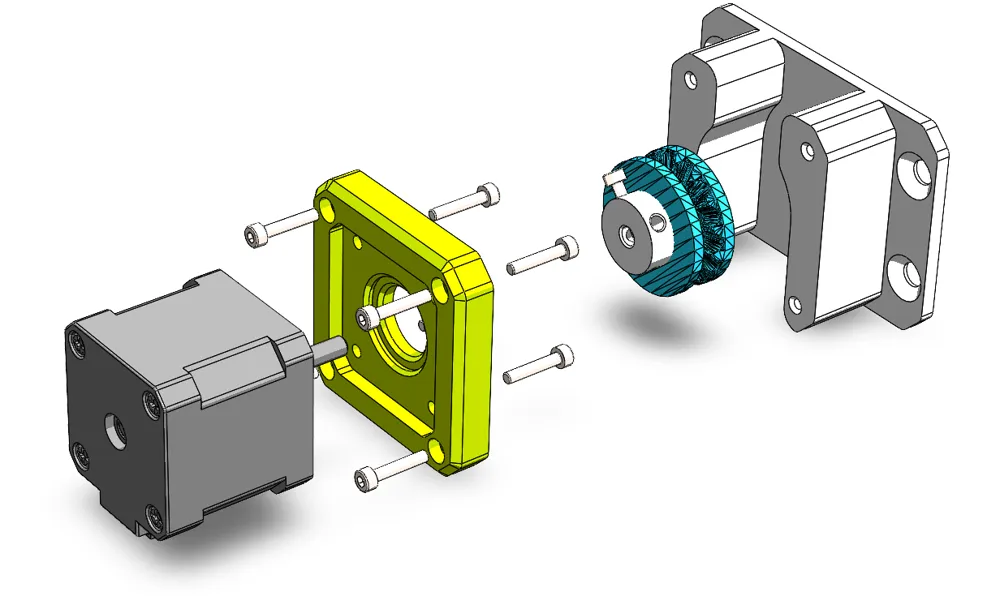

- Mount the printed sprocket on the motor shaft.
- Route the chain through the housing and over the sprocket.

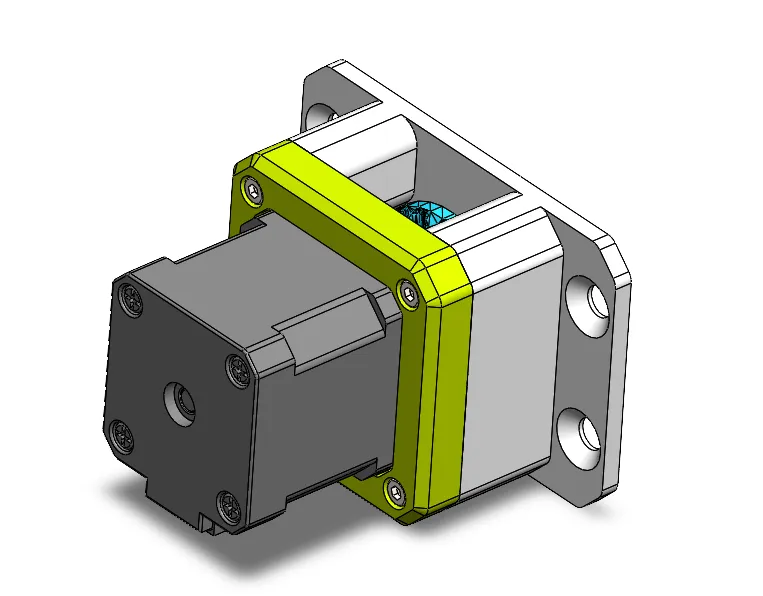

- Close the housing and mount the motor using the 9x M3x16 screws.

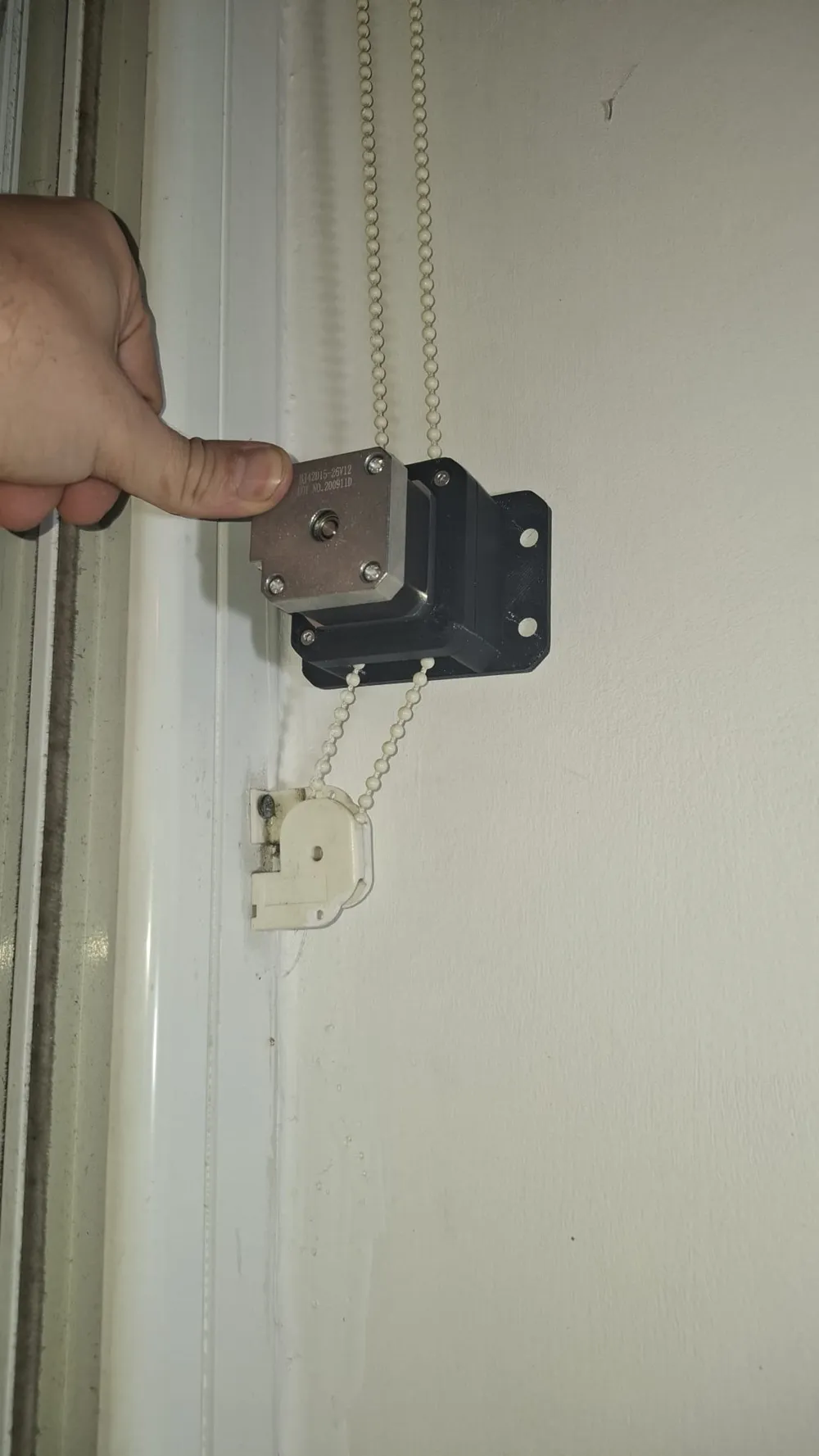

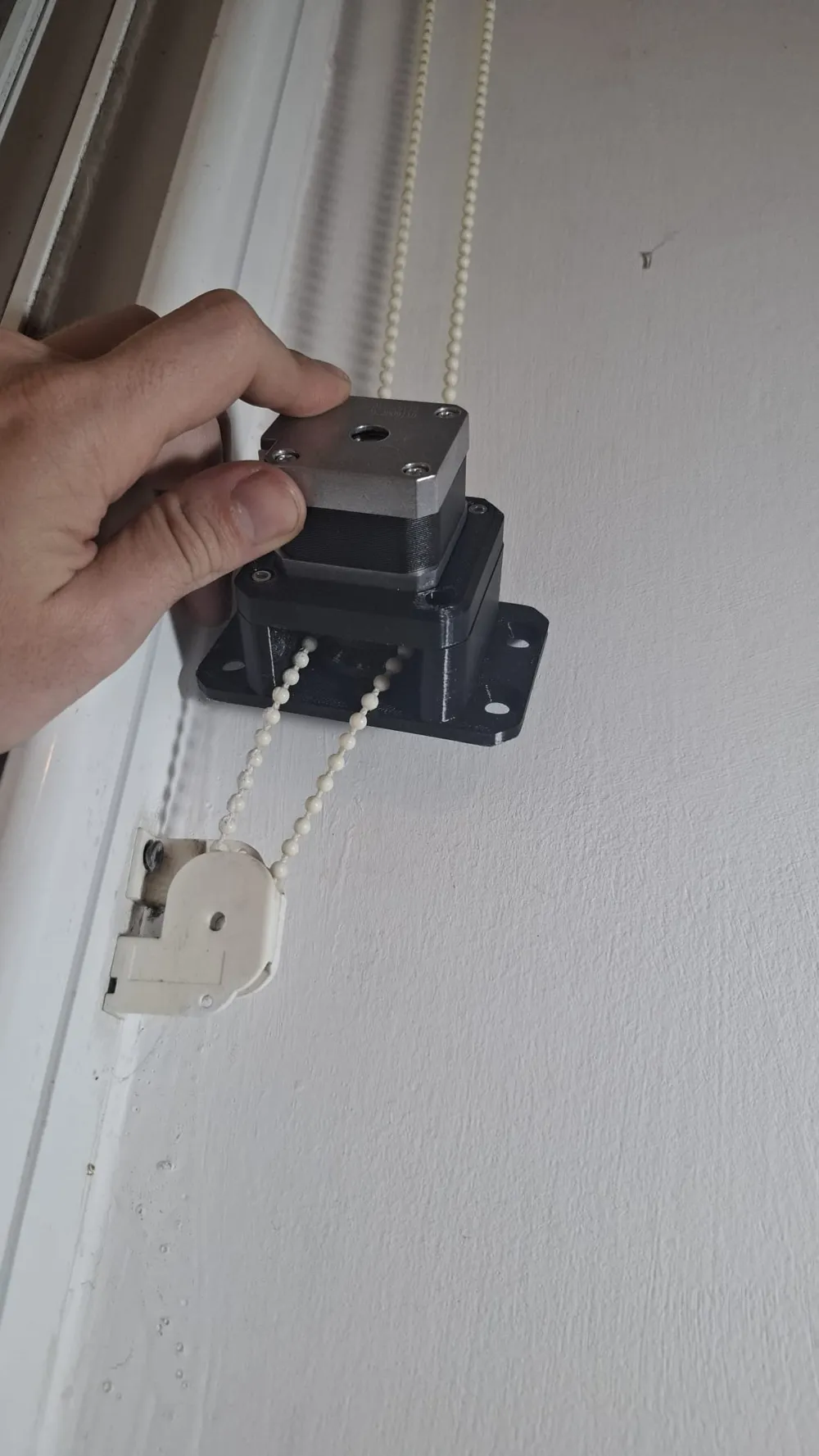

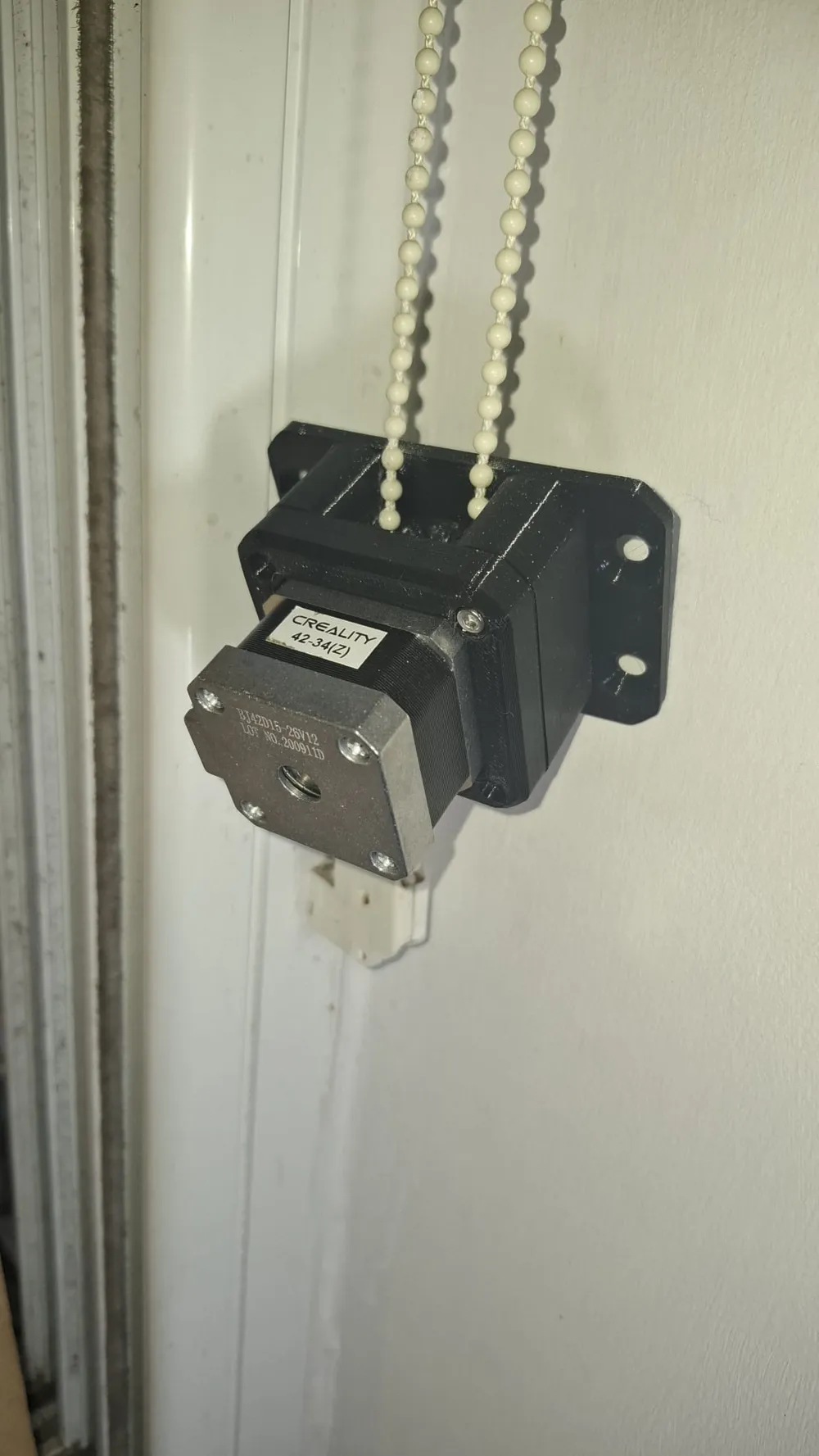

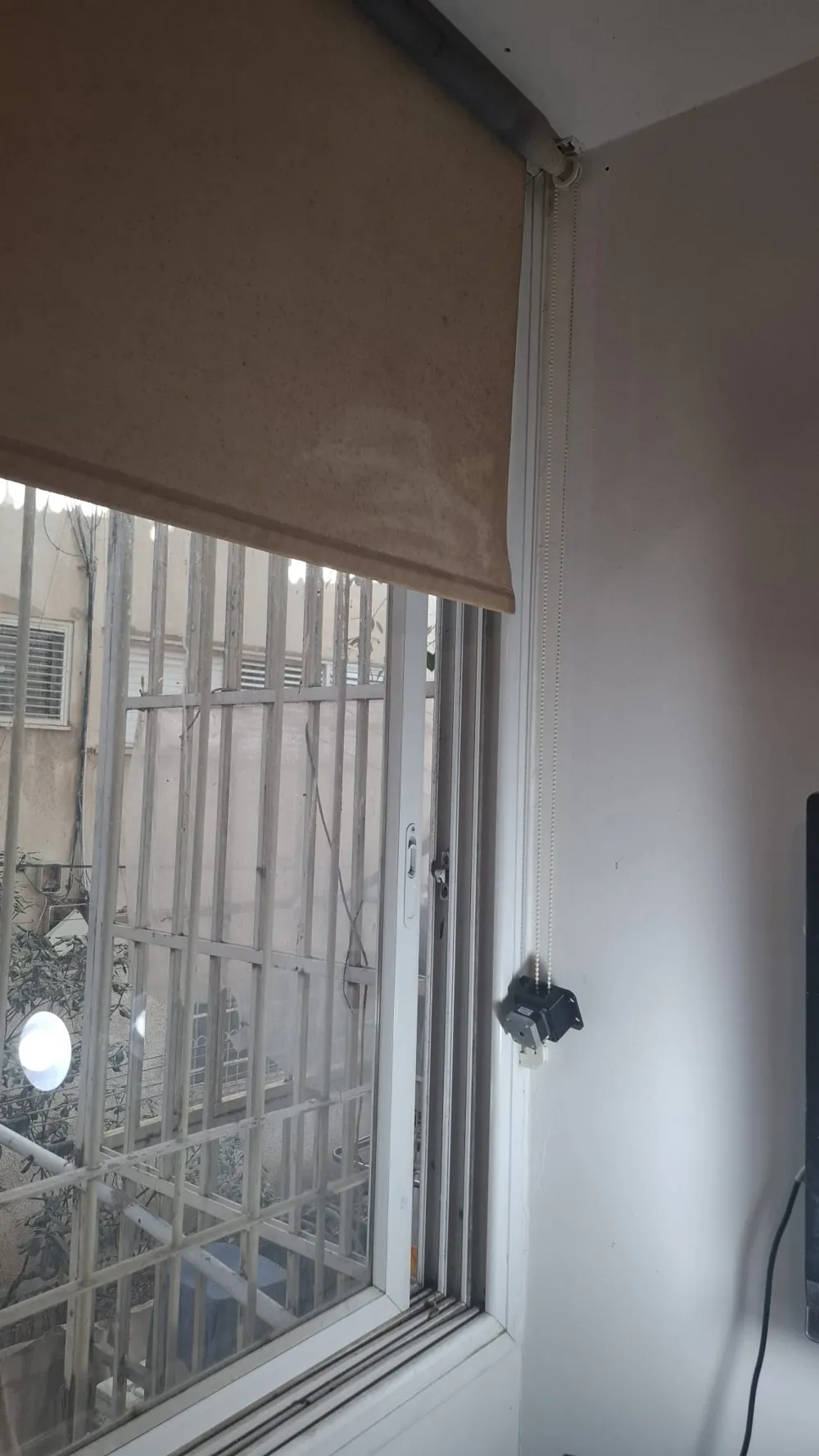

- Mount to the wall with proper chain tension.
💬 Need a different mount or a geared/transmission version? Leave a comment below and I'll upload it!
