Panzer IV Ausf.F1/F2 - 1/72 Scale

Courtesy to:

https://www.thingiverse.com/thing:6790735

Panzer IV (and variants) Megapack
by Jerryflame555 is licensed under the Creative Commons - Attribution - Share Alike license.

Remix:

Rescaled from 1/100 to 1/72. Adjusted placement directions for the ease of printing. Multiple objects are placed on a single plate. The rear mudguards are enhanced for better printability.

比例从1/100重置为1/72. 打印朝向被调整过以方便打印减少缺陷. 多件物体被放置在同一个打印盘中. 补强后部挡泥板以提升打印质量.

The Panzer IV Ausf. F1/F2 were important mid-war developments of the German Panzer IV series. The F1 retained the short-barreled 75 mm gun mainly for infantry support, while also featuring thicker frontal armor and wider tracks than earlier versions. The F2 (later renamed to G in July 1942 ) introduced the long-barreled 75 mm KwK40 gun, giving the Panzer IV effective anti-tank capability and forming the basis for later Ausf. G/H variants. Visually, the F1 is recognized by its short gun barrel, whereas the F2 features a much longer gun with a muzzle brake.

四號坦克F1/F2型是德国二战中期的重要改进型号. F1型仍装备短身管75mm火炮, 主要用于步兵支援; 相比之前型号, F1加强了正面装甲并加宽履带. F2型(1942年7月被重命名为G型)则首次换装长身管75mm KwK40火炮, 使四號坦克真正具备了优秀的反坦克能力, 并成为后续G/H型发展的基础. 外观上, F1最大的特征是短炮管, 而F2则拥有明显更长的主炮和炮口制退器.

Historical, model & painting photo sources:

https://tanks-encyclopedia.com/ww2/nazi_germany/panzer_iv_ausf_f1

https://andyshhq.com/cdn/shop/products/BT003_500x.jpg?v=1579030123

https://static.wikia.nocookie.net/kards/images/4/4c/T_panzer_iv_f2.png/revision/latest/scale-to-width-down/1000?cb=20200427153518

Four models included (2 for F1, 2 for F2)  - please print by your preference (Each model matches closely to the historical/model/game photos attached below):

请根据偏好自行选择以下4个模型 (F1/F2型各两种, 每个模型尽可能贴合附图):

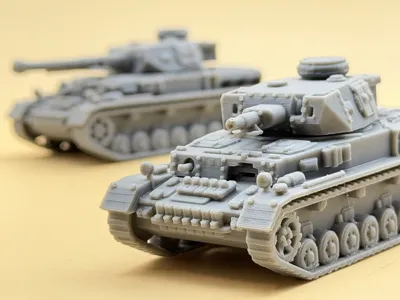

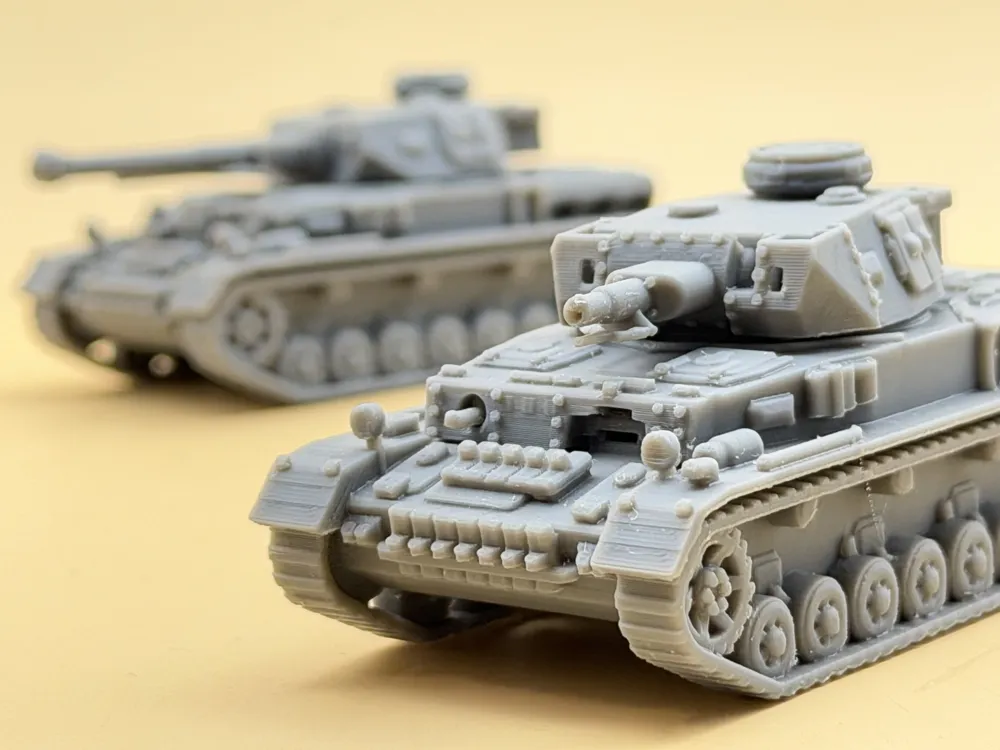

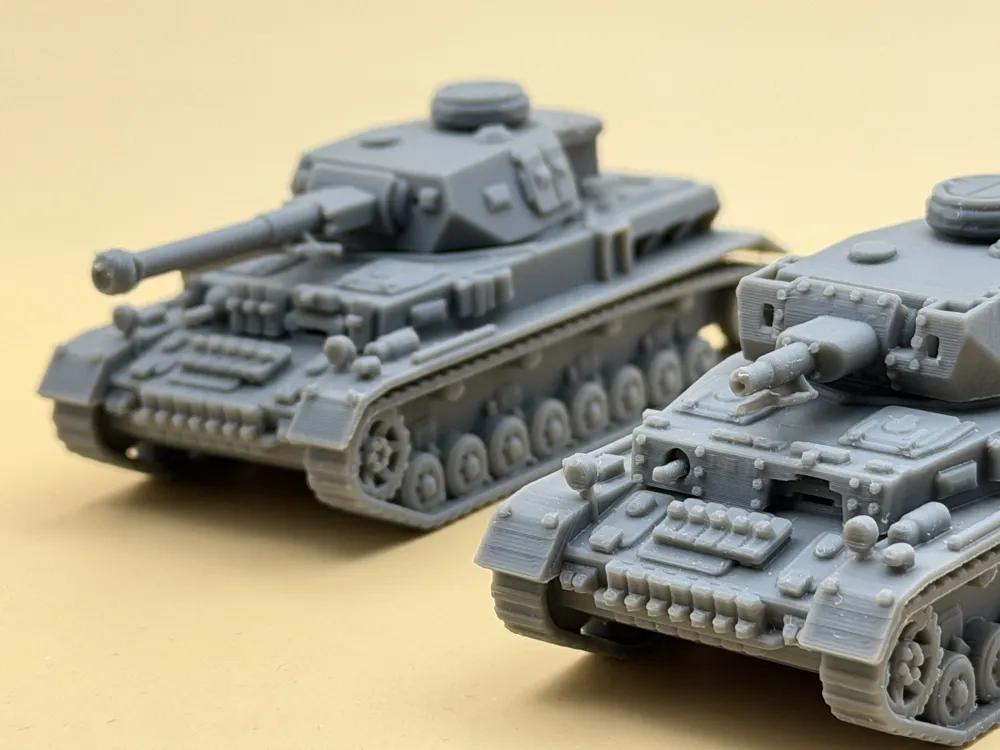

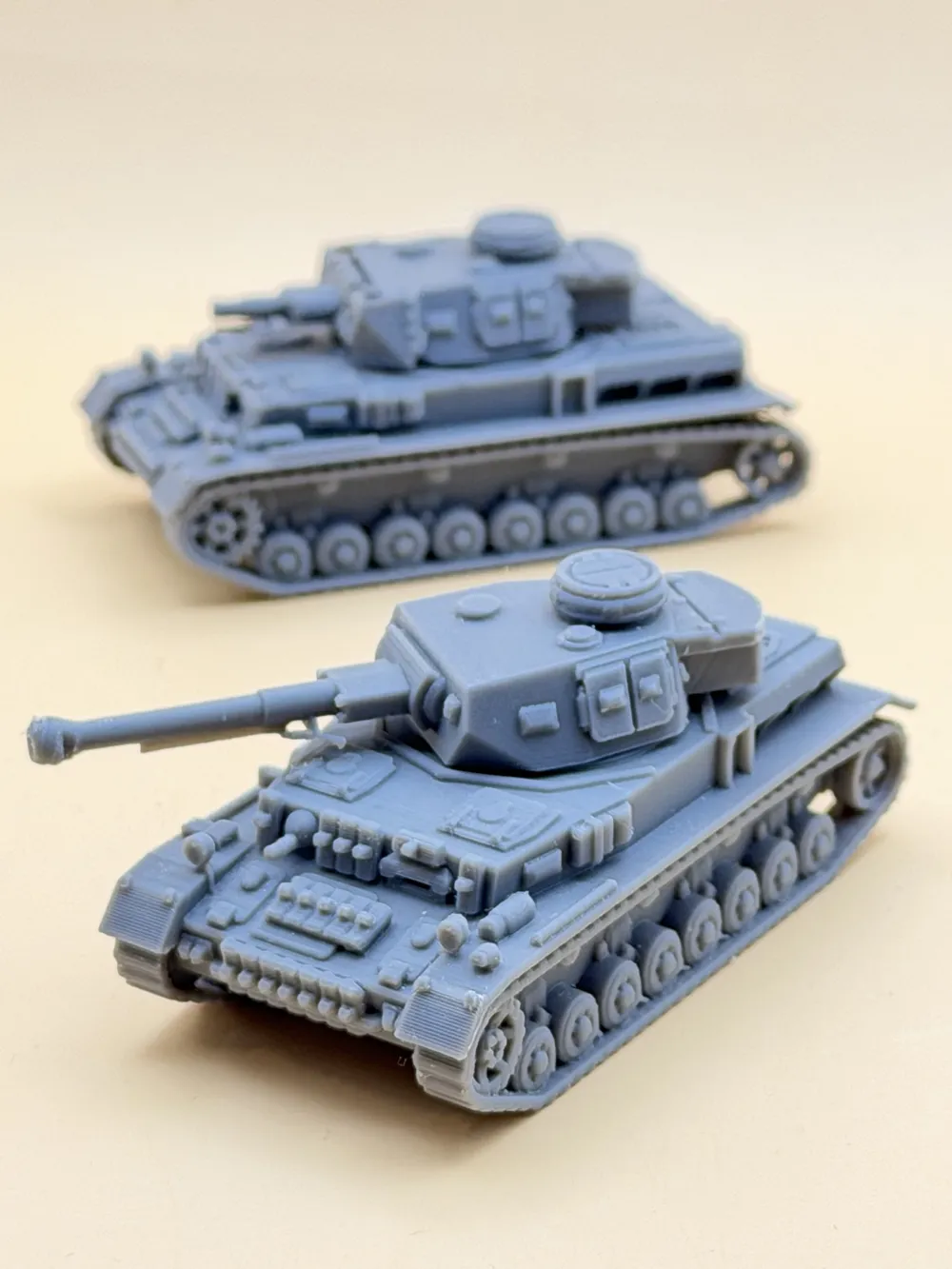

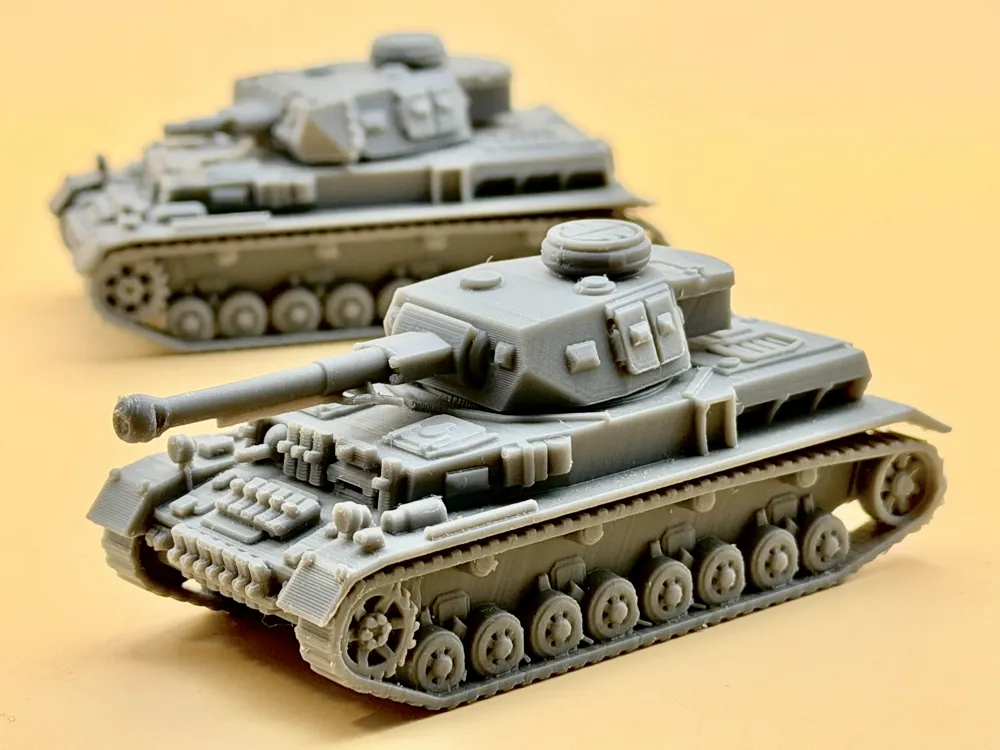

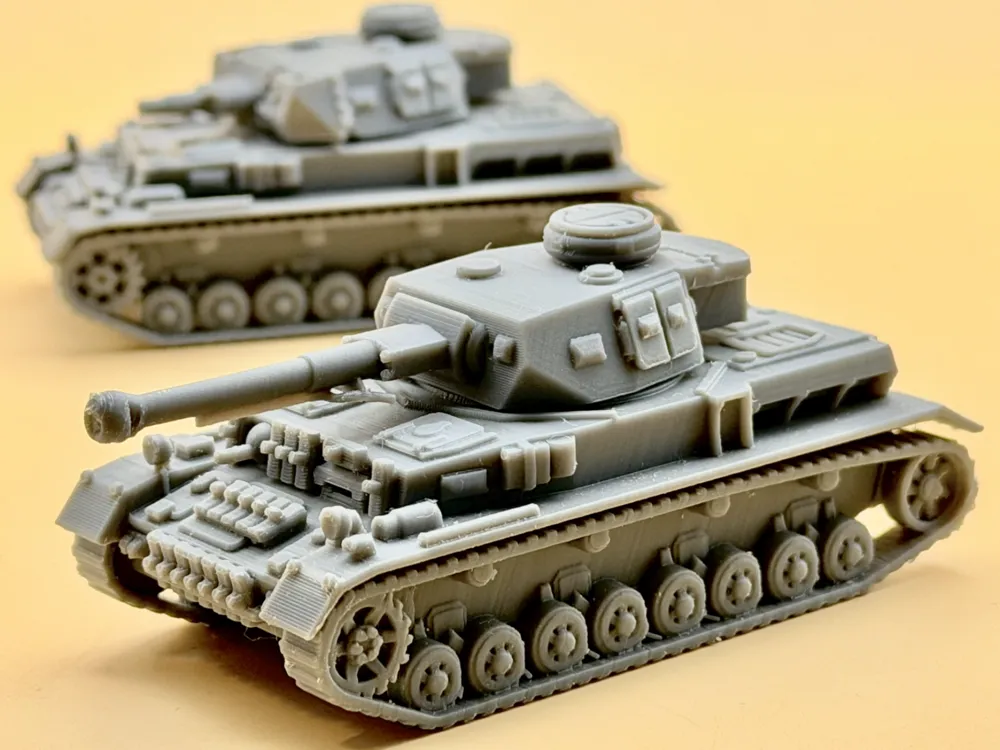

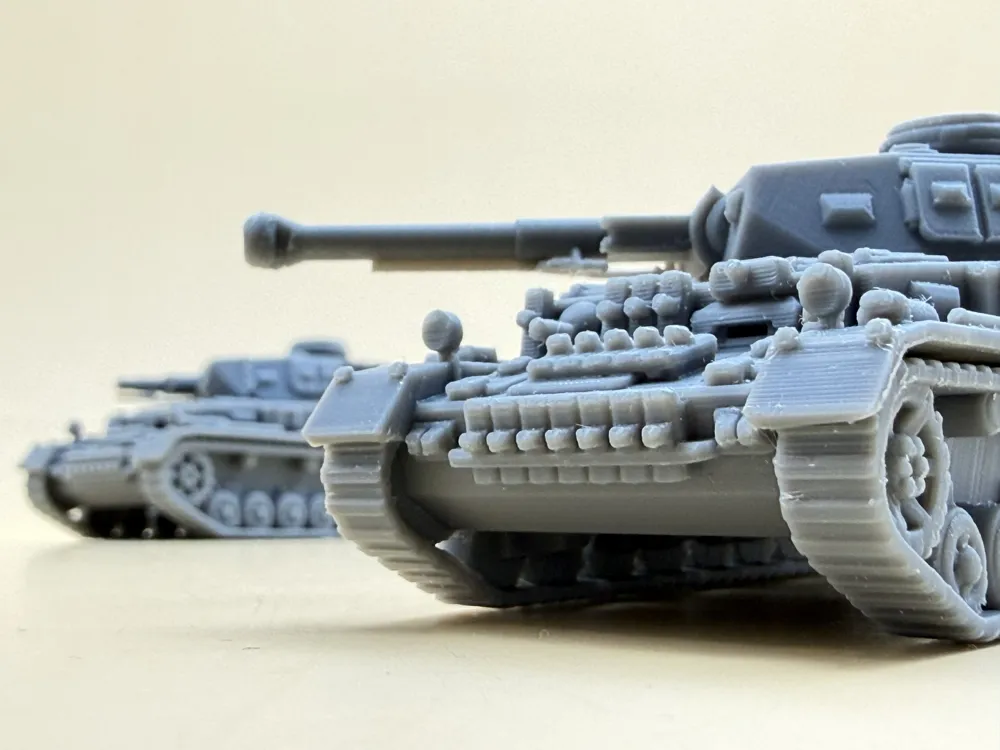

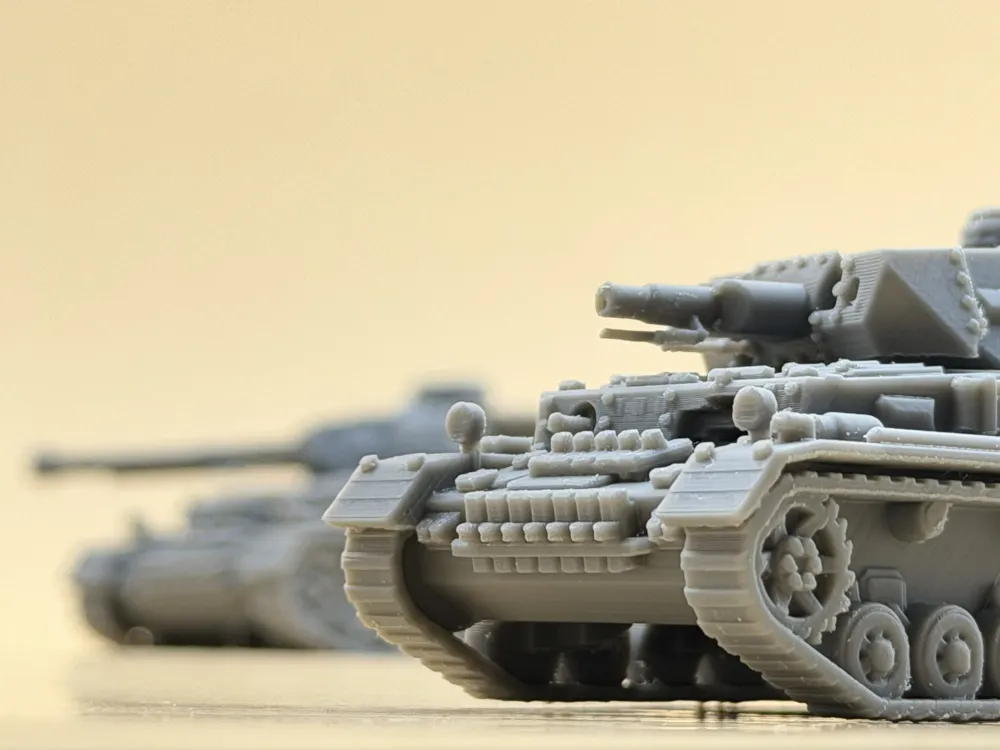

(I printed two of them, so not every plate has a printed model to compare with the photos)

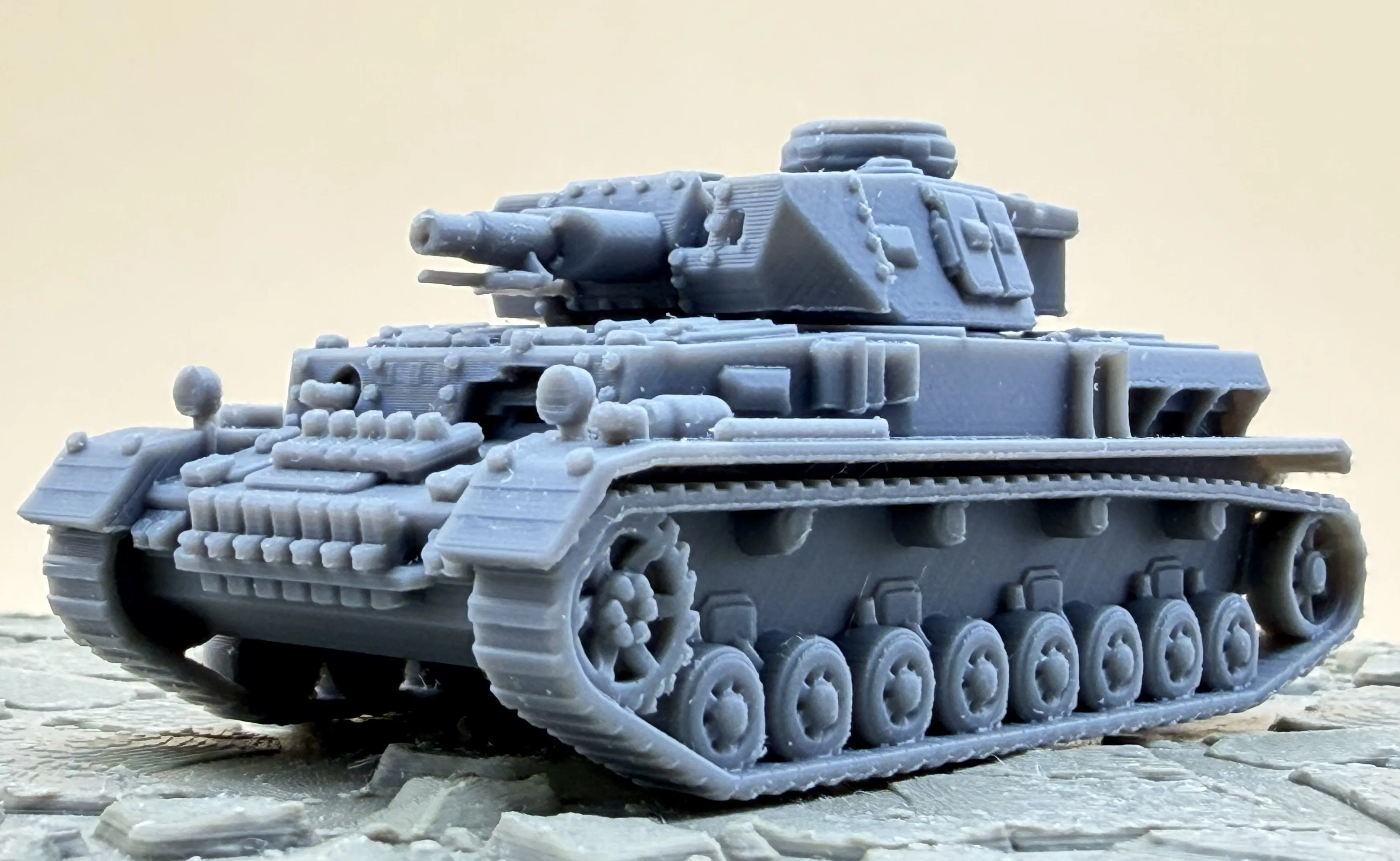

• Plate_01: Panzer IV Ausf.F1 - Extra track armor on glacis

  盘1: 四號坦克F1: 首上/首下附加履带装甲



• Plate_02: Panzer IV Ausf.F1 Vorpanzer - Extra armor plates on front hull & turret + extra track armor on glacis

  盘2: 四號F1突击坦克 - 车体前部和炮塔加装额外装甲板 + 履带装甲



• Plate_03: Panzer IV Ausf.F2 - A historical photo showing extra track armor + initial turret (radio antenna deflector under the gun)

  盘3: 四號坦克F2型历史影像 - 履带装甲 + 早期炮塔(主炮下方无线电天线偏转器)

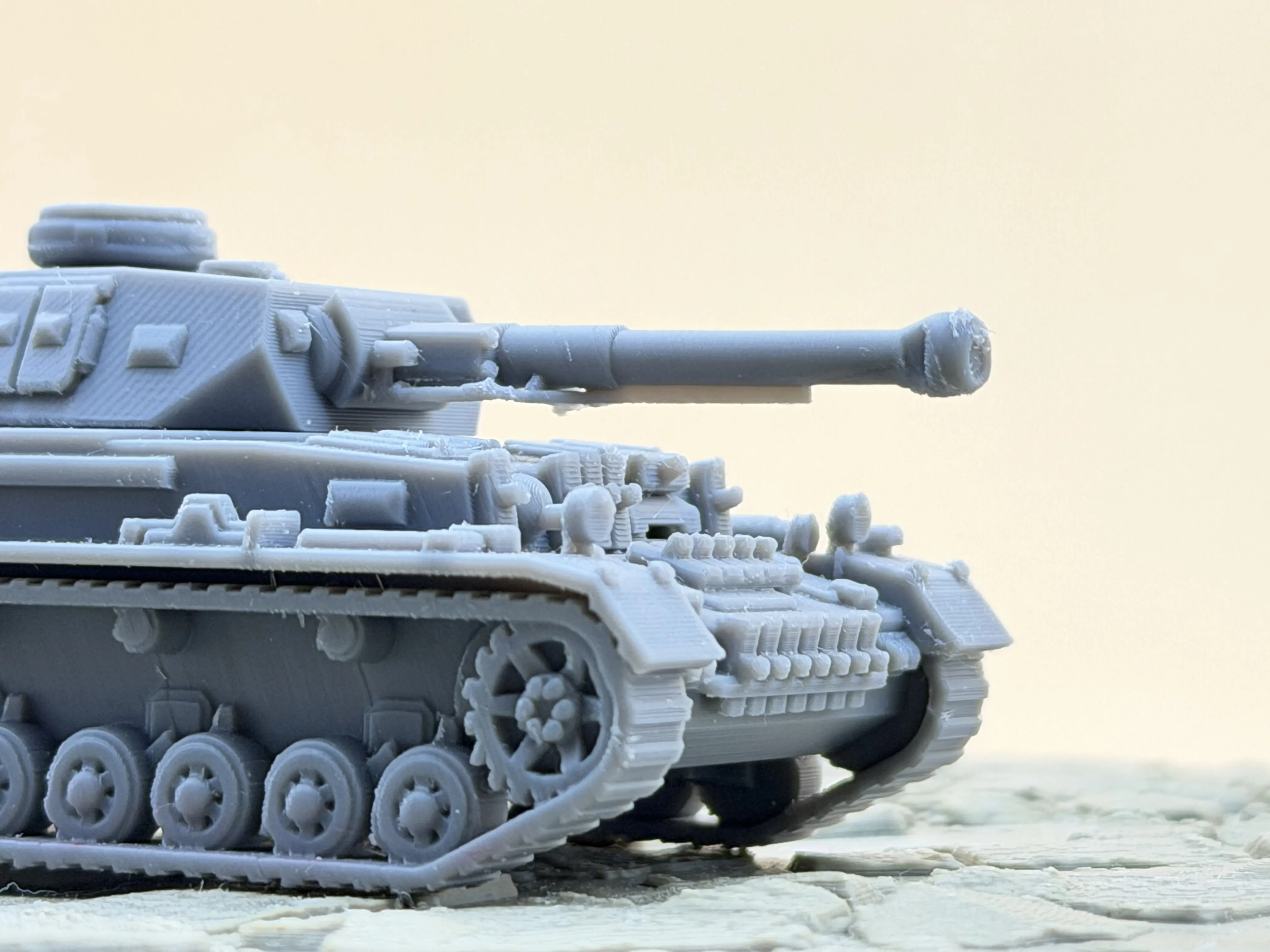

• Plate_04: Panzer IV Ausf.F2 - Different track armor config + upgraded turret (since Nov 1942)

  盘4: 四號坦克F2型 - 不同的履带装甲配置 + 后期型炮塔(1942年11月实装)



Recommend having a sprue cutter/nipper to help remove the supports.

推荐用水口钳移除支撑.

Please be careful when removing supports for the antenna beneath the gun.

请小心移除炮管下方天线的支撑
