MQ-2 / MQ-135 - Screw-mountable enclosure
Print Profile(1)
Description

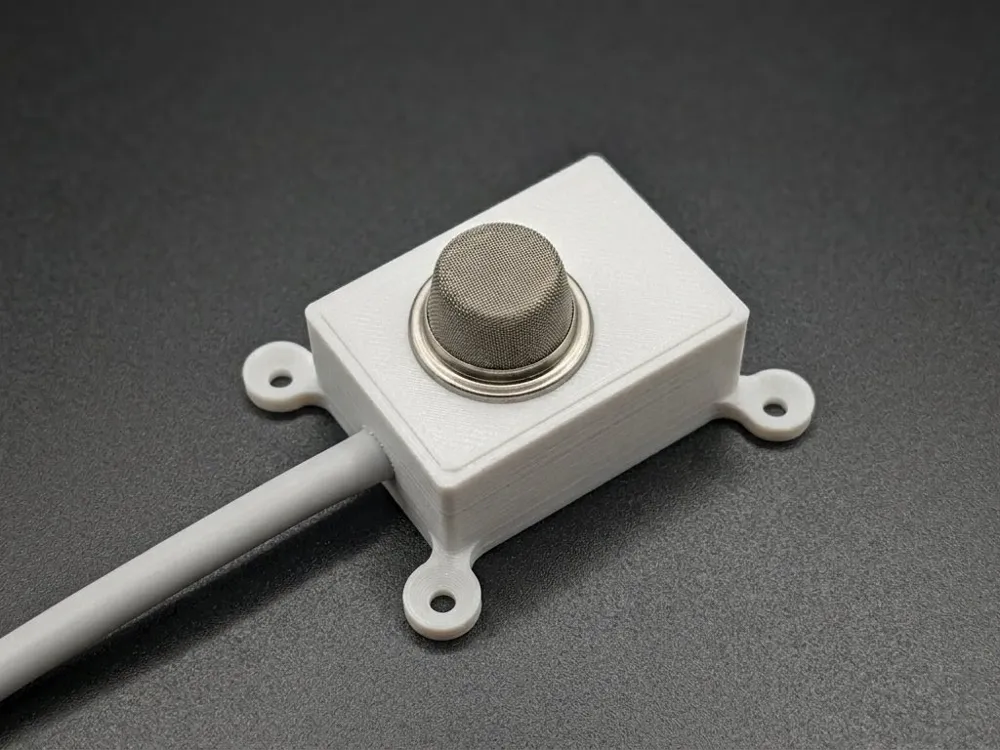

Simple and fast-to-print two-piece enclosure for the MQ-2 or MQ-135 sensor, with the ability to be screwed onto any surface.

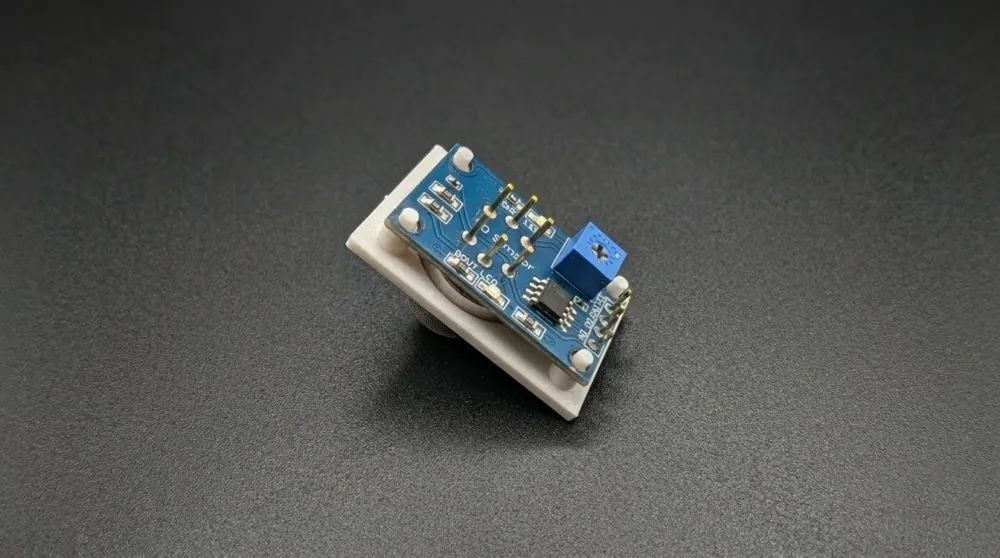

The sensor should be placed onto the 4 mounting pins, which are then melted and flattened using a heated tool or a soldering iron to securely fasten the sensor to the case.
The enclosure features a hole for a cable with a maximum diameter of 6mm.
The lid with the sensor is a snap-fit into the case, but for extra security, you can apply a small amount of glue to the joint (I use B-7000 glue, often used in phone screen repairs).
The enclosure has 4 mounting holes for screws with a maximum diameter of 3mm.
