Ryobi RM480 / RM480e / RM480ex Charge Port Adapter

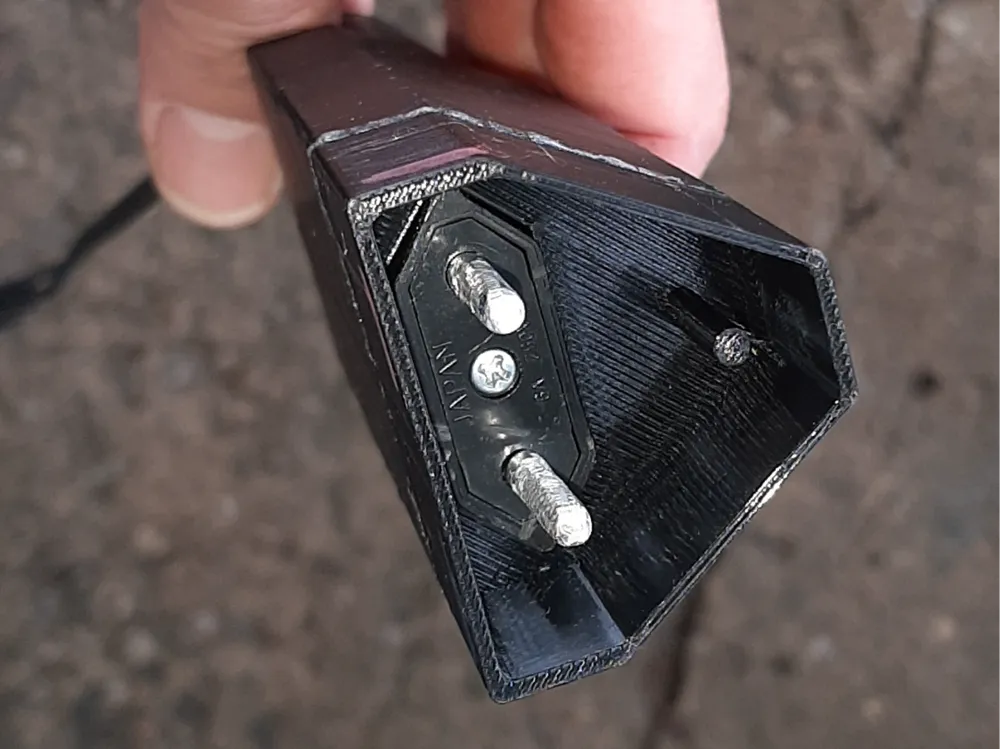

Custom 3D printable charge-port adapter designed for Ryobi 48V riding mowers. This adapter allows use of an aftermarket charger while retaining the factory-style mower charging connection.

I designed this to work with my RM480EX conversion project using a 58.4V lithium charger, but it may also work for other Ryobi 48V mower models that use the same triangular charging port.

Features

• Retains the factory mower charging port connection
• Designed around commonly available metal charging pins

Compatibility

Tested on:

• Ryobi RM480EX

May also fit:

• RM480
• RY48110
• Other Ryobi 48V riding mower models using the same triangular charge port

Print Recommendations

• Material: PETG, ASA, or ABS recommended
• Layer Height: 0.20 mm
• Walls: 4+
• Infill: 40–60%
• Supports: needed

PETG works well for general use, but ASA/ABS may hold up better long term in garage/outdoor temperature swings.

Hardware

• Metal charging pins / contacts
• Wiring sized appropriately for your charger current
• Epoxy or CA glue optional for securing contacts

Notes

• Verify polarity before connecting a charger
• Use at your own risk
• This model was created for hobbyist DIY battery conversion projects
• Always confirm charger voltage compatibility with your mower/battery setup

If you make improvements or remixes, feel free to share them with the community.
