Description

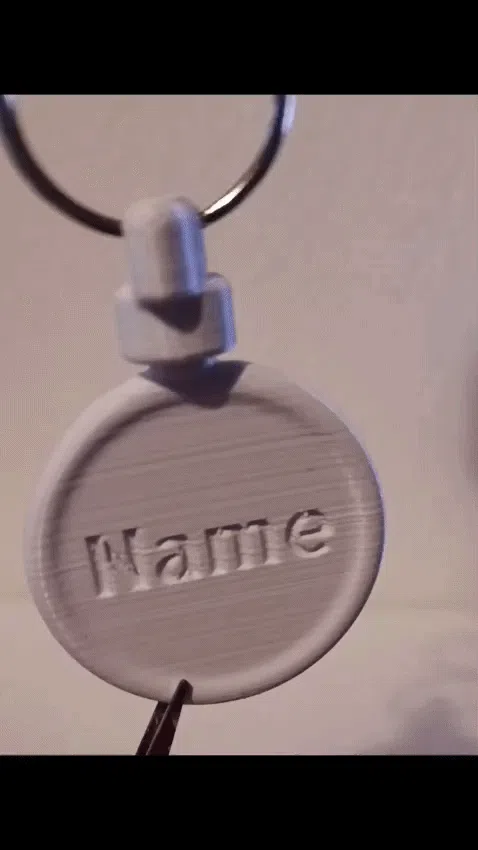

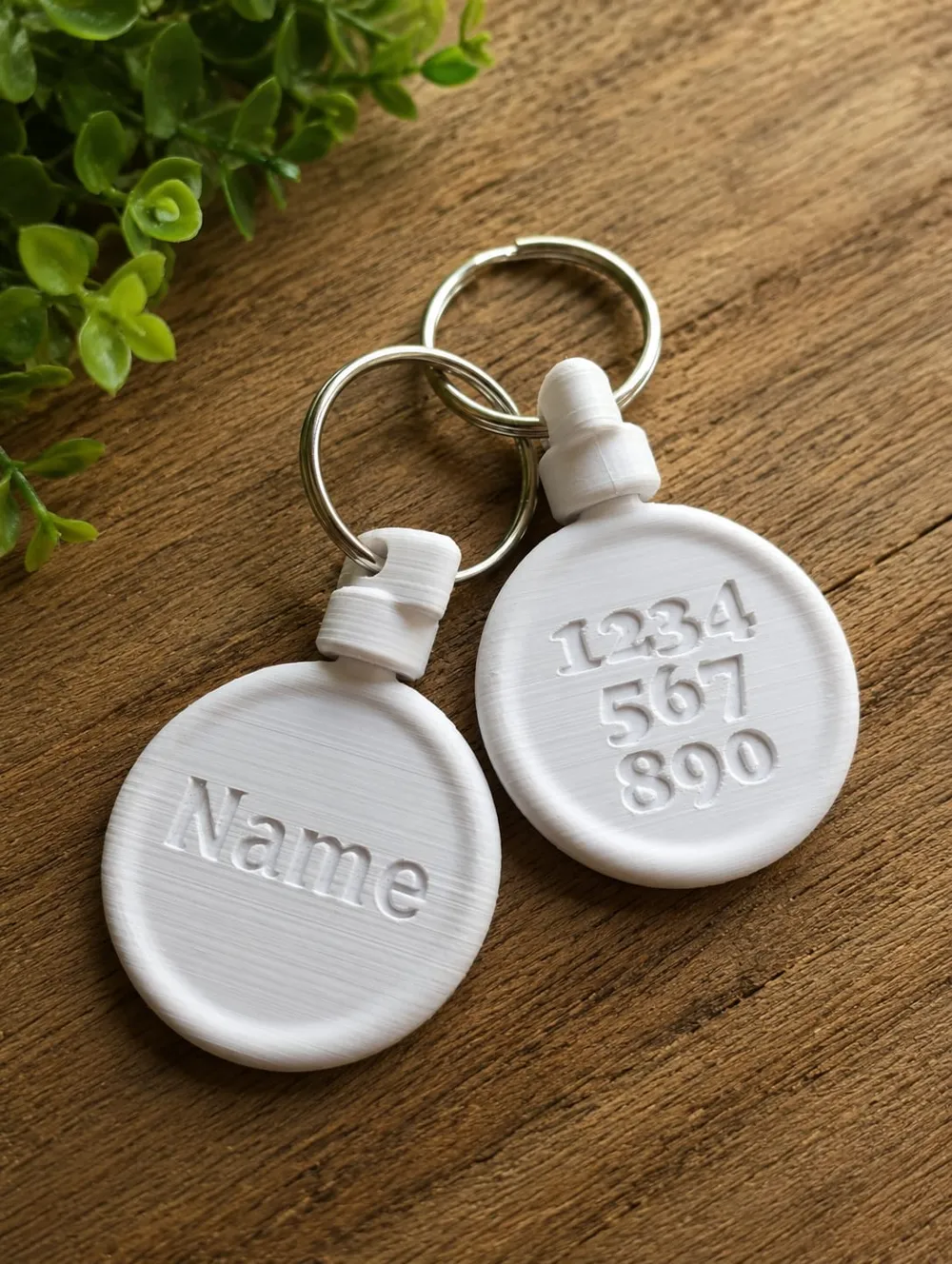

A customizable swivel-style dog medallion/pet tag designed for smooth movement and comfortable use.

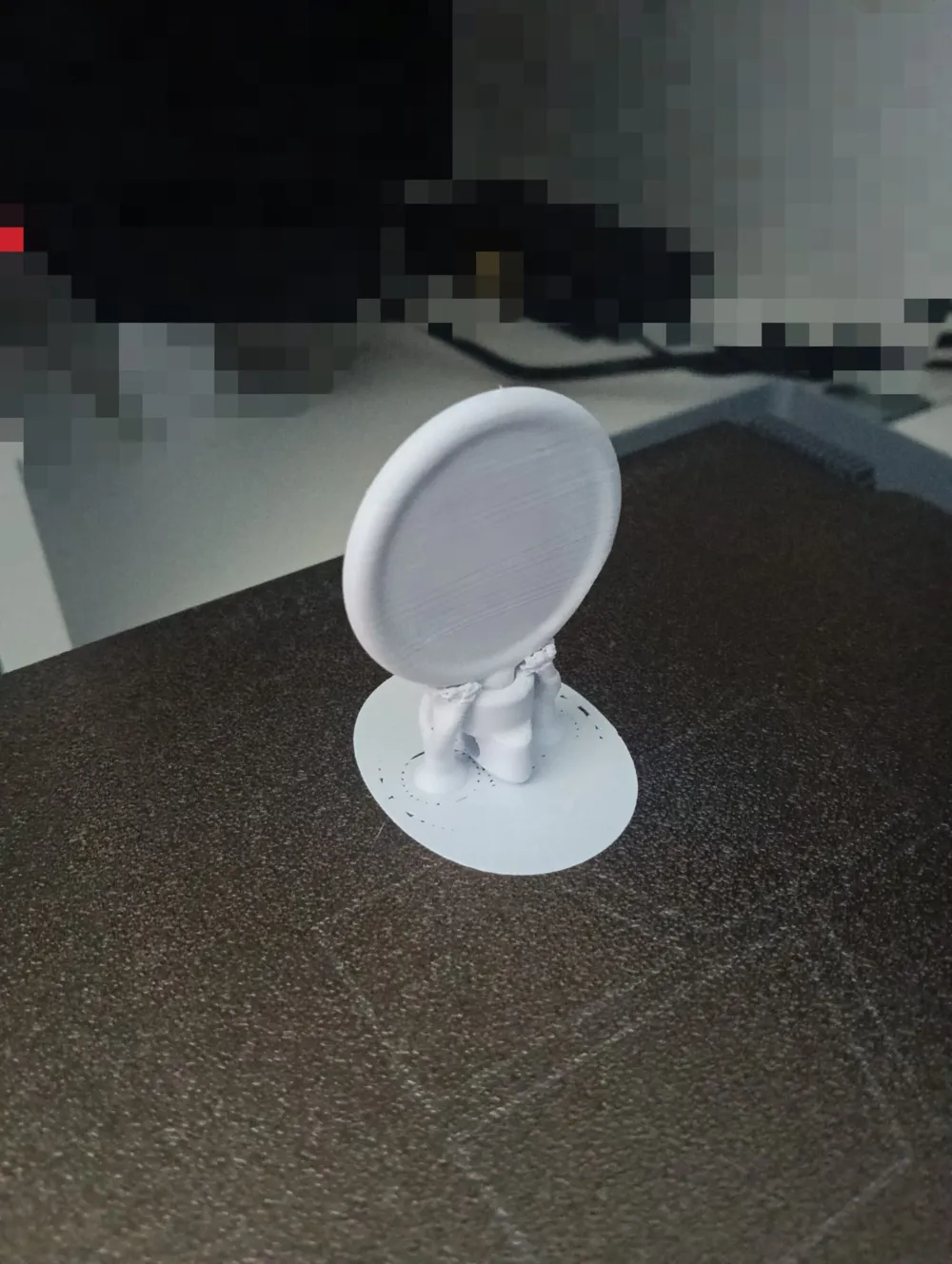

The medallion is fully printable in place, but after printing it needs a small manual twist to free the rotating mechanism inside. Do not force it too hard just gently rotate it until the internal swivel moves freely.

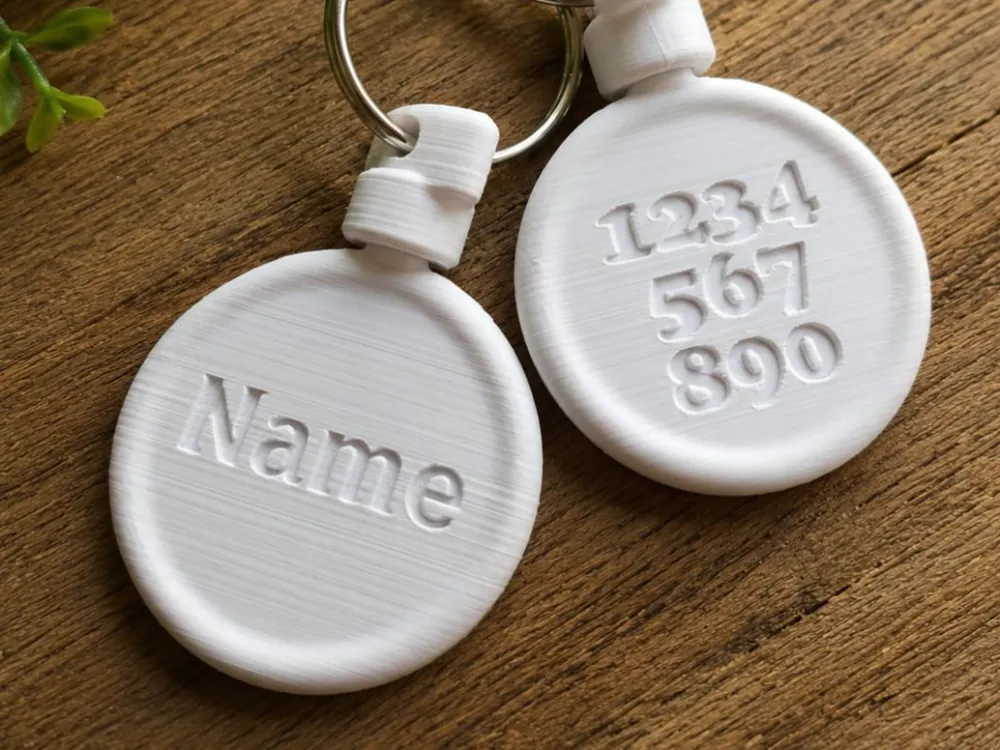

The text is fully customizable.
You can edit the existing text directly inside the included 3MF file:
- Open the project in Bambu Studio
- Go to Process → Objects
- Select the text object
- Edit the text
You can also add your own text manually in Bambu Studio:
- Add Text ( I used Cooper Black font: https://fonts.adobe.com/fonts/cooper-black )
- Set thickness to 0.4 mm
- Use either:
- Cut depth: 0.4 mm for engraved text

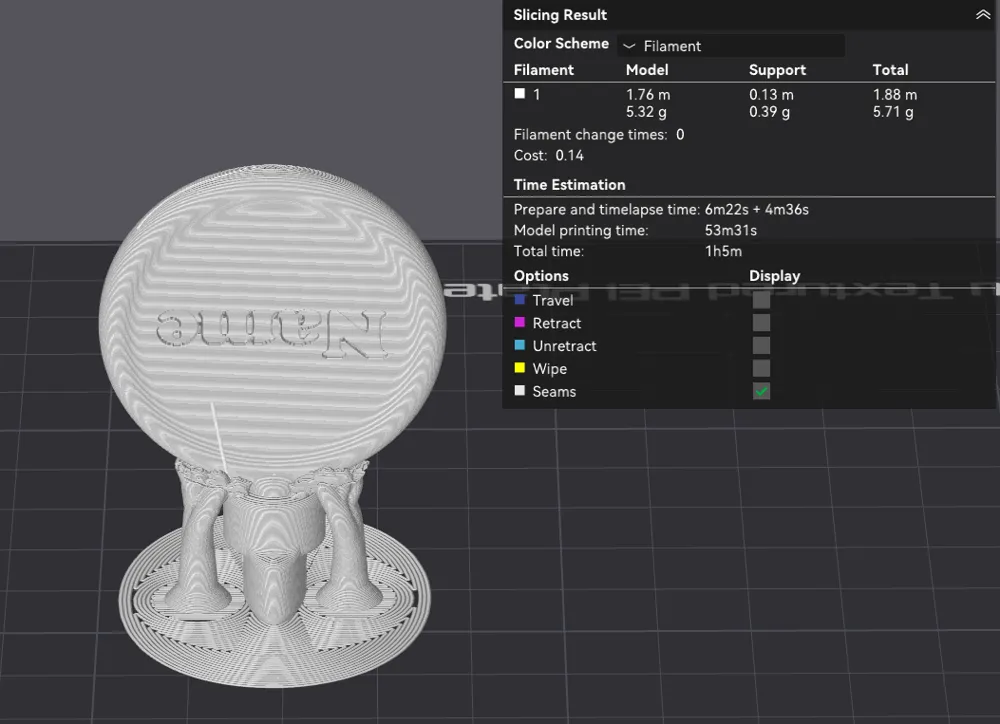

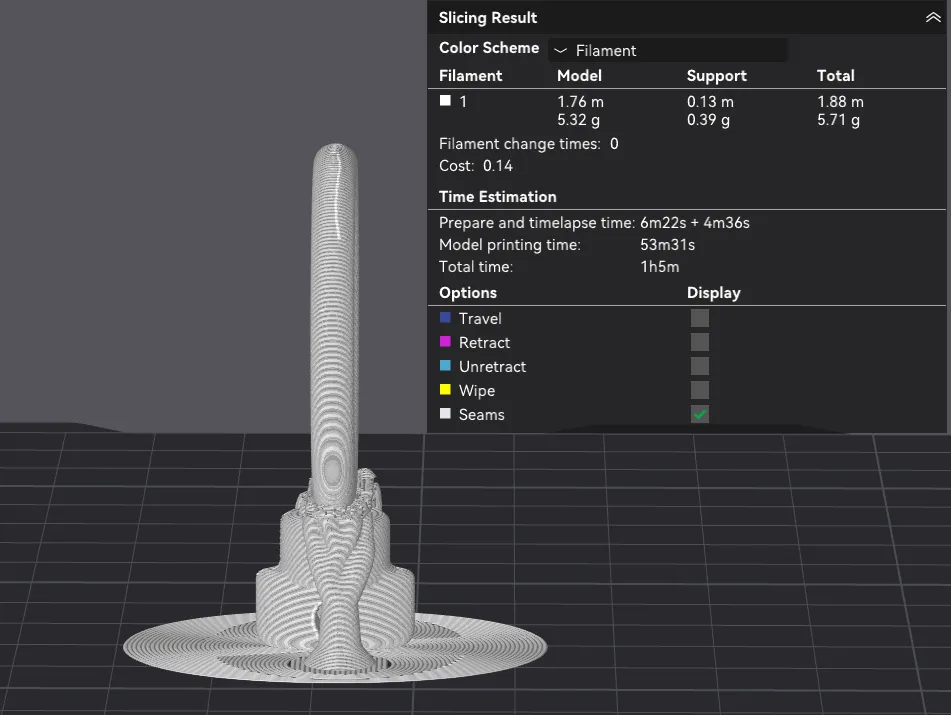

Recommended print settings:
- 0.4 mm nozzle / 0.2mm nozzle
- 0.12 mm layer height / 0.10mm layer height
- PLA recommended

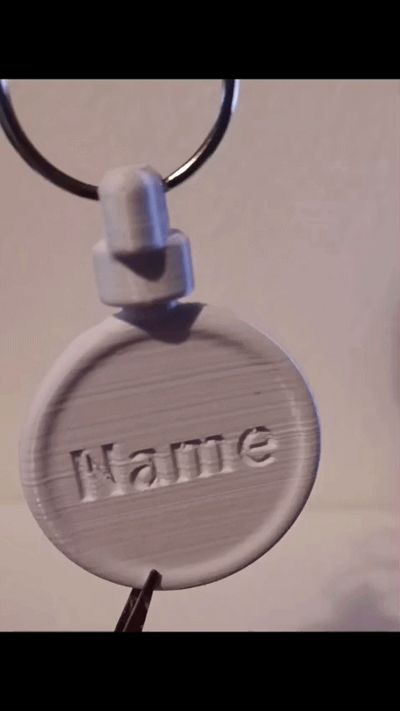

The swivel mechanism is designed to reduce twisting while attached to a collar or keychain.
Boost Me (for free)
If you enjoyed this customizable swivel dog medallion, a Boost would really help support more creative print-in-place designs. Thank you!
