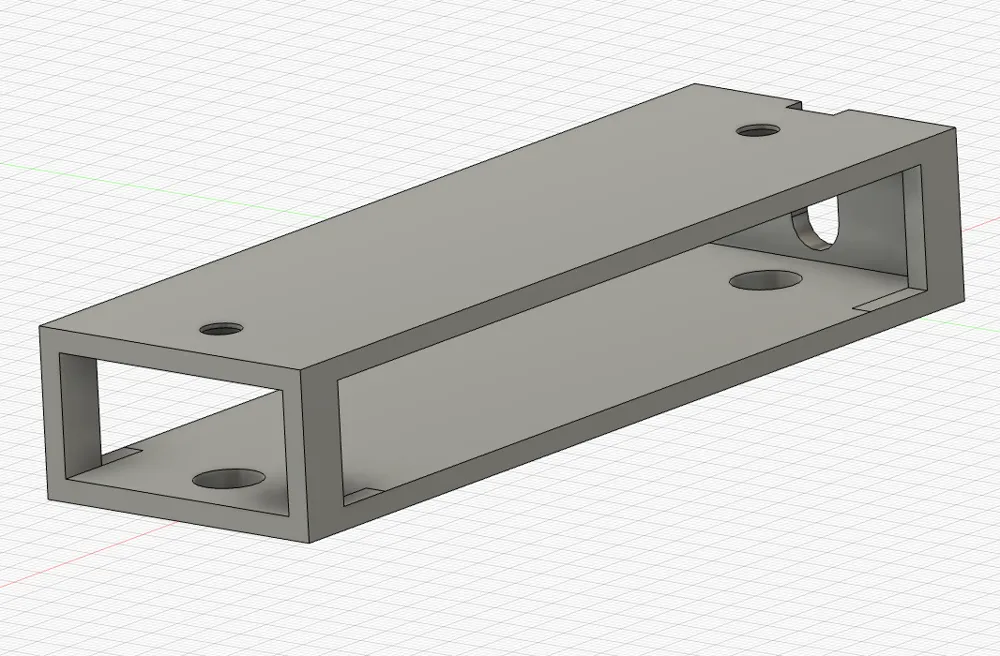

This is a holder / mount designed for the UGREEN Revodok 1061 USB-C hub.

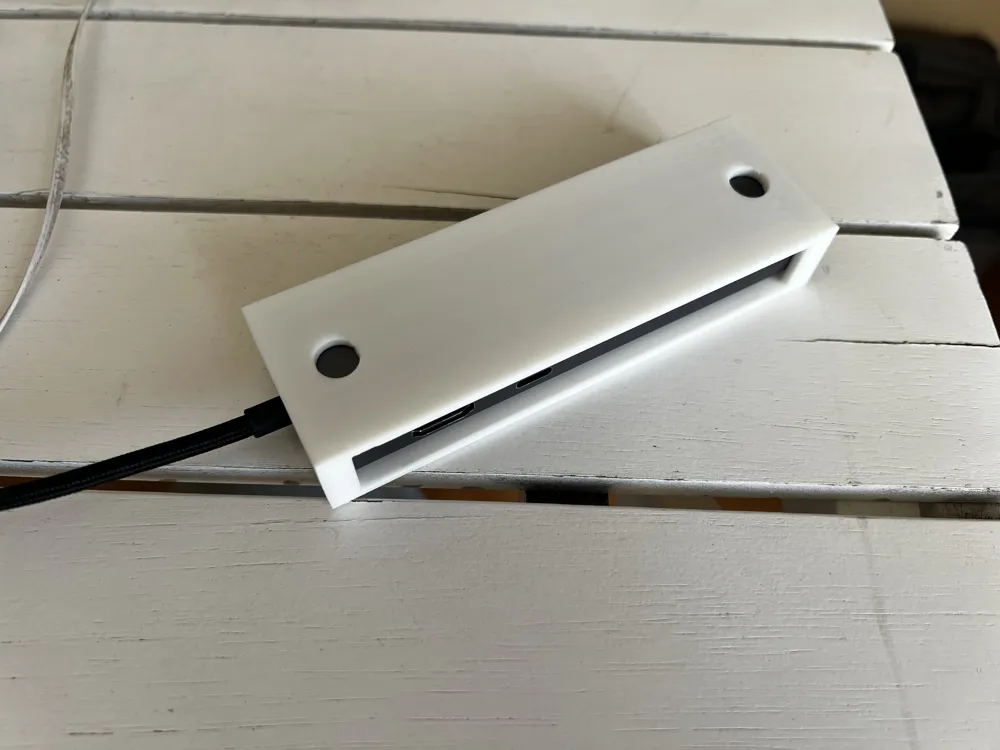

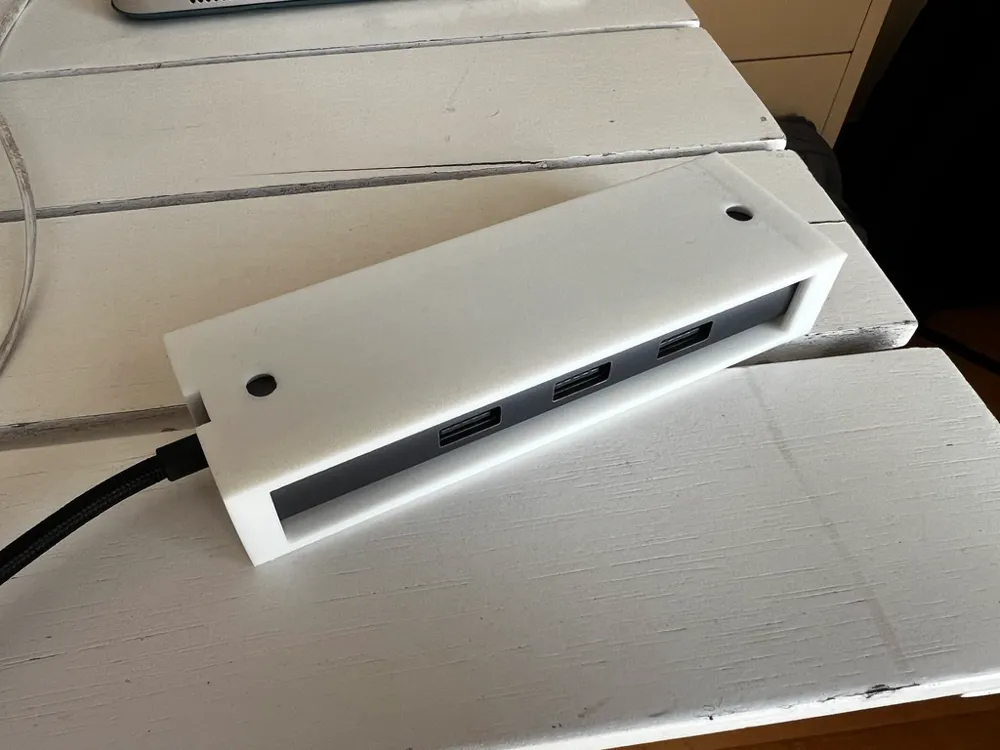

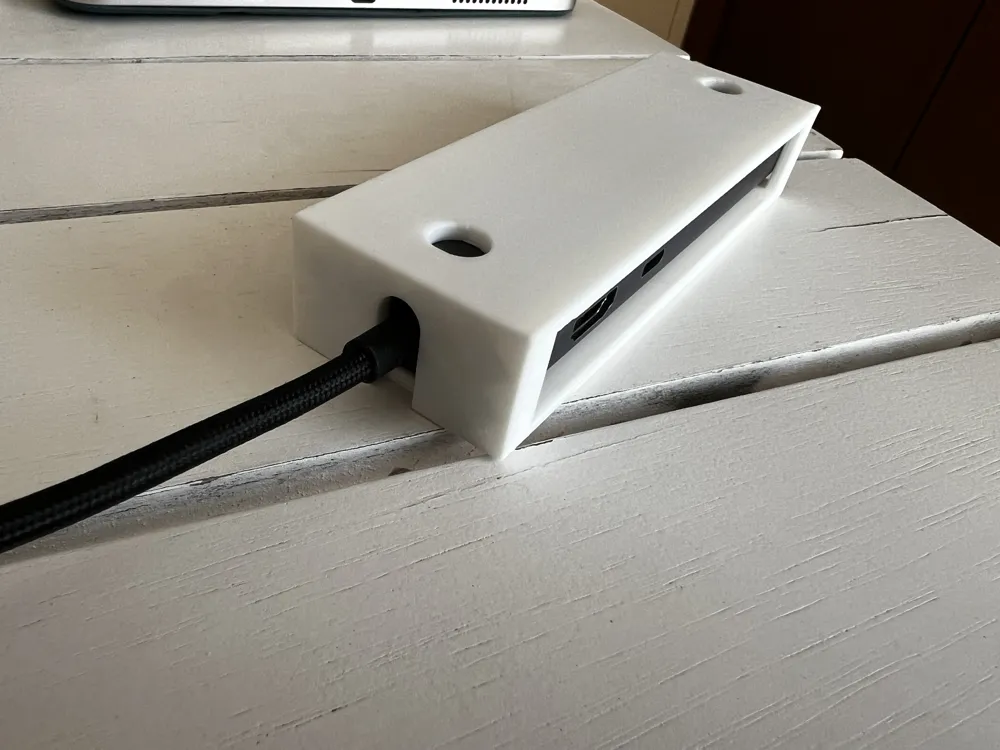

Like the Revodok Pro 108 version, this holder is made to keep the hub mounted cleanly while still allowing it to be removed when needed. The hub slides into the printed frame from the side and is held in place by the holder shape.
The model includes screw cutouts so it can be mounted under a desk, onto a shelf, onto a bracket, laptop holder, or directly onto another 3D printed part. In my setup, this style of holder was designed to pair well with an under-desk laptop mount or hidden cable-management setup.
Features
- Designed for the UGREEN Revodok 1061 USB-C hub
- Slide-in holder / mount design
- Easy to insert and remove the hub when needed
- Screw-mountable to desks, shelves, brackets, laptop holders, or other prints
- Includes M4 screw cutouts
- Useful for under-desk cable management
- Keeps the hub accessible without leaving it loose on the desk
- Simple functional print
Works Well With My Laptop Mounts
This hub mount is designed to work well with my under-desk laptop holder setup.
It pairs especially well with these related prints:
They are separate prints, but they work well together if you want to keep the laptop, USB-C hub, and cable clutter off the desktop.
Hardware
Designed with M4 screw cutouts.
Use screws appropriate for your mounting surface. If mounting into wood, pre-drilling pilot holes is recommended. If mounting to another printed part, check screw length carefully so you do not crack the print or interfere with the hub.
Compatibility
Designed specifically for:
- UGREEN Revodok 1061
It may not fit the Revodok Pro 108 or other UGREEN hubs unless their dimensions are very similar. Please print the correct version for your hub model.
Fit Notes
The hub may be a tight fit at first. With use, the fit may loosen slightly.
If you want to maintain a tighter grip, you may try scaling the print down by:
- 99.5%
- 99%
This scaling adjustment has not been tested, so use the default uploaded scale first.
Mounting Notes
This holder can be screwed onto many surfaces using the included screw cutouts, including:
- Under a desk
- Onto a shelf
- Onto a monitor or laptop bracket
- Onto another 3D printed holder
- Onto a custom cable-management rail
It is especially useful when combined with an under-desk laptop holder or a hidden cable-management setup.
