Split Bin 300x180x70mm, Fits any printer, A1 Mini
Print Profile(2)
Description
Boost Me (for free)
If this bin is useful to you, please consider boosting it so more makers can find it.

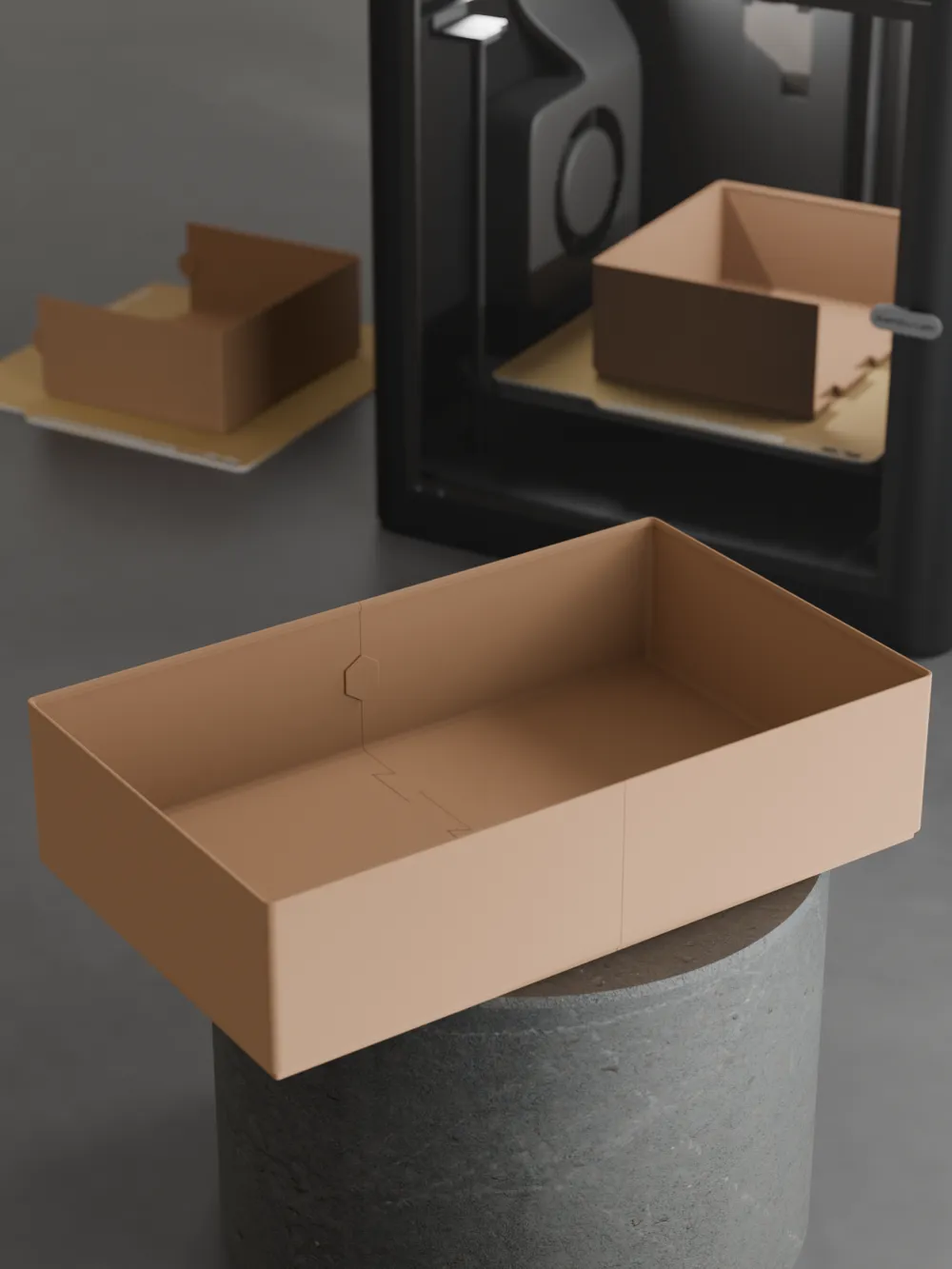

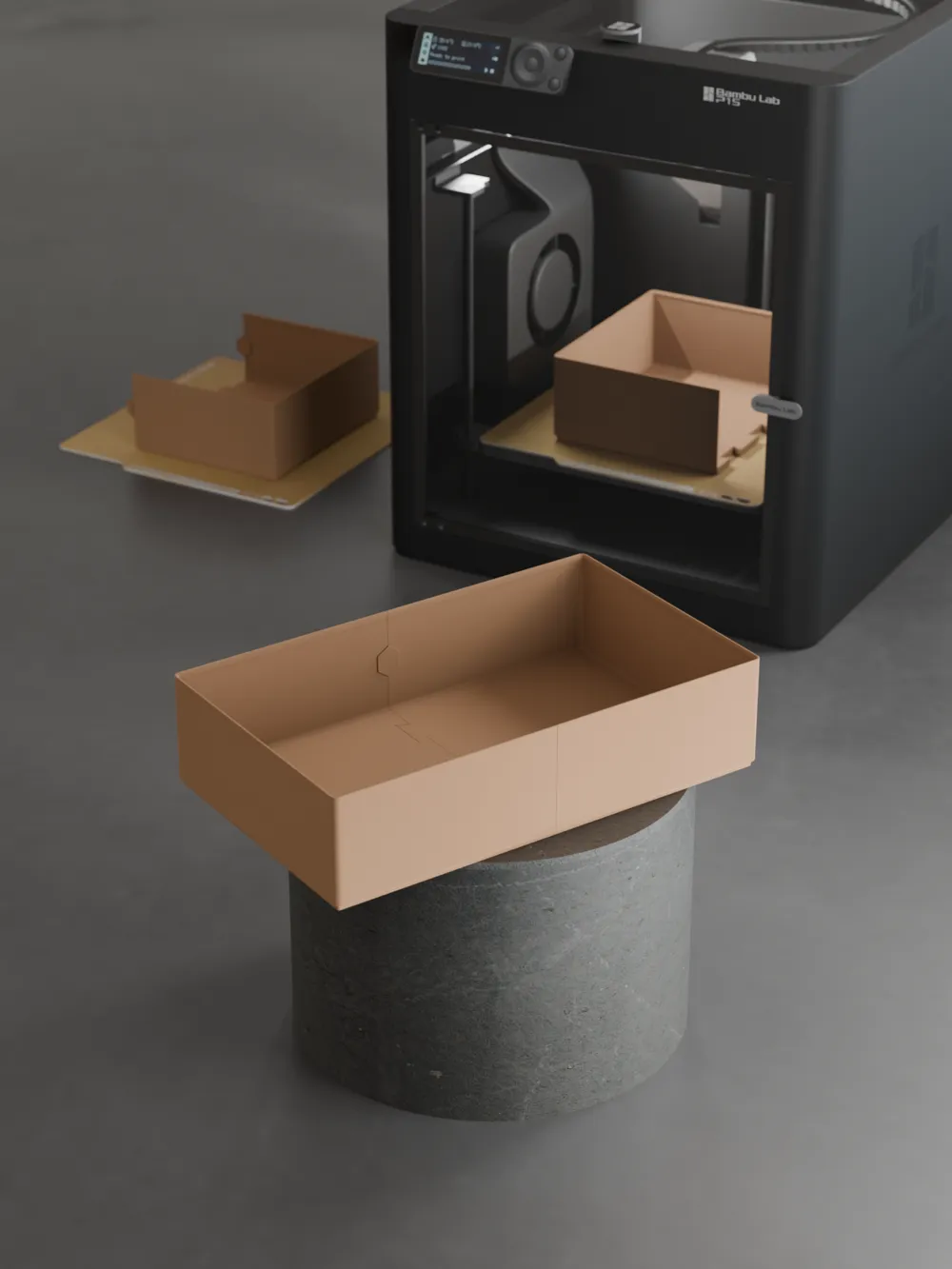

A large flat-bottom utility tray that actually fits on smaller printer beds, thanks to a clean, strong dovetail split with built-in alignment tabs.
See my other models for more organizer sizes and split bins. If you need any specific size, ask in the comments and I should be able to make one fast.
Size
External dimensions:
- 300mm x 180mm x 70mm
Features
- Large flat-bottom utility tray

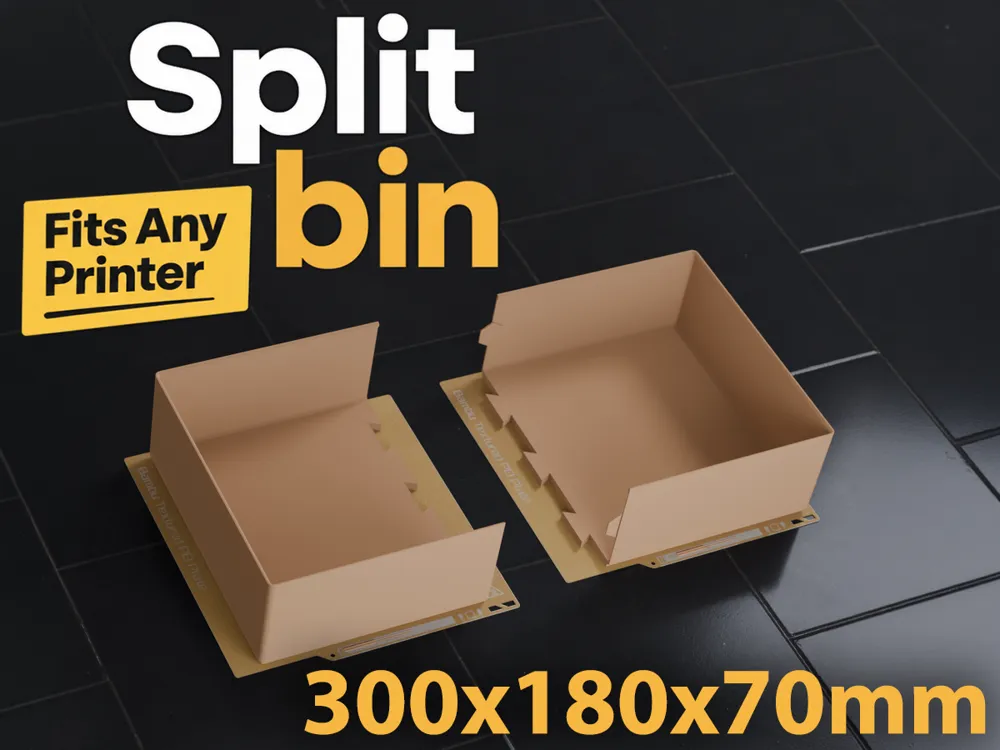

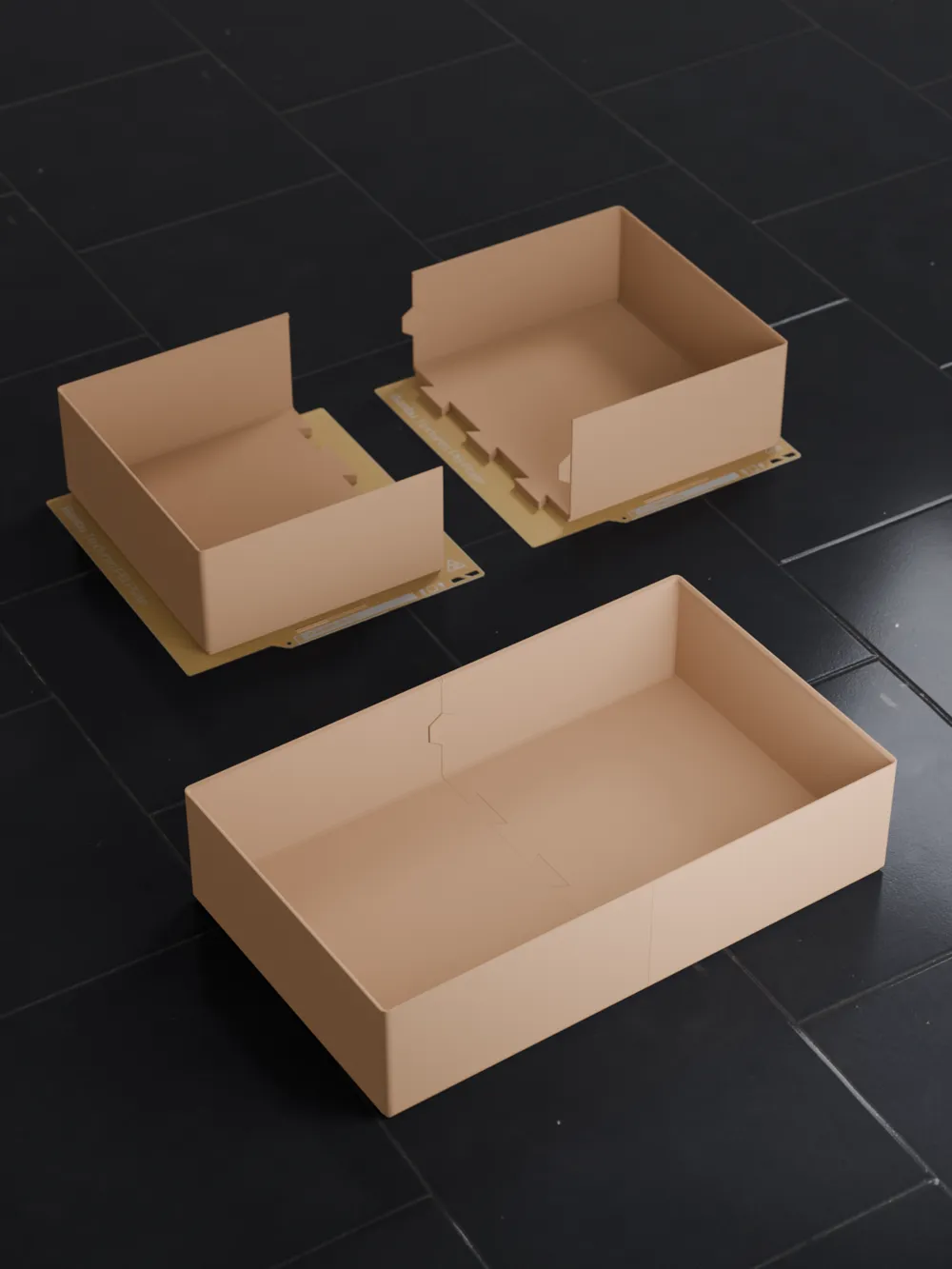

- Split into printable sections for smaller printers

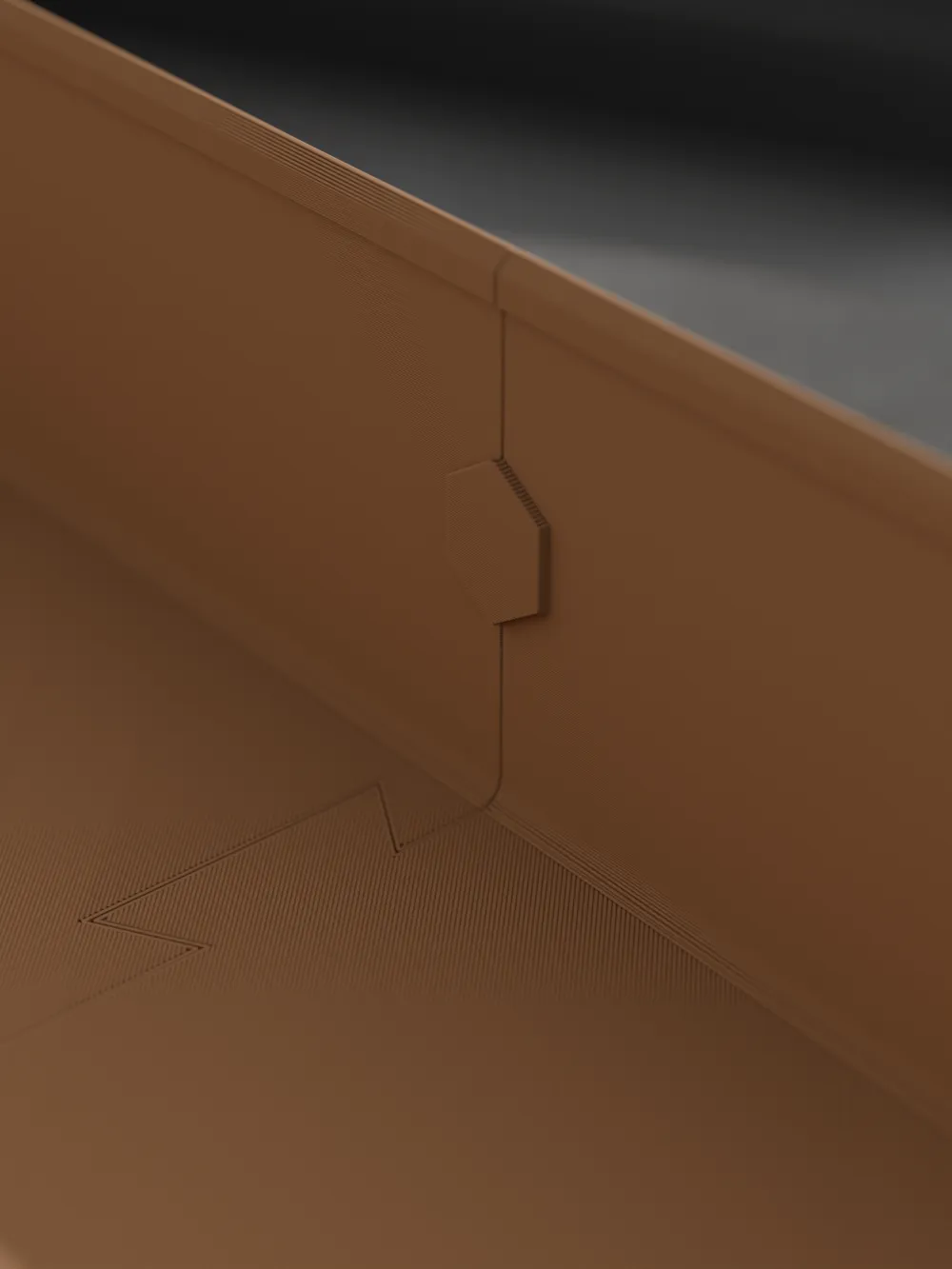

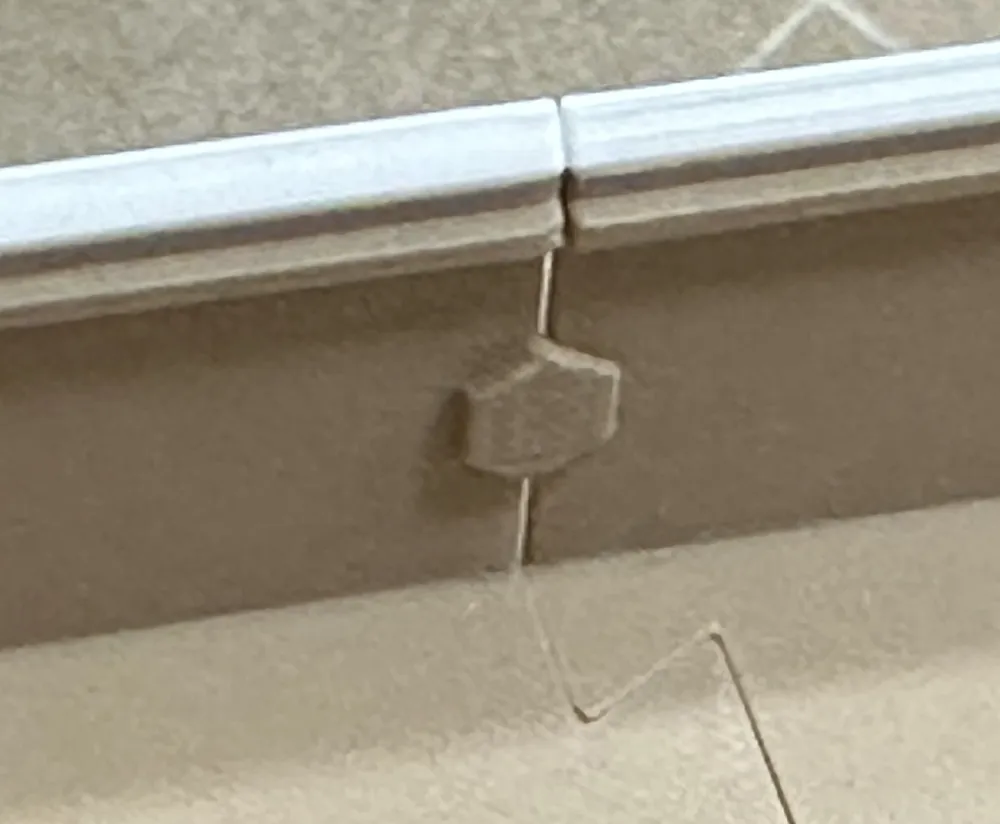

- Strong dovetail connection with alignment tabs
- Tight and loose fit profiles included
- Prints flat with no supports required
- Compatible with A1 Mini, P1S, and larger printers
- Clean internal surfaces for general storage and organization
- Works great with PLA, PETG, or ABS
Tight vs Loose Fit
Every model includes both a tight profile and a loose profile.
- Tight Fit: Very snug connection with minimal movement. My preferred version for most printers.
- Loose Fit: Easier assembly/disassembly and better for printers that run slightly tighter or oversized.
Glue is optional for both versions.
Perfect For
- Drawer organization
- Tool storage
- Electronics parts
- Hardware sorting
- Craft supplies
- Desk accessories
- Workshop organization
- General utility storage
Printing Instructions
Recommended Settings
- Layer height: 0.2 mm
- Walls: 3-4
- Infill: 10-20% (Gyroid or Cubic recommended)
- Supports: None
- Brim: Optional for materials prone to warping
Assembly
- Dry-fit first
- Start with the tight profile if your printer is well tuned
- Use the loose profile if you want easier removal or your printer prints slightly oversized
- CA glue or plastic-safe adhesive can be used for permanent assembly if desired
⭐️ If this model helps, boosts are hugely appreciated and help others find these split organizer bins.
