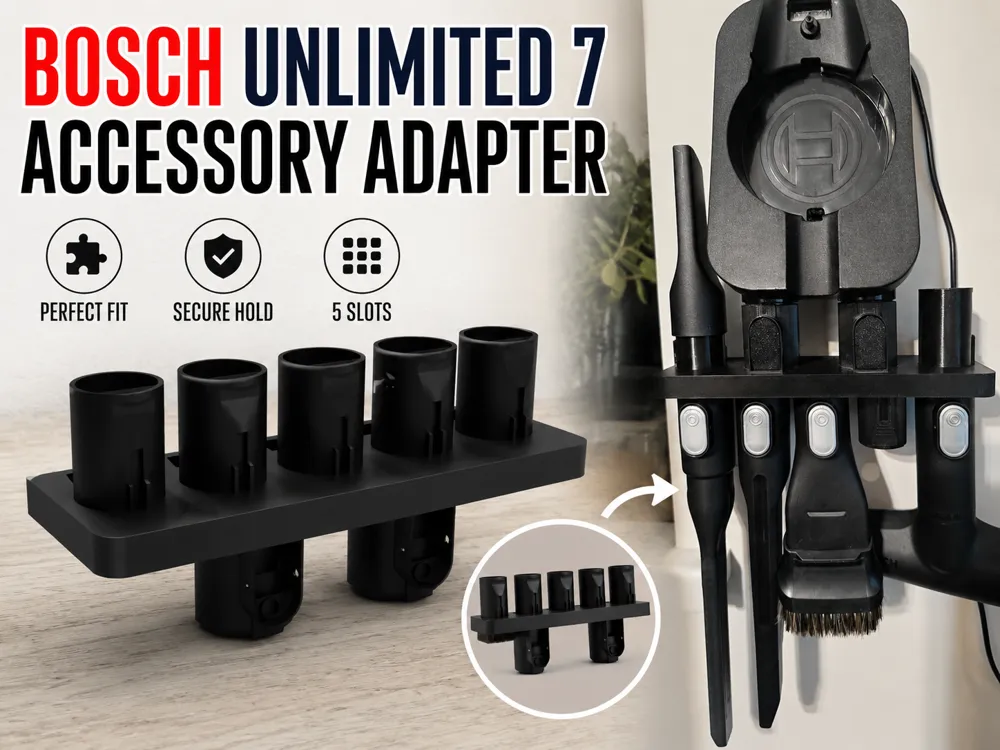

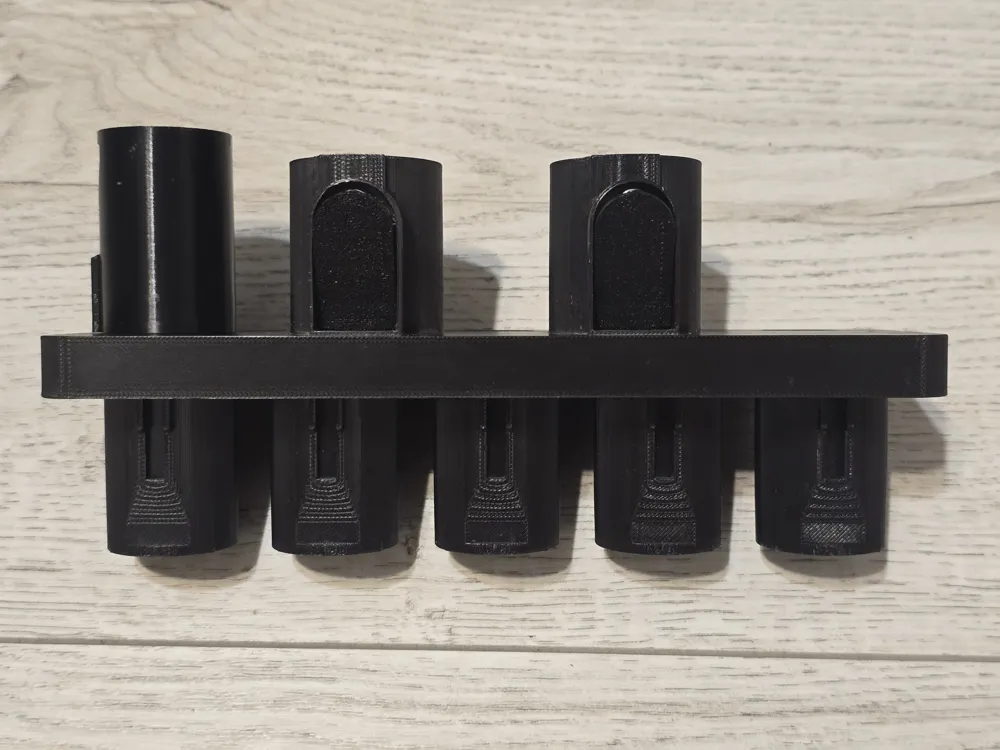

Bosch Unlimited 7 Accessory Holder Adapter

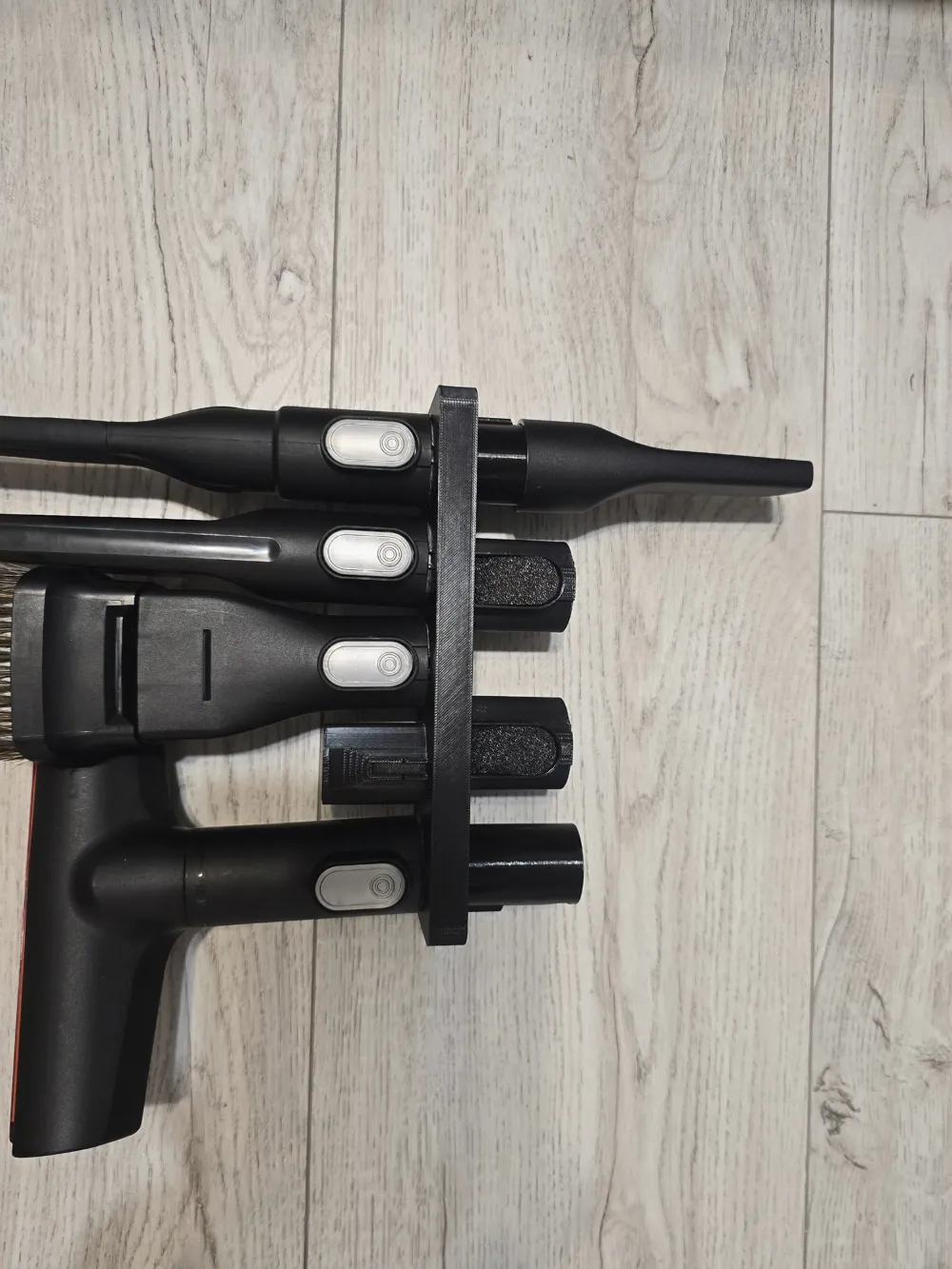

Expand the original wall mount of the Bosch Unlimited 7 Cordless Vacuum from 2 accessory slots to 5, while still using the original Bosch locking system.

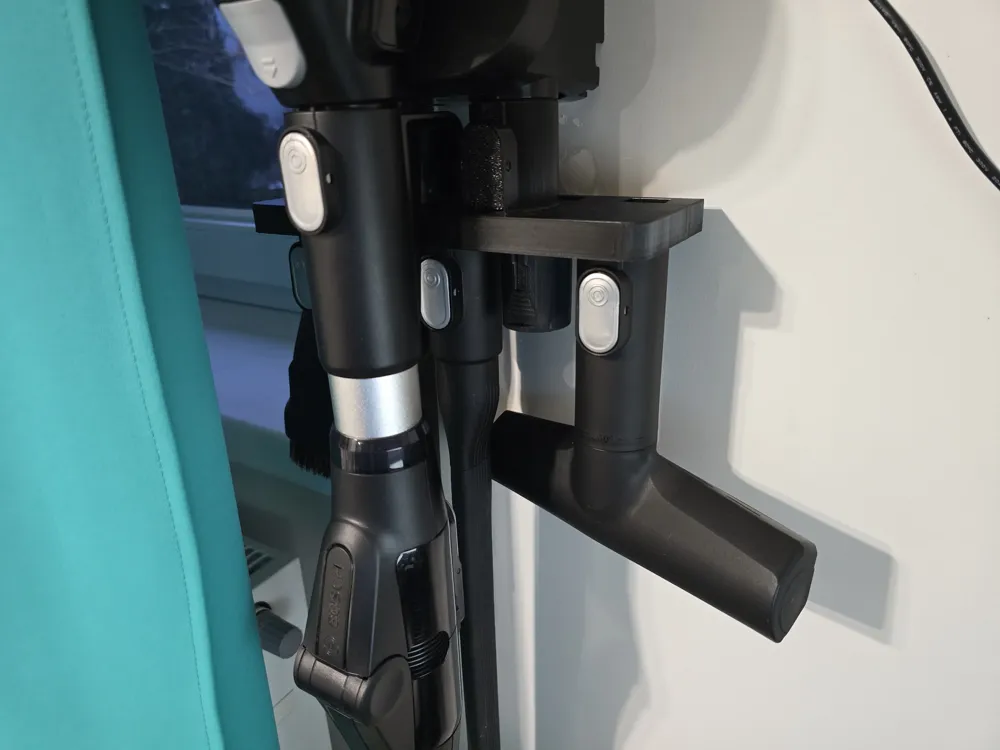

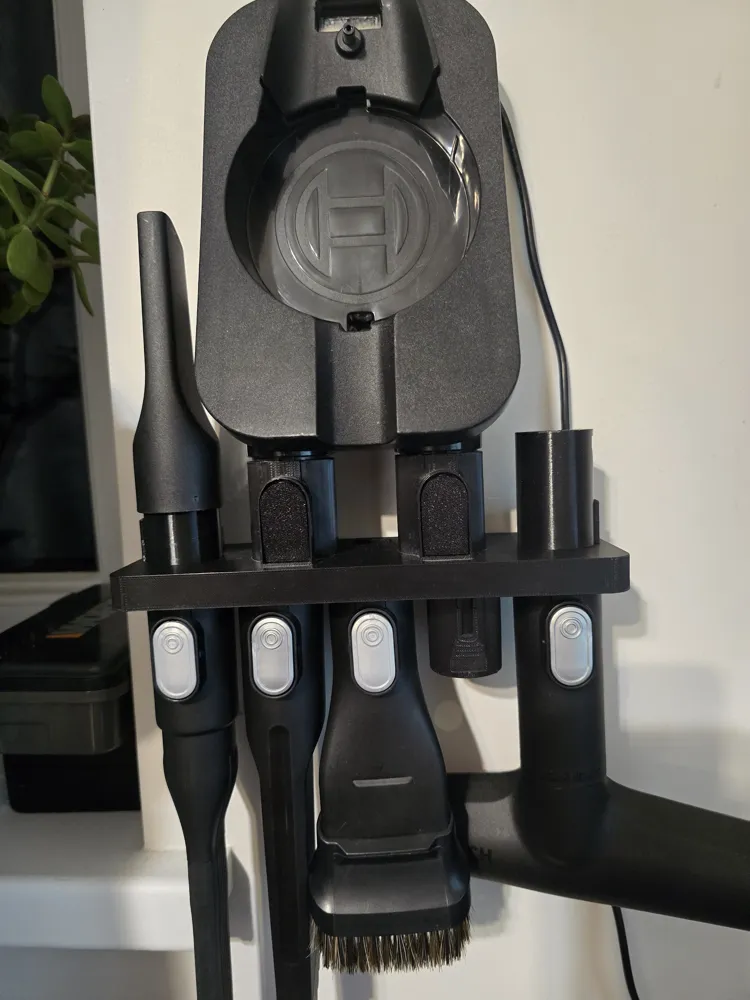

The adapter clips directly into the factory wall holder and reuses the same button-lock mechanism found in the original accessory mounts. No modifications to the vacuum or wall mount are required.
An optional top extension can also be printed and attached to increase the capacity from 5 to 7 accessory holders.
Features
- Expands the original holder from 2 accessories to 5
- Optional extension increases capacity to 7
- Uses the original Bosch click/lock mechanism
- Mounts directly to the factory wall holder
- No drilling, glue, or permanent modifications required
- Compact and space-efficient design
Required Parts
To make the locking buttons work correctly, you need:
- 2 compression springs
- Recommended spring size:
- Diameter: 7 mm
- Length: 12.5 mm
Printing Recommendations
- Material: PETG recommended (PLA also works)
- Layer height: 0.2 mm
- Infill: 20–30%
- Orientation: Print flat as provided in 3MF file (STL file has wrong orientation)
Notes
- Designed specifically for Bosch Unlimited 7 accessories
- Small fit adjustments or light sanding may be required depending on printer tolerances
- The optional extension is attached from the top side of the main adapter
If you print it, feel free to share your results and feedback.
