PTFE 4-in-1 Adapter II for FTS Switch H2 Series

Remixed by

Print Profile(2)

All
H2D
P1P
X2D
A1
H2S
X1
H2D Pro
X1 Carbon
H2C
P1S
X1E
P2S
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
1.3 h
1 plate
4.9(7)

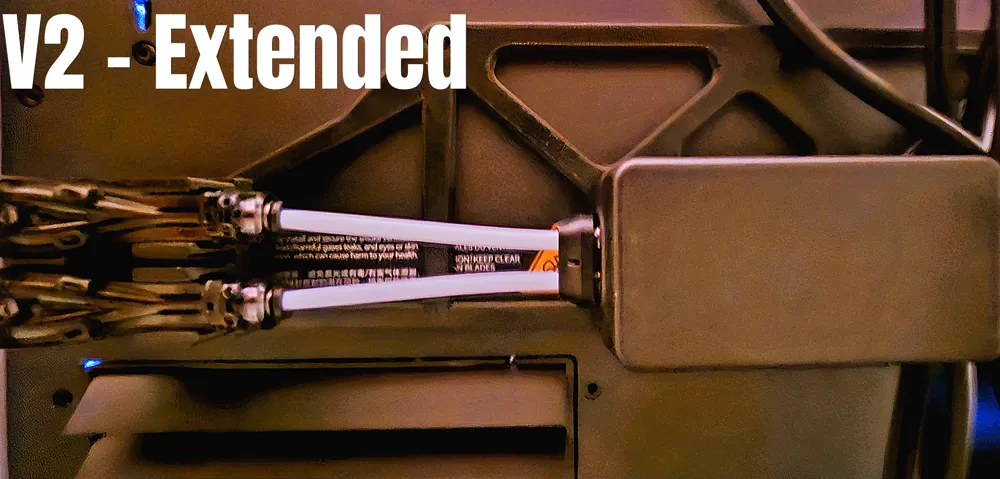

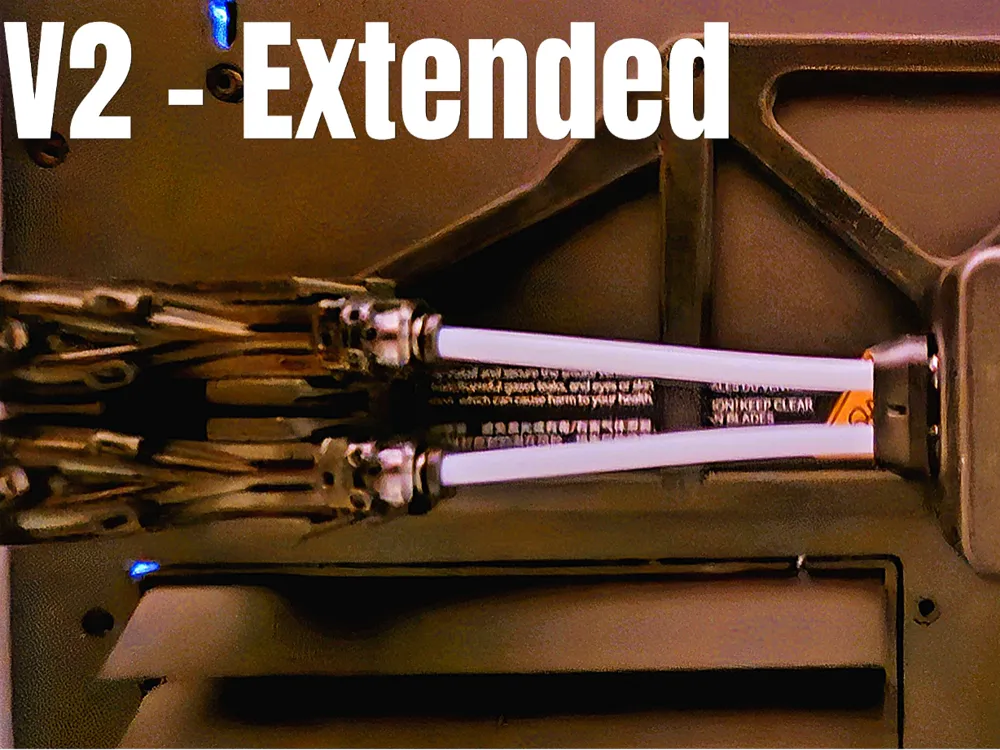

Extended Version
Extended Version
Designer
1.4 h
1 plate
5.0(2)

Open in Bambu Studio
Boost
25
89
24
9
84
80
Released

Description

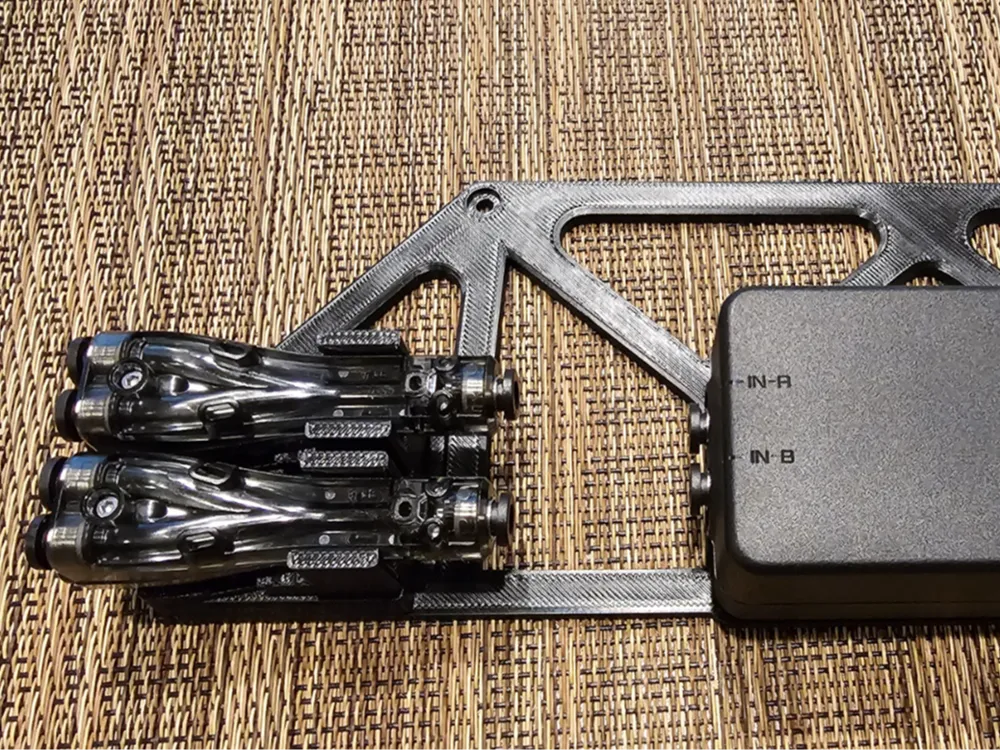

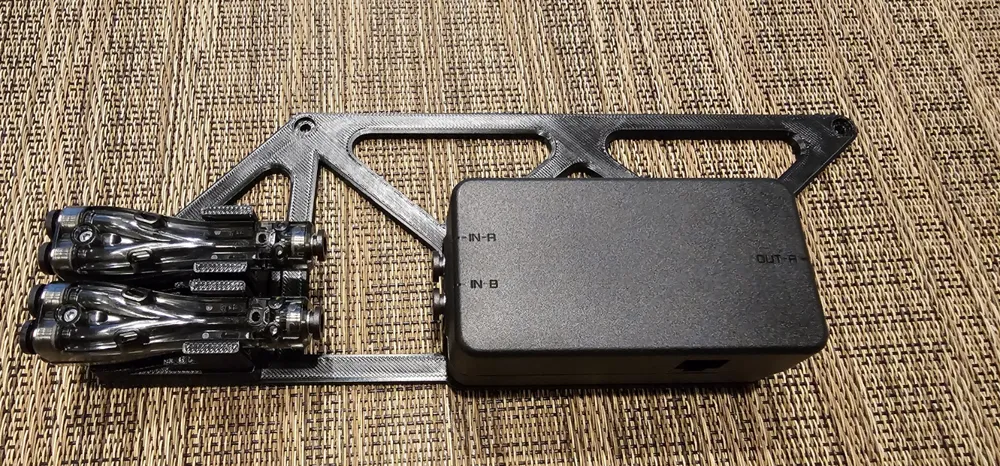

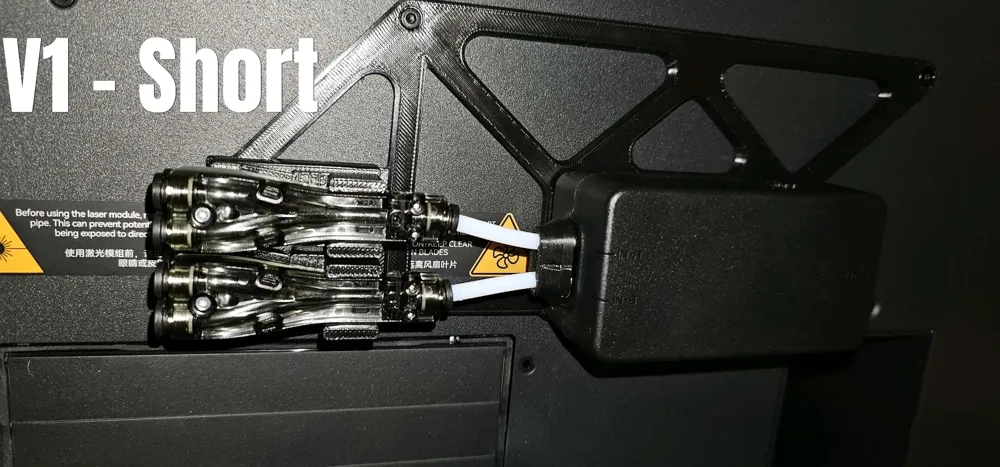

I could not find a 4 in 1 adapter that mounts to the backside of the H2 Series to work with the new filament switch. I remixed Bambu's original mount and designed PTFE 4 in 1 adapter holders that align to the inputs of the new filament switch for the H2 series. I do not know if this works on the X series. I'm looking for feedback if you think the adapters are too close to the switch or not. I could design a longer version if people think we need more tube between the adapters and the switch.



I wanted to keep the Bambu look, though it probably doesn't matter because this is in the back… I did all the modeling in Bambu Studio. I used PETG Basic (because they're always out of HF!)



Boost Me (for free)

Help an aspiring designer out!



Bambu's original bracket can be found here: https://makerworld.com/en/models/2797841-filament-track-switch-holder-for-h2c-h2d#profileId-3112081

Also thanks to https://makerworld.com/en/@Protyle_Designs as after testing out several versions, I found they designed a great adapter holder, which I modified to work with my model. Their original model can be found here: https://makerworld.com/en/models/2662491-ptfe-4-in-1-adapter-ii-mount-h2-series?from=search#profileId-2945389
