RENFE Lamp
Print Profile(1)
Bill of Materials
.jpg){kind=small}
Description

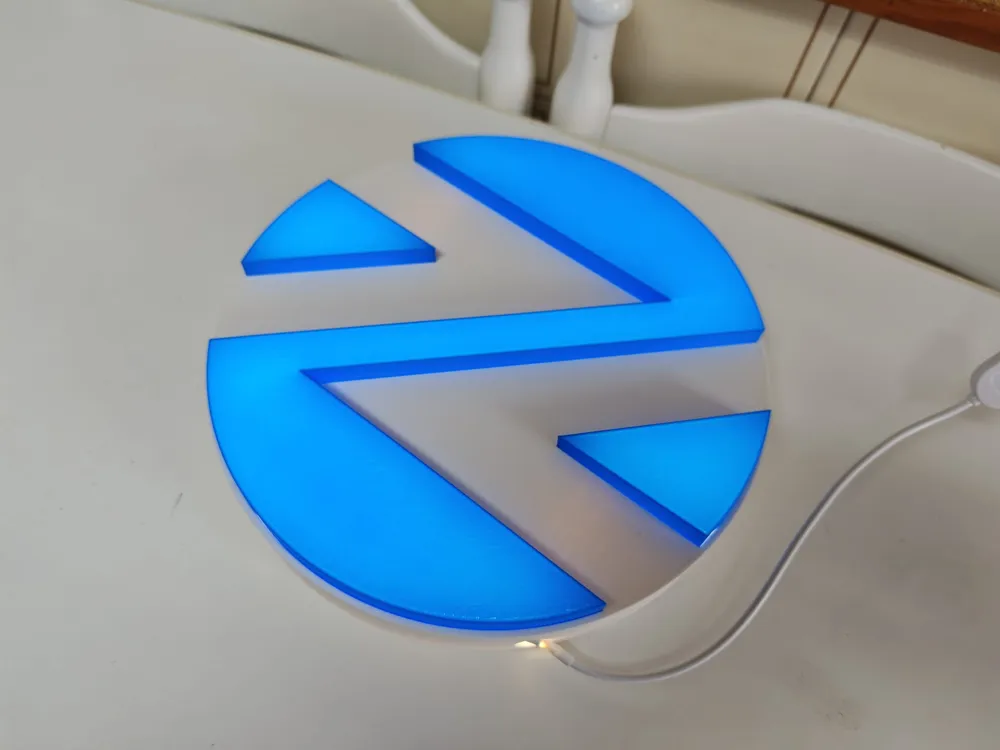

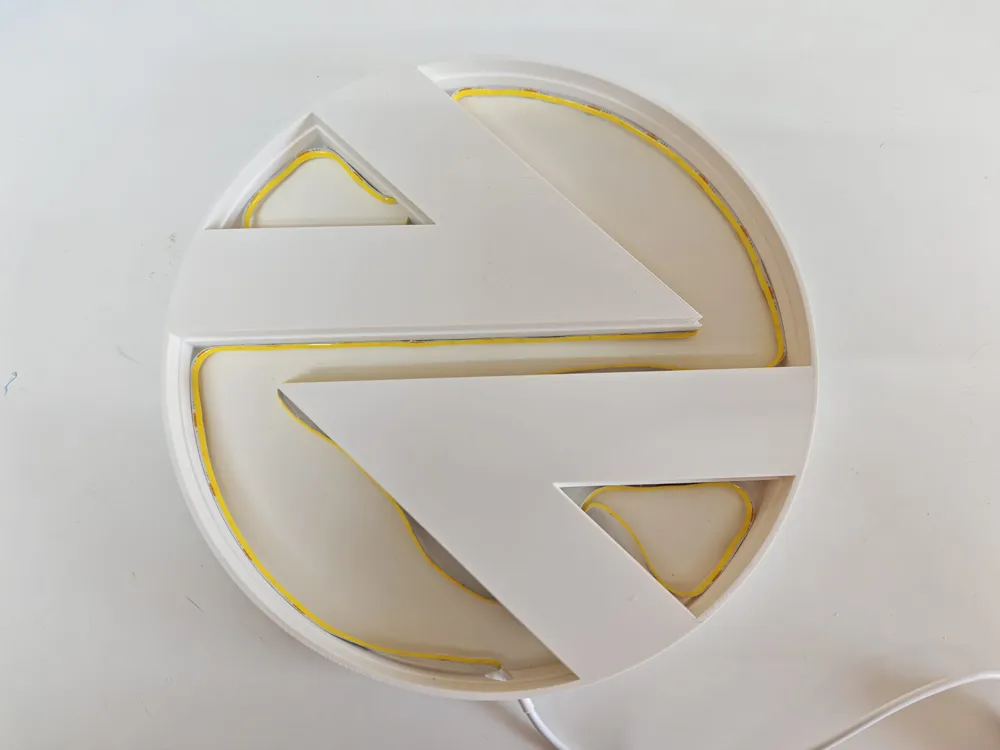

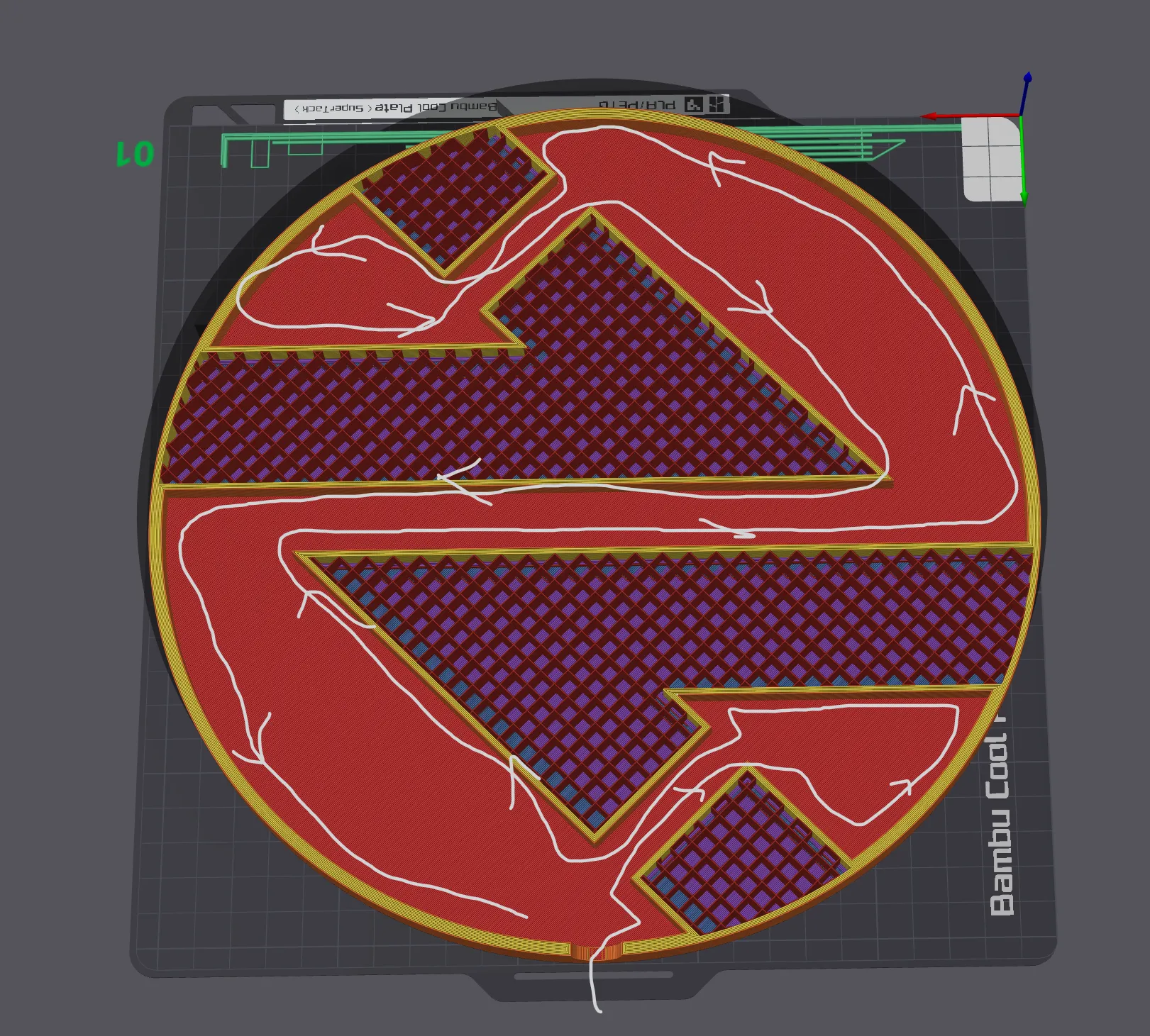

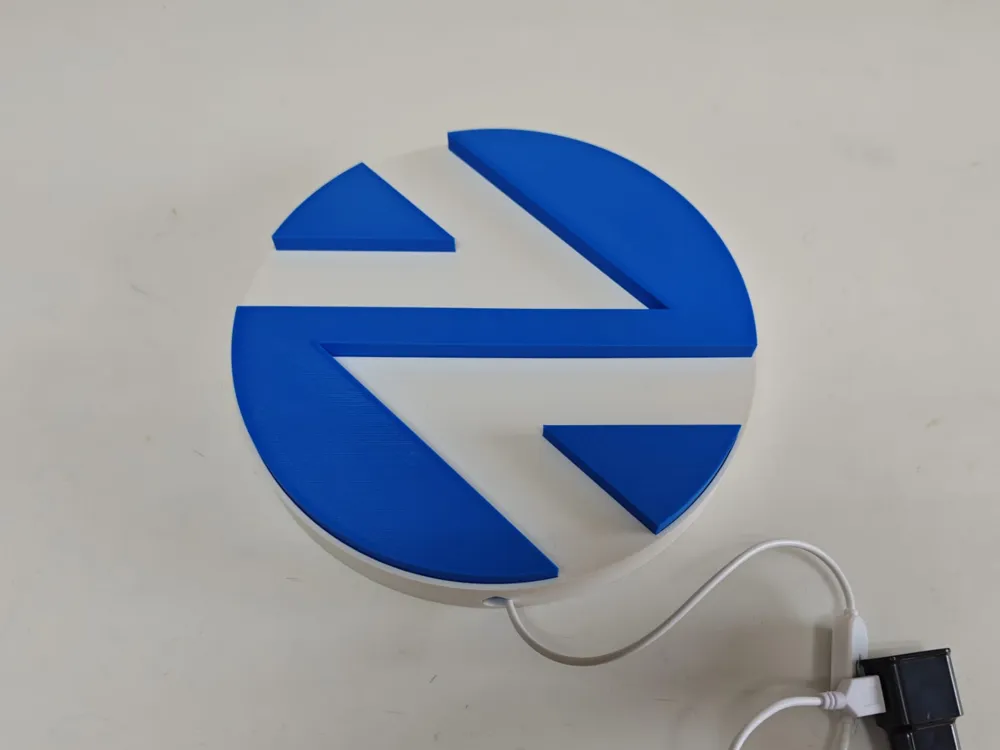

This is a decorative lamp based on the old renfe logo, you are not going to need any glue but you are going to need some led strip, i used one that was 3m long but 2m might be enought , i just used some chead LED strip from aliexpres with a USB conector and a small charger to conected to the light, the most tricki part is going to be putting the strip in place, i put it following this path.
There is some small holes to pass the strip through , this its the harder part by far but its doable, after you cover all the wall with the strip you can just cut the part tha you dont need.
Its also important when printing to have a lot of wall for the main strutcture so the light doesnt “bleed” , also i put 3 layers for the difuser but depending on the LED strip in use and filament it might be better to make the difuser with more layers.
