Case for the Digilent Nexys A7 / 4 FPGA board

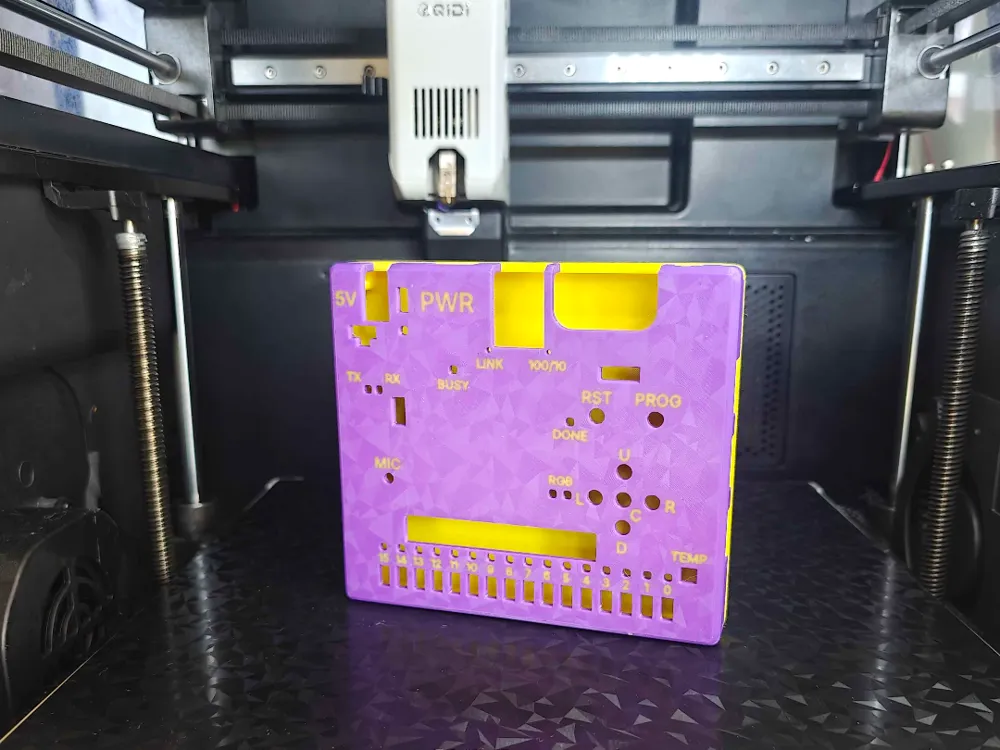

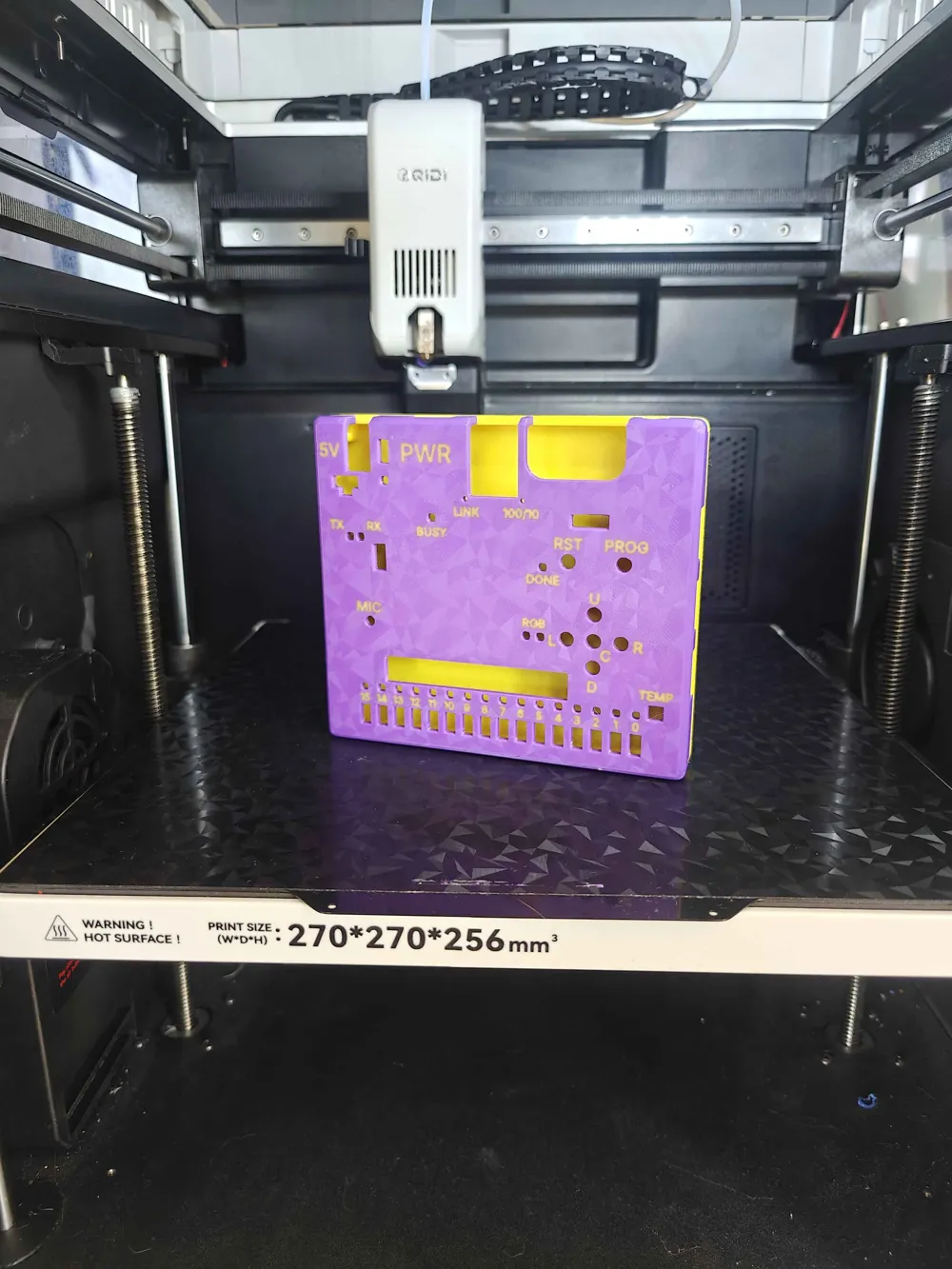

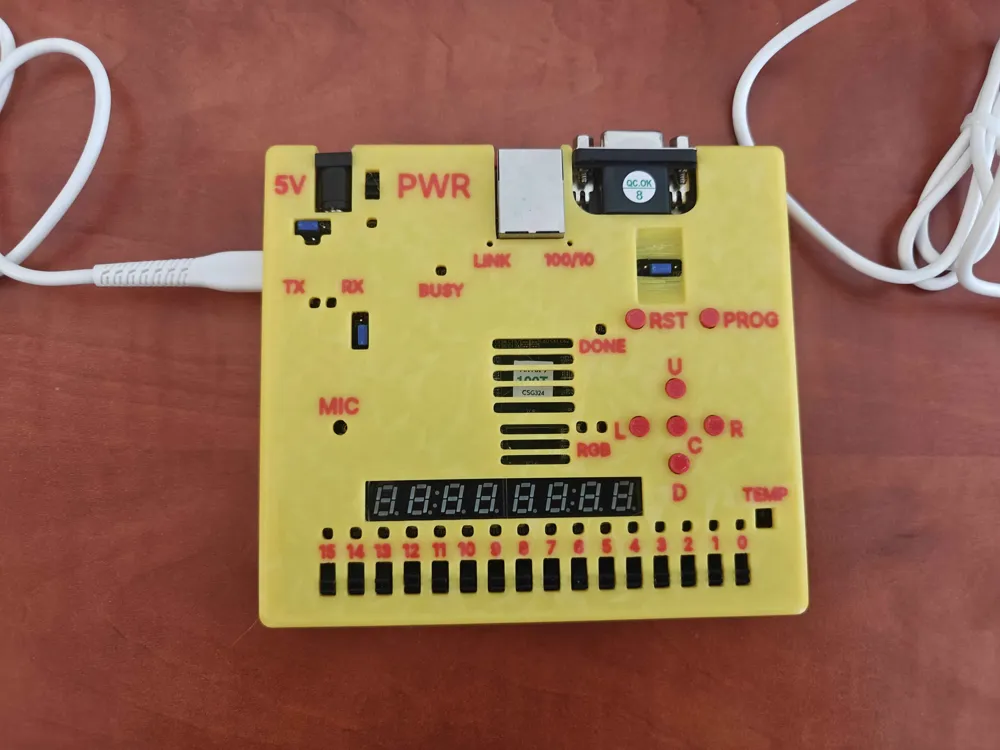

I designed and printed a bunch of these for my faculty's computer lab, the latest version being the one with ventilation holes and easy access to the JP1 jumper.

I've included some of the other iterations as well, all having the legend for the buttons, LEDs and switches done in the 3mf file.


Printer: Qidi Q2

Relevant settings:

• Filament: PETG
• Nozzle Temp: 240C (the fillet looked bad at higher temps)
• Bed Temp: 70C
• Layer Height: 0.12 mm (initial layer has to be 0.12 as well)
• Nozzle diameter: 0.4 mm
• Wall loops: 5
• Infill: 15% Gyroid
• Top/Bottom layers: 5 each
