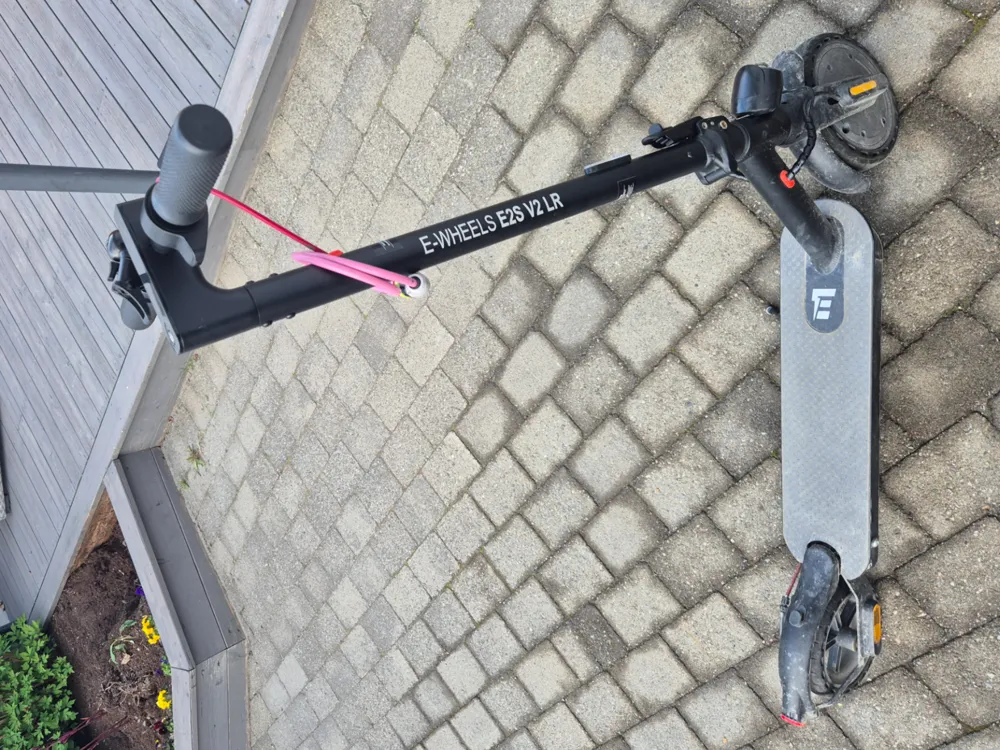

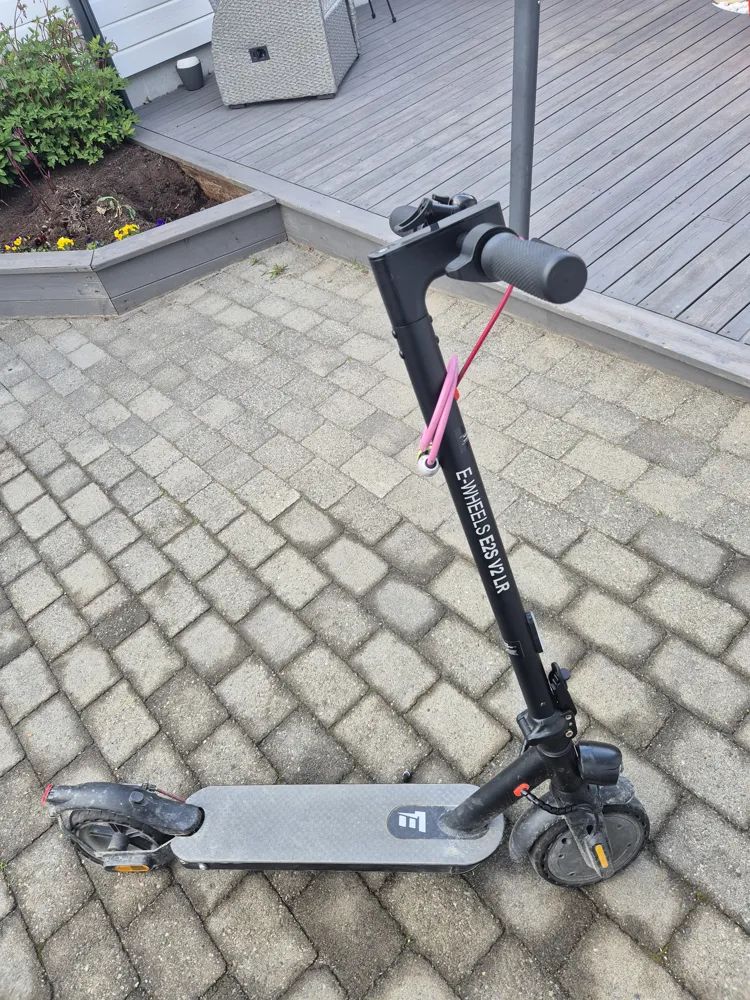

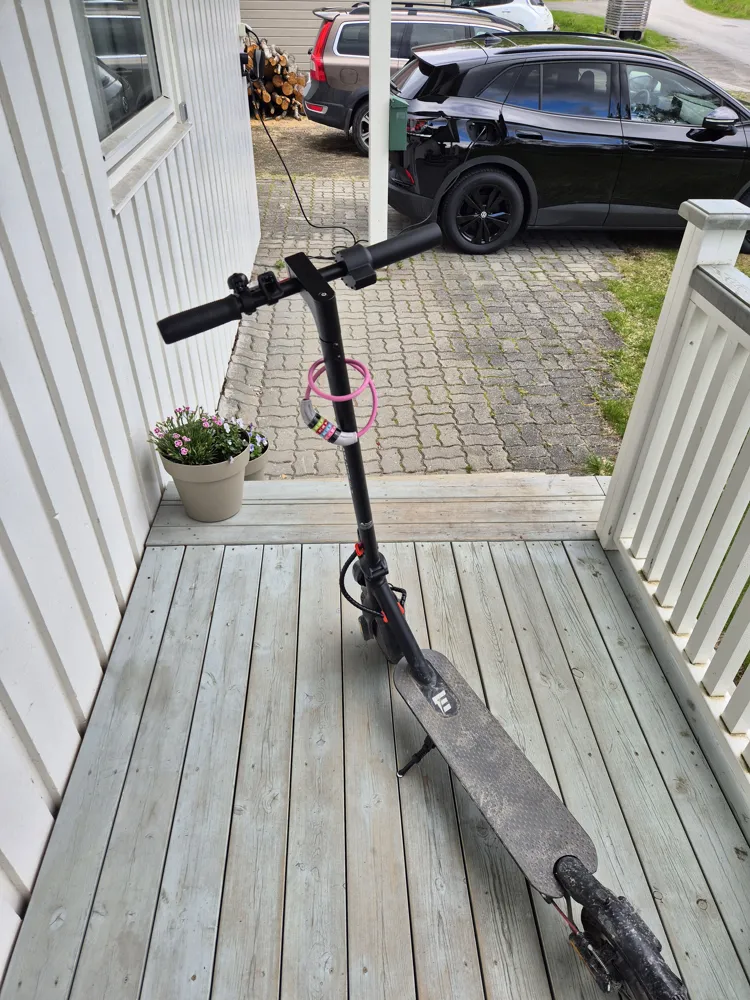

E-Wheels gas handle. works on multiple models like E-Wheels, ninebot and others.
Alot of models out there but i made this one for a more secure fit. With this model you can fasten the handle to your scooter so it doesnt fall off.
Also Imade it slim so that it will be easyer for kids to use. Most models out there will slide over your original handle making it really big and hard to grip. So this model is made so that you simply just pull off the original handle and slide this into place after.
The handle uses the scooters automatic spring to let of the gas if installed correctly.
Easy to install and you can choose to use filament og Screws to fasten it. recomend using screws for a more secure fit.

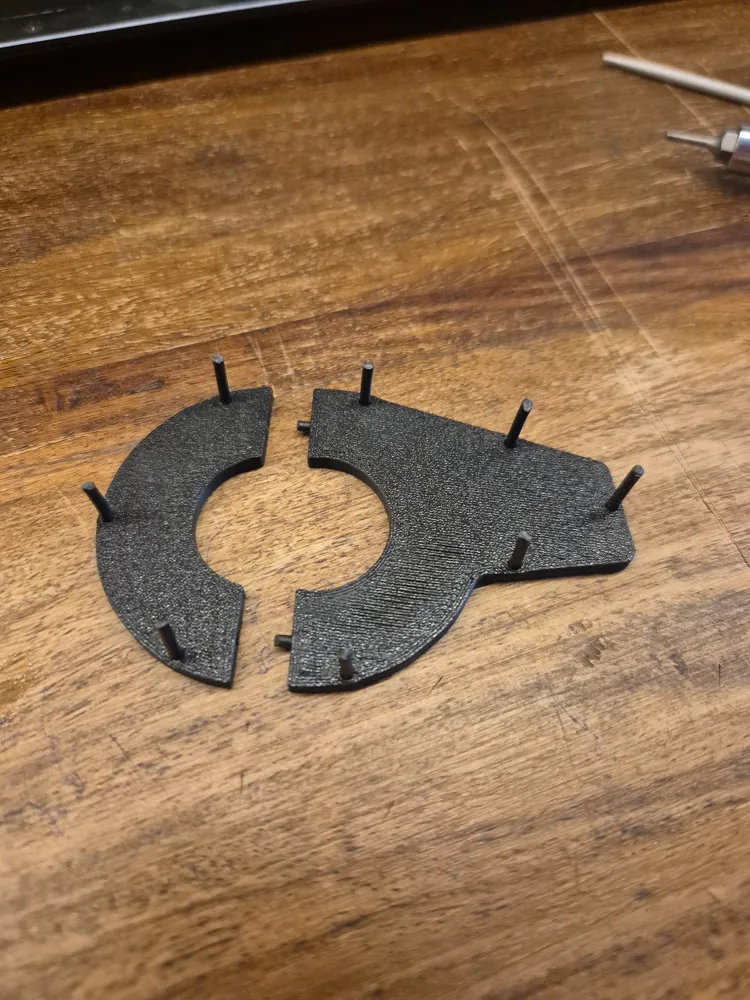

Filament pieces needed: 8x13mm and 2x5mm

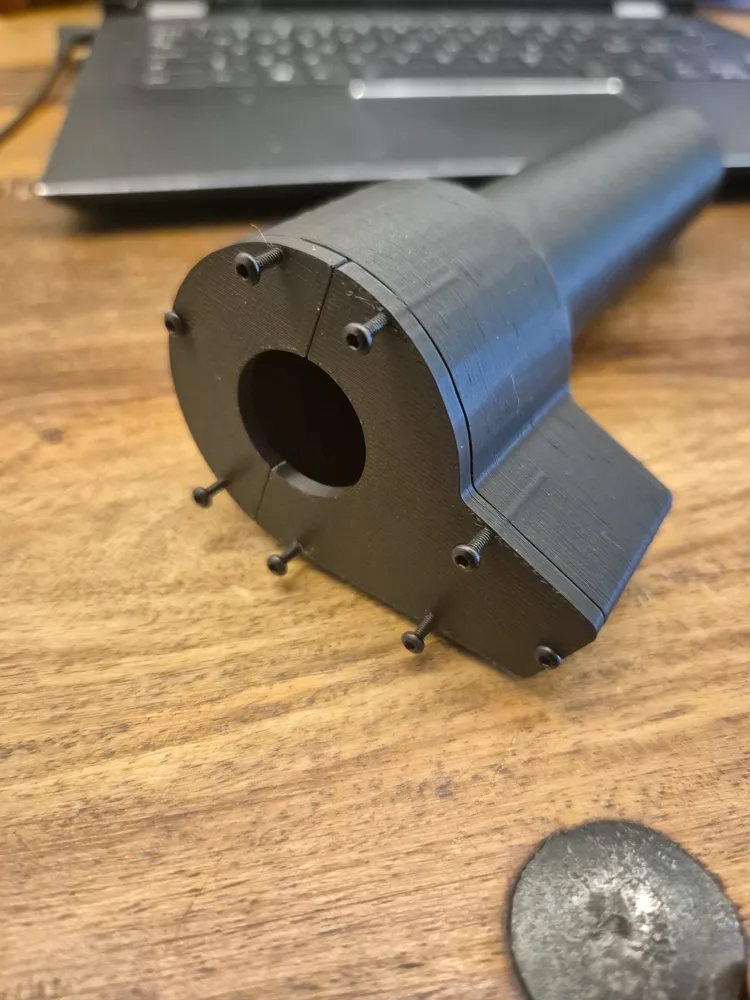

If using screws: M2 with a 8mm long tread. can be longer(13mm max).

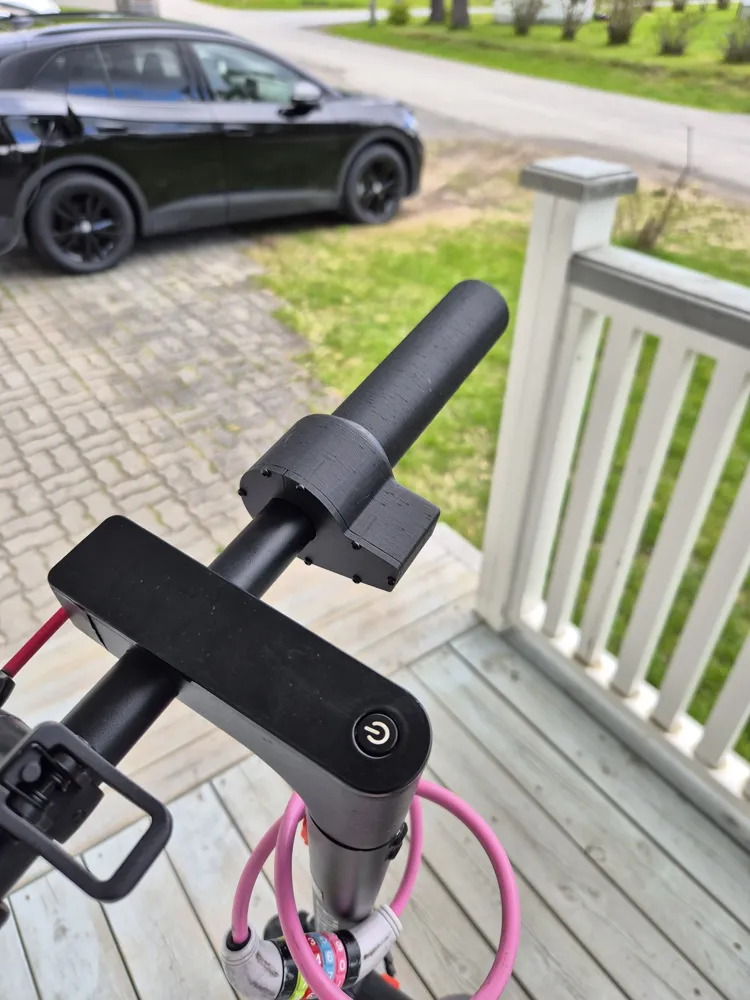

Look at the pictures to install.

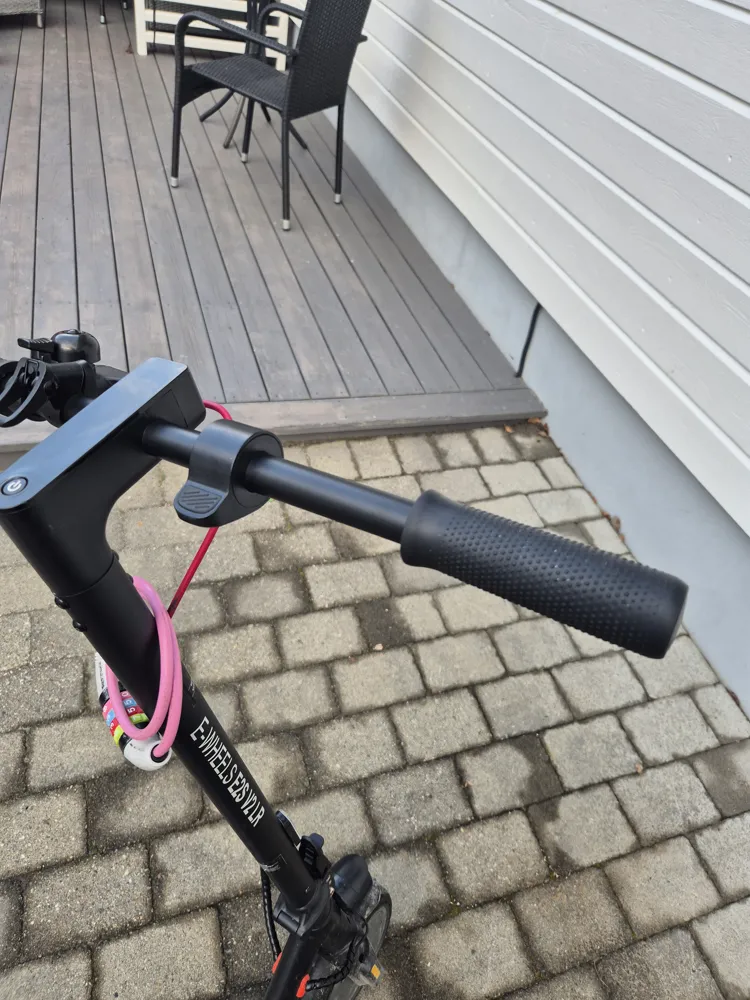

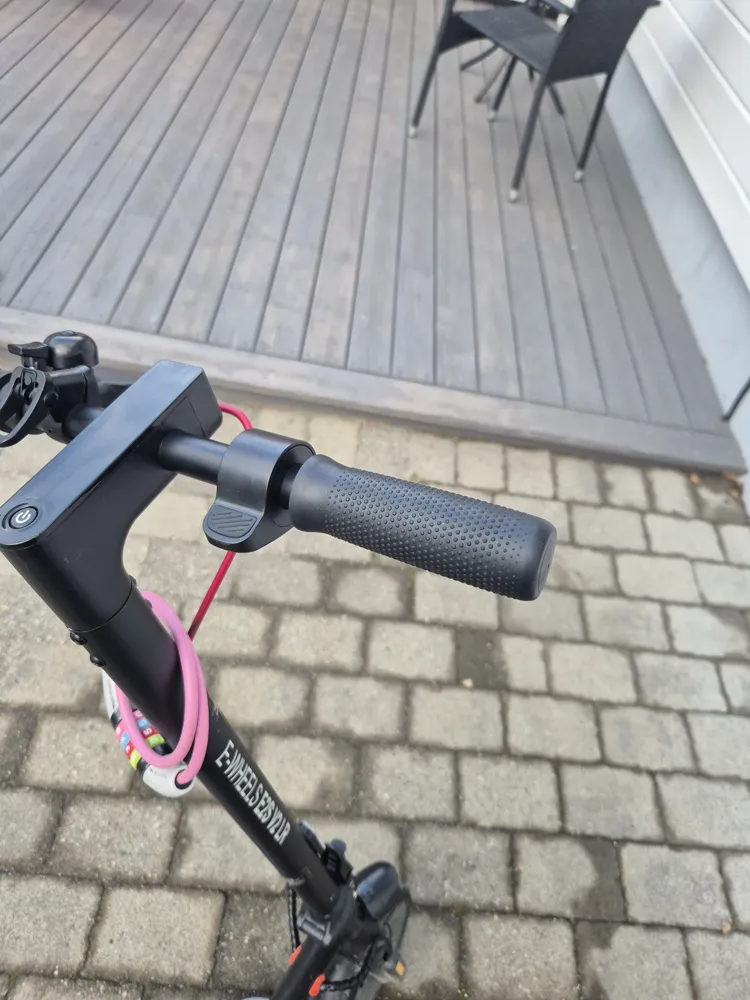

Slide off original handle. slide on the printed handle without lid on.

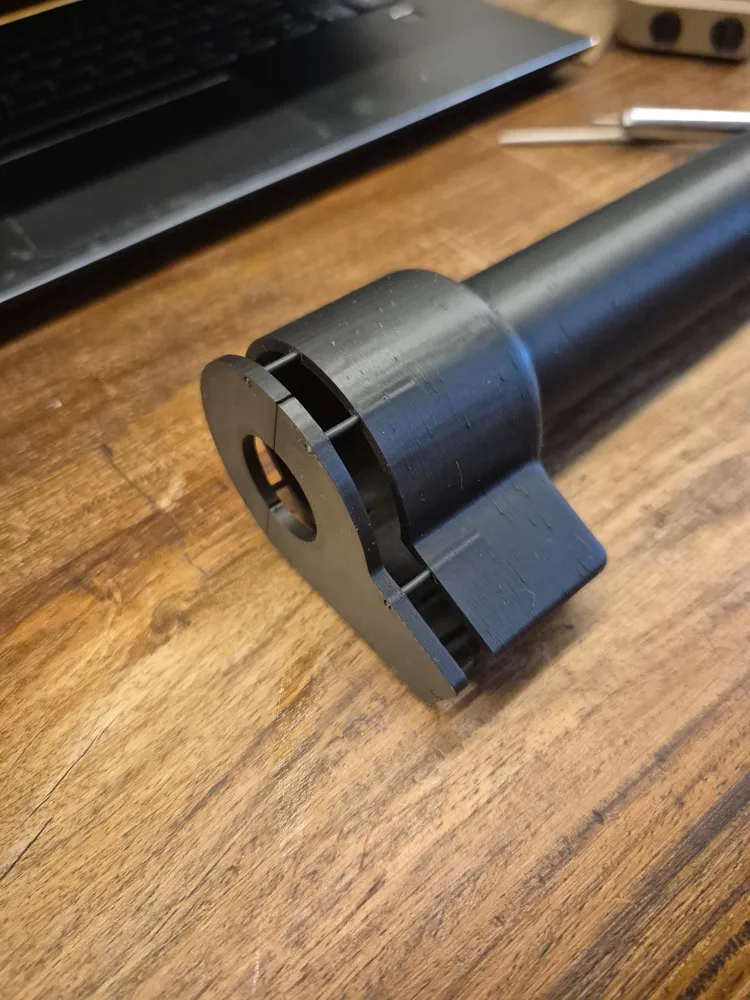

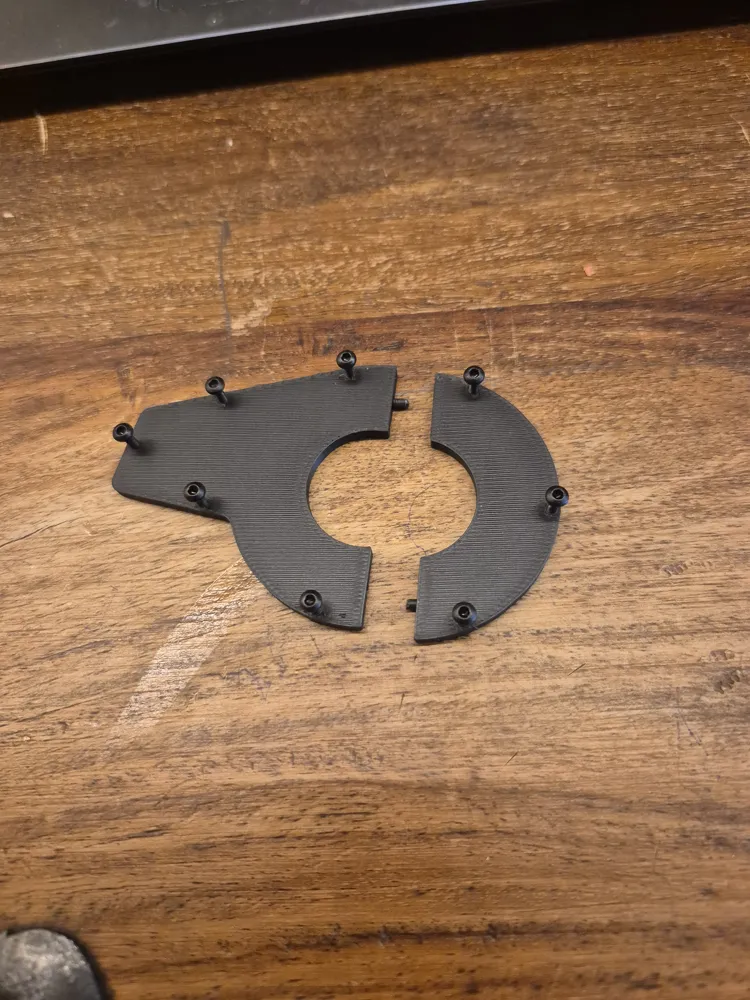

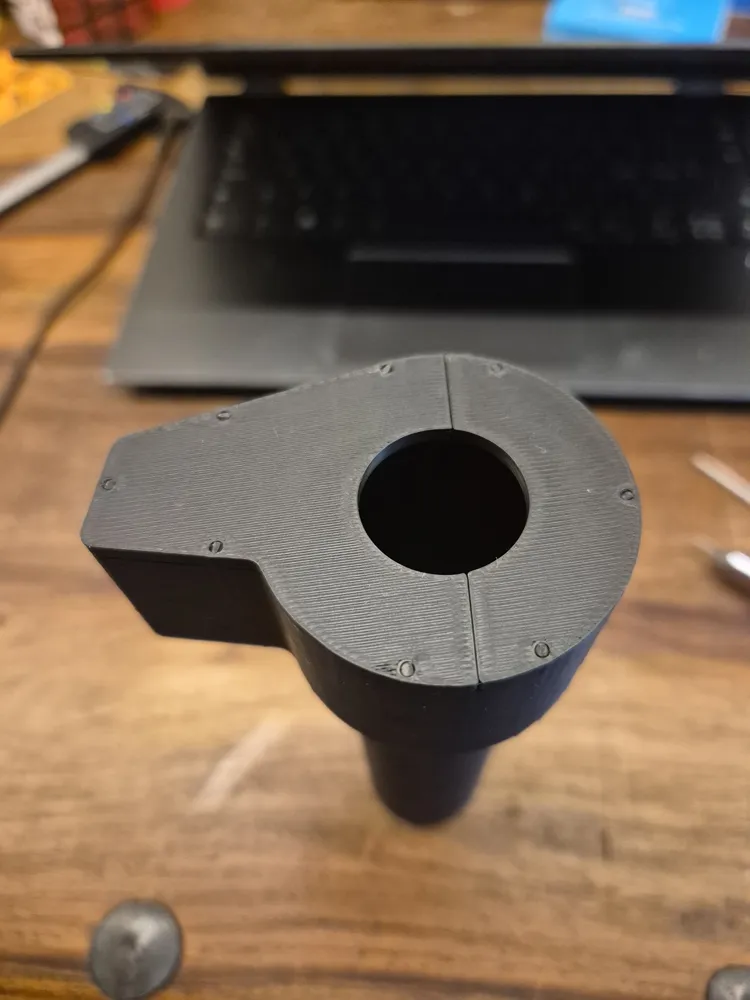

Install lid on handlebar first then slide towards the handle to connect.
recommend using screws instead of filament.
glue can also be used but then part will be permanently on.
screws can be bought on bambu lab, temu, ali express or any other hardware store.
Use with caution and at your own risk.
I will add another version soon with gear like grip.
