Mijia Body Fat Scale S400 Rechargeable Battery Cover Mod
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
0
0
0
0
0
0
Released
Description
Content has been automatically translated.

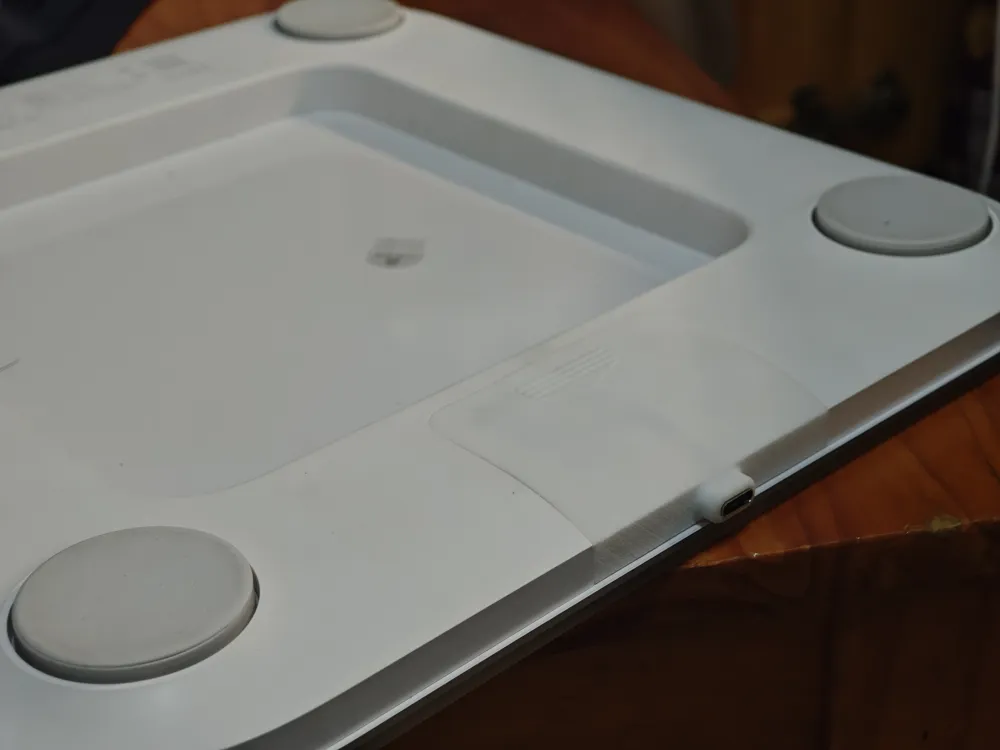

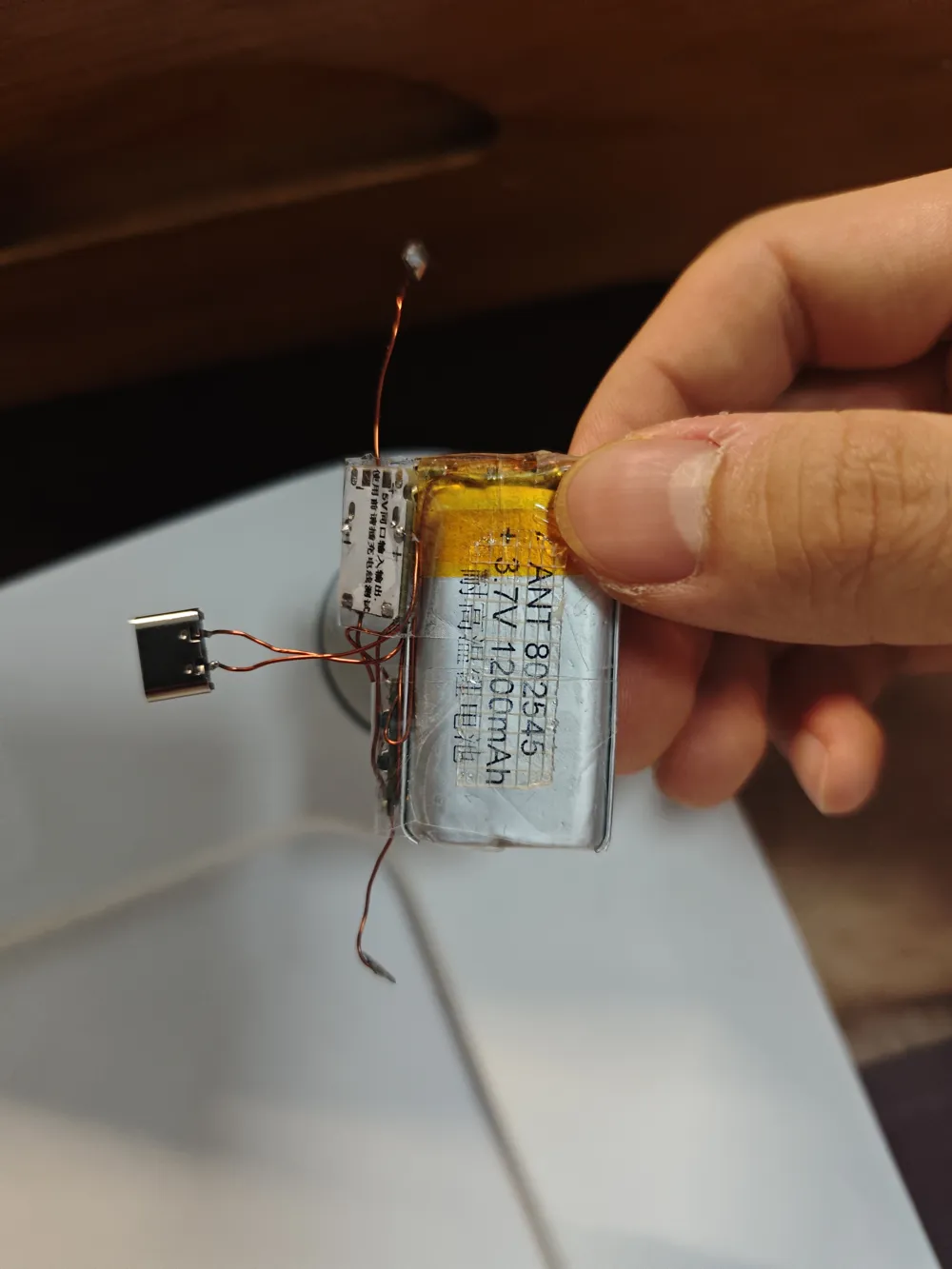

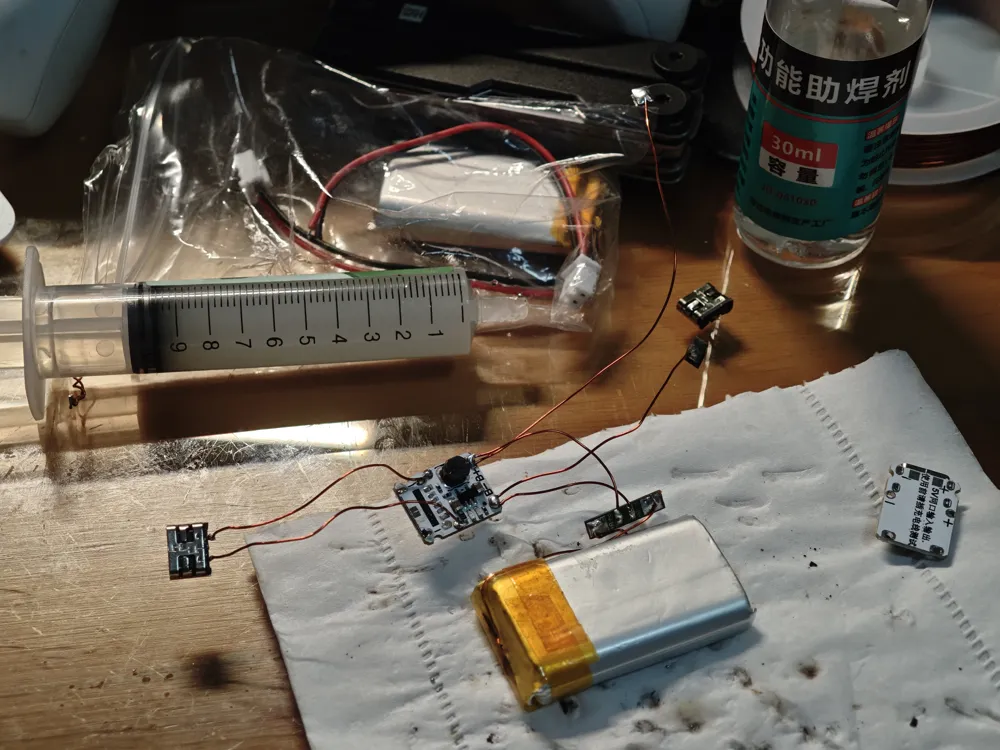

The Mijia Body Fat Scale S400 has been modified to be rechargeable. The body fat scale supports a voltage range of approximately 3.4V to 4.7V, making an external 3.7V lithium battery entirely feasible. Adding a lithium battery charging board, with a maximum output of 4.2V, is also completely viable.
For connections, wires and dry battery clips can be used. Alternatively, drilled metal magnets can create a magnetic connection, eliminating the need for soldering.

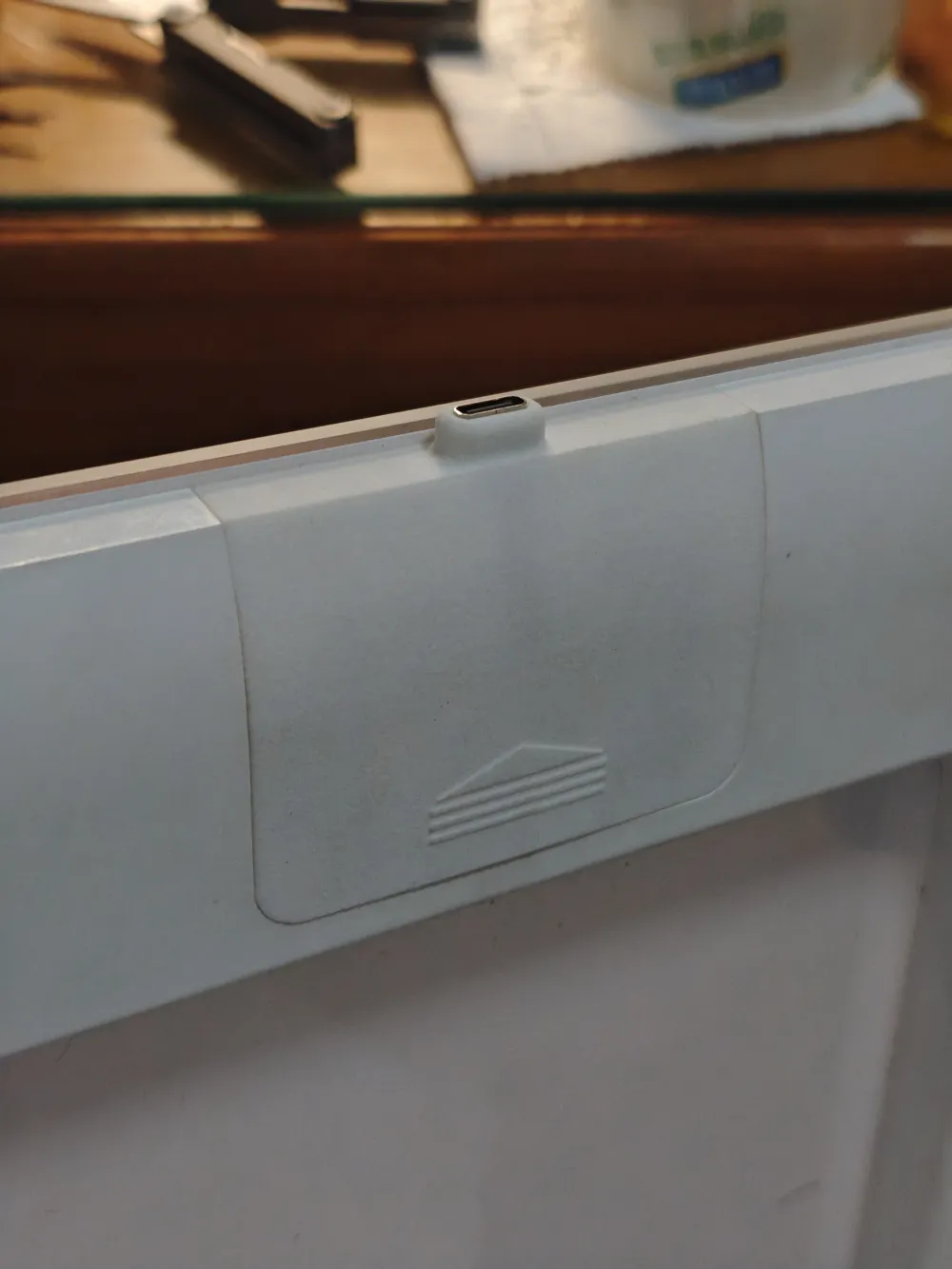

Flaw: The Type-C port is not securely fixed; it is recommended to use 502 adhesive.
