Replacement Pin - Bestway Pools (Ref: P61020ASS16)

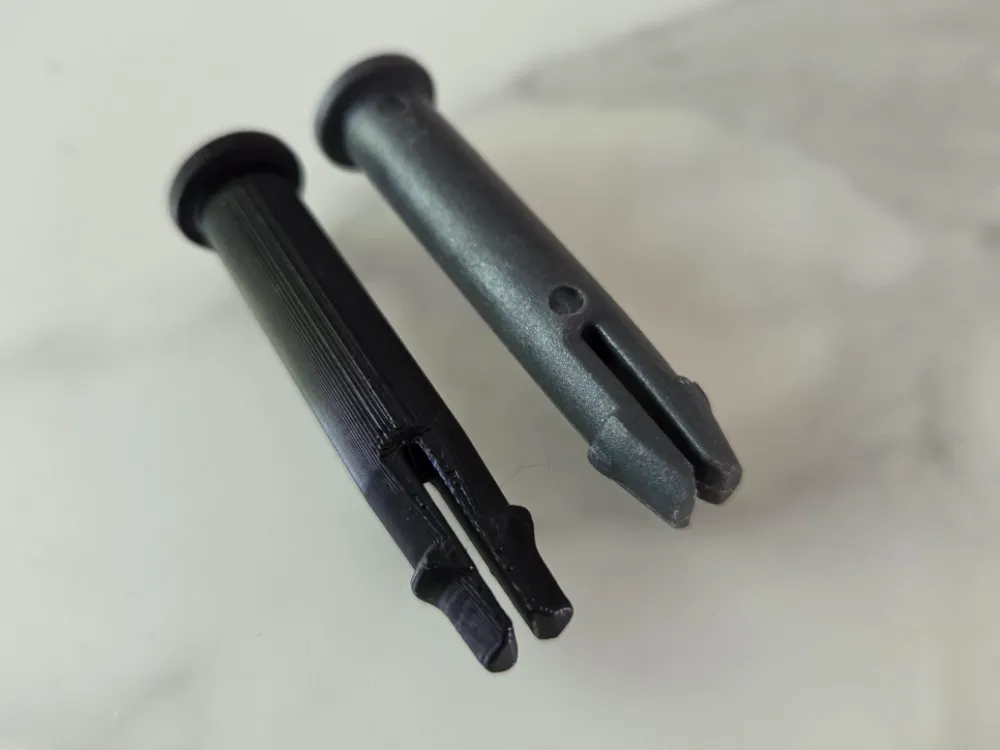

This is a custom-designed, replacement pin (connector bolt) for round Bestway Steel Pro and Steel Pro MAX frame pools. If your original plastic pins have become brittle from UV exposure or snapped during setup/teardown, this 3D-printable replacement will get your pool back together in no time.

Optimized for 3D printing with reinforced geometry.

Versions Included

I have created two different versions of this pin so you can choose the best printing method for your setup:

1. Original Rounded Version (Requires Support): This perfectly matches the original shape. For the best result, print it horizontally using PETG/ASA and use PLA as support interface material (if you have an AMS/multi-material system). This makes support removal incredibly clean and easy.
2. Flat-Cut Version (Supportless): I cut a small flat surface onto one side of the pin. This allows you to lay the pin completely flat on the heatbed, meaning you can print it 100% without any supports.

Technical & Compatibility Details

• Original Part Number Referenced: P61020ASS16
• Design Basis: Reverse-engineered from the original functional part.
• Pool Type: Suitable for round Bestway Steel Pro / Steel Pro MAX frame pools.

Supported Pool Diameters & Required Quantities:

According to the official user manuals, here is the number of pins required for a complete pool setup depending on your model:

• Ø 2.74 m (9 ft) → 20 pieces
• Ø 3.05 m (10 ft) → 22 pieces
• Ø 3.66 m (12 ft) → 26 pieces
• Ø 3.96 m (13 ft) → 28 pieces

Recommended Print Settings

Since these pins are structural and exposed to constant water, chlorine, and outdoor UV rays, choosing the right material and settings is crucial:

• Material: PETG or ASA / ABS (Avoid standard PLA for the final part, as it will degrade quickly under sunlight and mechanical stress).
• Infill: 100% (Solid) or at least 40-50% with 4-5 walls (perimeters) for maximum shear strength.
• Orientation: Always print horizontally (flat on the bed). Printing it vertically makes it prone to snapping along the layer lines when pressure is applied.

Legal Disclaimer & Warranty Exclusion:

This is an independently designed aftermarket replacement part. The mention of the brand name "Bestway" and the original part number P61020ASS16 is used strictly as a descriptive reference to indicate compatibility for the end user. This product is not affiliated with, sponsored by, or endorsed by the original manufacturer.

As this is a DIY 3D-printed model, I provide absolutely no warranty or guarantee regarding the durability, strength, or UV resistance of the printed components. Use at your own risk and responsibility. Please ensure you choose appropriate materials (e.g., PETG/ASA) and sufficient infill settings yourself.
