Dual central rackmount post for Homeracker

I wanted to build 2 10" racks side by side, normally you would build 2 separate racks and then join them. I wanted to use a single central post to reduce overall width. And to increase the rigidity of the build.

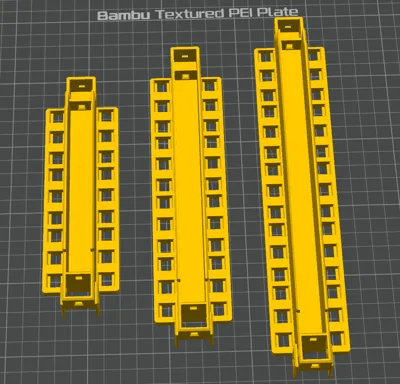

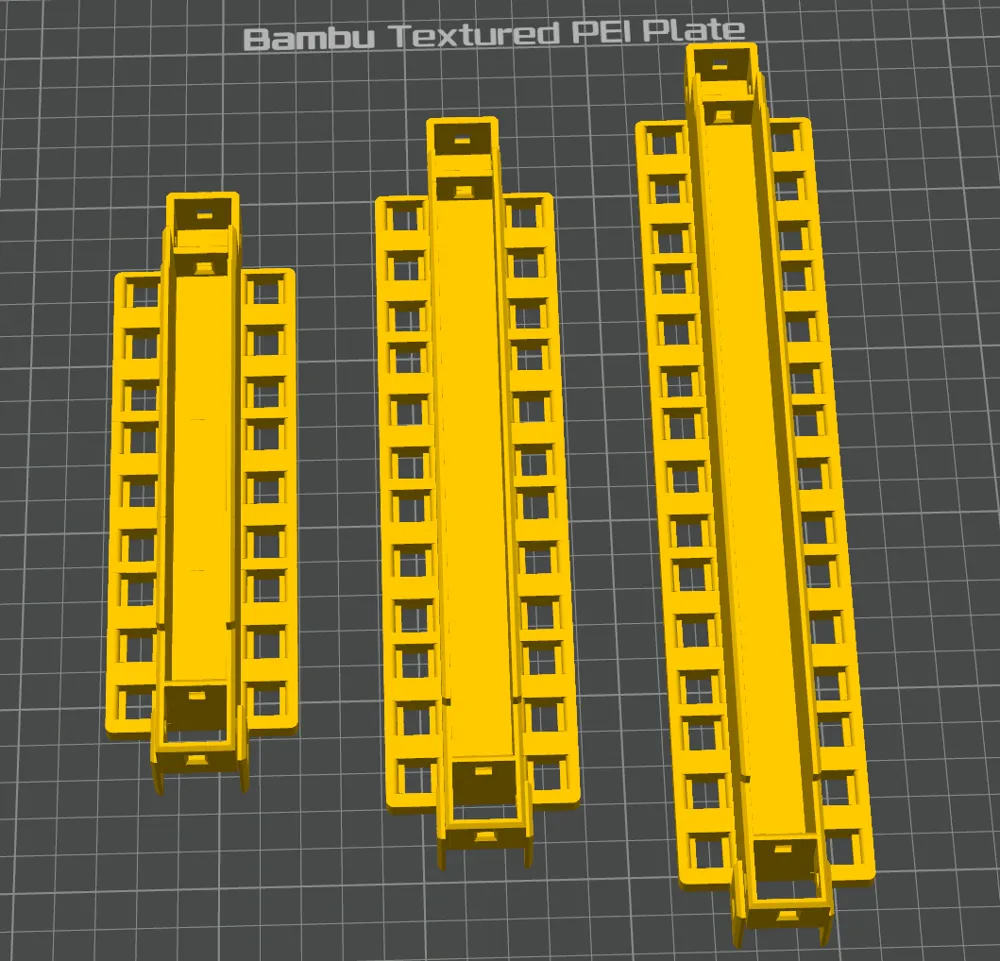

I have overlapped the left and right rackmounts maintaining the 15.2mm post insert.  Exported as STLs to give the final assmebled parts here. These can be used in place on a single central section, rather than the individual supports which would then need to be joined. Simplifies the build a requires less parts to build a dual 10" sideby side rack.

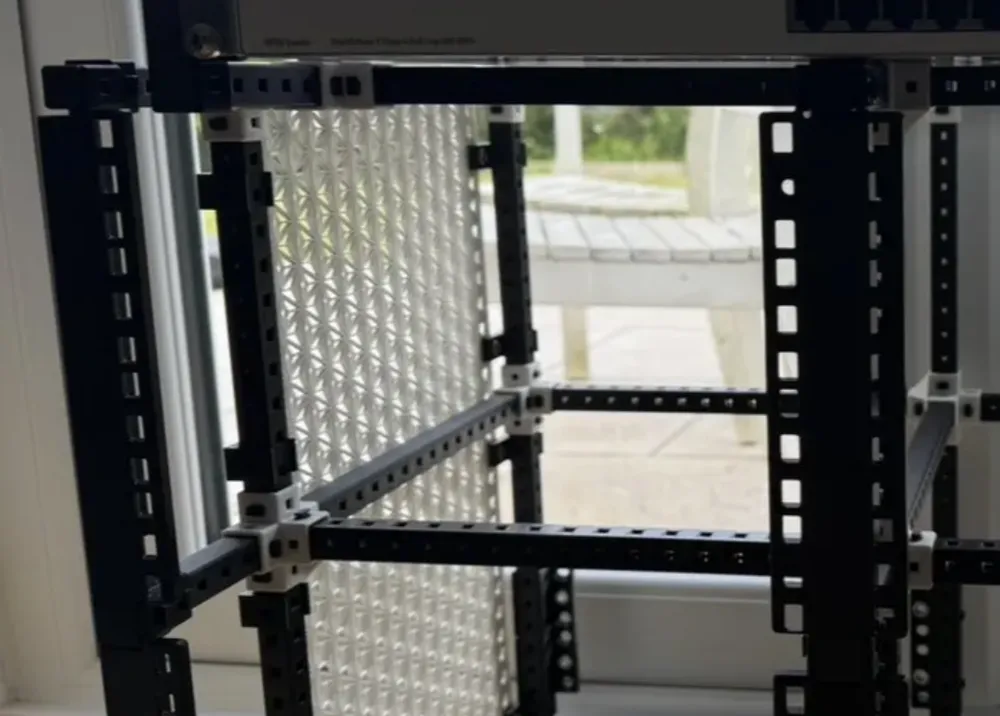

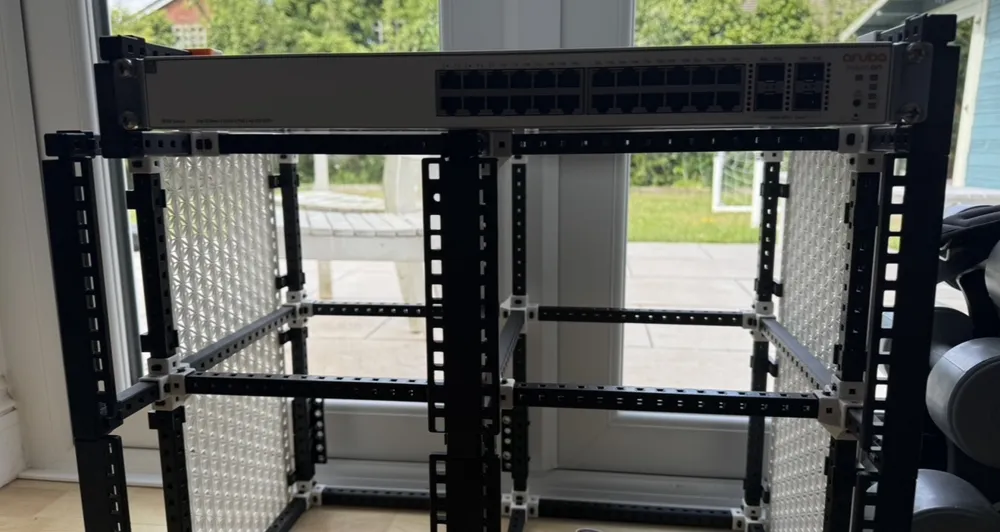

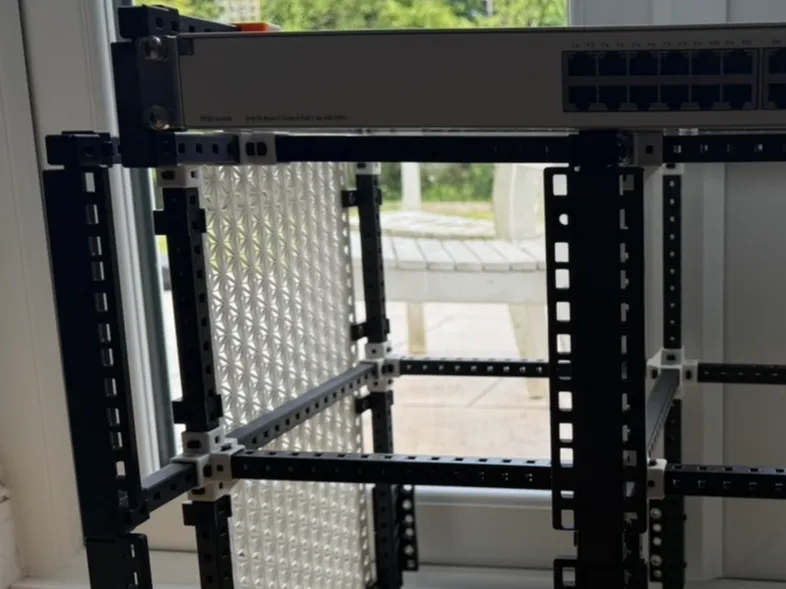

This is the end result, there are 3, 4, and 5U versions here, remember you need to print the outside mounts from the Unimount.

I used the 4 and 5U the 3U was a request, not even sure if there are 3U outside mounts. if not I will create them.

From Kellerman's original info:

🏡 What is HomeRacker?

HomeRacker is a universal modular rack building system Kellerman created. It's based on an open specification. Find out more here:

HomeRacker - Core on Makerworld

or visit

https://homeracker.org/

or checkout

The Official HomeRacker Collection
