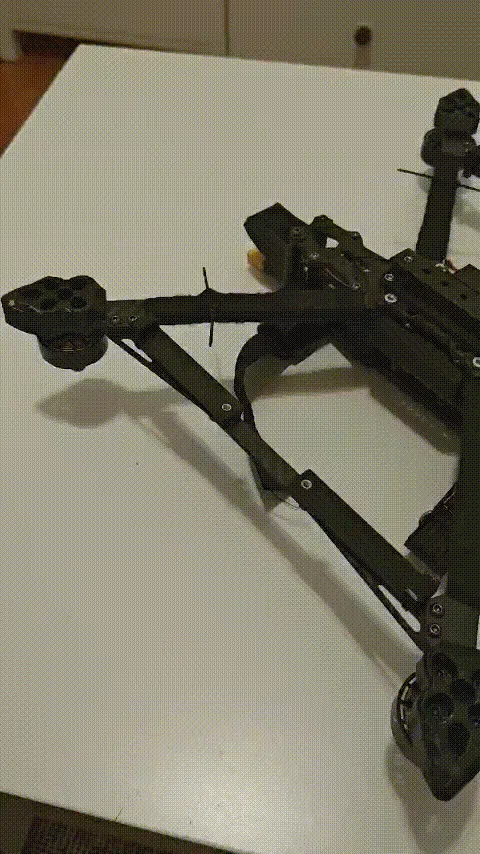

Screw-On Modular FPV Drone Legs

Tired of constantly removing zip ties from your drone landing legs?
This modular screw-on landing gear system is a simple and practical solution.

The concept is straightforward — slide the leg into the mounting rail, tighten a single M3x5 screw, and you're ready to fly.

Printed in PETG for excellent durability and strength, the system is designed to handle everyday flying and even carrying cargo without the need for extra external supports.

Assembly

• Install M3 heat-set inserts (M3x4x5) into the mounting rails
• Attach the rails to your drone frame using zip ties
• Slide the landing legs into the rails
• Secure each leg with an M3 screw

Done!

After landing, the legs can be quickly removed for easier transport and storage of the drone.
