Trampoline (2.5m) Net Pole Connector Replacement

Trampoline Net Pole Connector – Replacement Part

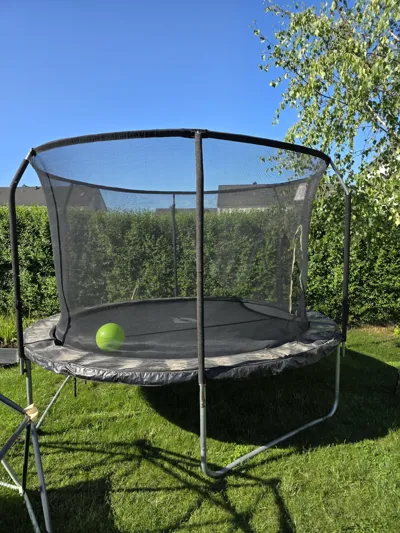

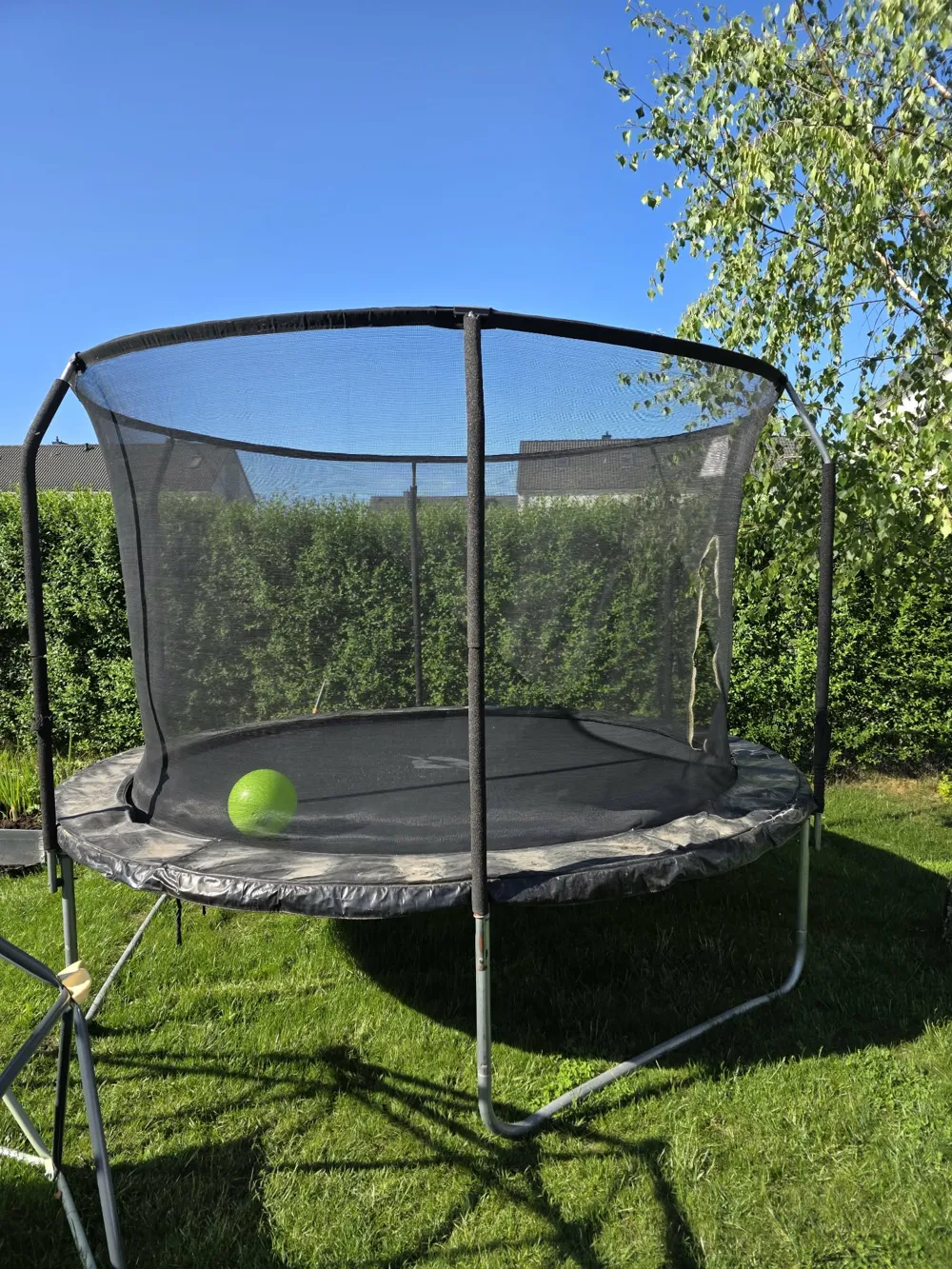

This is a 3D printed replacement connector for the net support poles of a 2.5 m radius garden trampoline.

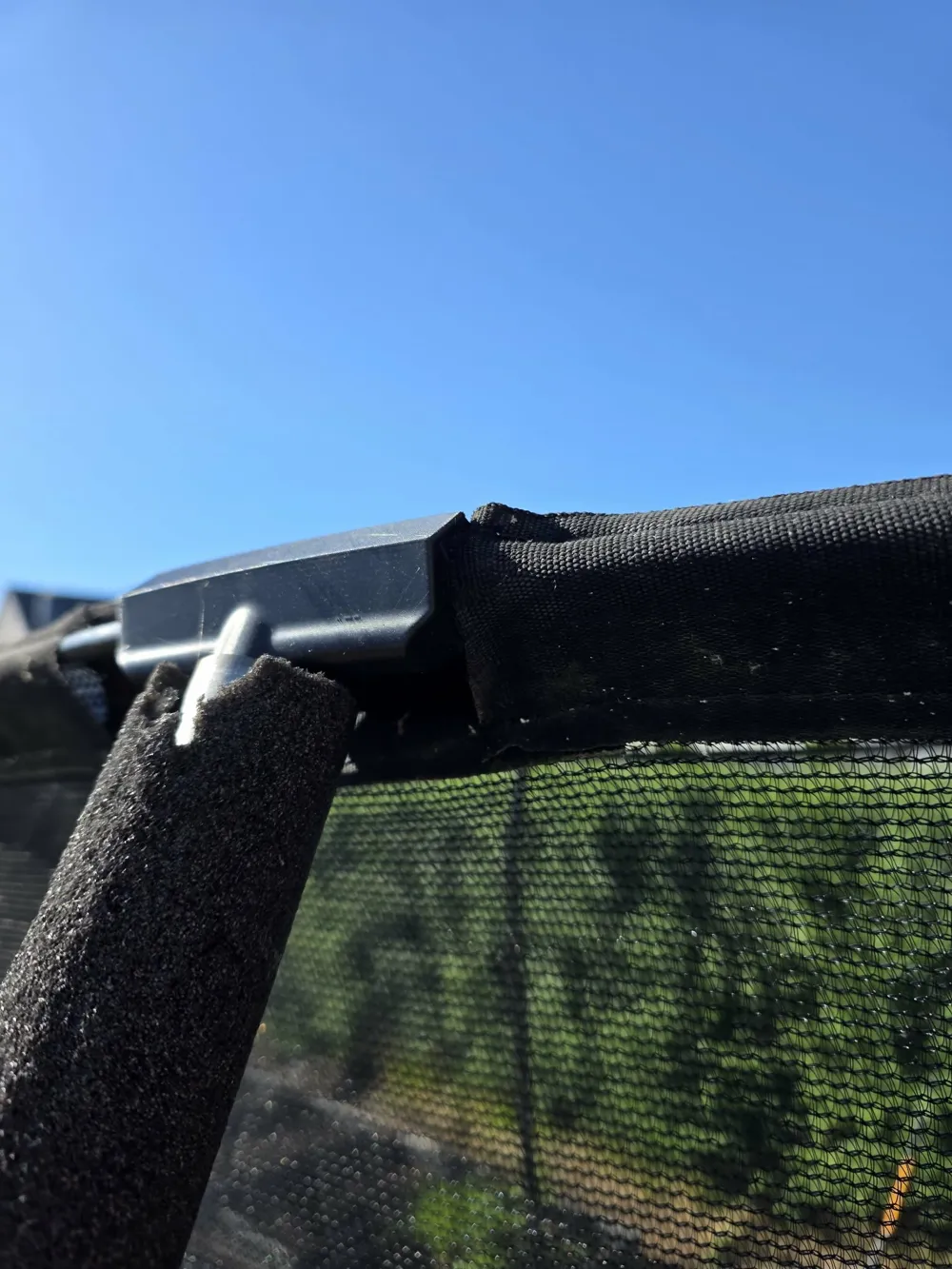

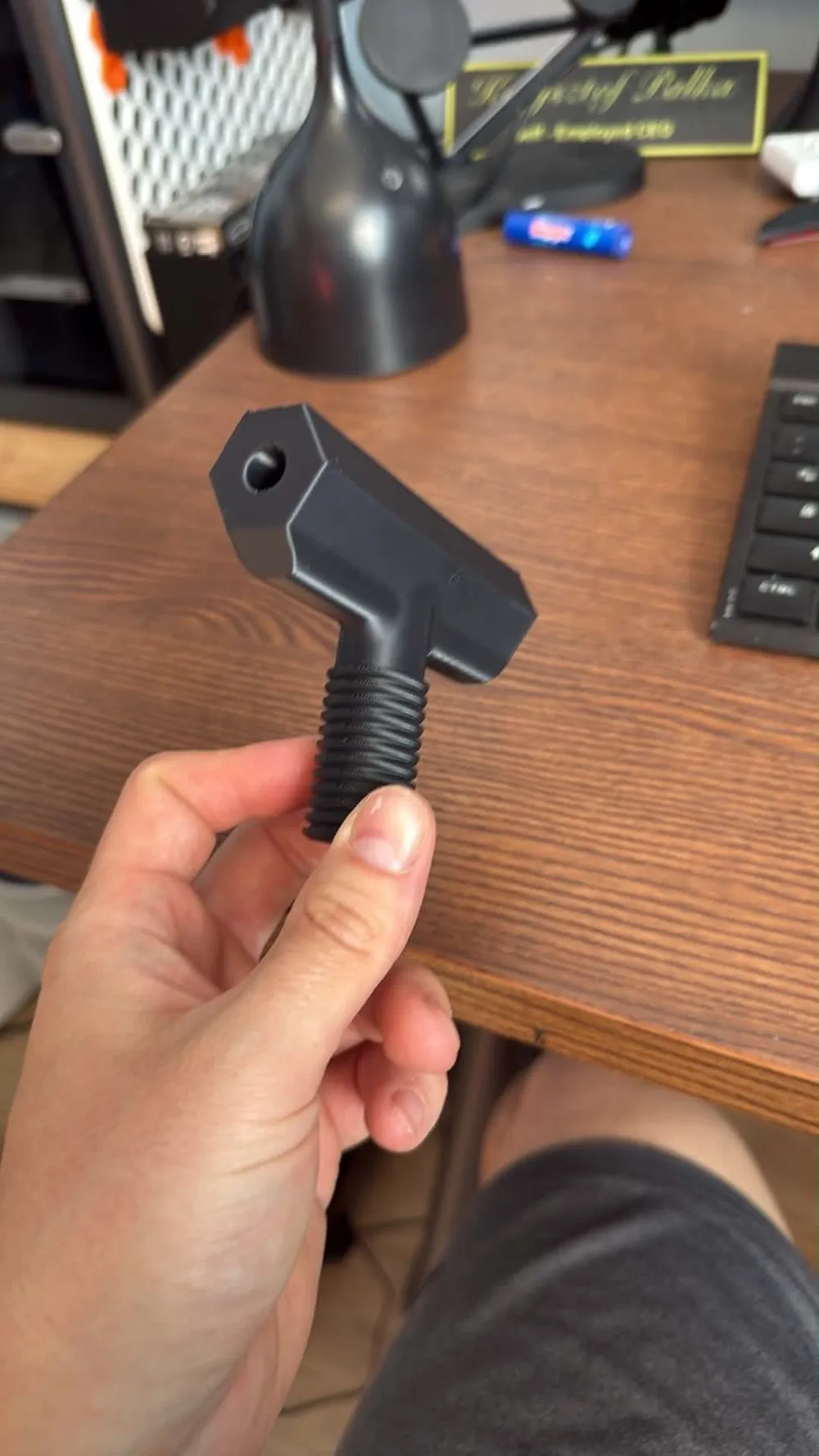

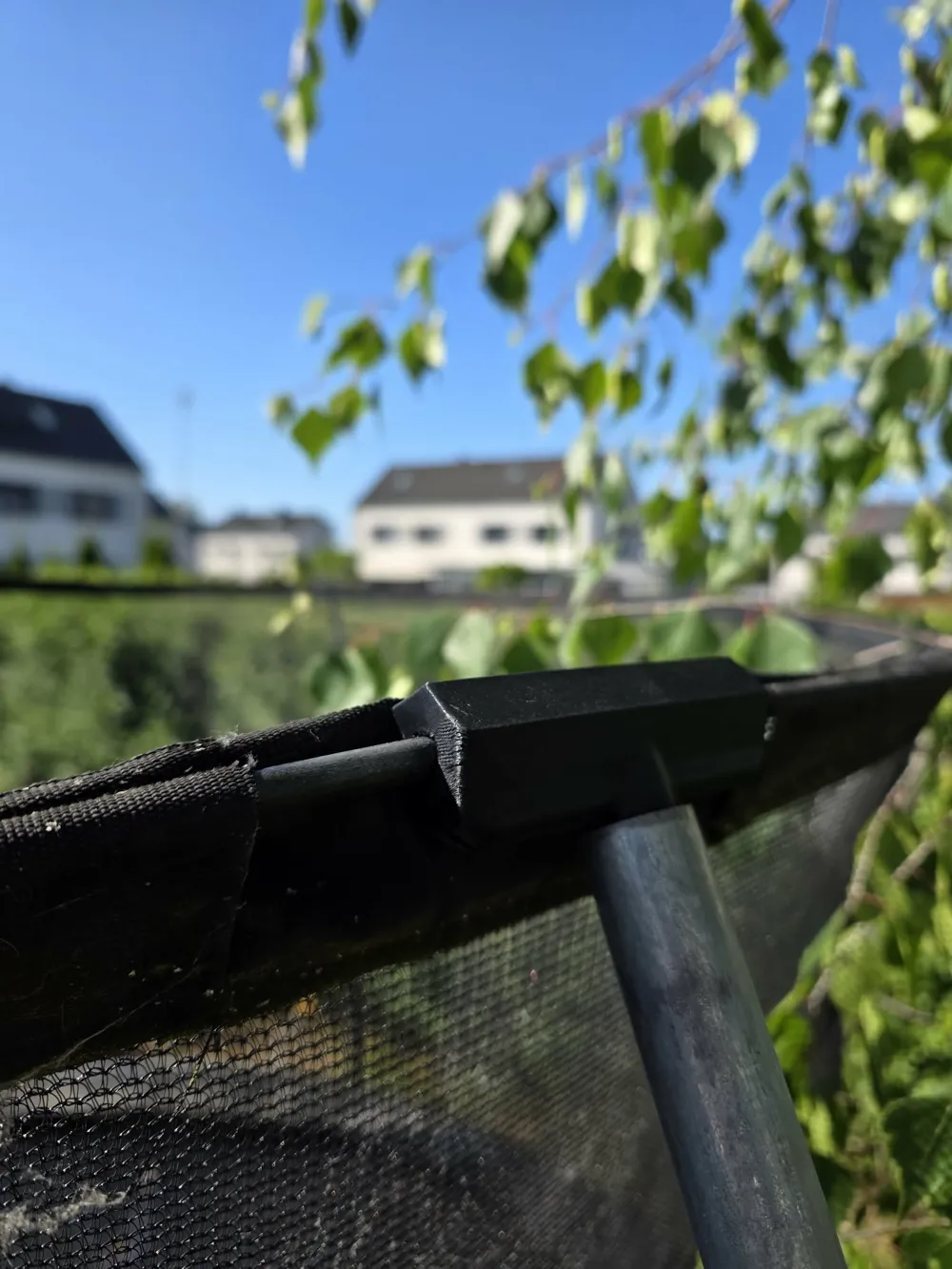

The original connector on my trampoline broke, so I designed a replacement part from scratch, printed it in ASA, and tested it on the trampoline. The part connects the upper horizontal net support tube with the vertical pole that holds the safety net. The model was designed with strength in mind, using a specific print orientation and internal reinforcement channels to improve durability in the most stressed areas.

Features

• Replacement connector for trampoline safety net poles
• Designed for a 2.5 m radius trampoline
• Printed in ASA for outdoor use

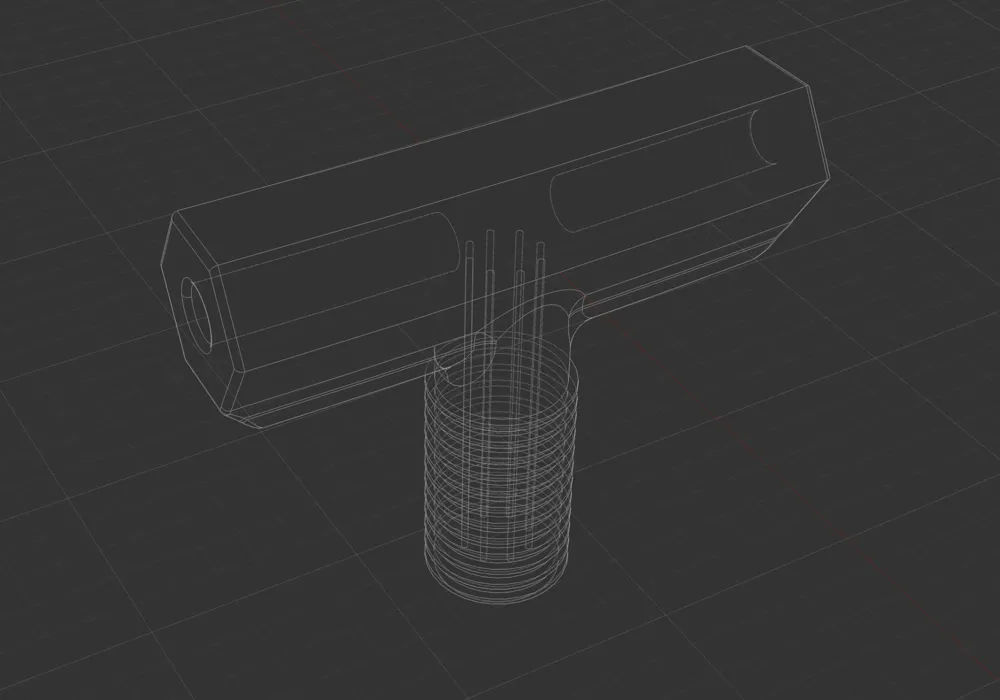

• Internal reinforcement structure

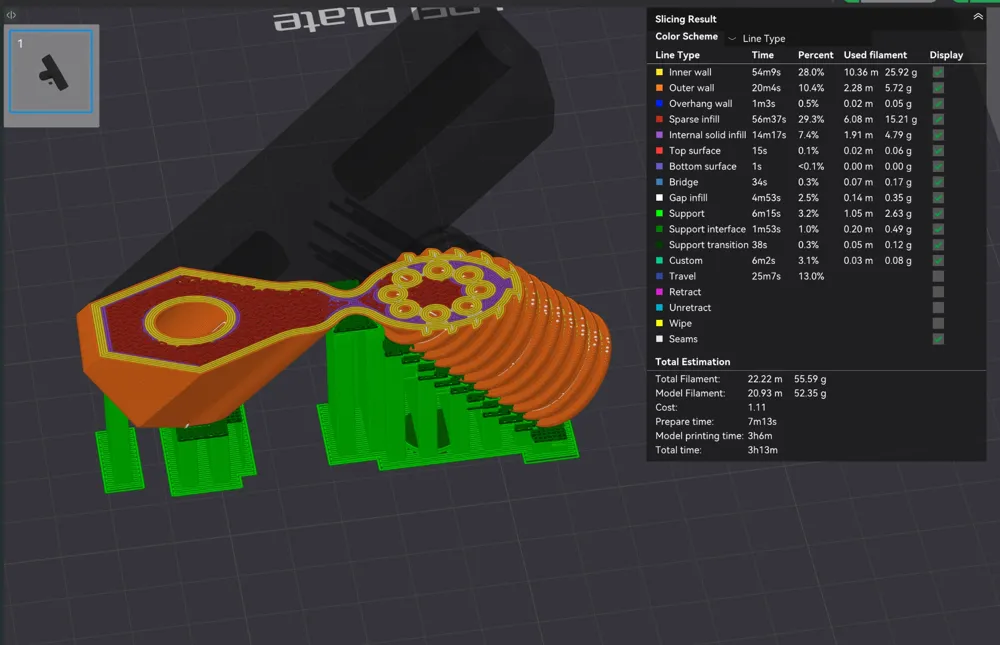

• Strength-optimized print orientation
• Designed to fit the upper net pole connection
• Good option when the original plastic connector breaks
• Useful repair part instead of replacing the whole trampoline/net frame

Recommended Material

ASA is strongly recommended because this part is used outdoors and exposed to sun, heat, rain, and mechanical stress.

PETG may work for temporary use, but ASA is the better choice for long-term outdoor durability.

Important Safety Note

This model was designed for my own trampoline and may not fit every brand or pole diameter.

Before use:

• Check that the part fits your trampoline correctly
• Inspect the print for cracks, layer separation, or weak spots
• Test carefully before allowing children to use the trampoline
• Recheck regularly after outdoor exposure
