Winchester Xpert .22 LR Chassis (AR Inspired)

Hello all, I wanted a better more modular chassis for my Winchester Xpert .22lr Rimfire rifle.

I spent multiple hours and countless prototype PLA prints to get to this point now.

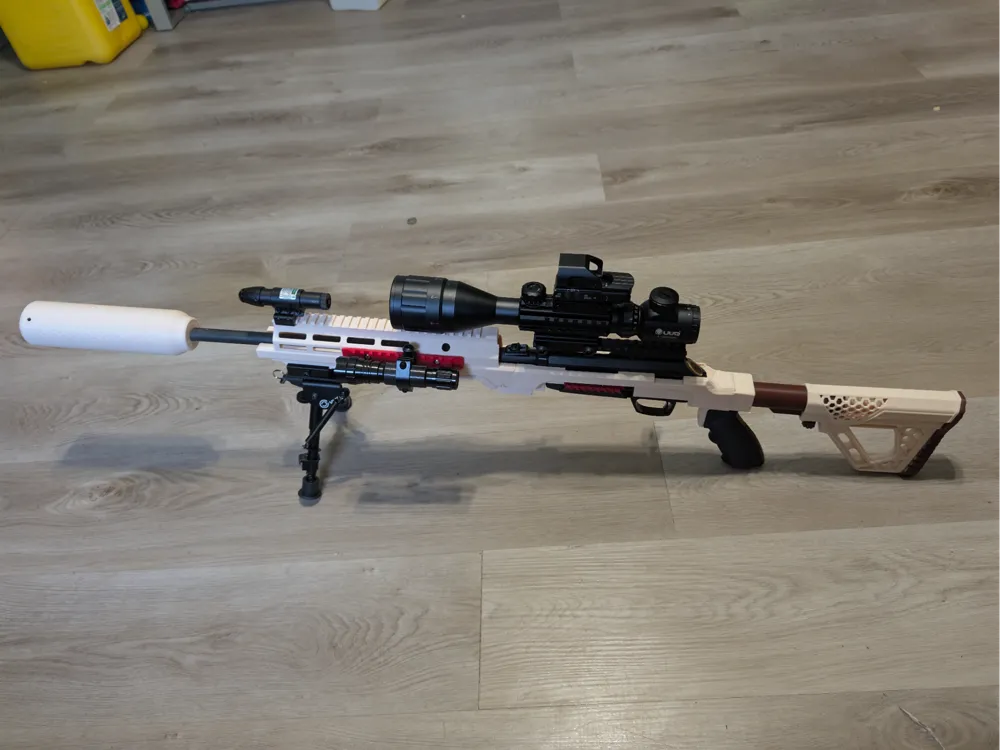

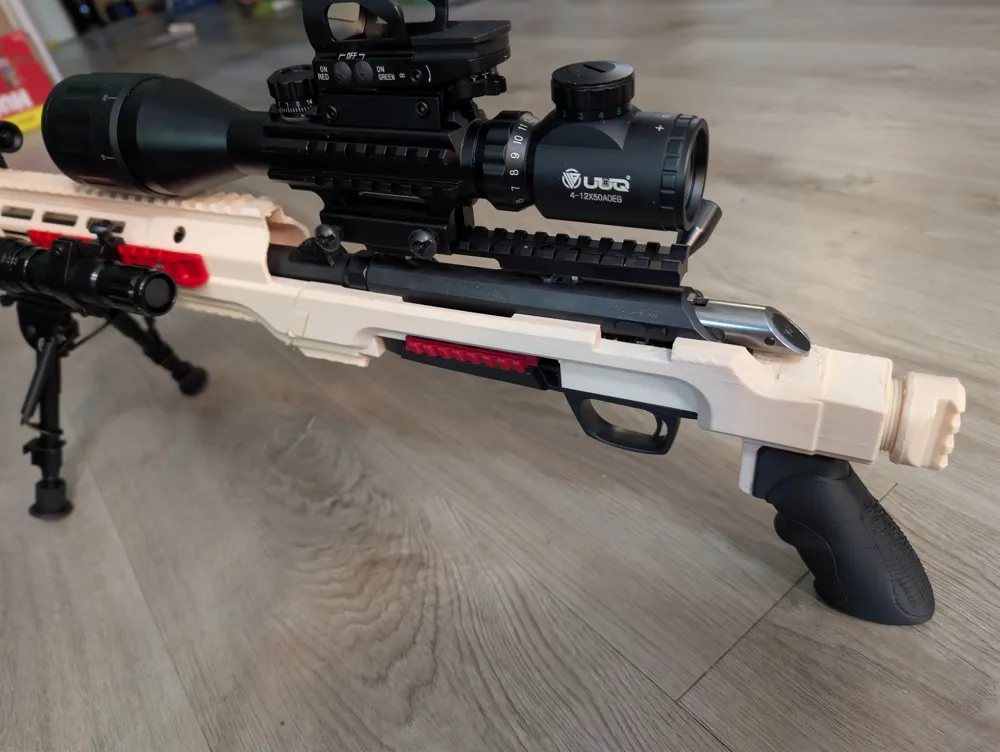

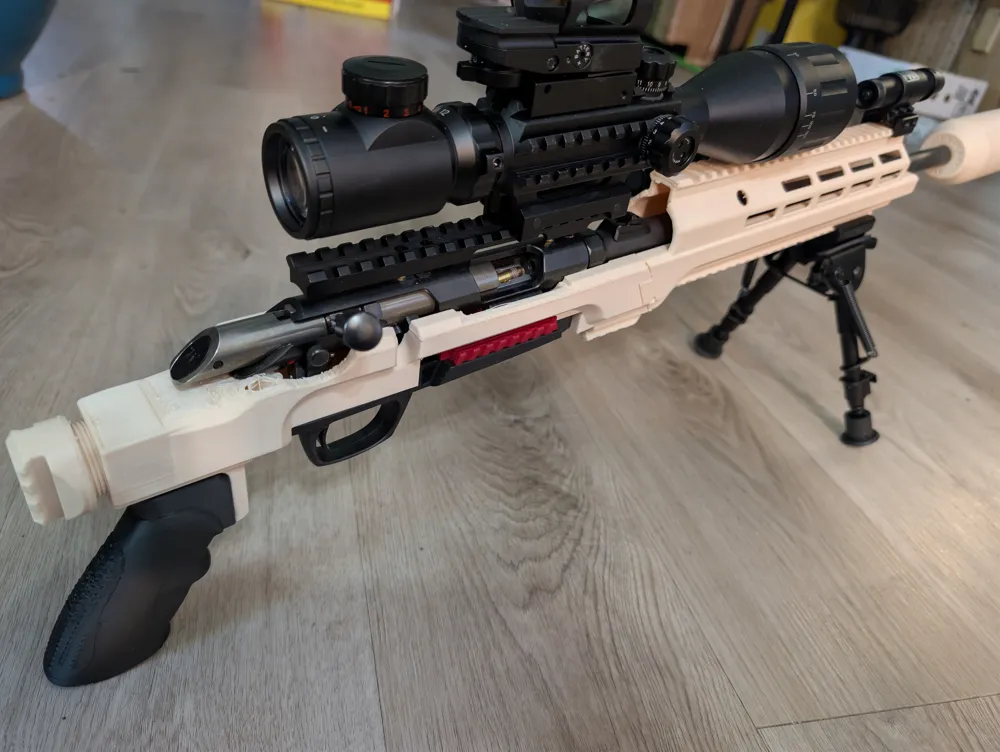

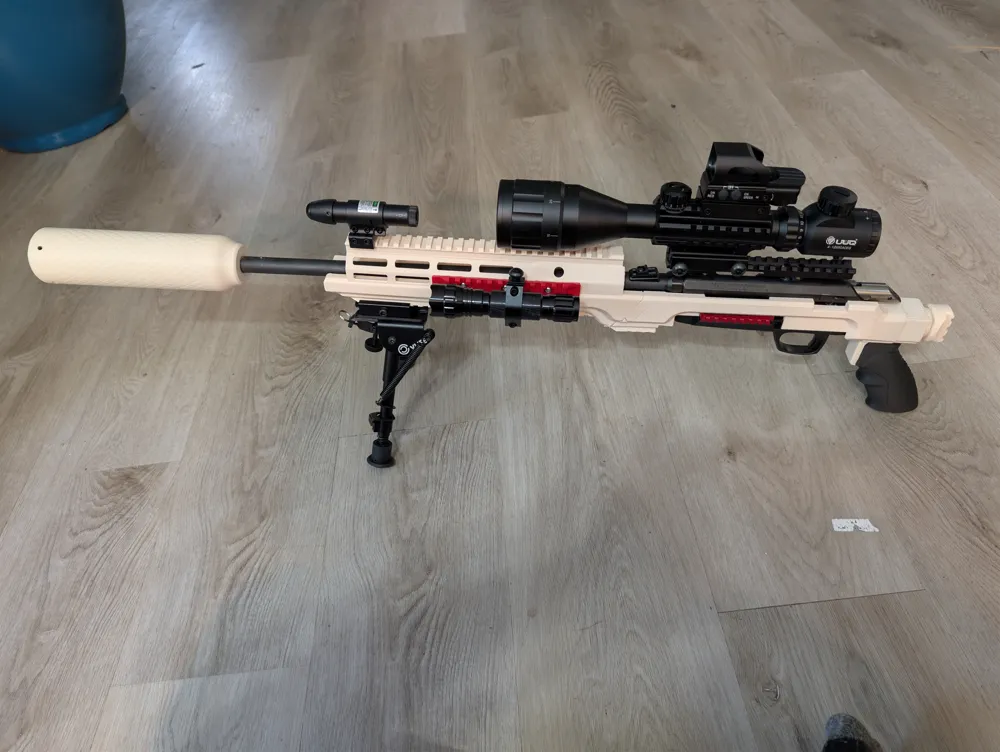

I will post finished print model photos once it is done, for now just know I've printed it 18 times, little adjustment by little adjustment to get to this point.

If i posted it, it works.

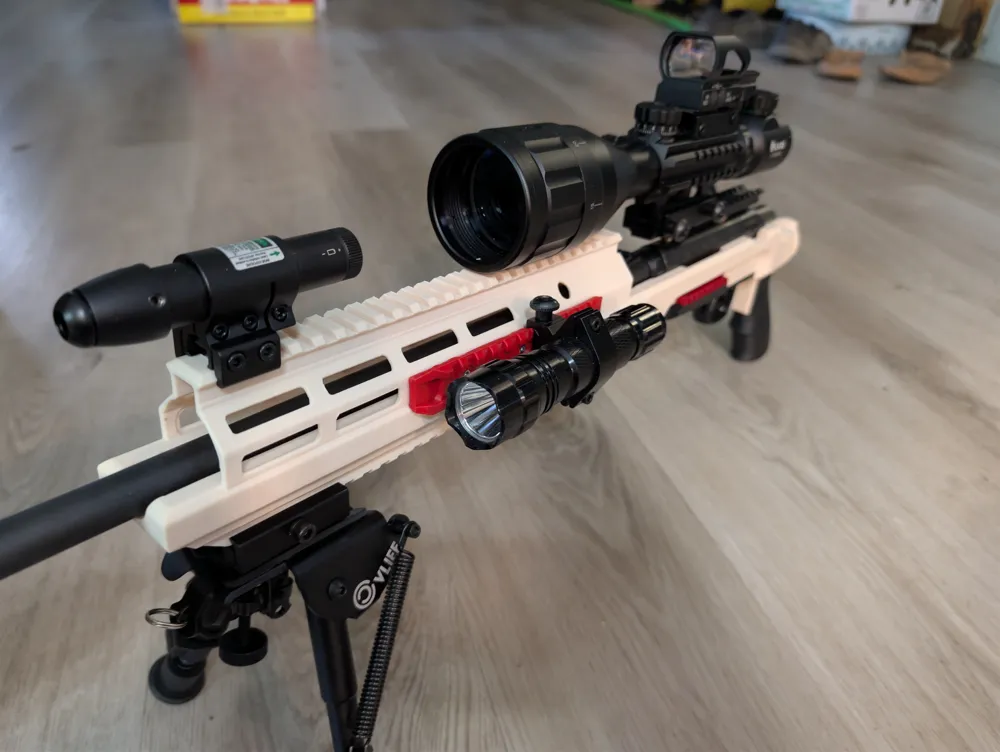

The main point of this was to make something easily replaceable if it breaks as well as add more “tactical” options for the platform as i felt the one main picatinny rail on the top and small bipod mount on the lower front was not enough. This design also adds buffer tube threads on the back to add your favorite stock, I prefer folding but I am currently designing a skeletonized folding stock for the rear similar to the style of the original one.

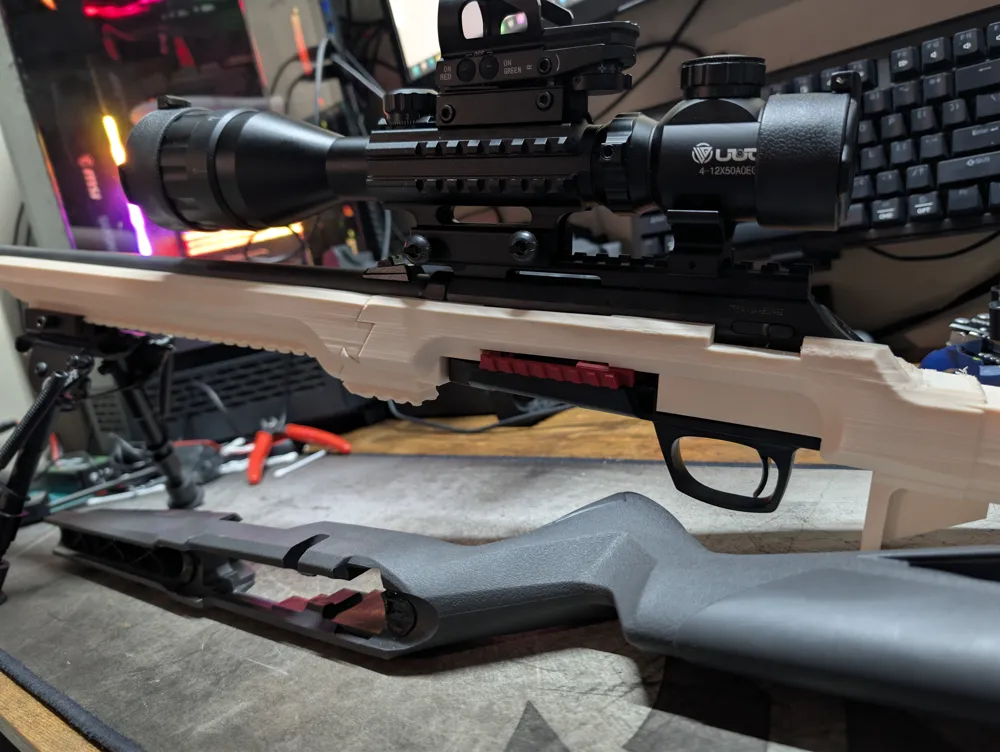

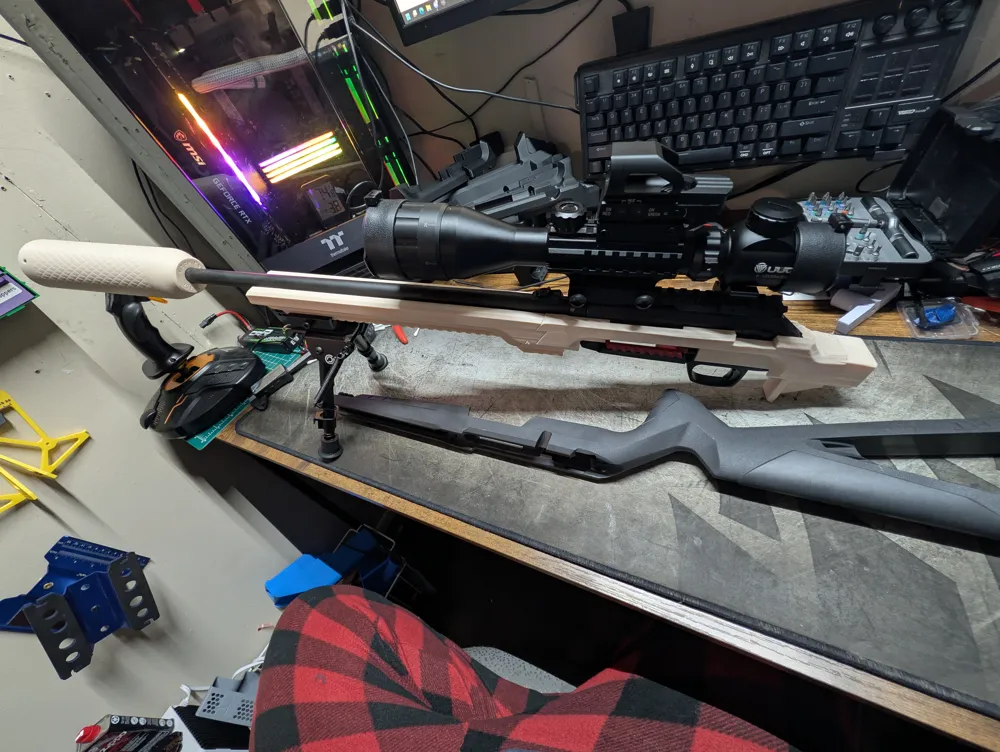

Hope this helps someone as I know I couldn't find ANY useful chassis info out there on this gun so i had to make what I did from nothing but a stock chassis.
