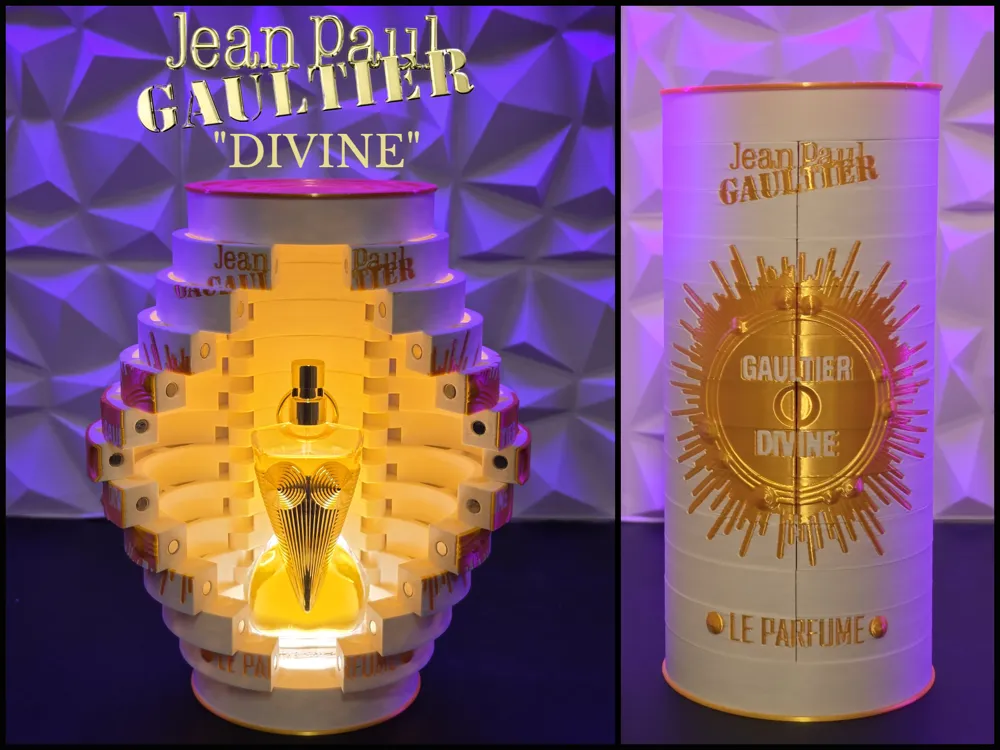

Jean Paul Gaultier DIVINE “LE PARFUME” Folding door display box.

From Whiskey to Fragrance: The Next Level of Mechanical Displays

If you've followed my work, you know I love a good mechanical reveal. I’ve built everything from whiskey and soda cases to Pokémon displays and jewelry boxes.

It was finally time to do one for the ladies.

This is a custom Folding Door Box designed specifically for the Jean Paul Gaultier DIVINE “LE PARFUME” fragrance. Instead of a simple lid or a nesting shell, I engineered a multi-segmented door system that retracts smoothly to reveal the glowing fragrance bottle.

It's designed to print with minimal support material waste. I have carefully layed out the pieces so that there is minimal waist when printing with ams.

 Want it to look just like my printed model? Use these filaments. Buy through BOM.

1. Bambu Jade white PLA Basic
2. Bambu Gold PLA silk +

3D printed parts :

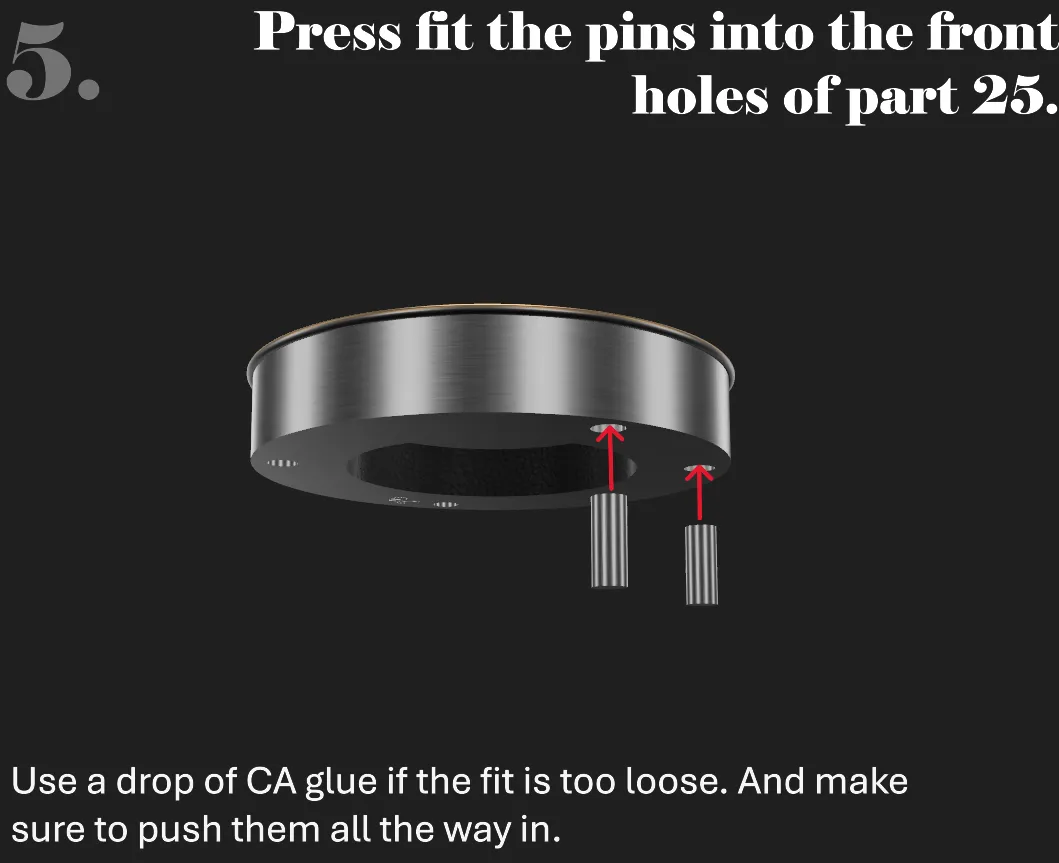

• Top pins x 2
• Base for LEDx 1
• Top x 1
• Back pcs x 11
• Door parts x 22
• (Alternative base without LED)

Other parts required :

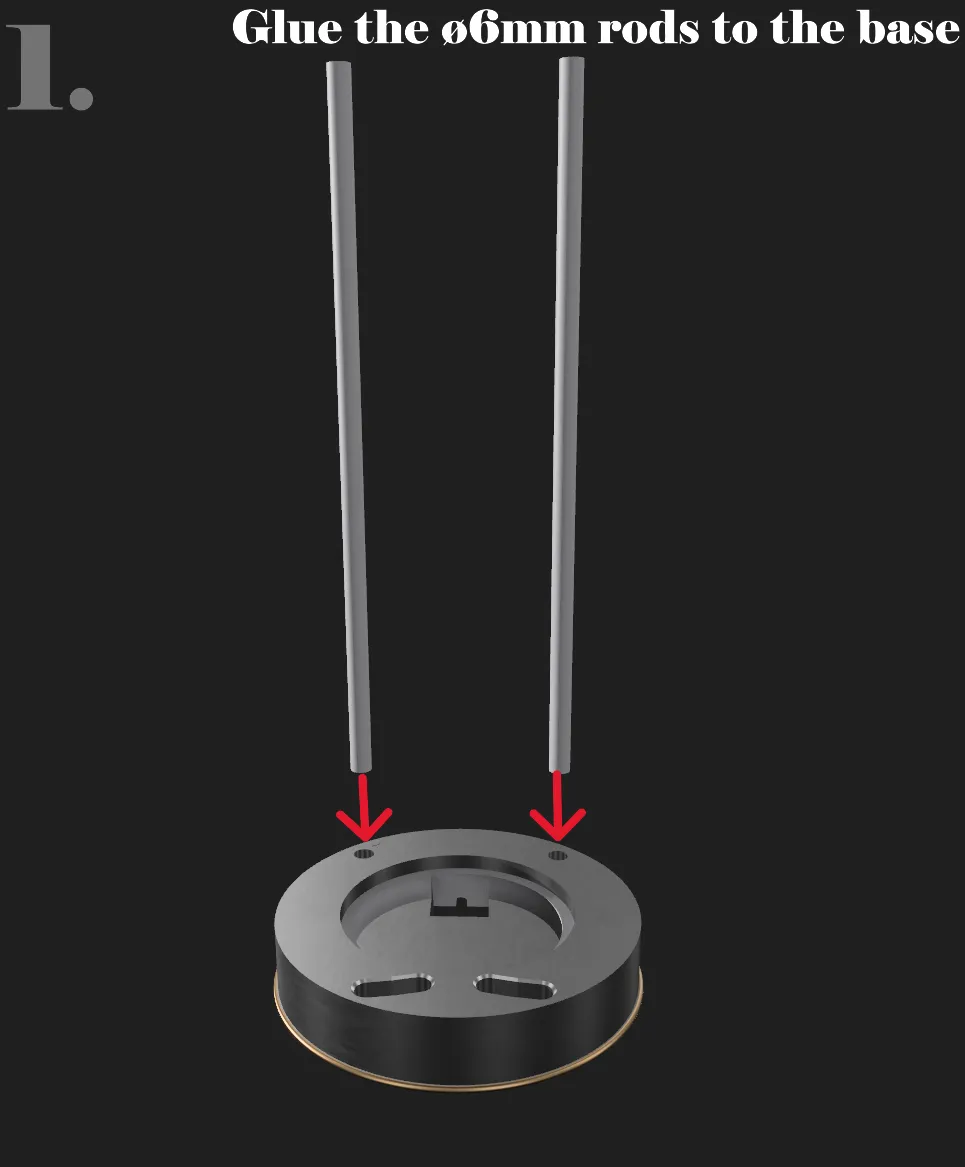

• 2 pcs Steel/alu rods ø6mm x 200mm long.  !!Link bellow!!

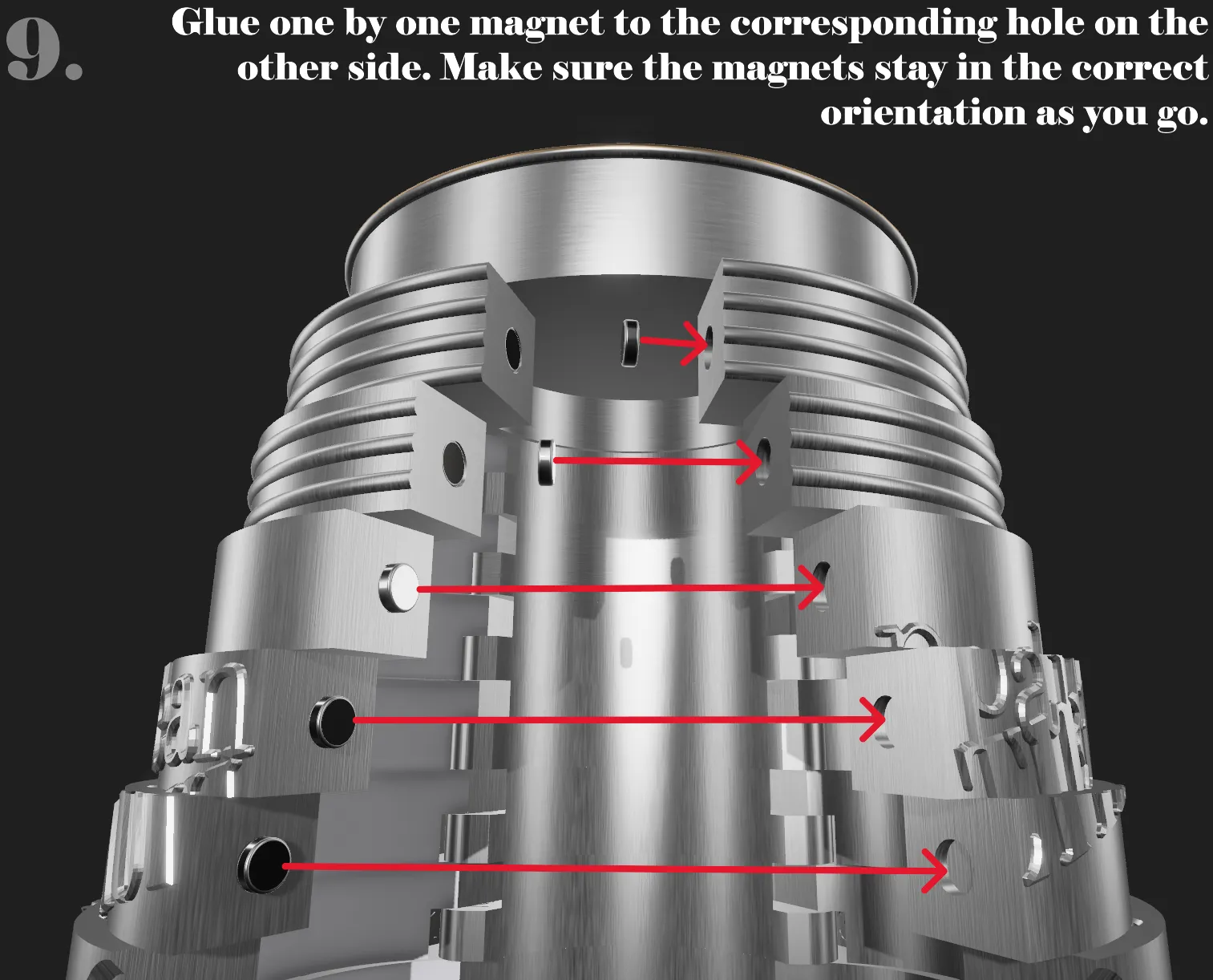

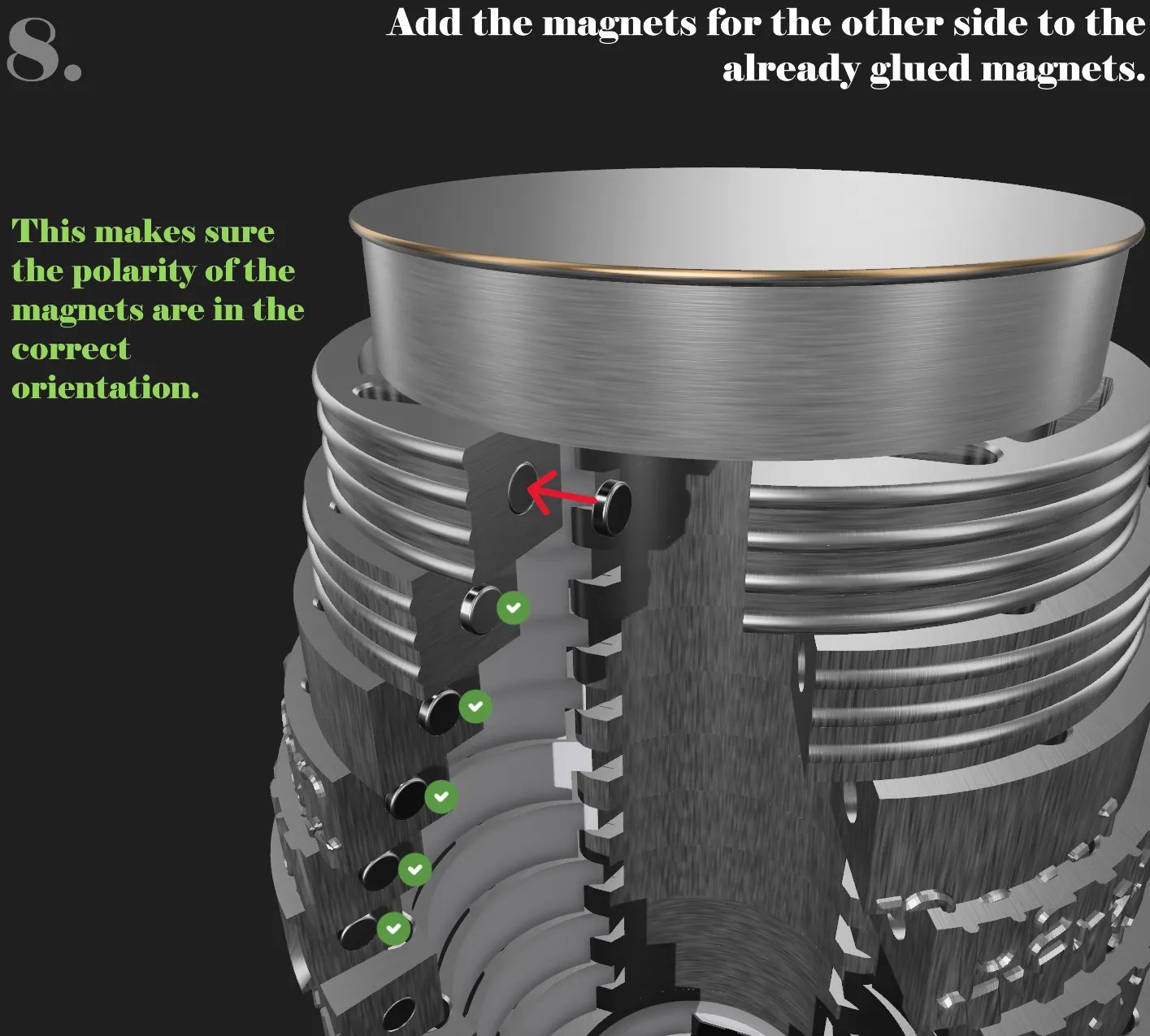

• 22 pcs Round Magnets 6x2mm
• Ca glue.

• Optional : Led Lamp Kit 001 or KC007



You can find the steel rods you need here  →   (affiliate link)

If Bambu i out of stock, buy LED here → (affiliate link)

Round magnets →   (affiliate link)

(Everything you buy through these links give me a small commission, so thank you for using them)

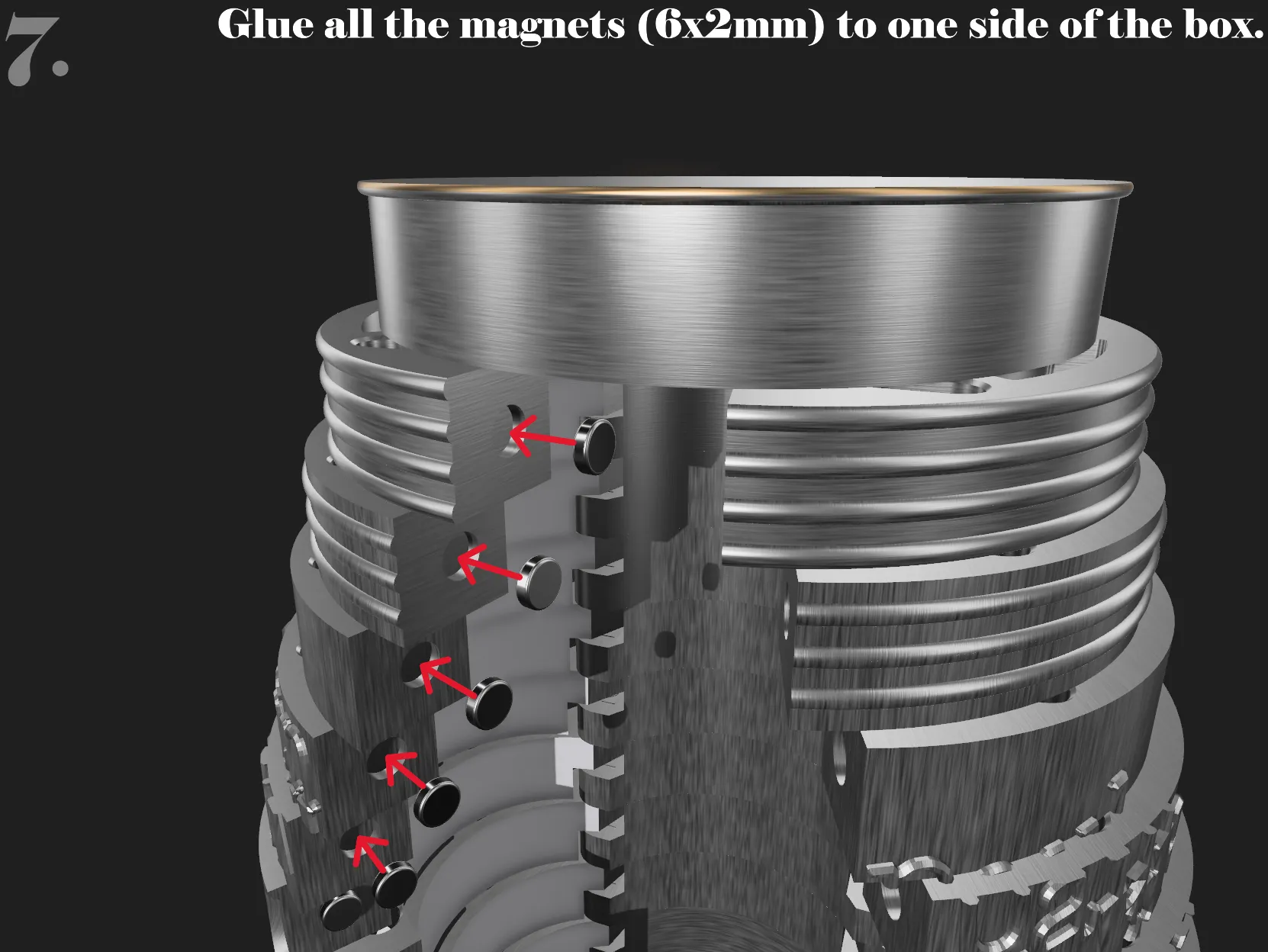

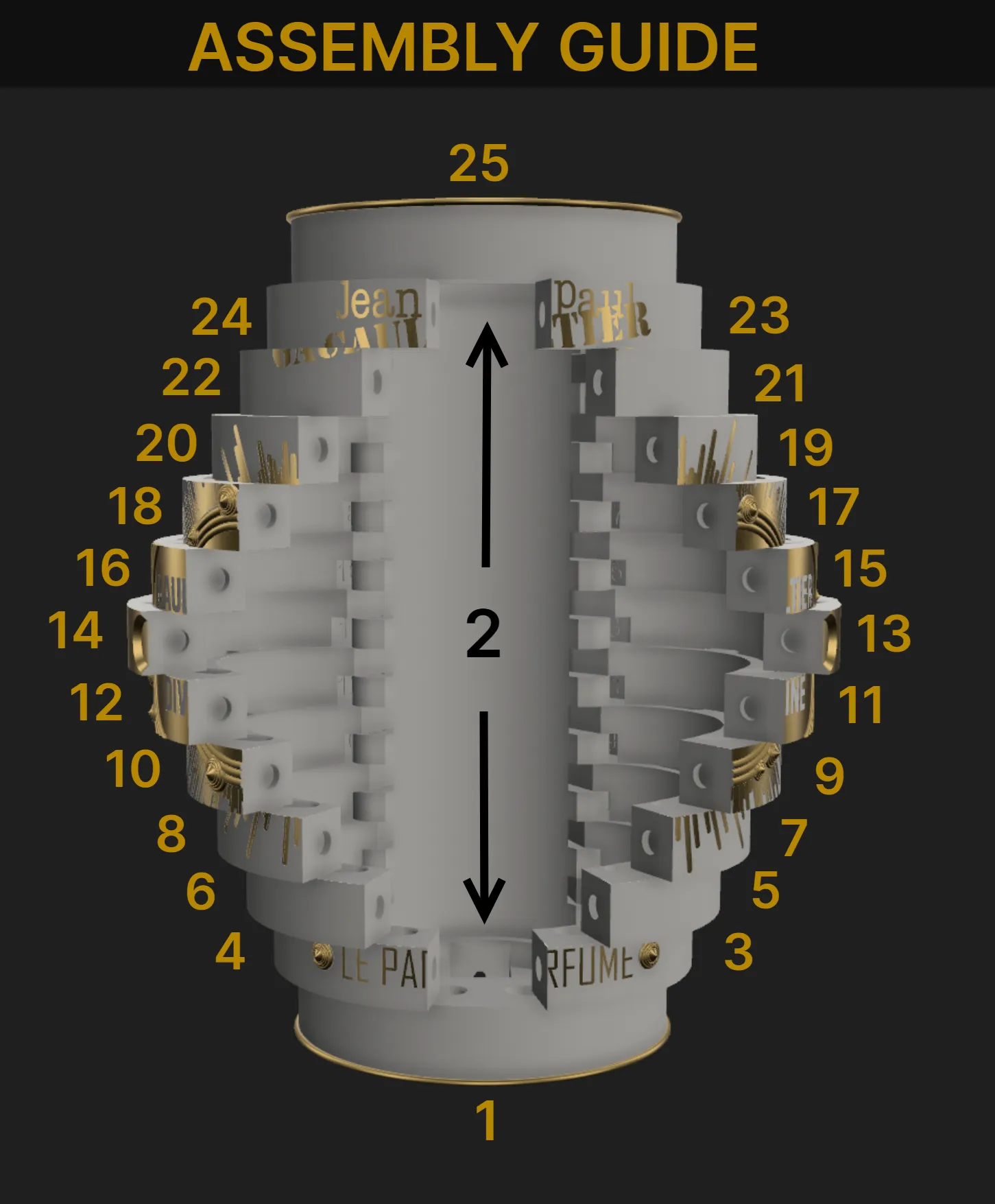

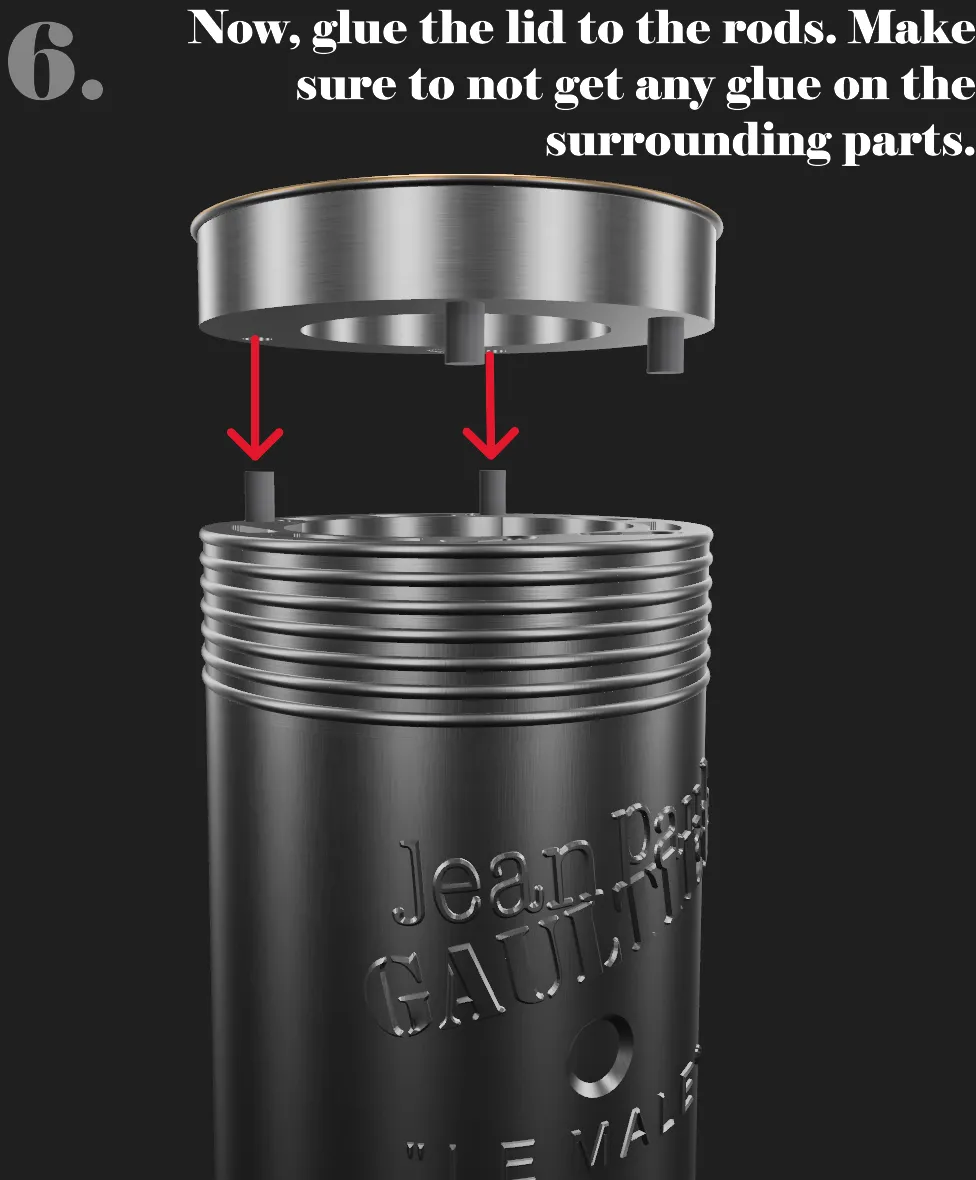

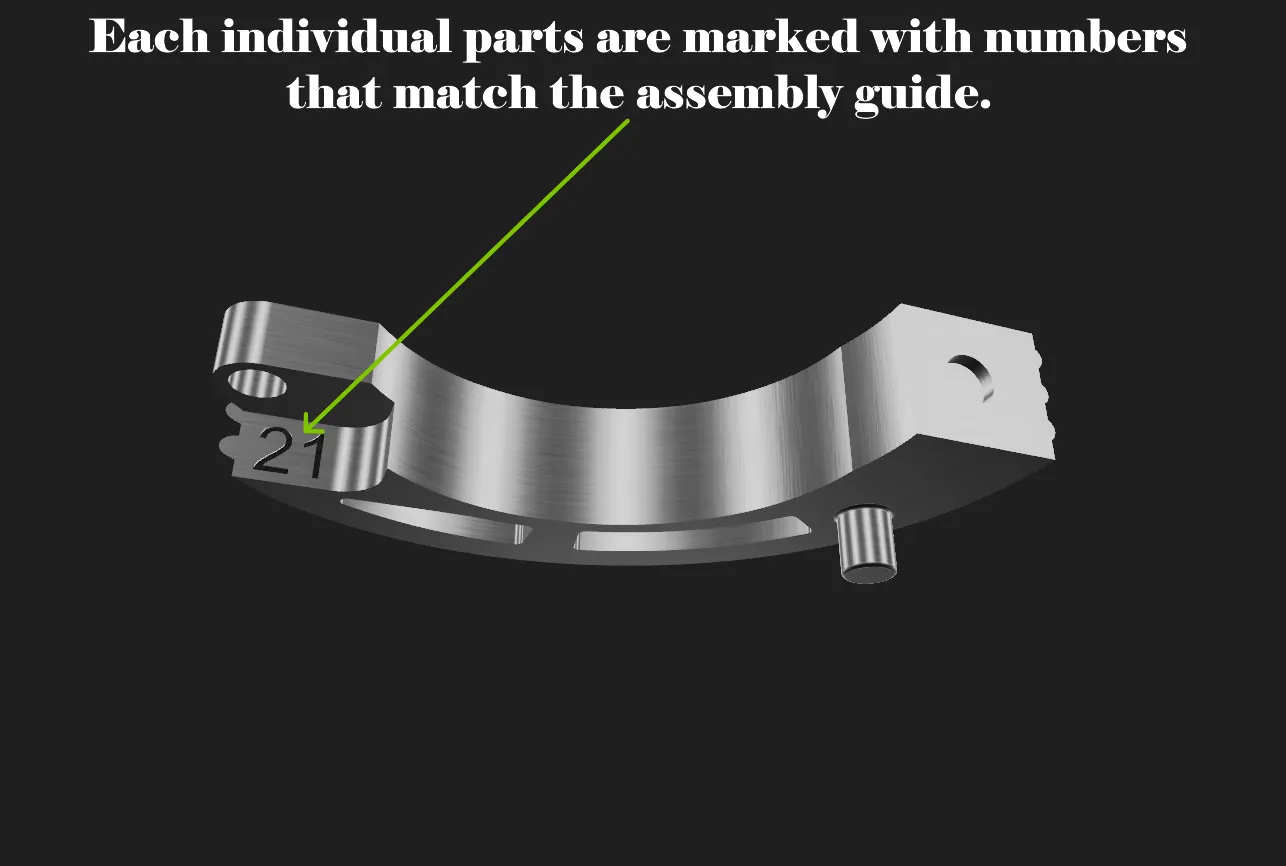

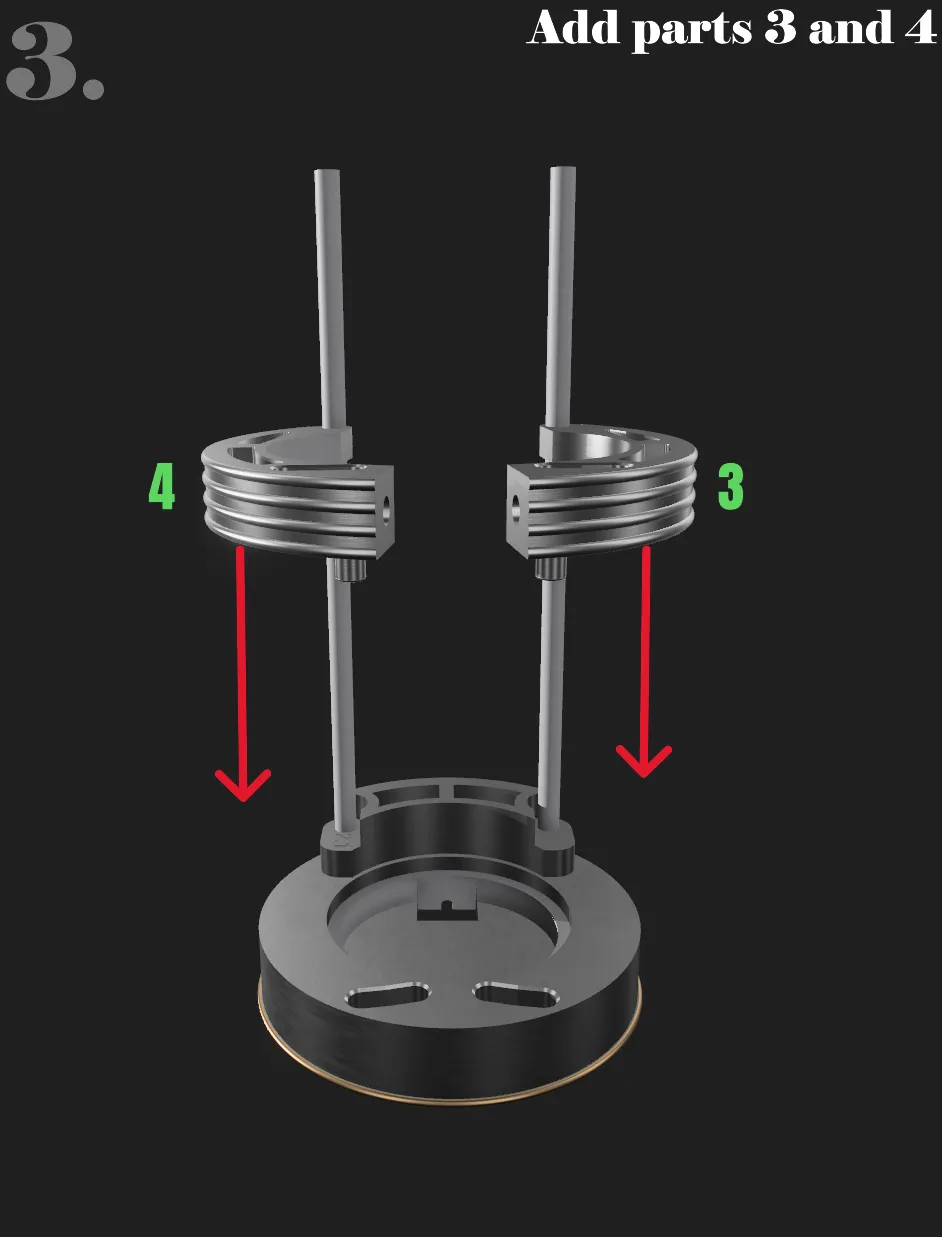

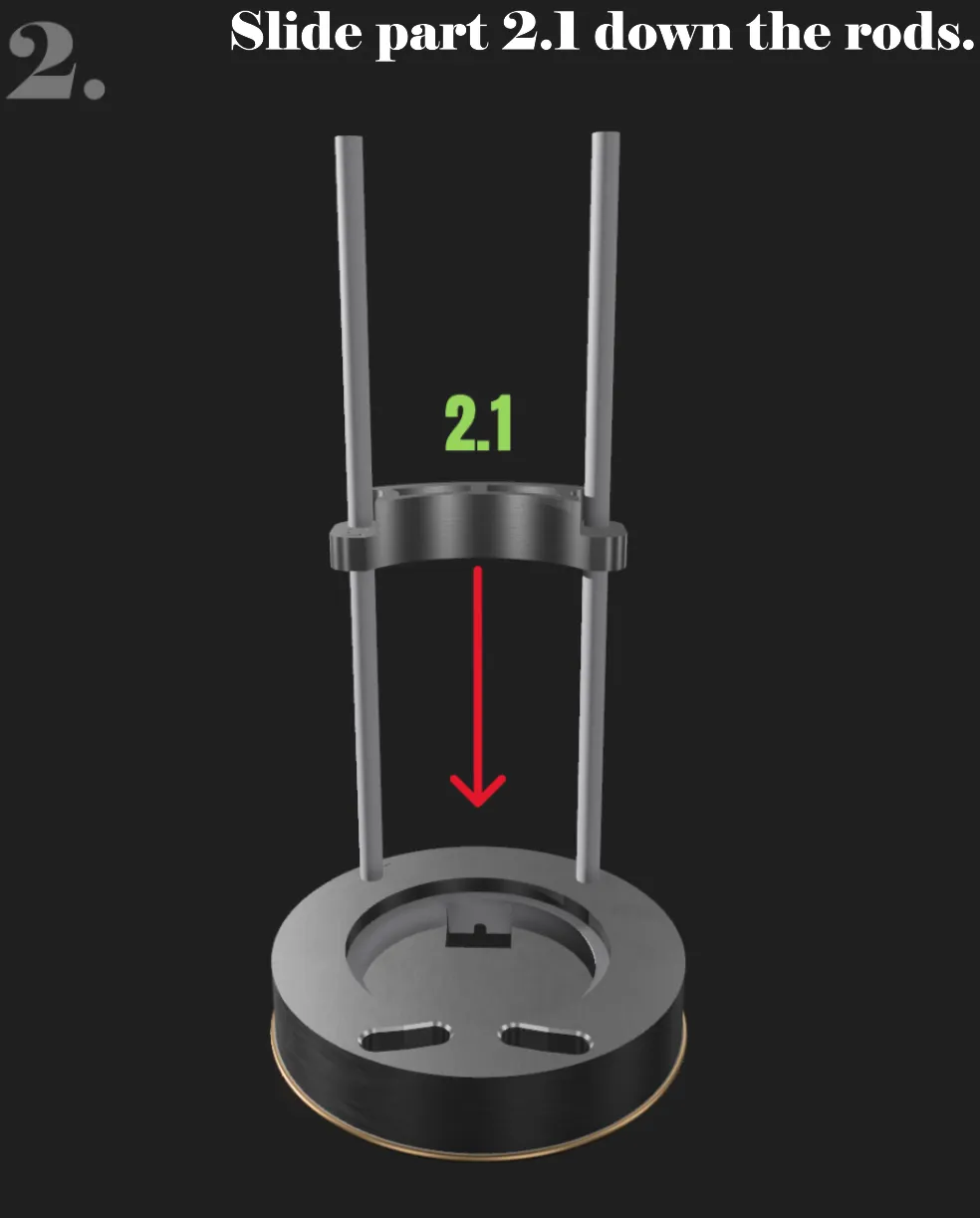

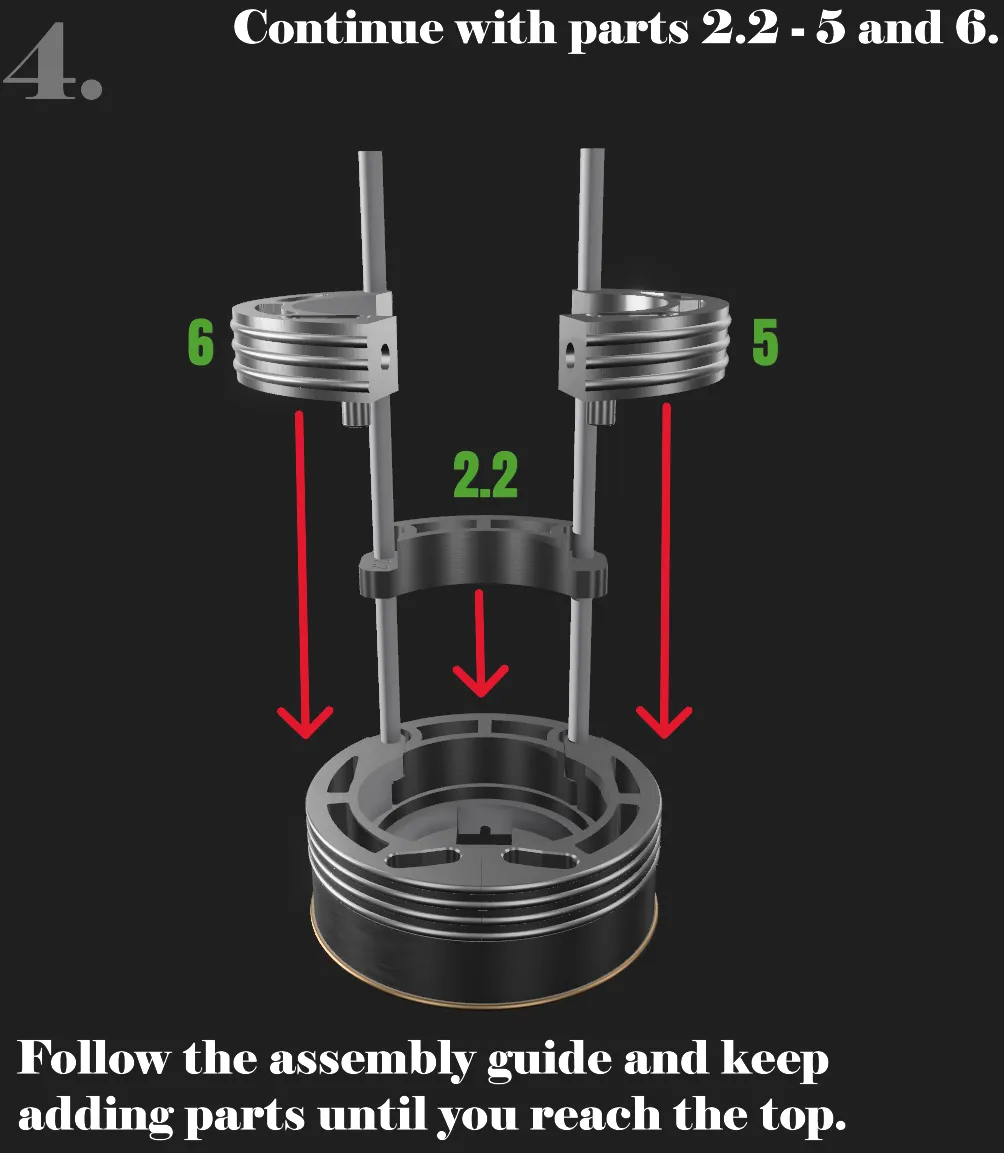

One's you have printed all the parts and acquired the accessories you need, just follow the assembly guide down below.

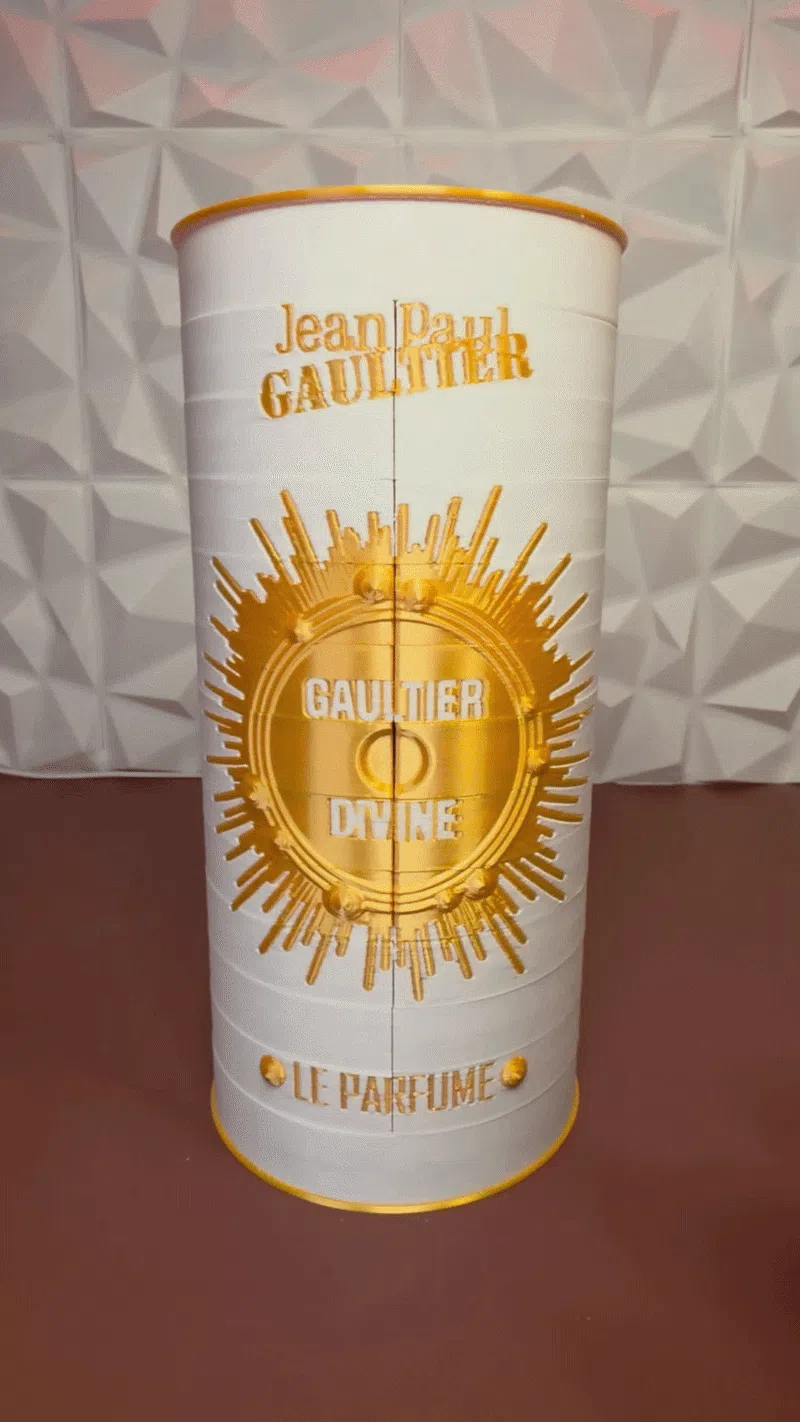

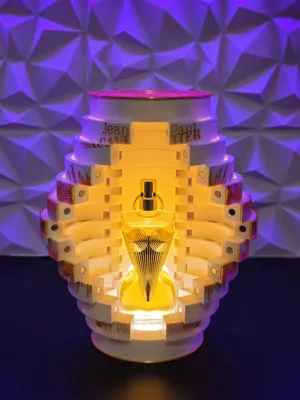

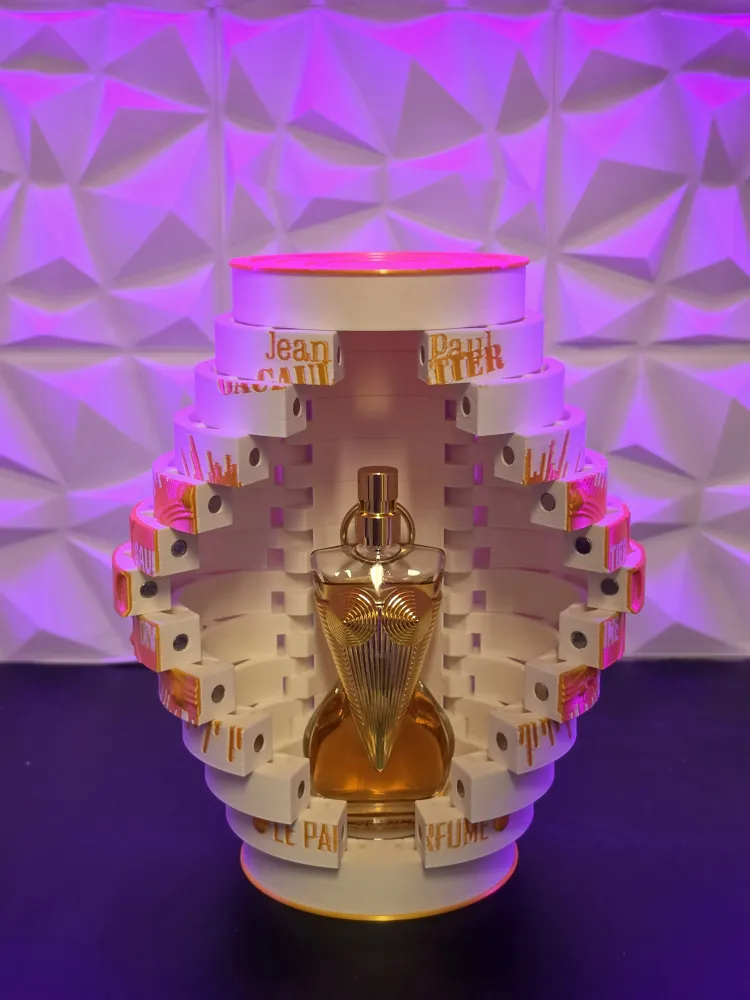

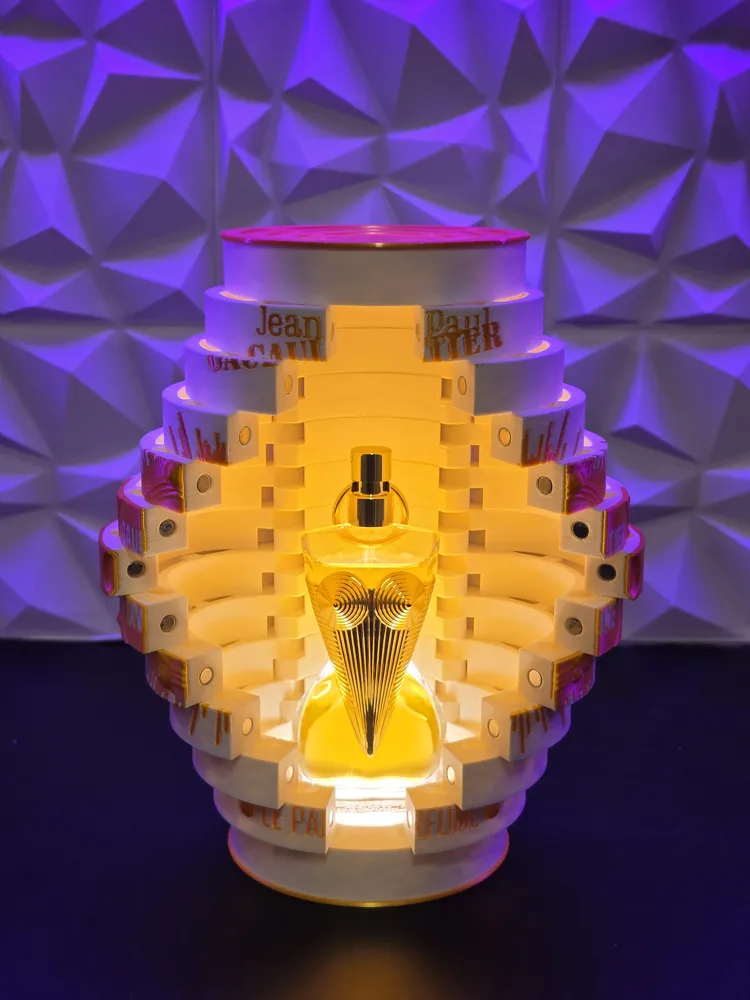

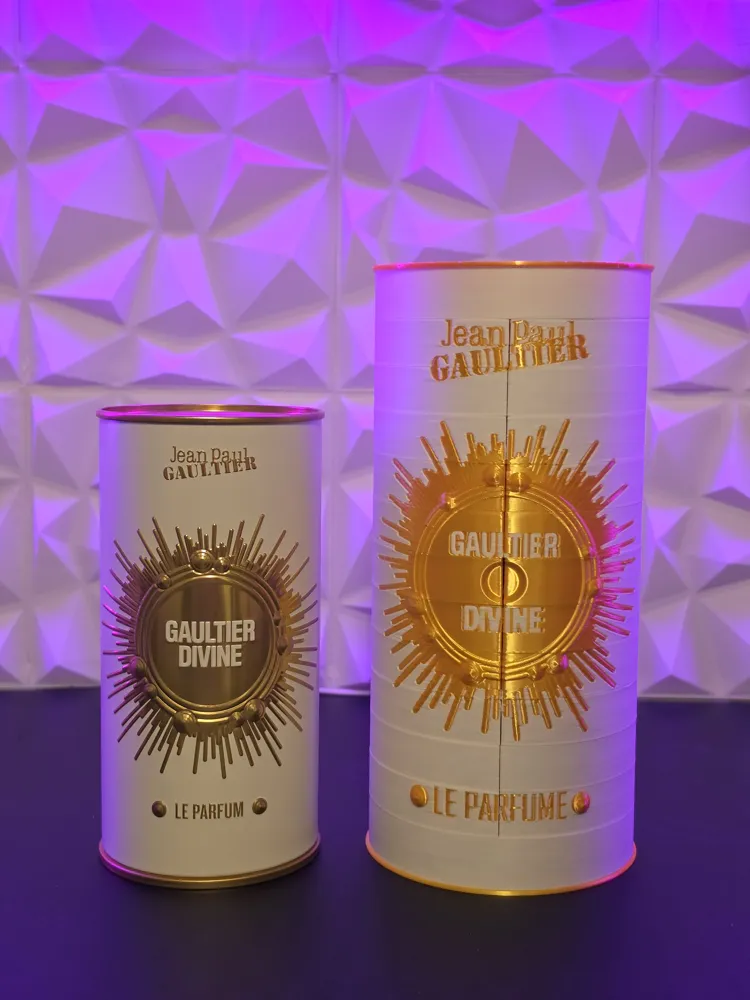

When your done, it should look something like this.
