Bambu Lab H2 Poop Chute

Simple and effective purge chute / poop duct for the Bambu Lab H2 series printers (H2S / H2D / H2C).

The system is composed of two separate parts:

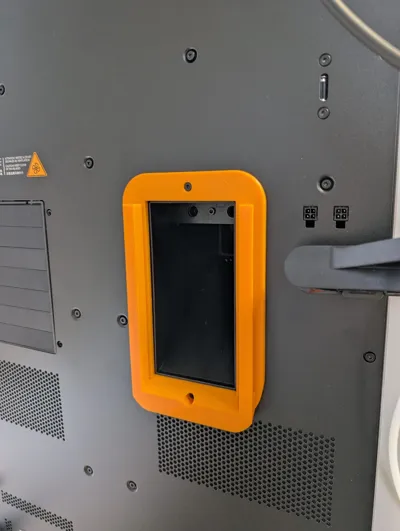

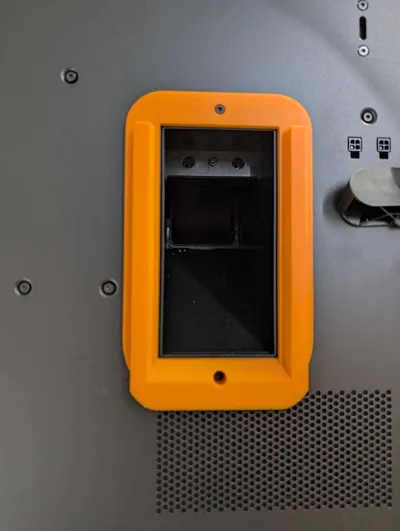

• A mounting bracket that attaches directly to the printer using the existing upper and lower screws from the purge outlet

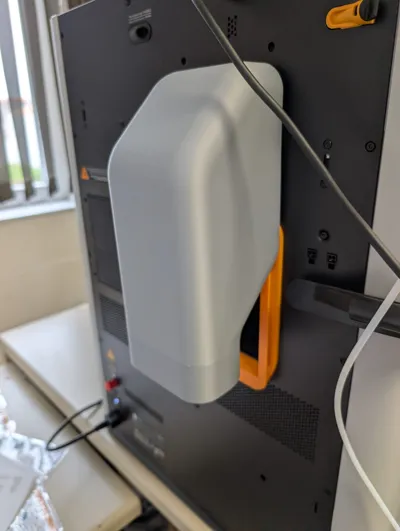

• The chute itself, which slides downward into the mounted bracket and locks into place

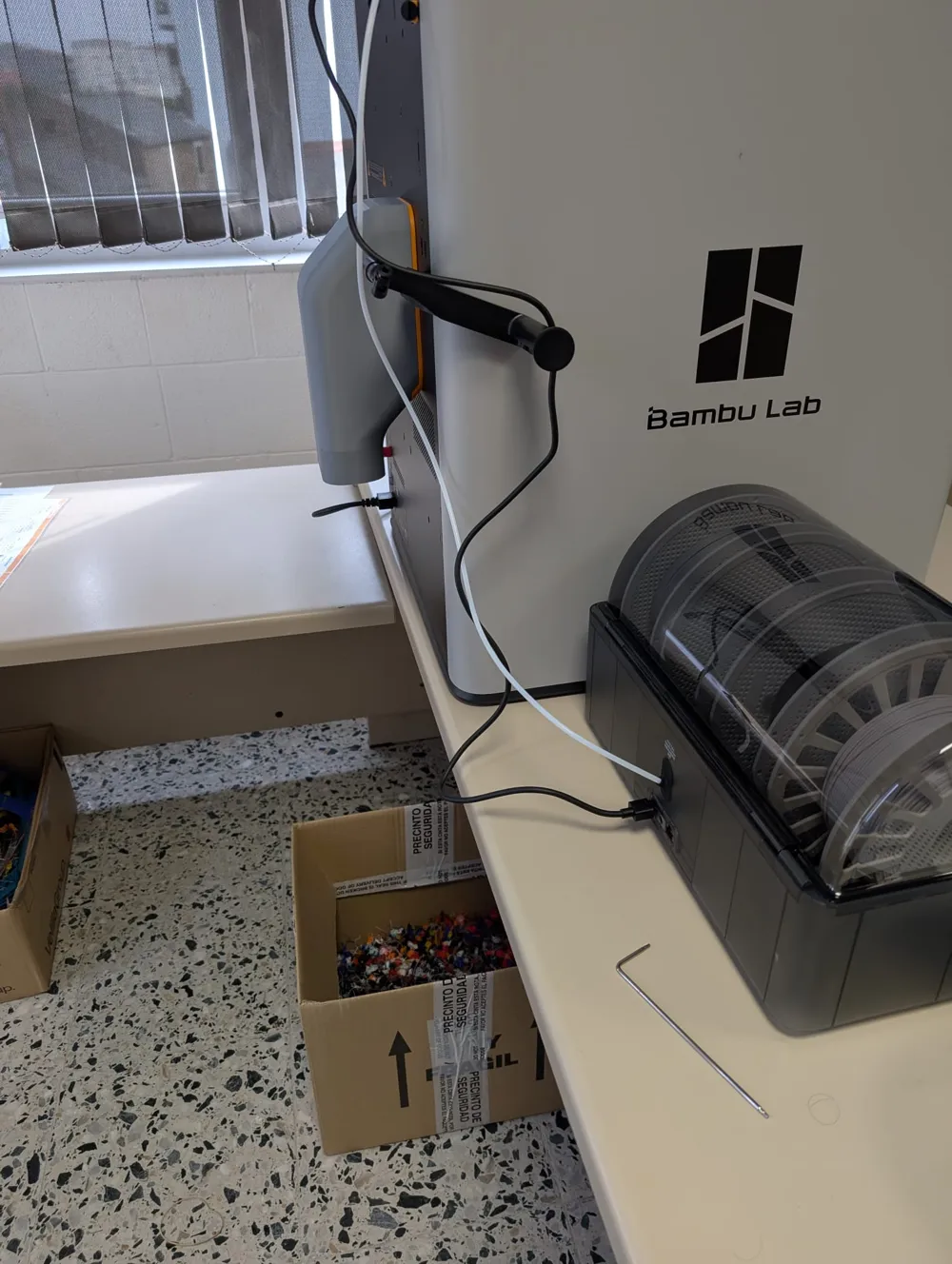

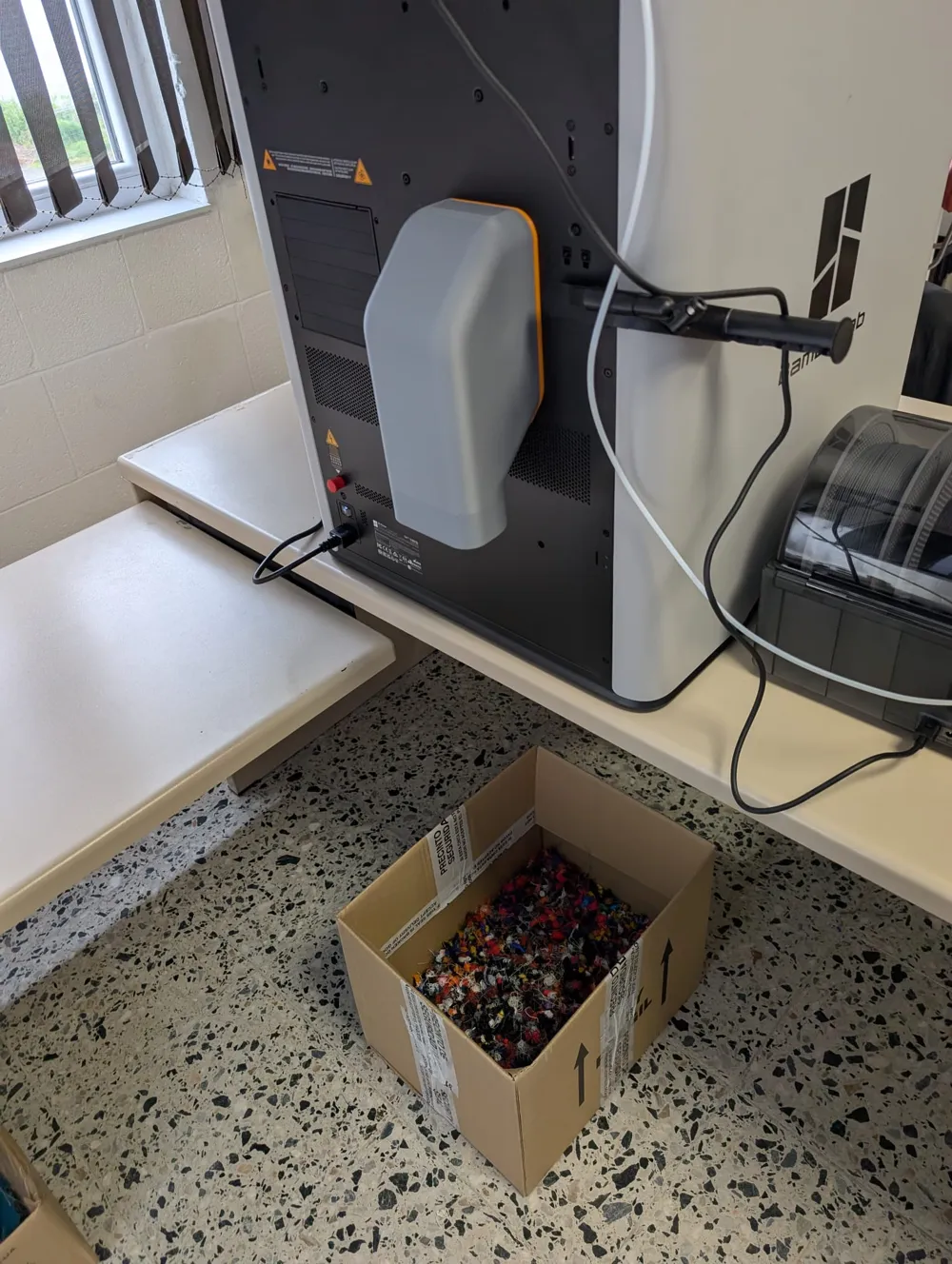

This allows all purge waste to fall directly into a large box placed under the desk, helping keep the printing area clean and preventing filament scraps from spreading around the printer.

The design is intentionally simple, lightweight, and uses very little filament while still being highly effective.

Printing notes

• The chute part requires supports
  (manual tree supports are already pre-painted in the recommended areas)
• The mounting bracket prints without supports

After printing the bracket, it is recommended to lightly clean the hook overhangs with a hobby knife/cutter to remove small loose strands caused by the unsupported overhang sections.
