0.2mm layer, 3 walls, 40% infill

大鱼朱雀皮带紧张器1.0（云雀移植版）

B站【大鱼DIY】自制3D打印机_云雀 V1.06

<boostme><boosttitle>为我助力</boosttitle><boostcontent>攒积分换MIni</boostcontent></boostme>🎯 想法&nbsp;        2.0版本消除了皮带向后顶起的问题，更加好用。        【大鱼朱雀打印机】是通过【移动电机座】来调节皮带松紧的，操作比较困难，难以精细调节。        从【云雀】中获得灵感做的【朱雀皮带张紧器】，拧动侧面螺丝即可调节皮带张紧度。&nbsp;🖨️ 打印参数<ul style="list-style-type: disc"><li>层高：0.2</li><li>墙层：3</li><li>填充：40%</li></ul>&nbsp;🔩 额外需要<ul style="list-style-type: disc"><li>M3×35 平头内六角螺丝 ×2</li><li>M3×16 平头内六角螺丝 ×2</li><li>M3×6×2 方形螺母 ×2（厚度没太大影响，购买时选便宜即可）</li></ul>

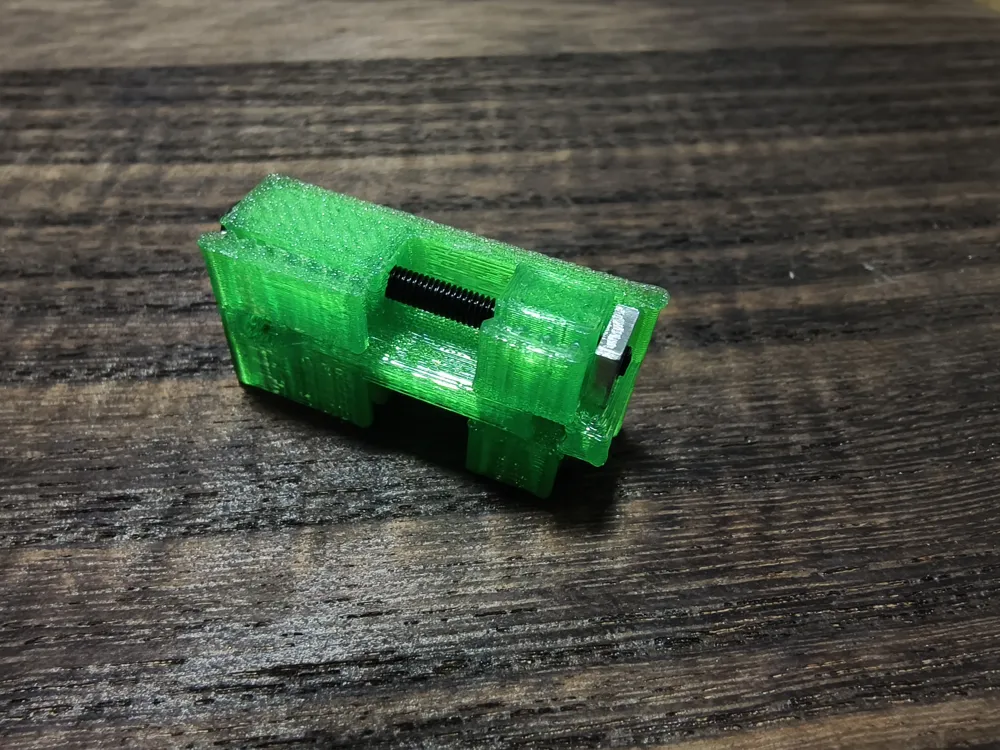

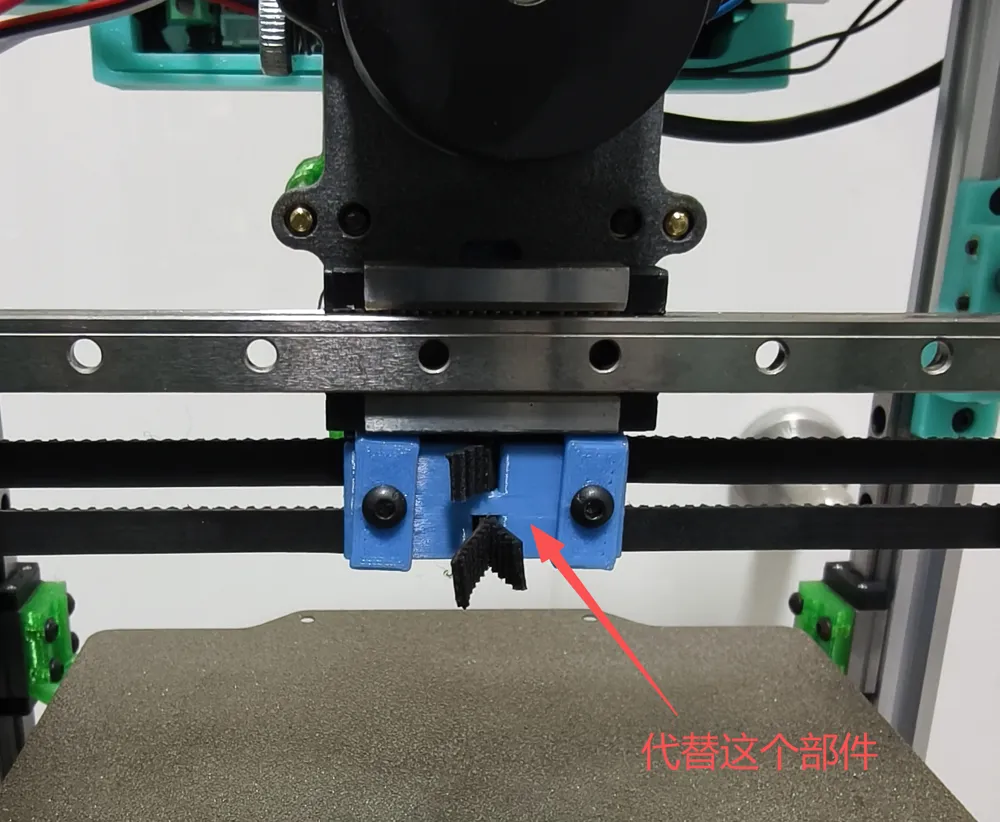

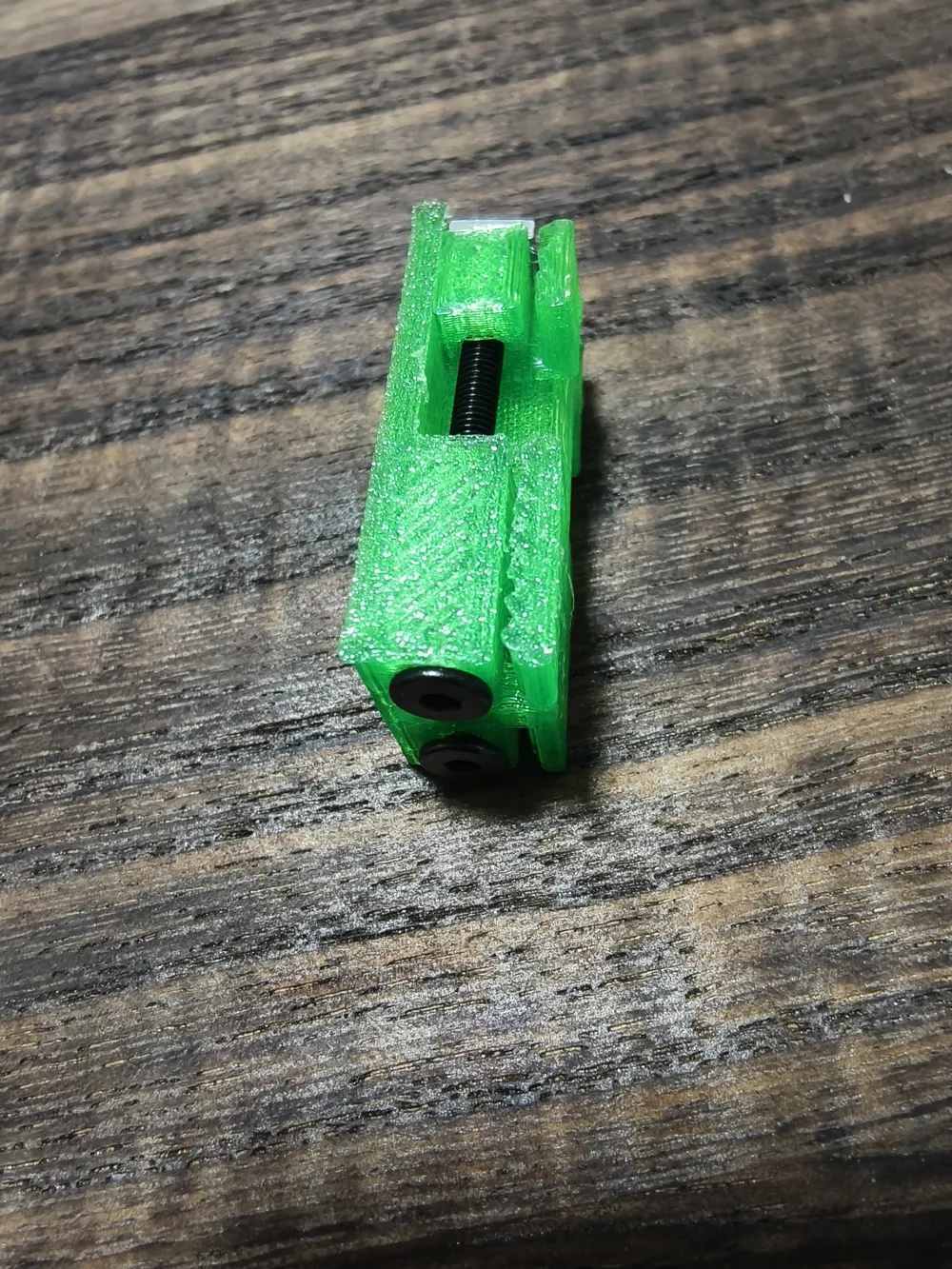

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Collect points to exchange for a Mini</boostcontent></boostme>🎯 Idea&nbsp;        Version 2.0 eliminates the issue of the belt pushing backward, making it easier to use        The Dayu Zhuque printer adjusts belt tension by moving the motor mount, which is difficult to operate and hard to fine-tune        The Zhuque belt tensioner, inspired by the Skylark, allows you to adjust belt tension by turning the side screw&nbsp;🖨️ Print Settings<ul style="list-style-type: disc"><li>Layer height: 0.2</li><li>Walls: 3</li><li>Infill: 40%</li></ul>&nbsp;🔩 Additional Requirements<ul style="list-style-type: disc"><li>M3×35 flat head hex screws ×2</li><li>M3×16 flat head hex screws ×2</li><li>M3×6×2 square nuts ×2 (thickness has little impact, choose the cheapest when purchasing)</li></ul>

Big Fish Vermilion Bird Belt Tensioner 2.0 (Perfect Fit)
