Dual Kids bike mount hooks for Thule Pack 'n Pedal

Print Profile(1)

All
X1 Carbon
P1P
A1
H2C
H2D
P2S
X1
H2D Pro
P1S
H2S
X1E
X2D
A2L

0.2mm layer, 6 walls, 25% infill
0.2mm layer, 6 walls, 25% infill
Designer
4.5 h
1 plate

Open in Bambu Studio
Boost
2
3
0
0
2
0
Released

Description

Only tested with 14-inch Early Riders, but it might work well for other similar-sized bikes too. The effective spacing between the hooks is 30.5 cm (inner edge to inner edge).

I've been using these without any issues on a cargo bike for a few weeks. But naturally, use with care and at your own risk. I find it useful for one-way trips or as a fast "back home" ticket.

One-sided use with a single bike works too.

⚠️ Note on width: This does extend the width of the vehicle to almost 2m-ish, so it is not suitable for narrow bike lanes, doors, etc., and it does require some extra care while maneuvering.

Requirements for use:

  • Two bike bags with a reinforced back are needed so the kids' bike saddles don't get into the rear wheel.
  • Alternatively, some MDF and cable ties work fine too (for the expected duration of use).

Hardware needed (per hook — you will need 4x of each):

  • M5 screw (40mm)
  • Washer + nut

I use it with this Thule MIK mount.

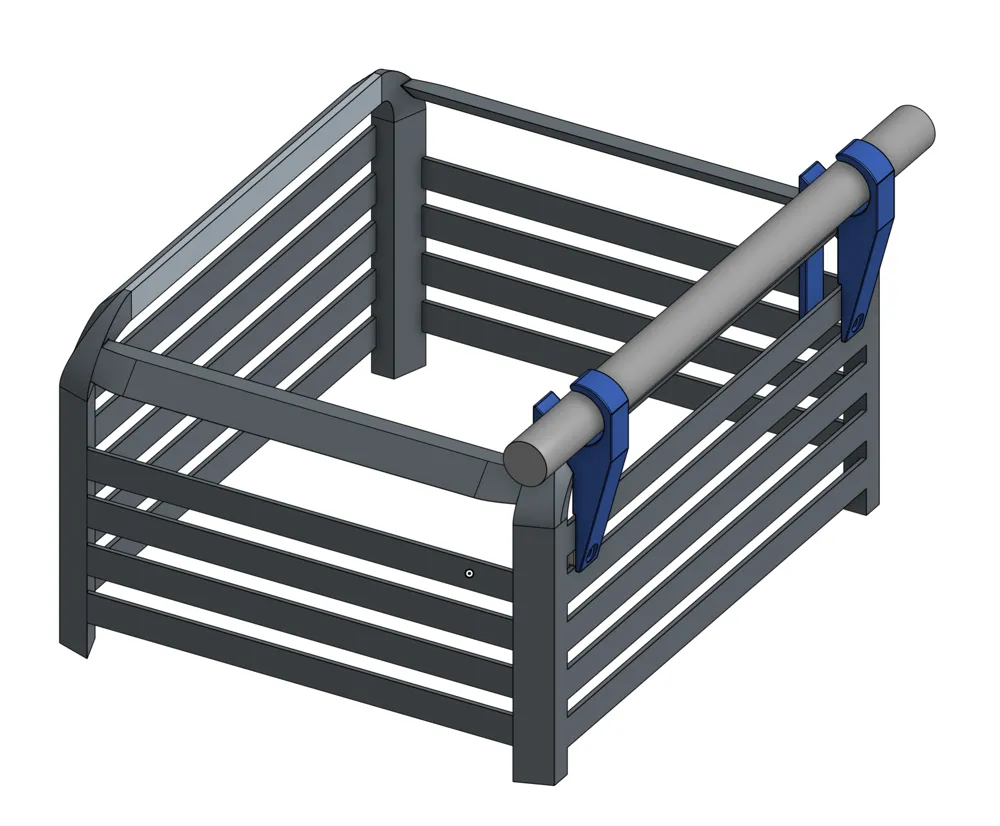

OnShape source document here. That does include an alternative version for use without the Thule basket (direct MIK mount), effectively reducing the vehicle width.



Alternative version with reduced vehicle with that mounts directly on an MIK rack without a Thule basket here.
